Excavators Hydraulic Magnets

As one of the leading Excavator magnet manufacturers in China, JIANGTU has 12 years of experience in scrap magnet products. Standardized production lines can provide better prices and quality, save costs, and help you turn waste into treasure.

There are two types of JIANGTU excavator hydraulic magnets according to their features:

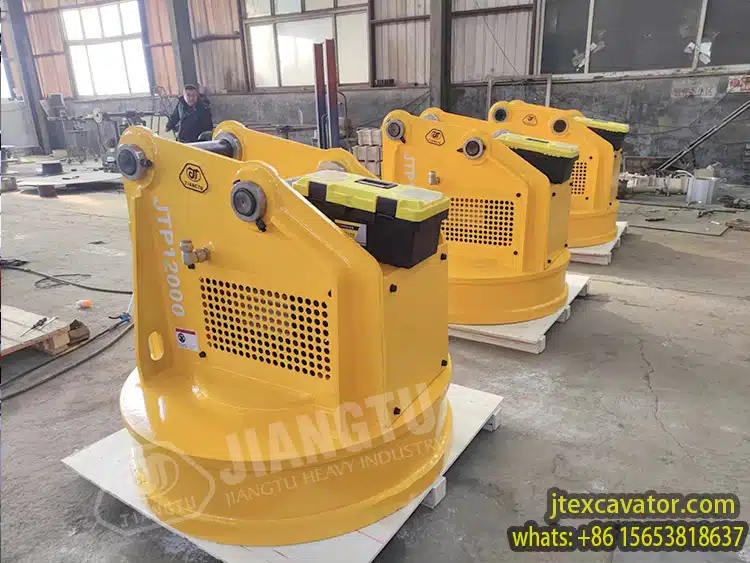

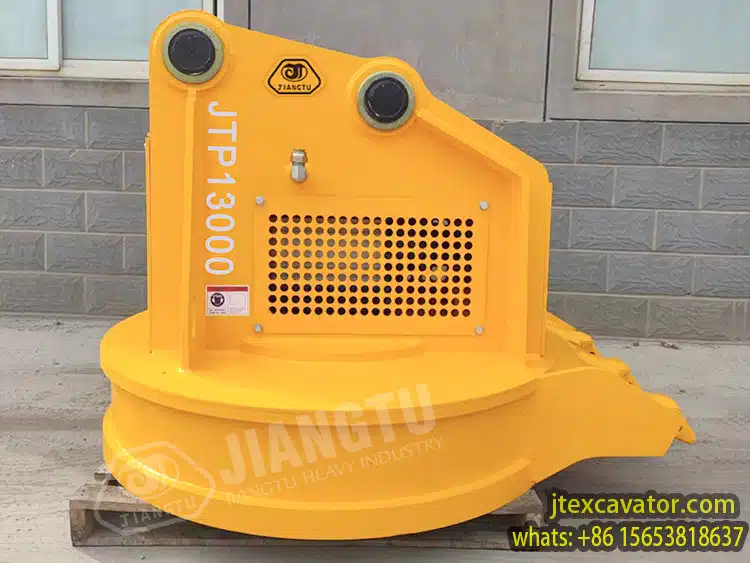

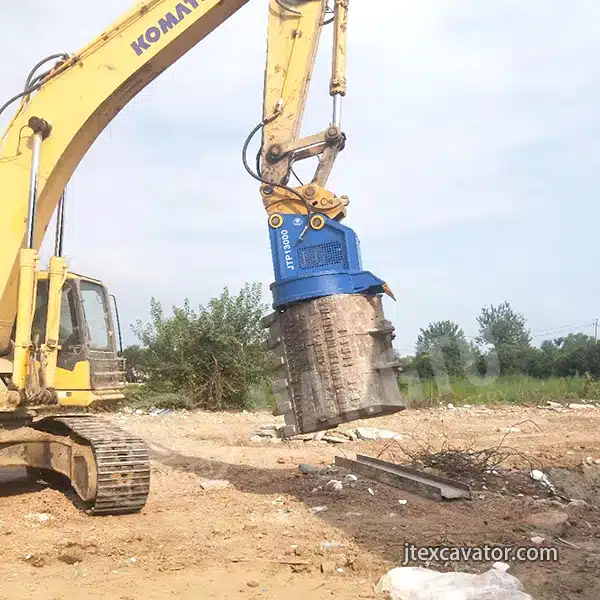

Hydraulic magnets with teeth

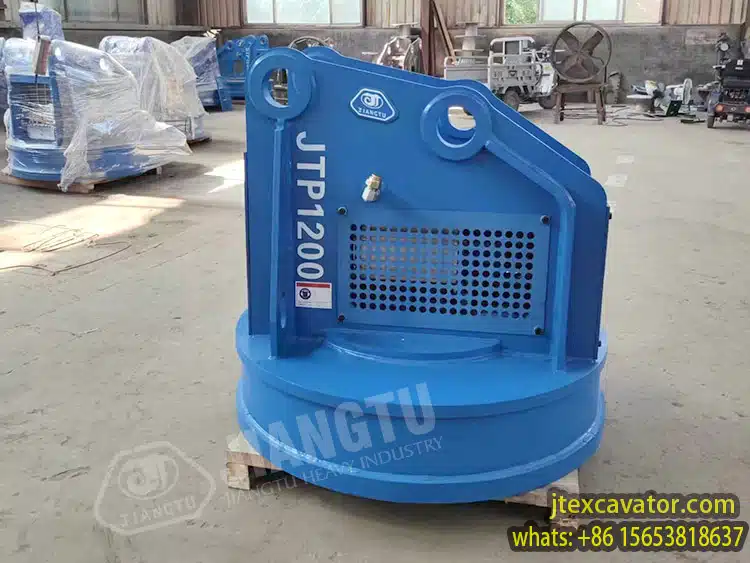

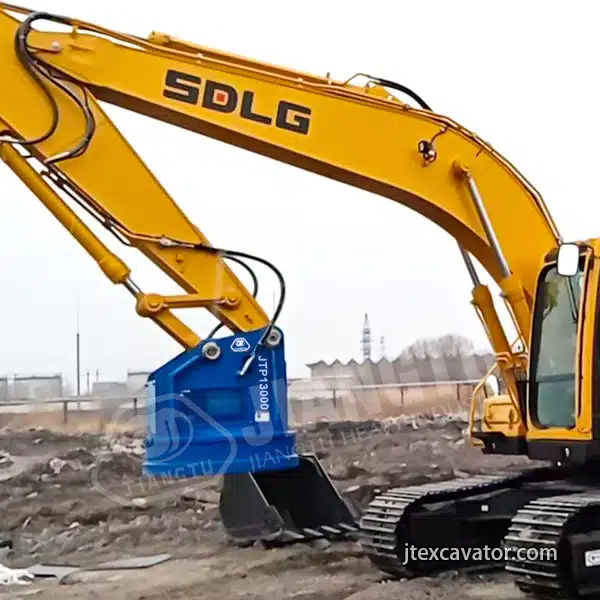

Hydraulic magnets without teeth

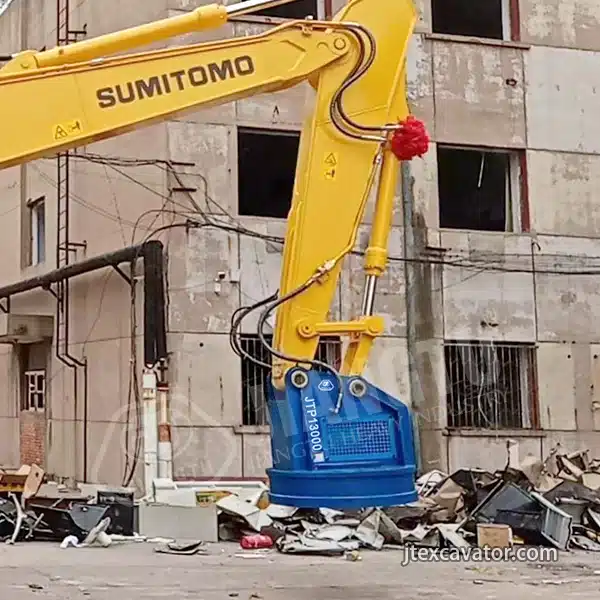

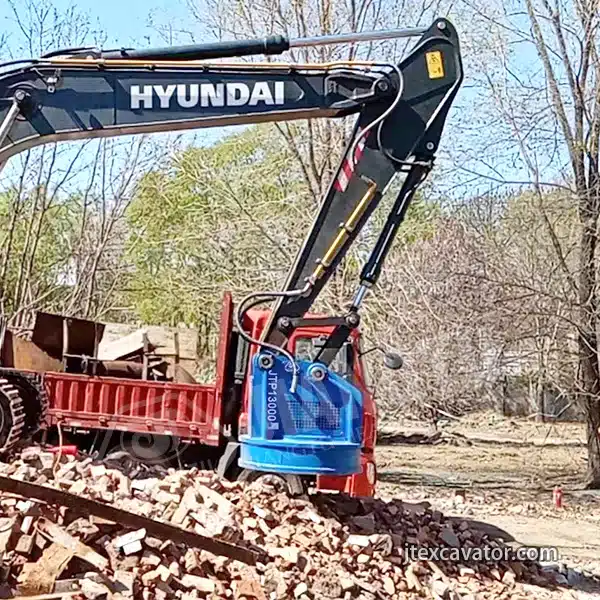

They are mainly used in demolition sites. The teeth are designed to rake debris, facilitating the extraction of ferrous materials.

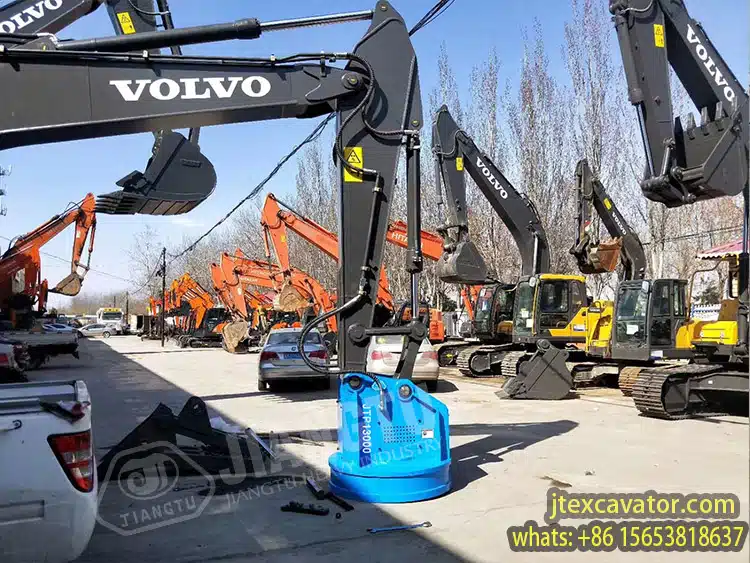

Hydraulic magnets are among the most powerful and flexible magnets used to process scrap metal. Because it connects directly to the excavator’s hydraulic lines, it can be installed quickly and does not require any additional power supply. In short: no electricity required, maximum freedom of use. This type of excavator magnet is often used for construction relocation, steel mills, scrap steel and other industries of steel and magnetic materials sorting, distribution and transportation.

Specification
Features
Images & Video
Certificate
Production Process

Specification – Excavator Hydraulic Magnets

The following are the technical parameters of the Excavator Hydraulic Magnets

Item	Unit	Without Teeth		With Teeth
Item	Unit	JTP1200	JTP1300	JTP1200T	JTP1300T
Weight	kg	1750	1900	1850	2050
Overral size	mm	φ1200*1150	φ1300*1150	140012001150	150013001150
magnetic force	gs	6000（8000）	8000（10000）	6000（8000）	8000（10000）
Hydraulic pressue	Mpa	200	200	200	200
Oil flow	L/min	60	60	60	60
Power	W	15000	20000	15000	20000
Voltage	V	100-500	100-500	100-500	100-500
Excavator	Ton	18-25	25-35	18-25	25-35

Main Advantages of Hydraulic Magnets

Simple installation, convenient operation, low failure rate;
No noise, meet environmental protection requirements;
Material high-strength and wear-resistant manganese plate, stronger and more durable in use.
By computer optimization design, it has a reasonable structure, light self-weight, high suction power and low energy consumption;
The excitation coil has been treated with a special process to improve the electrical and mechanical energy of the coil. The heat resistance level of the reinforced material has reached level C, and the service life is longer;
The rated power of ordinary electromagnets has been increased from 50% to 60%, which improves the utilization rate of electromagnets.

Images & Video

Certificate

Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
