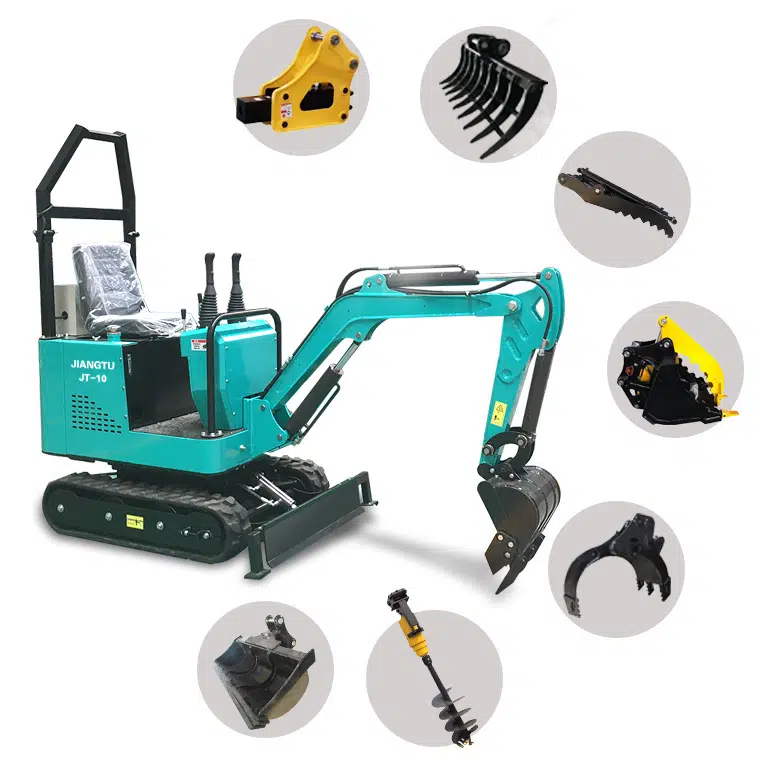

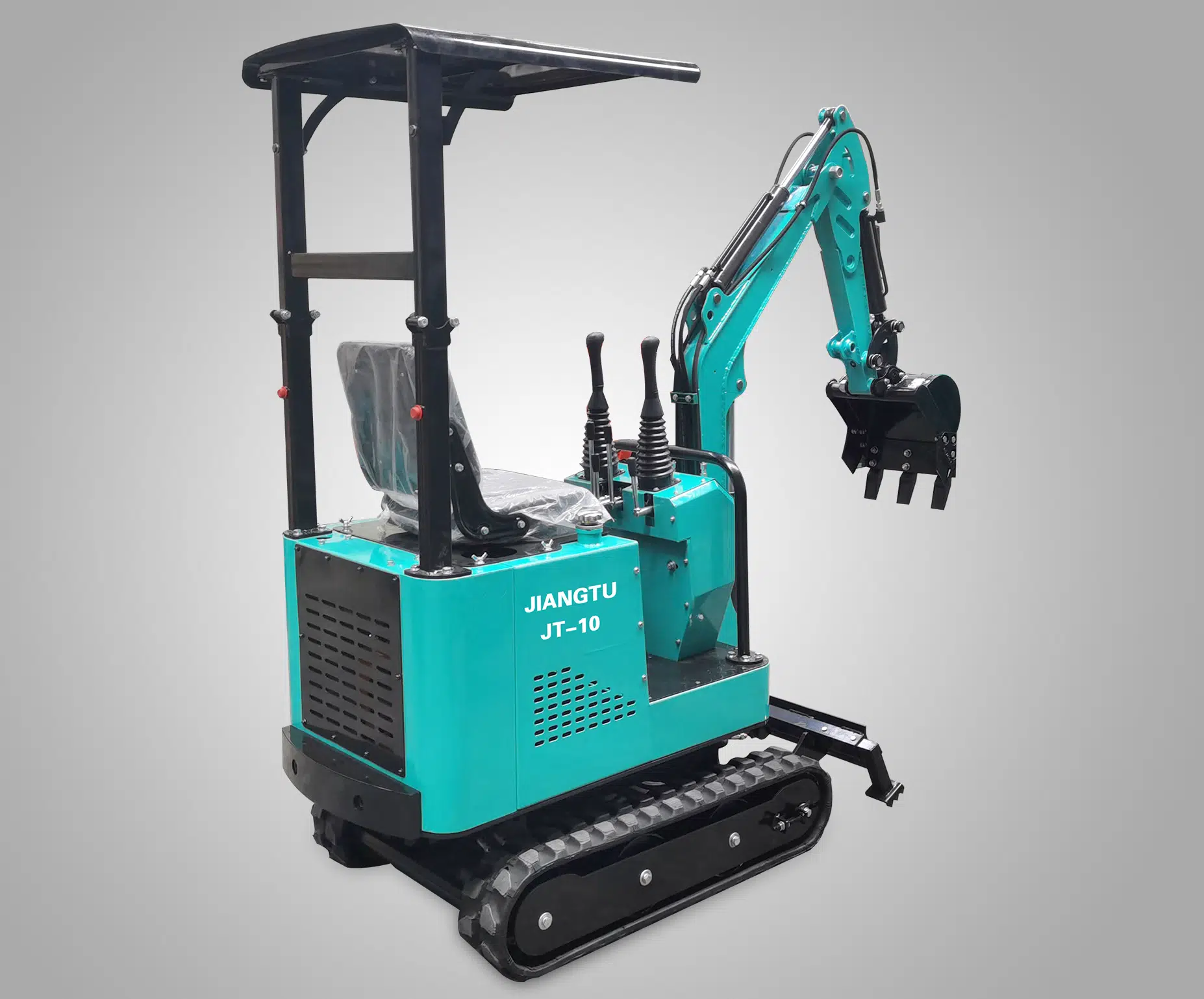

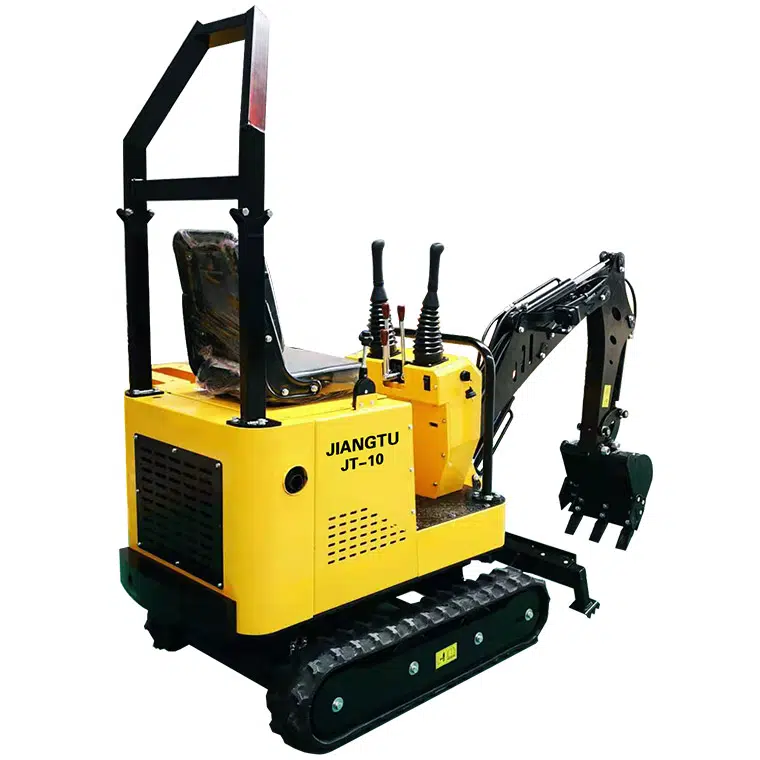

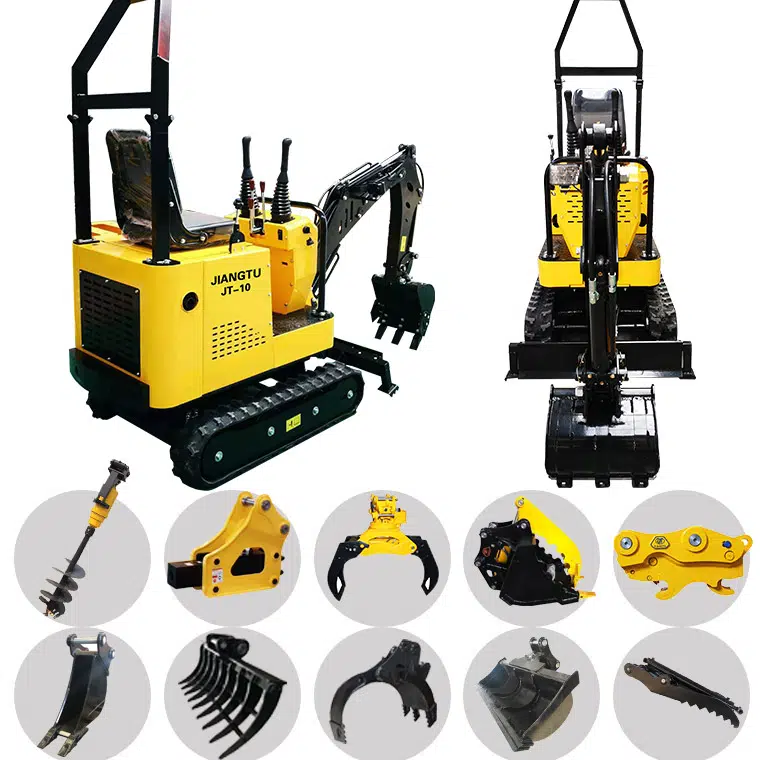

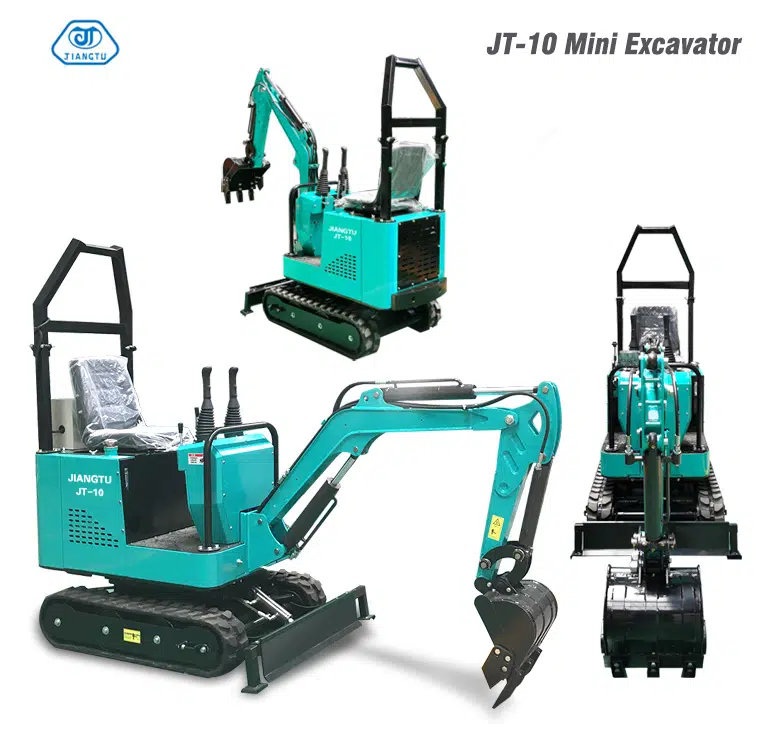

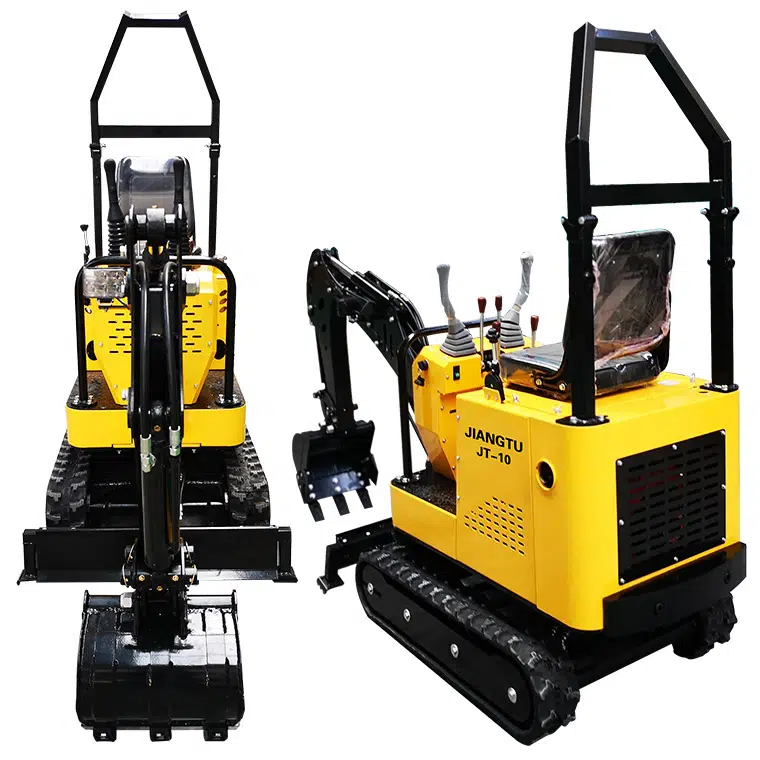

JT10-Compact Excavator(0.76 Ton)
JIANGTU has a full range of small excavators, which are well-known in the global market for their low prices and high-cost performance, which are suitable for your various needs.
Main Advantages of JIANGTU JT10-Compact Excavator:
- Euro V stage Koop or Changchai engine available.
- Anti-rollover safety folding frame design prevents the excavator from being rolled over.
- Equipped with a full cast iron hydraulic pump to prolong the lifetime.
- Equipped with imported Continental oil pipes to ensure the quality.
Brochures Download
Specification – JT10-Compact Excavator
The following are the technical parameters of the compact excavator JT10.
Rated Power | KW | 9.2 |
Bucket capacity (SAE) | m3 | 0.03 |
Engine Model | Changchai 192 | |
Operating Weight | Kg | 758 |
Max. Digging Force | KN | 7.5 |
Pump Type | Single gear pump | |
Working Pressure | MPa | 14 |
Swing Speed | rpm | 12 |
Travel Speed | KW/h | 2.2 |
Max. Climbing Degree | o | 30 |
Grounding pressure | Kpa | 19 |
Working Range
Max. Digging Reach | mm | 2450 |
Max. Digging Depth | mm | 1410 |
Max. Digging Height | mm | 2420 |
Max. Dumping Height | mm | 1650 |
Min. Swing Radius | mm | 1100 |
Max. Ground Clearance of Dozer | mm | 120 |
Max. Supporting Depth of Dozer | mm | 200 |
Dimensions
Total width | mm | 820 |
Total height | mm | 1400-1900 |
Total length | mm | 2430 |
Track width | mm | 150 |
Min. Ground Clearance | mm | 80 |
Track Ground Length | mm | 1140 |

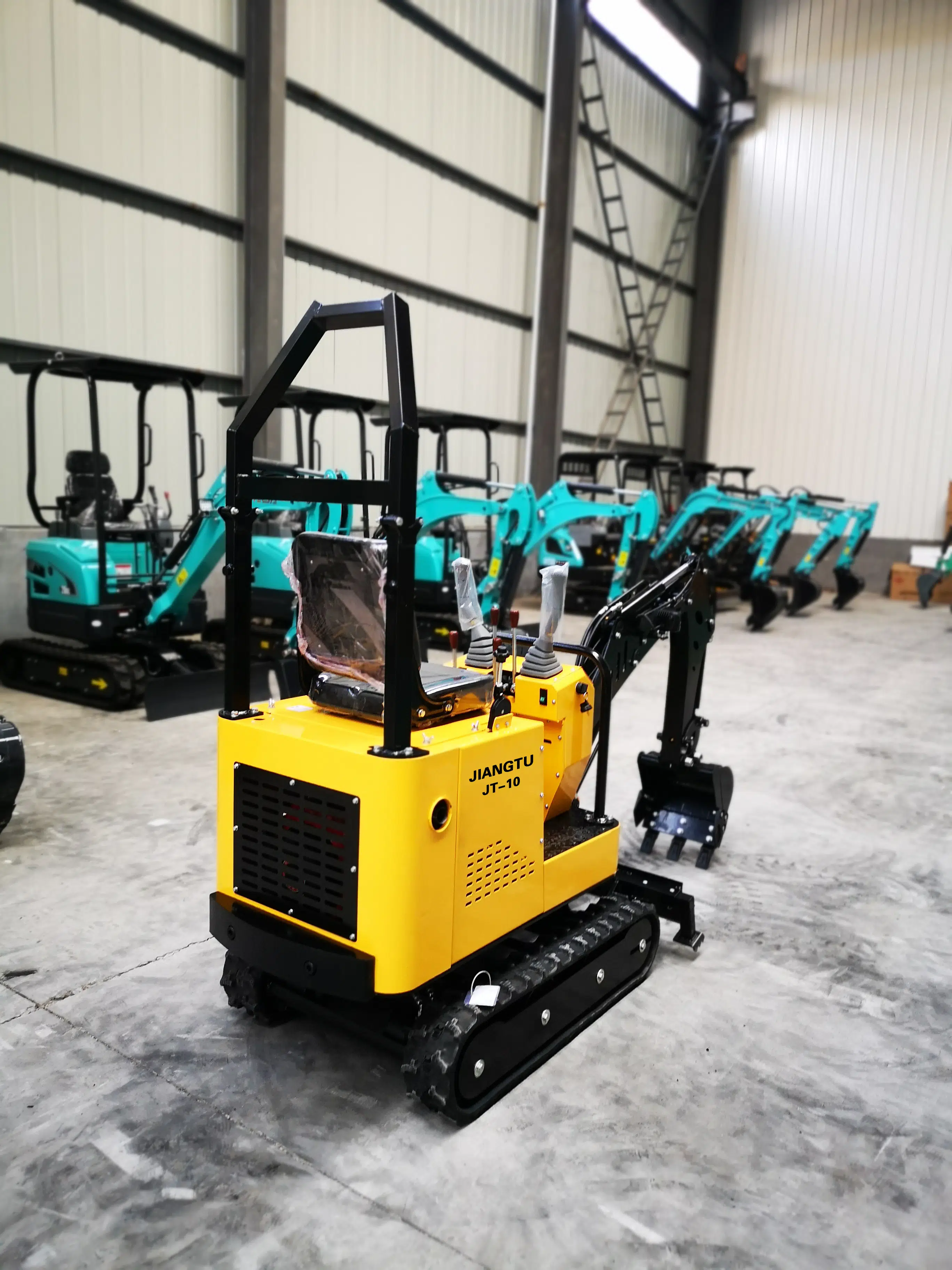

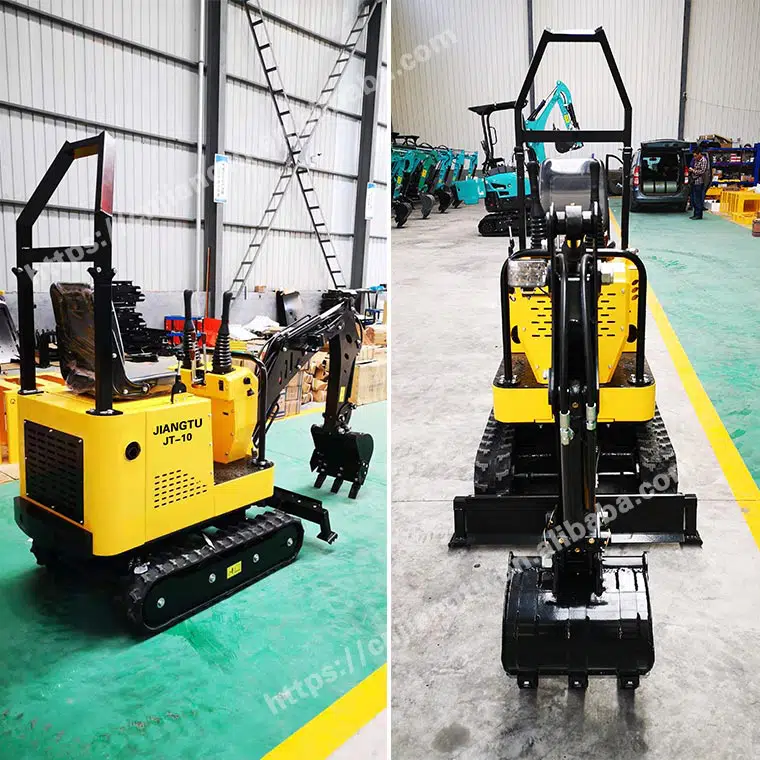

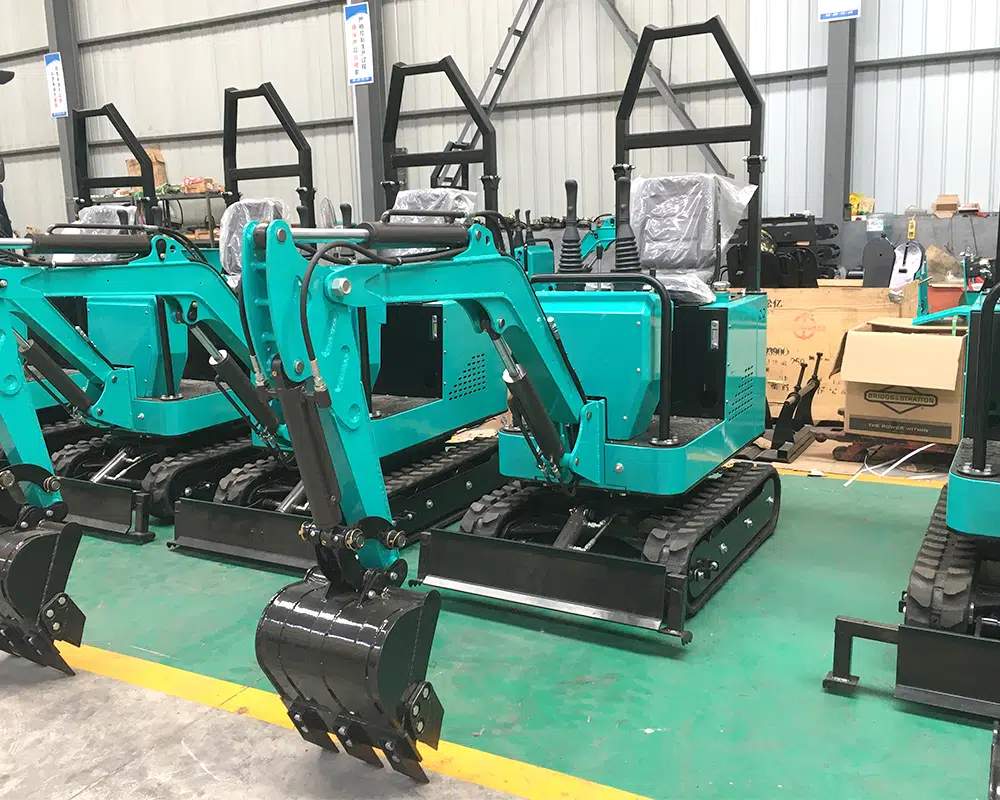

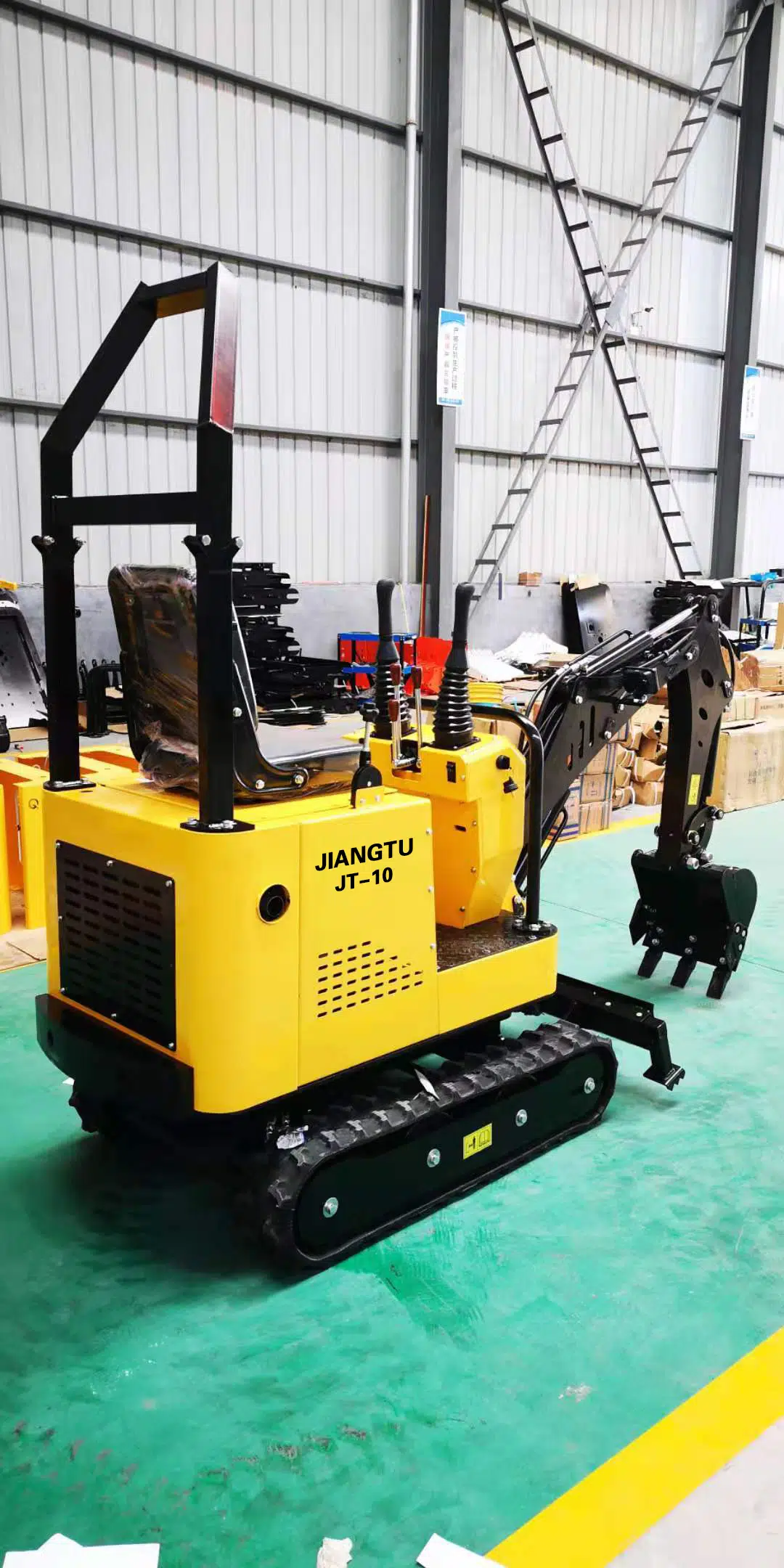

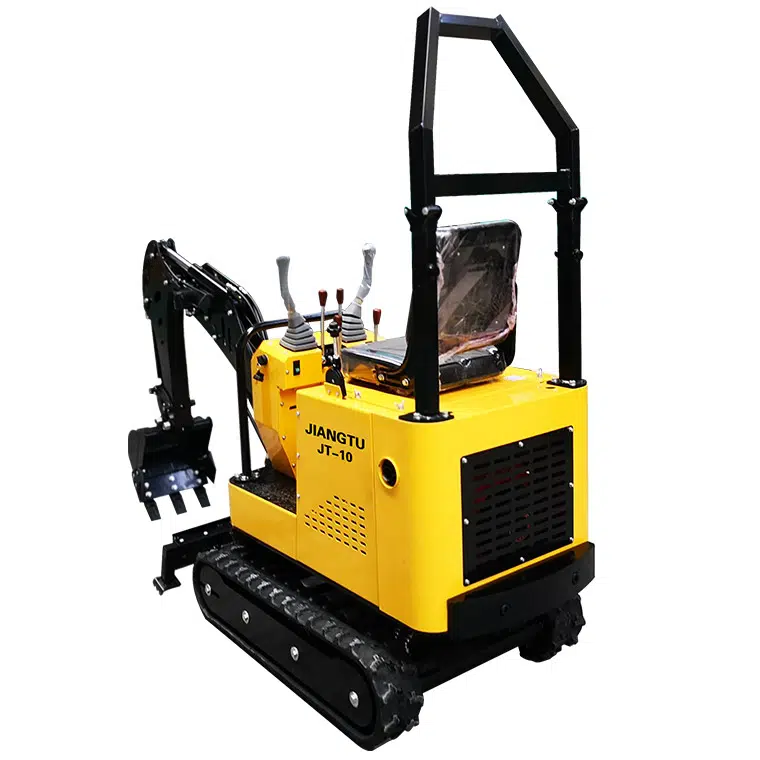

Product Images & Video
Main Advantages of JIANGTU JT10-Compact Excavator
![](https://jtexcavator.com/wp-content/uploads/2021/03/details-10-1.jpg)
![](https://jtexcavator.com/wp-content/uploads/2021/03/jt10-advantage.jpg)
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
