JT08C-Compact Excavator(0.85 Ton)
JIANGTU mini excavator JT08C, The smallest mini-excavator ever made, its width:840mm, height:1040mm, length:2876mm, Weight:850kg. It’s perfect for tight job sites because of its extremely small size.
JIANGTU has a full range of small excavators, which are well-known in the global market for their low prices and high-cost performance, which are suitable for your various needs.
Main Advantages of JT08C-Compact Excavator:
- Koop or Changchai engine which has low fuel consumption and high efficiency.
- The excavator is very compact and easy to operate.
- The shovels can dig very tight spaces easily.
- JT08C has a more sensitive operation and control, more stable and reliable.
Brochures Download
Specifications – JT08C
The following are the technical parameters of the compact excavator JT08C.
| Model | JT08C |
| Operating weight (ton) | 0.85 |
| Bucket capacity (cbm) | 0.022 |
| Engine model | KOOP KD192F-1 |
| Rated power (kw/r/min) | 7.0/3000 |
| Hydraulic pump model | China Brand |
| Max.flow (L/min) | 18 |
| Working pressure (Mpa) | 16 |
| Control valve model | China Brand |
| Swing motor model | OMR200 |
| Travel motor model | SMT310 |
| Fuel tank capacity (L) | 7 |
| Hydraulic oil tank capacity (L) | 14.5 |
| Travel speed (km/h) | 1.9 |
| Swing speed (r/min) | 13 |
| Max. climbing degree (%) | 58 |
| Arm digging force | 4.6 |
| Bucket digging force (KN) | 7.2 |
| Average grounding pressure (Kpa) | 20 |
| A-Overall length (mm) | 2876 |
| B-Overall width (mm) | 840/908 |
| C-Overall height (to top of boom)(mm) | 1040 |
| D-Overall height (to top of cab)(mm) | 1495 |
| E-Counterweight ground clearance(mm) | 385 |
| F-Min. ground clearance (mm) | 132 |
| G-Tail swing radius (mm) | 800 |
| H-Track Ground Length (mm) | 900 |
| J-Track length (mm) | 1233 |
| K-Track gauge (mm) | 670 |
| L-Track width (mm) | 840 |
| M-Track shoe width (mm) | 180 |
| N-Turntable width (mm) | 760 |
| O-Max. digging height (mm) | 2550 |
| P-Max. dumping height (mm) | 1687 |
| Q-Max. digging depth (mm) | 1787 |
| R-Max. vertical wall digging depth (mm) | 1626 |
| T-Max. digging reach (mm) | 3077 |
| U-Max. digging reach at ground level (mm) | 2992 |
| V-Min. swing radius (mm) | 1483 |
| X-Distance between center of rotation and tail length (mm) | 795 |
| Y-Track shoe thickness (mm) | – |
| Z-Height of counterweight (mm) | 366 |
| A1-Ground length (in transportion)(mm) | 2650 |
| Arm length (mm) | 800 |
| Boom length (mm) | 1480 |

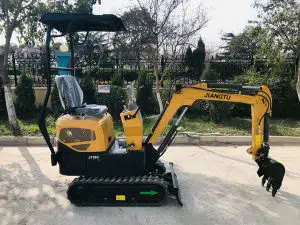

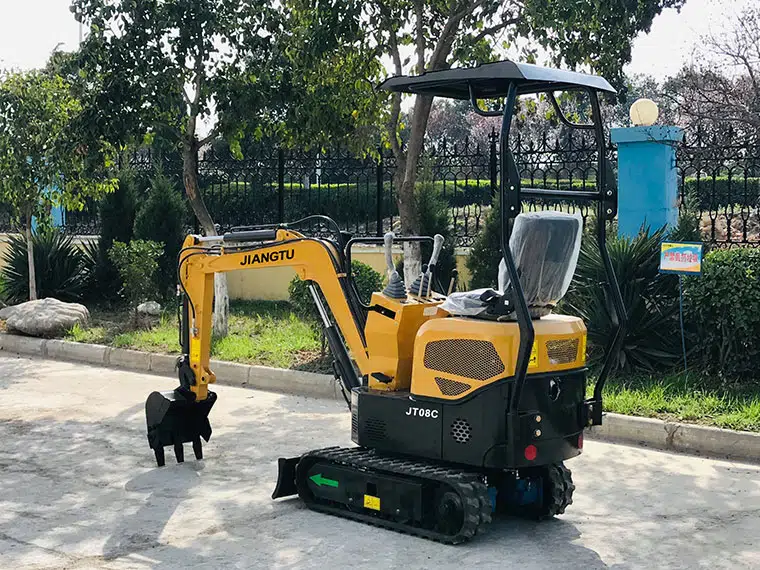

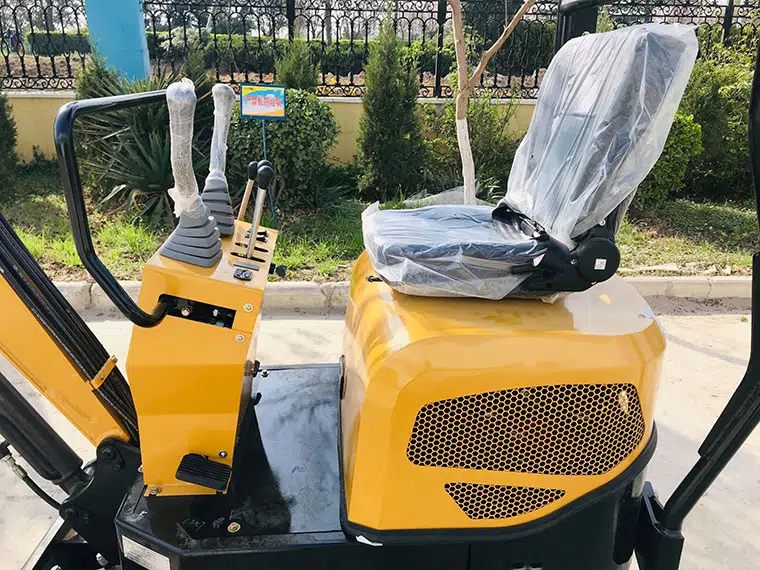

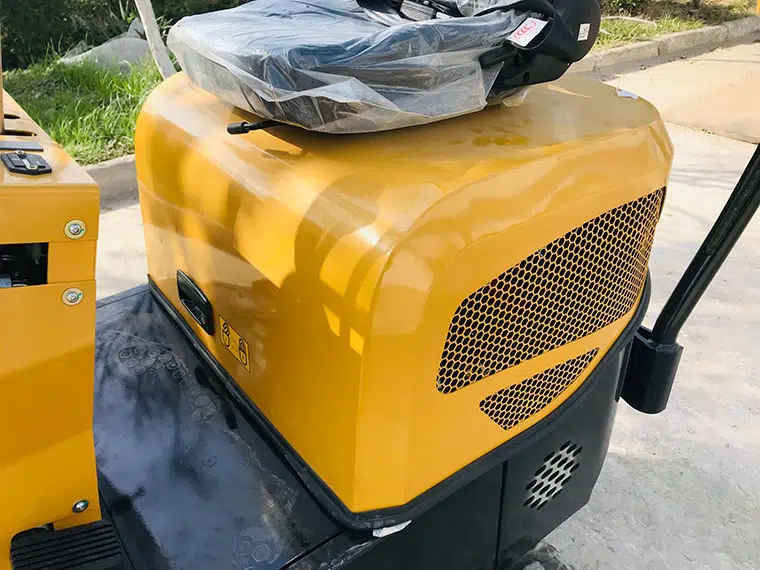

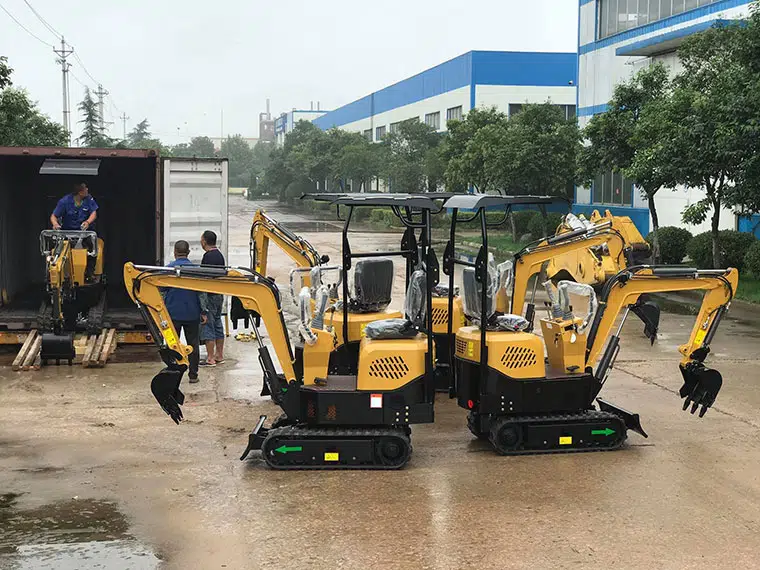

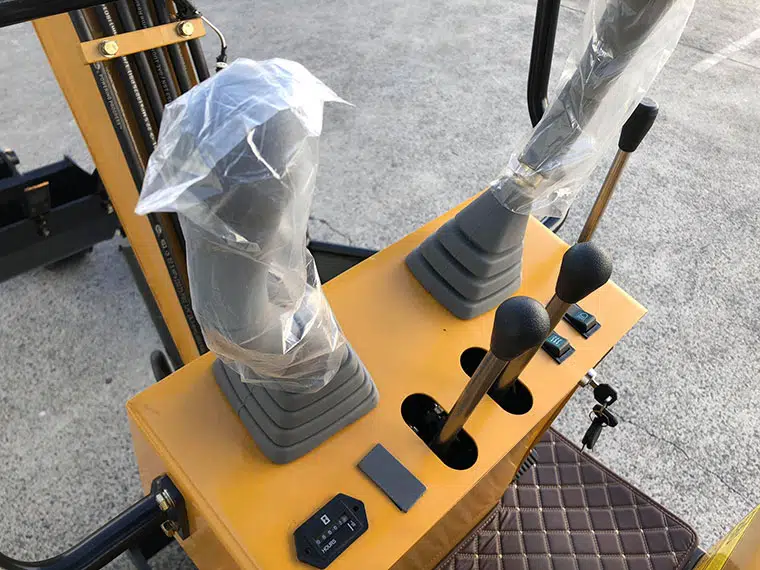

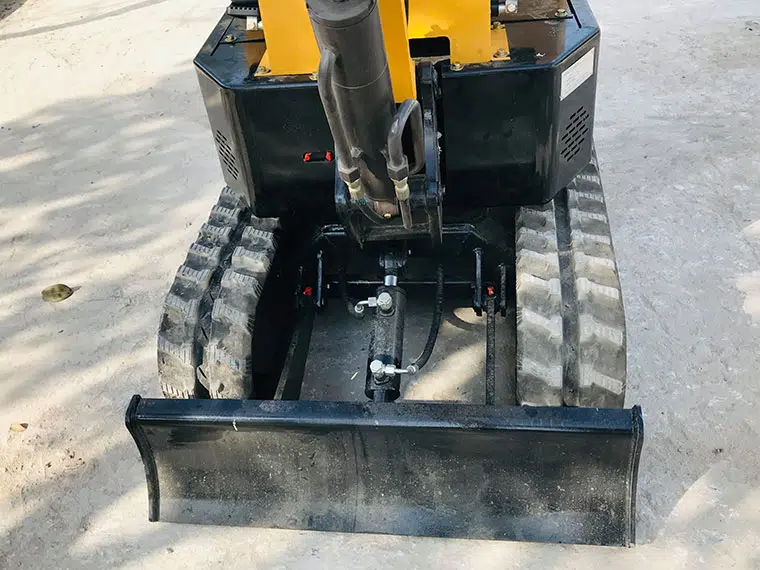

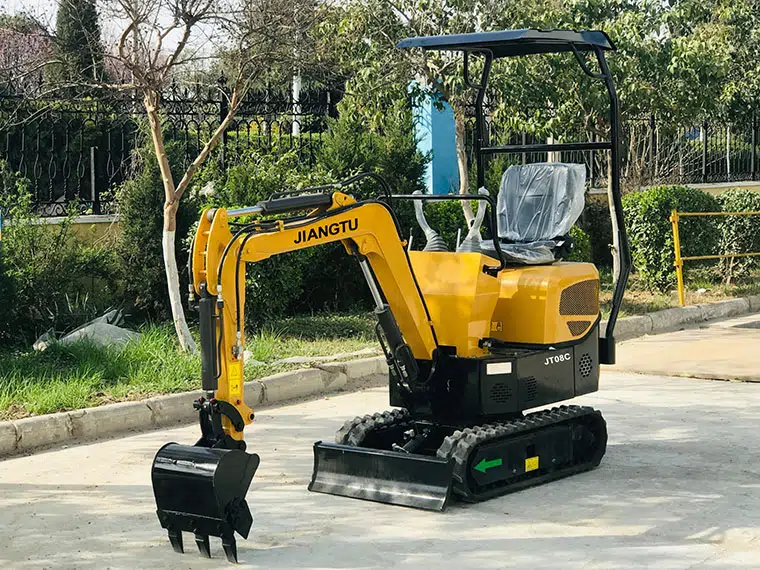

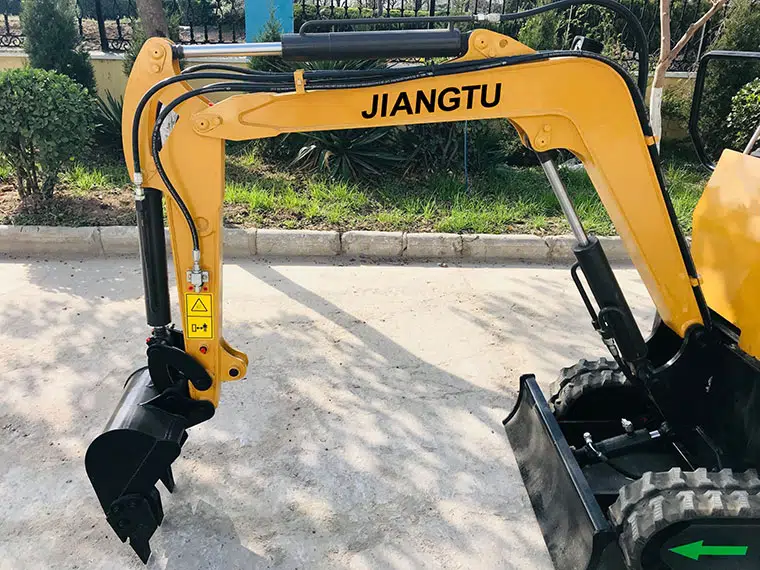

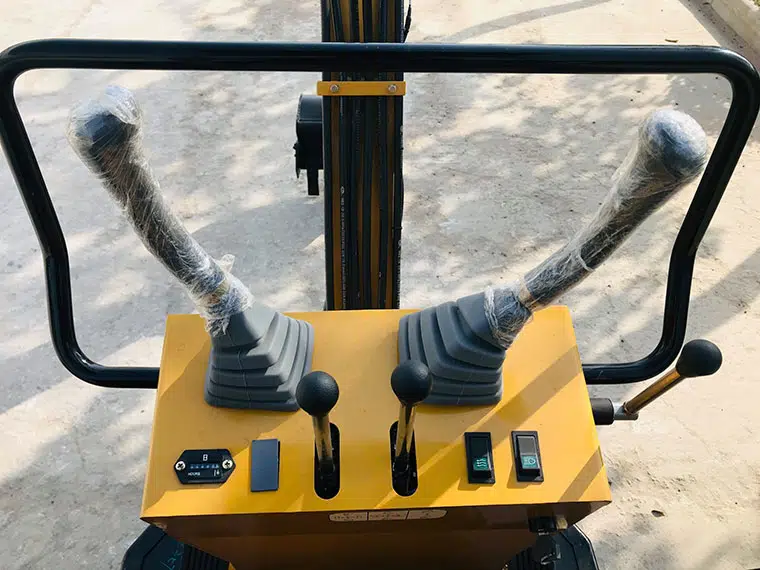

Product Images & Video
Main Advantages of JT08C-Compact Excavator
JIANGTU mini excavator JT08C, The smallest mini excavator ever made, its width:840mm, height:1040mm, length:2876mm, Weight:850kg. It’s perfect for tight job sites because of its extremely small size.
JT08C small excavator can work in narrow spaces for garden uses such as digging holes for trees or clearing land, digging pond etc. Small excavator would be the best around a small farm. They are sometimes called compact excavators, mini diggers or micro excavators.
- Koop or Changchai engine which has low fuel consumption and high efficiency.
- The excavator is very compact and easy to operate.
- The shovels can dig very tight spaces easily.
- JT08C has a more sensitive operation and control, more stable and reliable.
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
