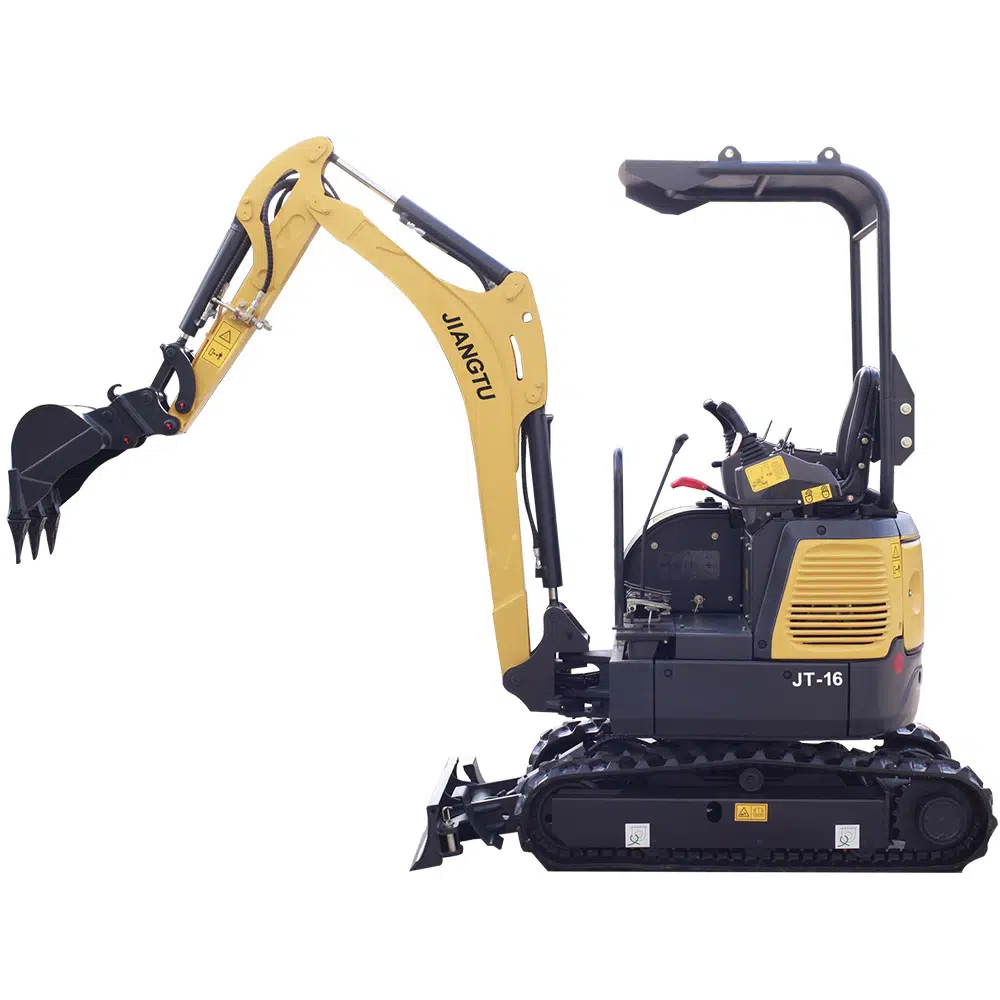

JT16-Compact Excavator (1.8 Ton)
JIANGTU has a full range of small excavators, which are well-known in the global market for their low prices and high-cost performance, which are suitable for your various needs.
Main Advantages of JIANGTU JT16-Compact Excavator:
- Imported Yanmar engine, EURO V stage.
- Imported Parker or Eaton main pump, valve, swing motor, and travel motor.
- Air filter with electronic differential pressure indicator and it can automatically alarm in case of blockage.
- Swing booms meet narrow work conditions.

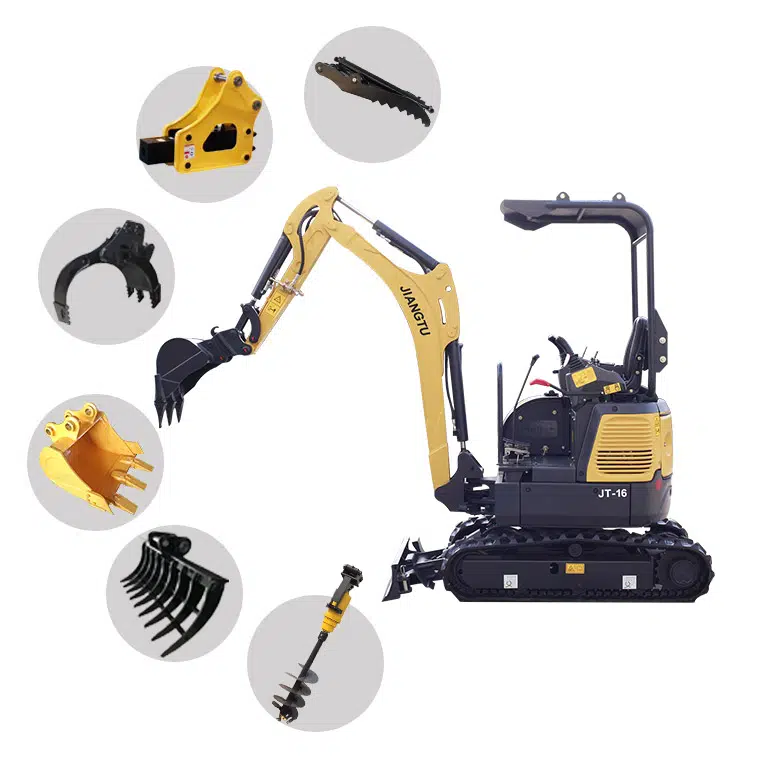

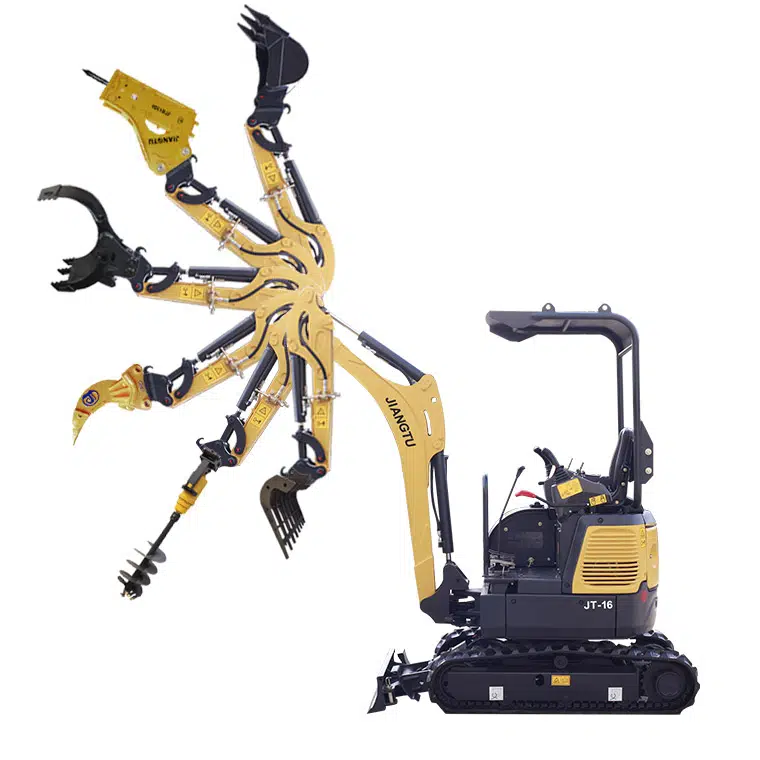

- Optional quick hitch, hydraulic breaker, ripper, grapple, and auger.
Brochures Download
Specification – JT16-Compact Excavator
The following are the technical parameters of the compact excavator JT16.
| Model | JT16 | Overall height (to top of boom) | 1157mm |
| Operating weight | 1700kg(with canopy) | Overall height (to top of cab) | 2411mm |
| Bucket capacity | 0.04m3 (SAE) | Counterweight ground clearance | 484mm |
| Engine model | Yanmar 3TNV70 | Min. ground clearance | 175mm |
| Rated power | 10kw/2200rpm | Tail swing radius | 660mm |
| Hydraulic pump model | CASAPPA, Italy | Track Ground Length | 1210mm |
| Working pressure | 21 (Mpa) | Track length | 1588mm |
| Max.flow | 2×20+15.1(L7min) | Track gauge | 760mm |
| Control valve | Hydro Control | Italy Track width | 990mm |
| Swing motor | Eaton, USA | Track shoe width | 230mm |
| Travel motor | Eaton, USA | Max. digging height | 3281mm |
| Fuel tank capacity | 28 L | Max. dumping height | 2393mm |
| Hydraulic oil tank capacity | 17.5LlankOi Level/24L | Max. digging depth | 2033mm |
| Travel speed | 2.7/5.0(km/h) | Max. vertical wall digging depth | 1605mm |
| Swing speed | 8.8 r/min | Max. digging reach at ground level | 3878mm |
| Max. climbing degree | 58% | Min. swing radius | 1625mm |
| Arm digging force | 9.1 KN | Distance between center of rotation and tail length | 665mm |
| Bucket digging force | 11.2 KN | Height of counterweight | 366mm |
| Average grounding pressure | 28 Kpa | Arm length | 950mm |
| Overall length | 3694mm | Boom length | 1829mm |
| Overall width | 1000mm |

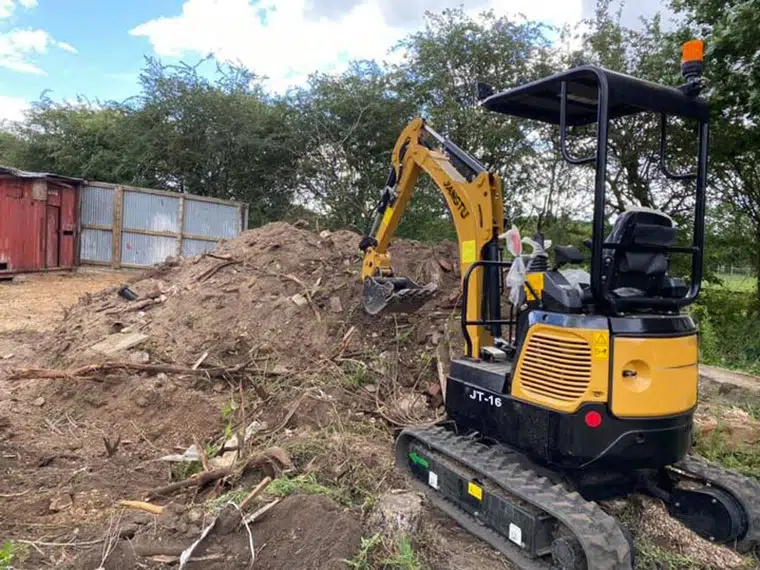

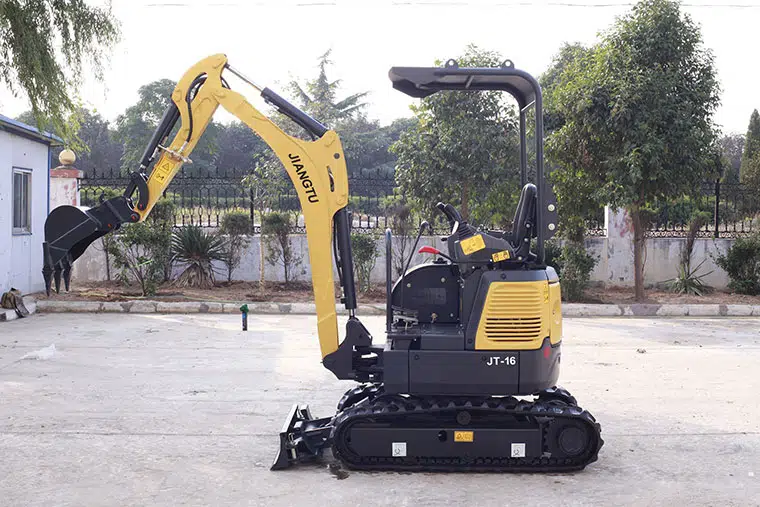

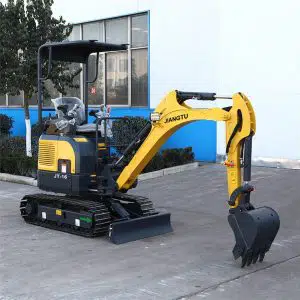

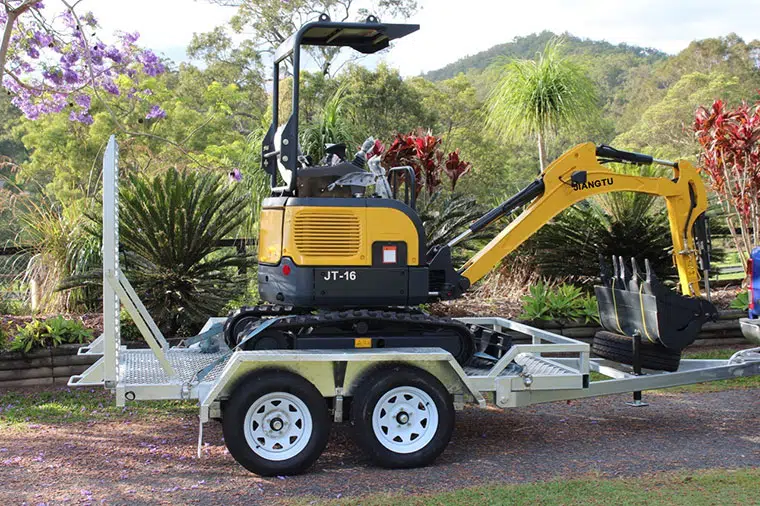

Product Images & Video
Main Advantages of JT16-Compact Excavator
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
Ready To Know More？
Find out which attachment works best for you and get a quote!
