JT18-Compact Excavator(1.76 Ton)
The JT18 mini digger weighs 1.76ton, has a width of 980mm, an extensive range of 3540mm, and a digging depth of 2310mm.
JIANGTU has a full range of small excavators, which are well-known in the global market for their low prices and high-cost performance, which are suitable for your various needs.
Main Advantages of JIANGTU Hydraulic Breaker:
- 1. Imported Kubota engine, EURO V stage.
- 2. Japan Shimadzu or USA Parker gear pump.
- 3. USA Eaton rotary motor.
- 4. Sliding telescopic rubber track.
- 5. Zero tail design makes the excavator easy to enter narrow space.
- 6. Swing boom cylinder makes the excavator more flexible.
Brochures Download
Specification – JT18-Compact Excavator
The following are the technical parameters of the compact excavator JT18.
| Operating Weight | Kg | 1760 |
| Bucket Capacity（SAE） | m³ | 0.05 |
| Max. Digging Force | KN | 15.2 |
| Swing Speed | rpm | 9 |
| Travel Ppeed | Km/h | 2.0/3.5 |
| Ground Pressure | KPa | 25 |
| Fuel Tank Capacity | L | 18 |
Engine
| Model | Kubota | D902-EF08 |
| Rated power | KW | 10.3/2200 |
| Type | diesel | Water-cooled in-line three-cylinder engine |
Hydraulic System
| Max. Flow | L/min | 39.6 |
| Rated Working Pressure | MPa | 20.6 |
| Type | Hydraulic pilot control,hydraulic safety lock |
Dimensions (transport)
| Overall Length | mm | 3540 |
| Overall Width | mm | 980/1240 (All) |
| Overall Height | mm | 2250 |
| Min. Ground Clearance | mm | 172 |
| Track Width | mm | 230 |
| Gauge | mm | 750/1070(All) |
Working Range
| Max. Digging Height | mm | 3553 |
| Max. Dumping Height | mm | 2448 |
| Max. Digging Depth | mm | 2310 |
| Max. Digging Reach | mm | 4003 |
| Max. Digging Reach at Ground Level | mm | 3900 |
| Min. Tail Swing Radius | mm | 620 |
| Operating Swing Radius | mm | 1430 |
| Boom Deflection | ° | 65 (left) 58 (right) |

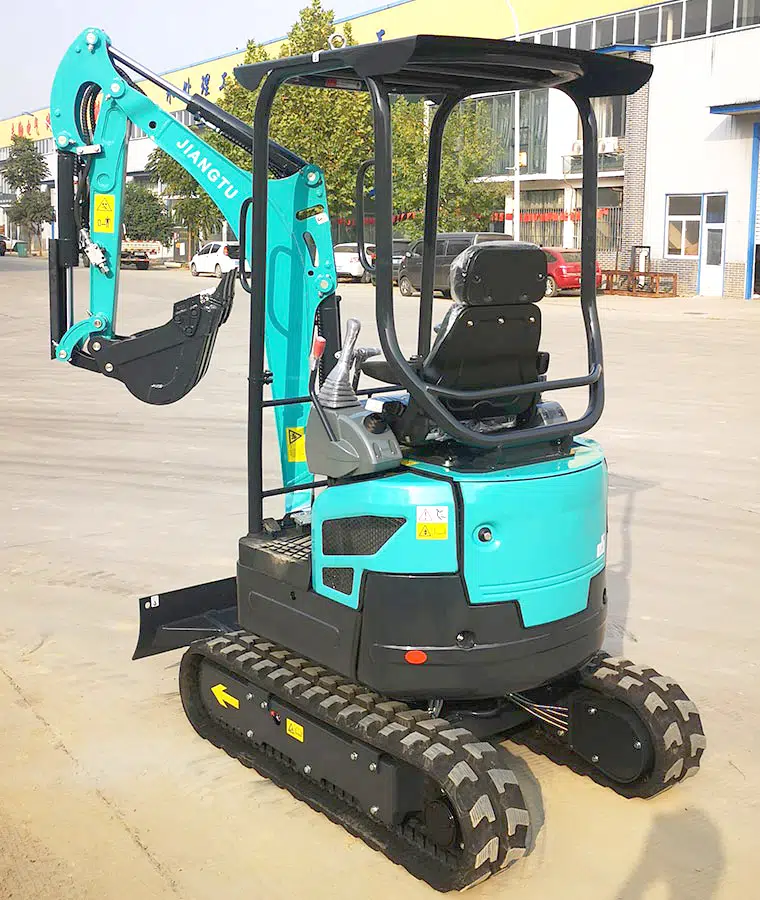

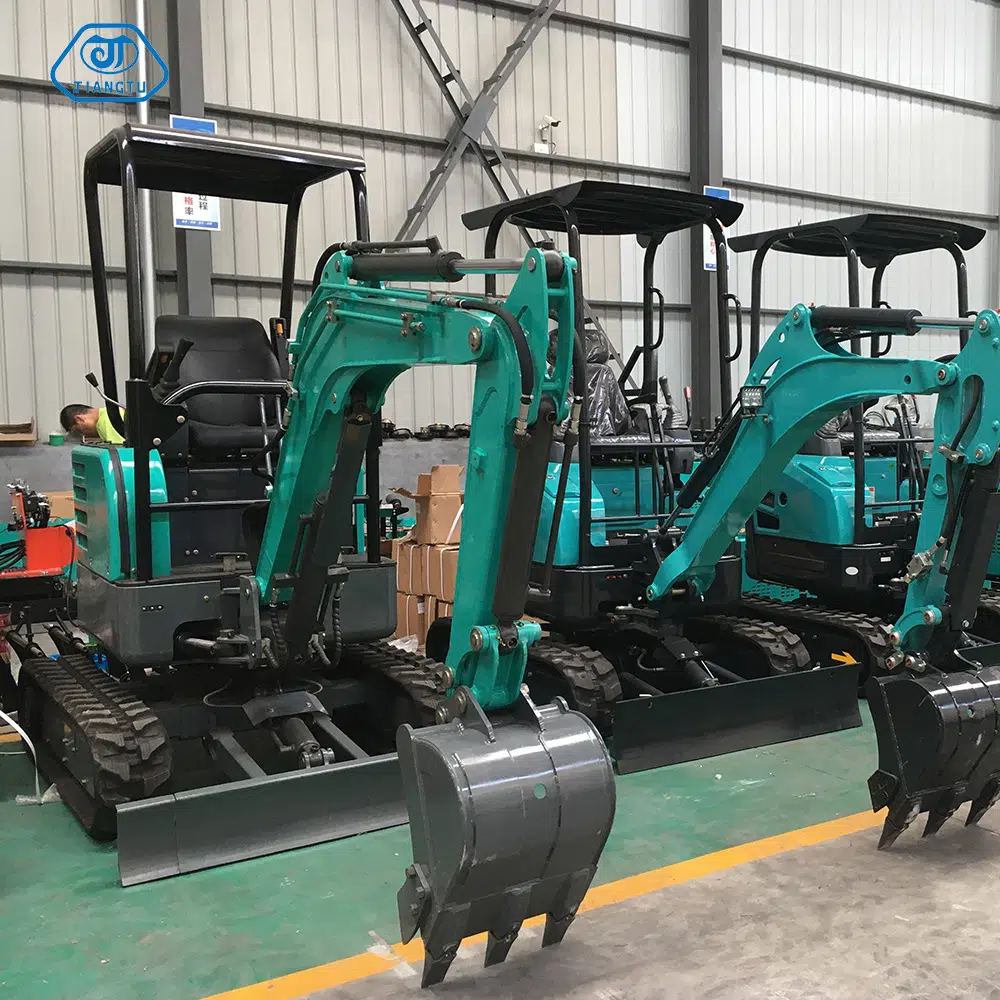

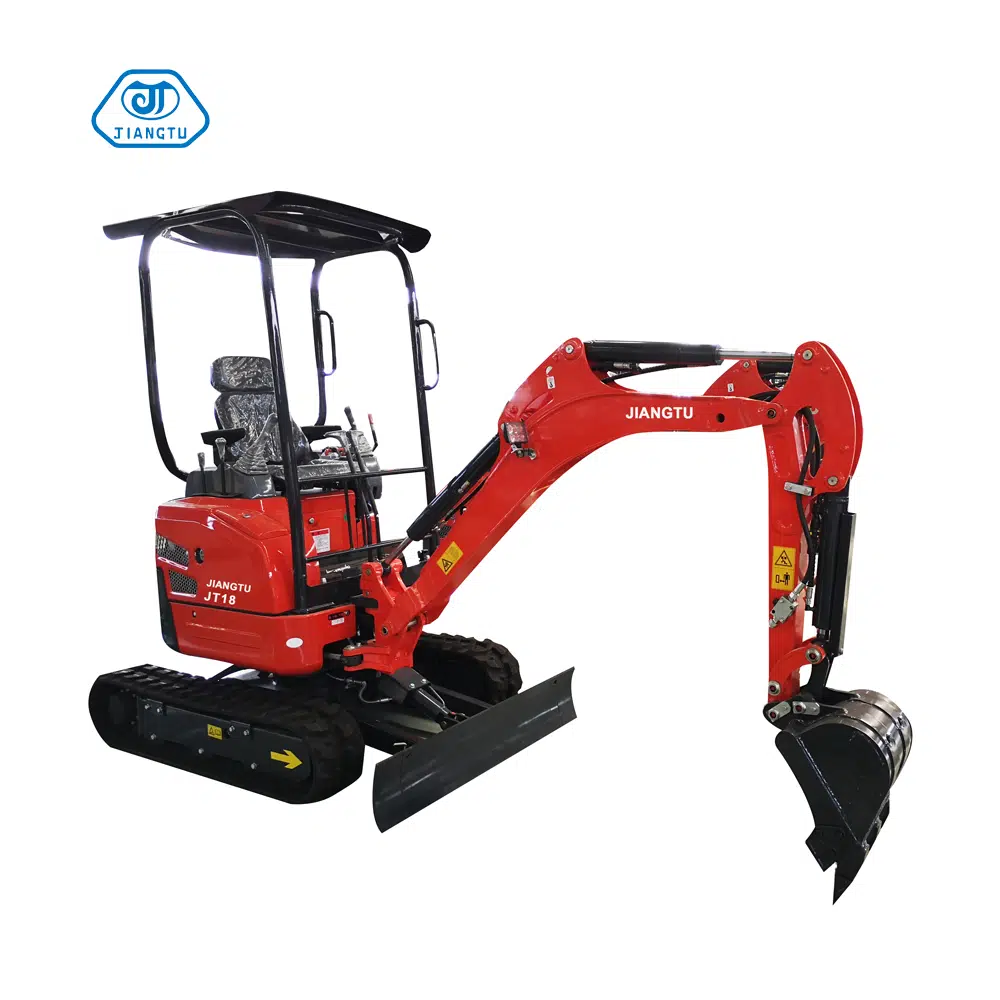

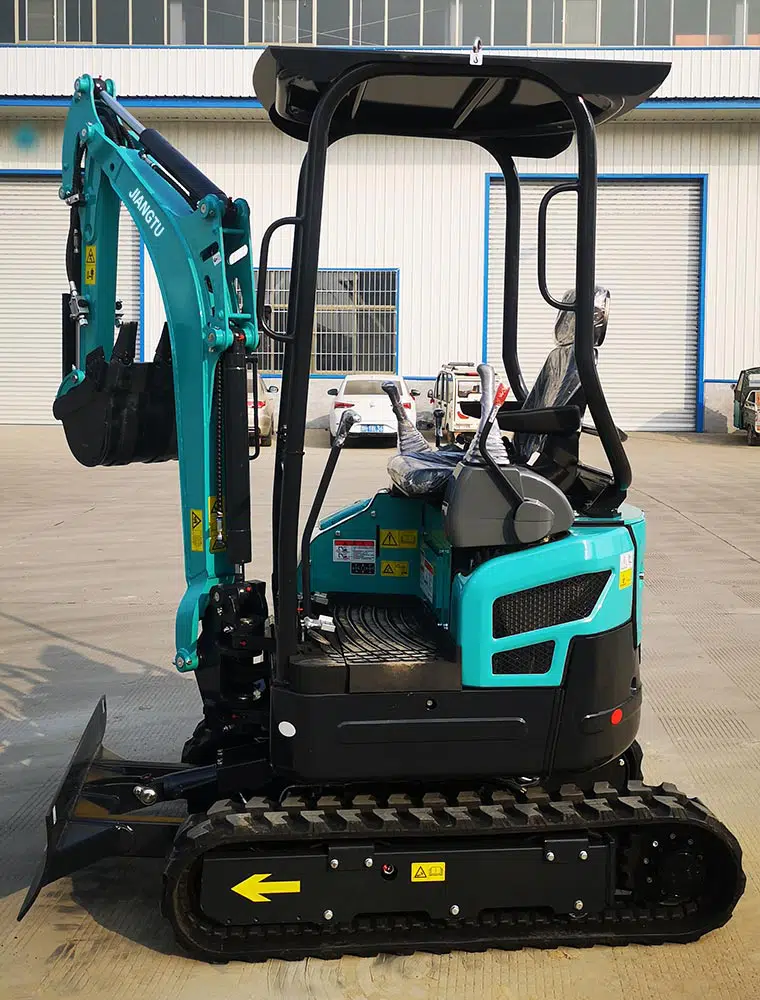

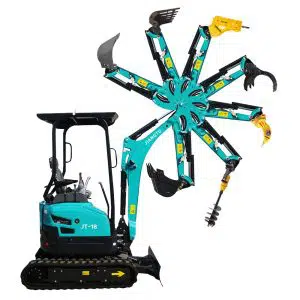

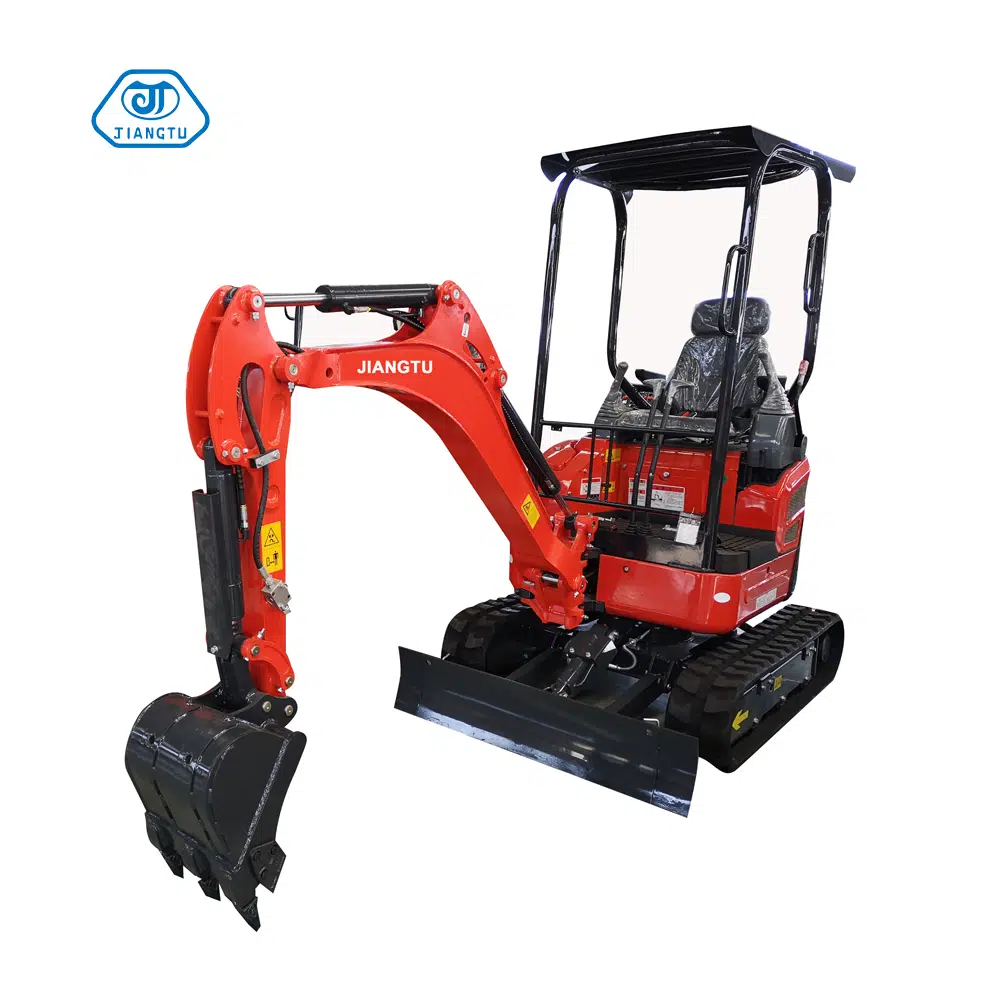

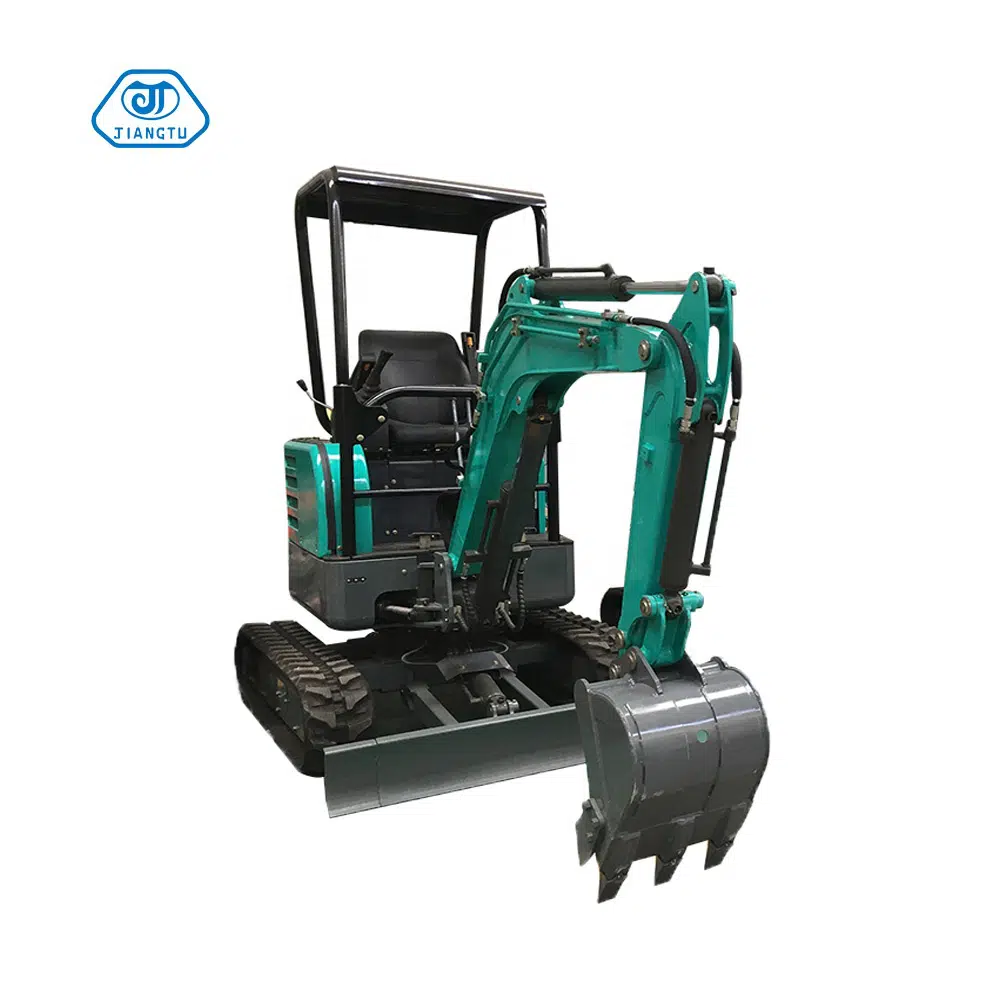

Product Images & Video
Main Advantages of JIANGTU Compact Excavator
The JT18 mini digger weighs 1.76ton, has a width of 980mm, an extensive range of 3540mm, and a digging depth of 2310mm. Its size and weight are both convenient for trailer towing; its size allows it to pass through ordinary doorways and is very suitable for working in restricted passages. It is sometimes called compact excavator, micro excavator, or small excavator.
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
