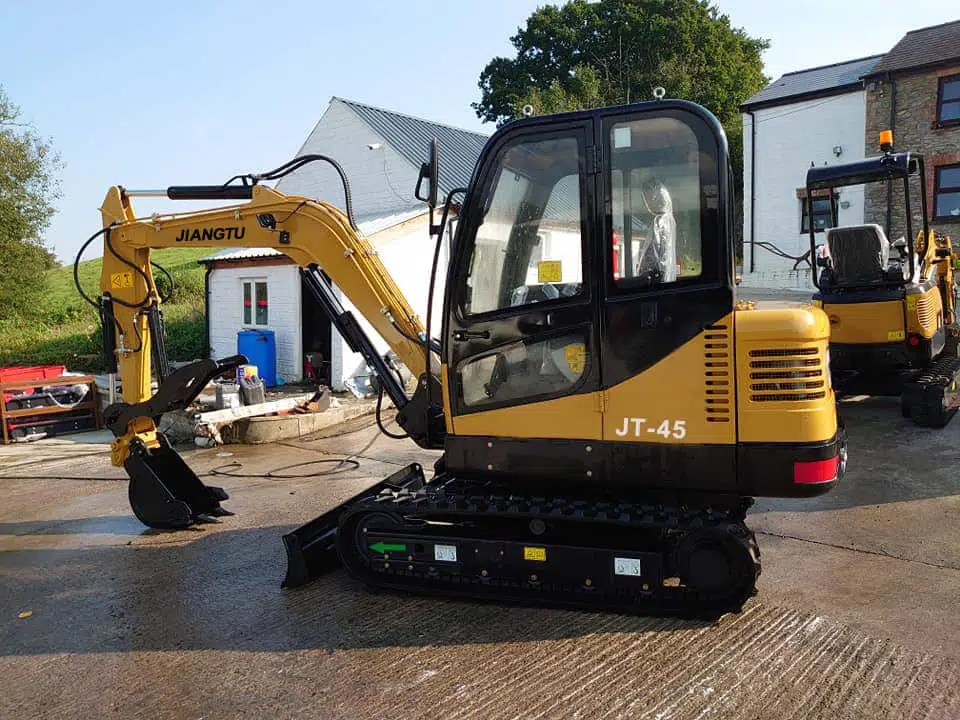

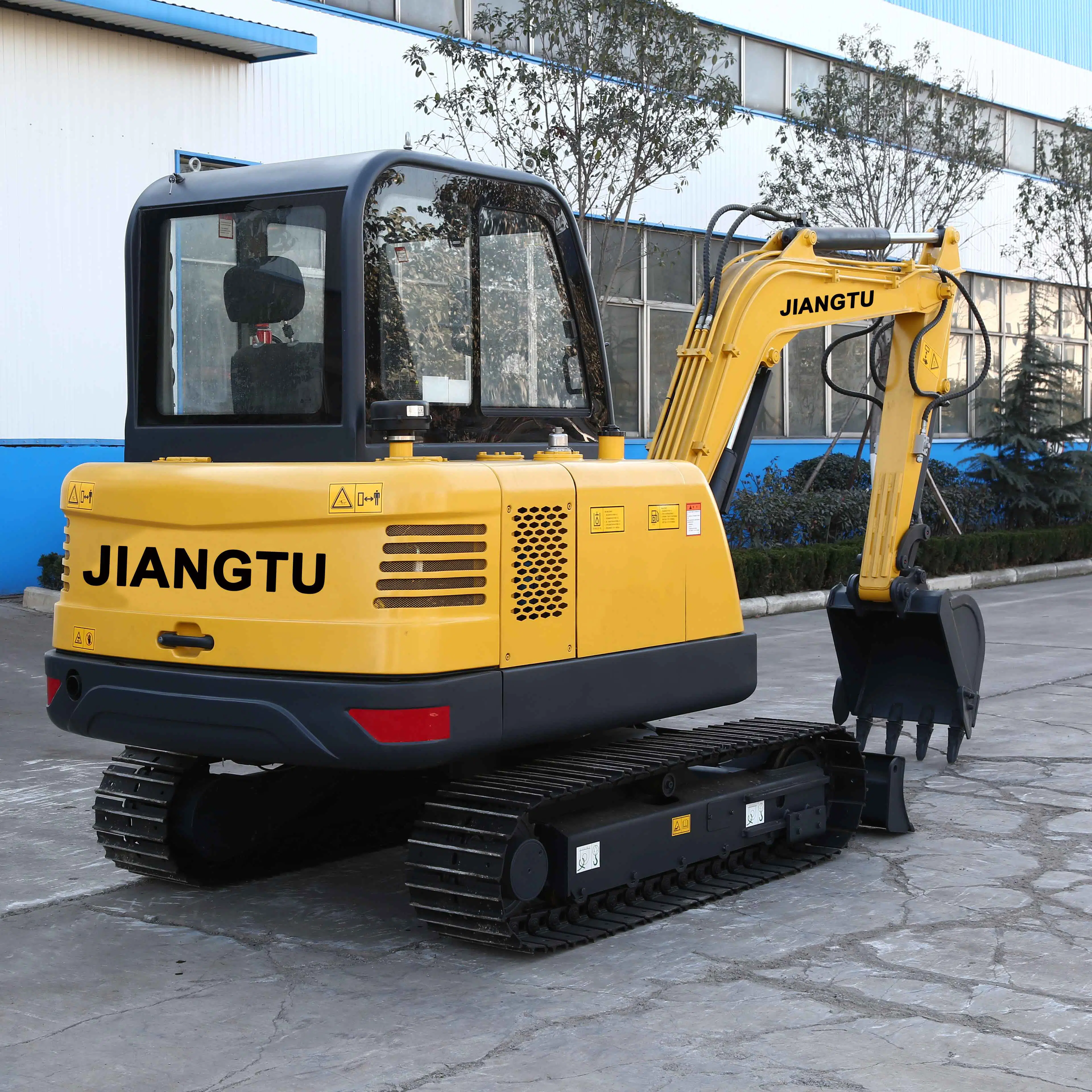

JT45-Compact Excavator(4.2 Ton)
JIANGTU has a full range of small excavators, which are well-known in the global market for their low prices and high-cost performance, which are suitable for your various needs.
Main Advantages of JIANGTU JT45-Compact Excavator:

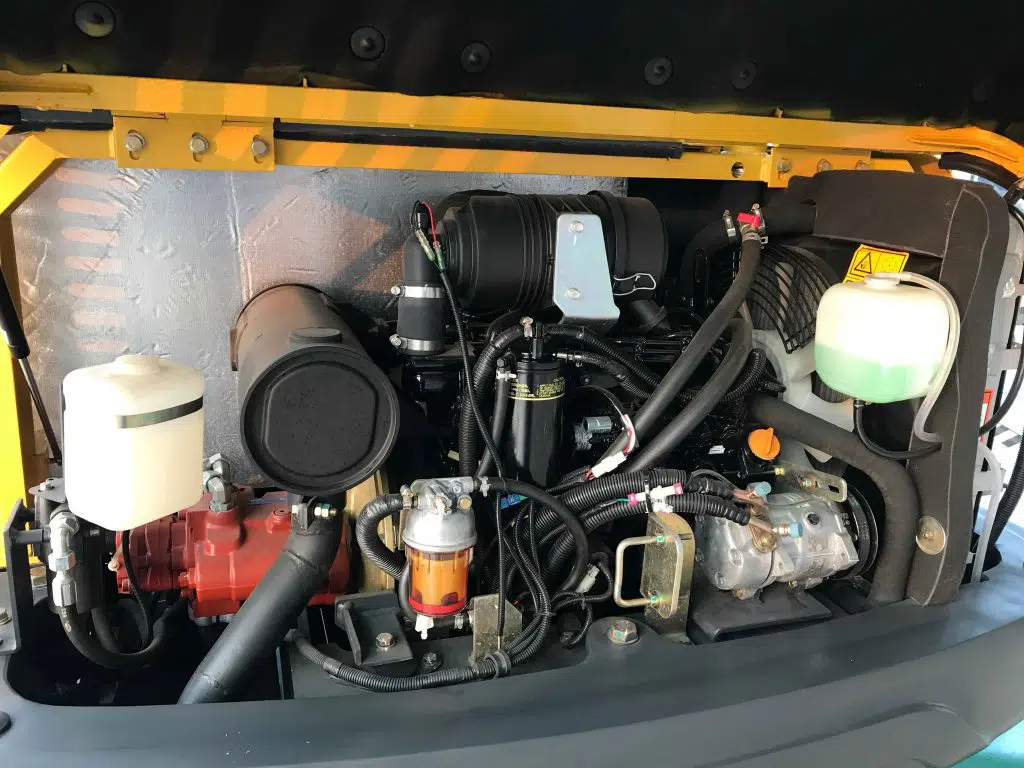

- Imported Yanmar Engine with big torque, low fuel consumption, and high efficiency.

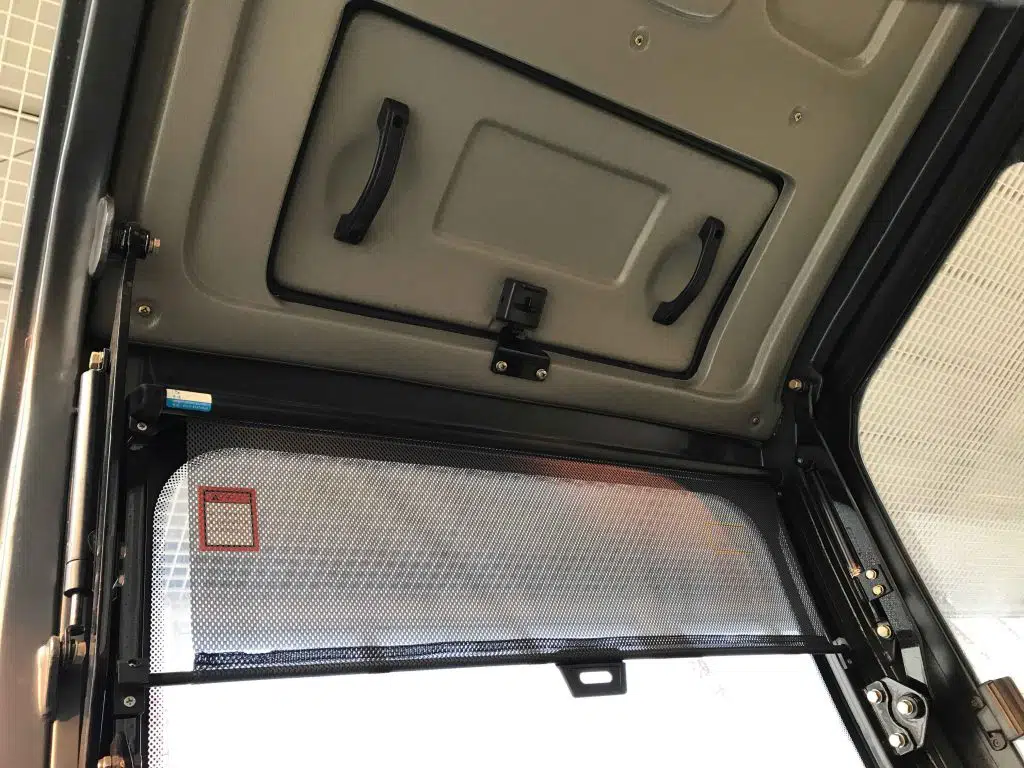

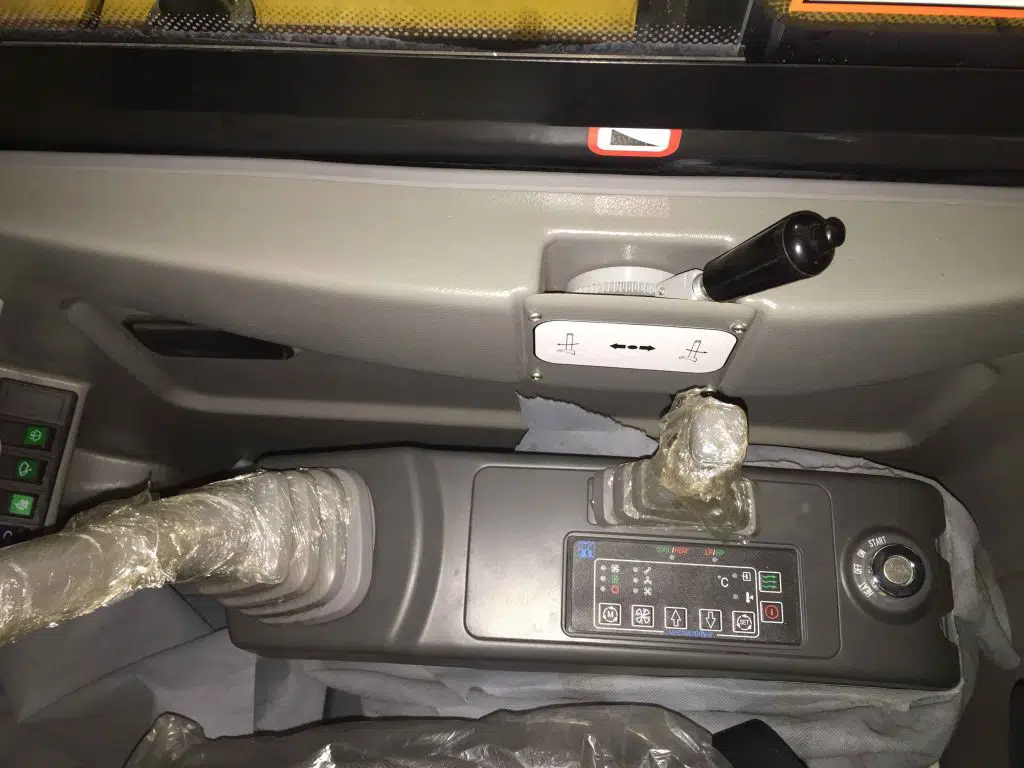

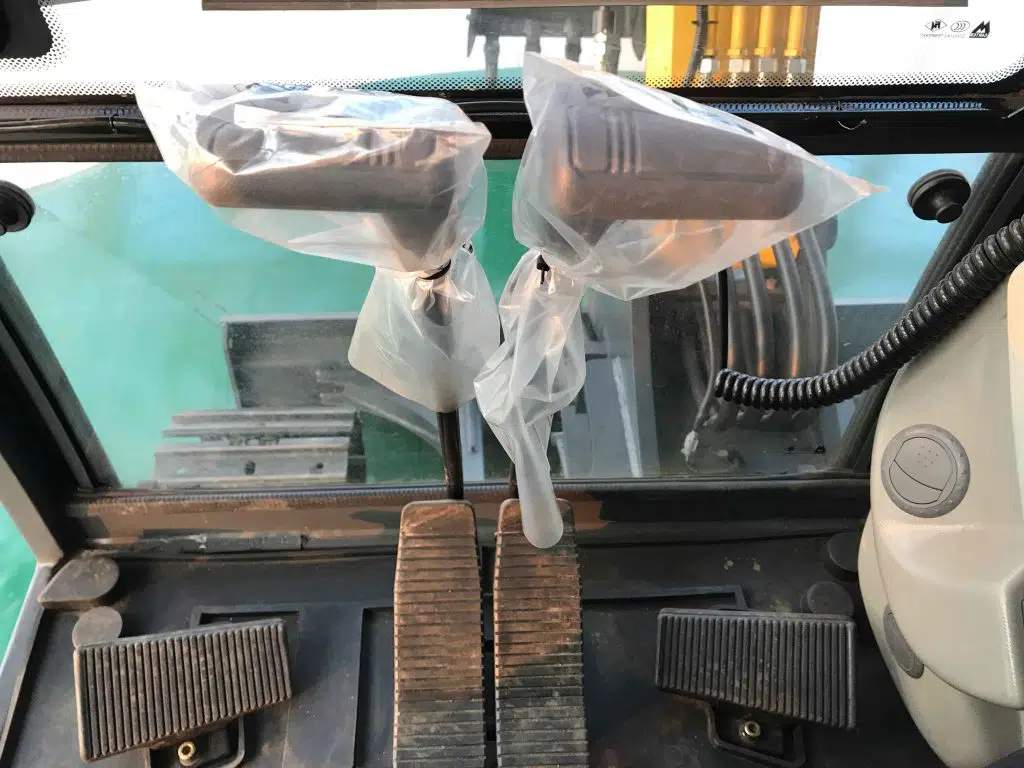

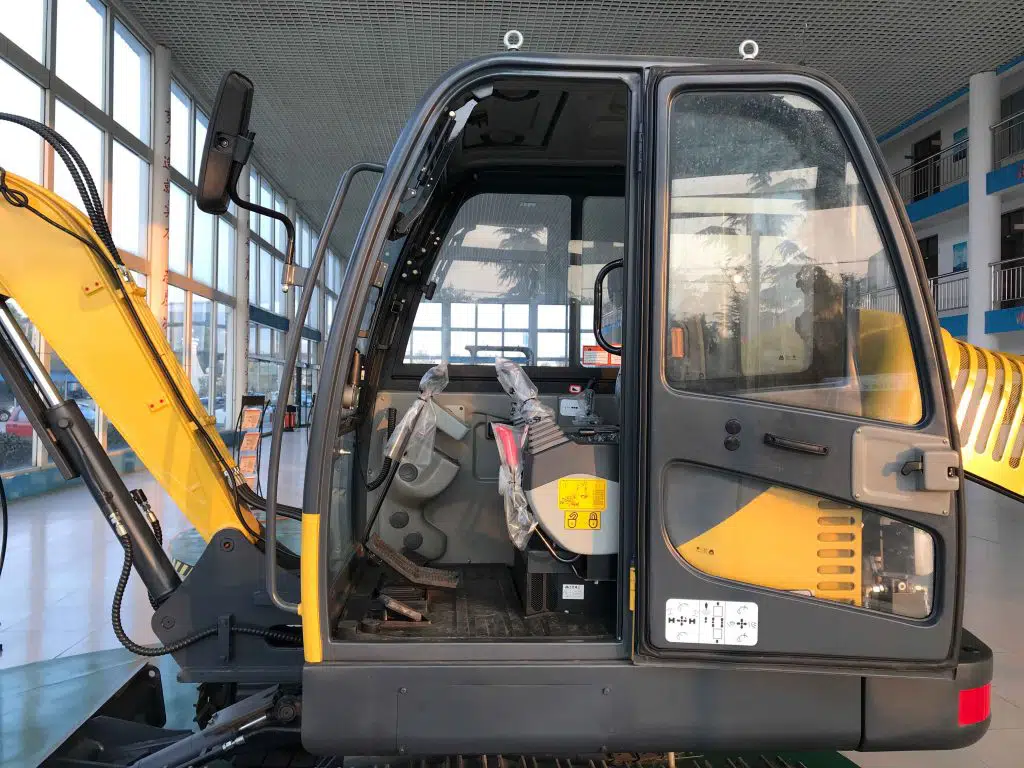

- Cab with noise insulation seals, comfortable armrest, and safety lock.

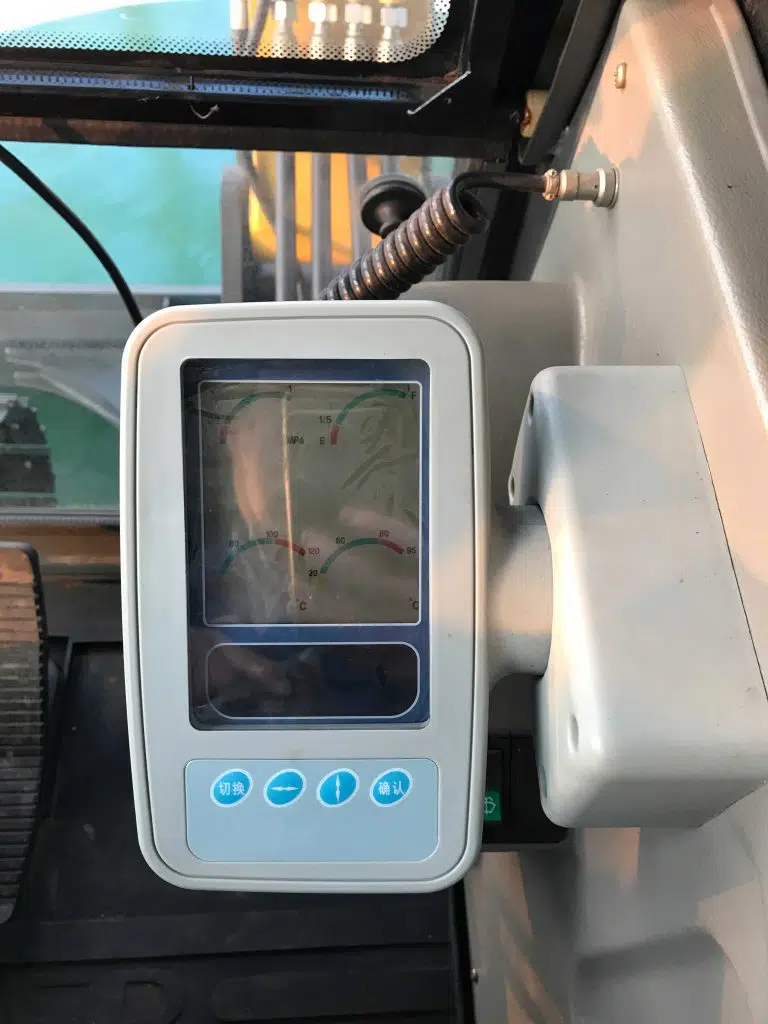

- CPU has artificial intelligence and automatic diagnosis function, which avoids long-time engine running and reduces fuel consumption.
- The boom joint adopts a whole casting steel structure which improves the overall strength.
Brochures Download
Specification – JT45-Compact Excavator
The following are the technical parameters of the compact excavator JT45.
| Model | JT45 | Overall width | 1750mm |
| Operating weight | 4200Kg | Overall height (to top of boom) | 1861mm |
| Bucket capacity | 0.17m3 (SAE) | Overall height (to top of cab) | 2455mm |
| Engine model | Yanmar 4TNV88 | Counterweight ground clearance | 585mm |
| Rated power | 25.2kw/2200rpm | Min. ground clearance | 350mm |

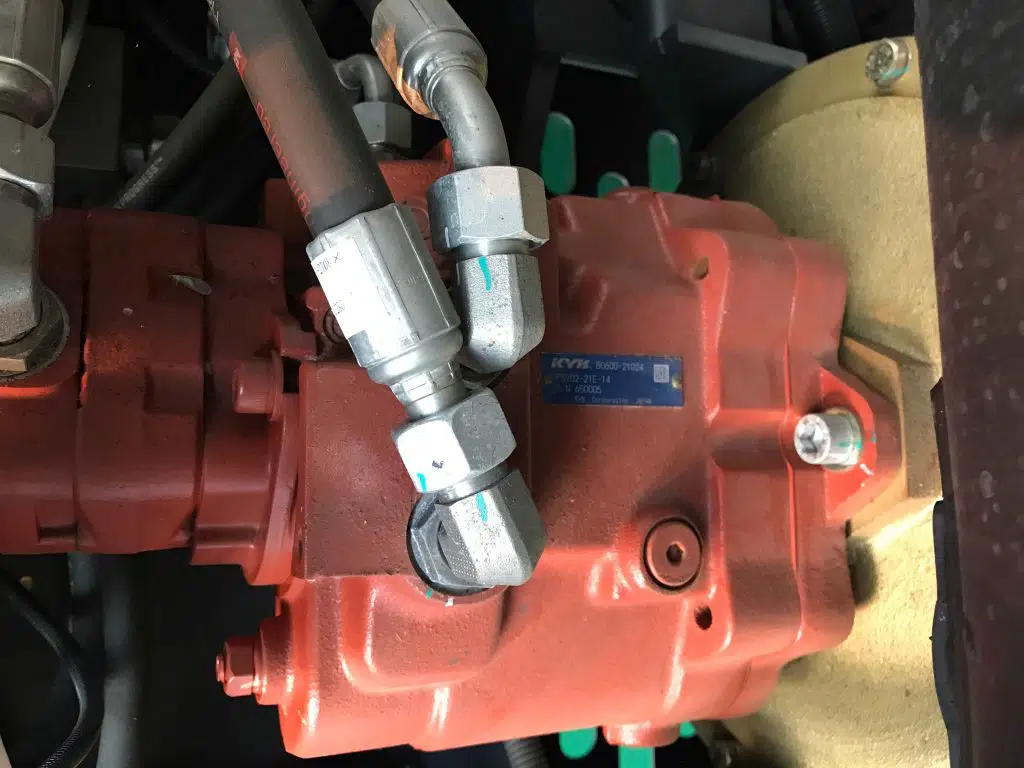

| Hydraulic pump model | KYB, Japan | Tail swing radius | 1600mm |
| Working pressure | 24.5 (Mpa) | Track Ground Length | 1710mm |
| Max.flow | 2×45.7+36.9(Umin) | Track length | 2190mm |
| Control valve | KYB, Japan | Track gauge | 1400mm |
| Swing motor | KYB, Japan | Track width | 1750mm |
| Travel motor | KYB, Japan | Track shoe width | 350mm |
| Fuel tank capacity | 82 L | Max. digging height | 5030mm |
| Hydraulic oil tank capacity | 59L lank Oil Level 85L Hydraulic System | Max. dumping height | 3410mm |
| Travel speed | 2.7/4.4(km/h) | Max. digging depth | 3405mm |
| Swing speed | 10 r/min | Max. vertical wall digging depth | 2900mm |
| Max. climbing degree | 58% | Max. digging reach at ground level | 5520mm |
| Arm digging force | 21.6 KN | Min. swing radius | 2185mm |
| Bucket digging force | 23.7 KN | Distance between center of rotation and tail length | 1600mm |
| Average grounding pressure | 36 Kpa | Arm length | 1450mm |
| Overall length | 5500mm | Boom length | 2650mm |

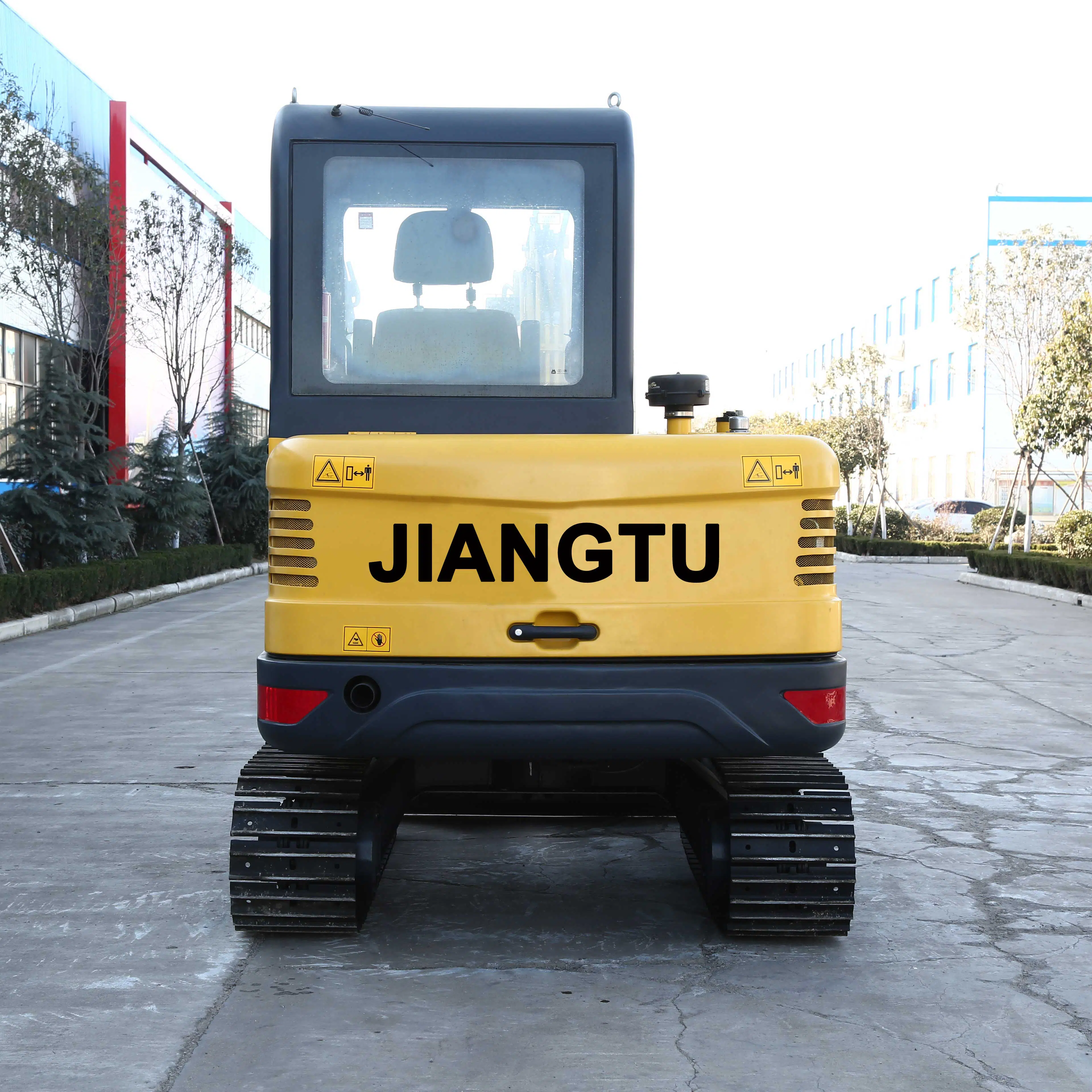

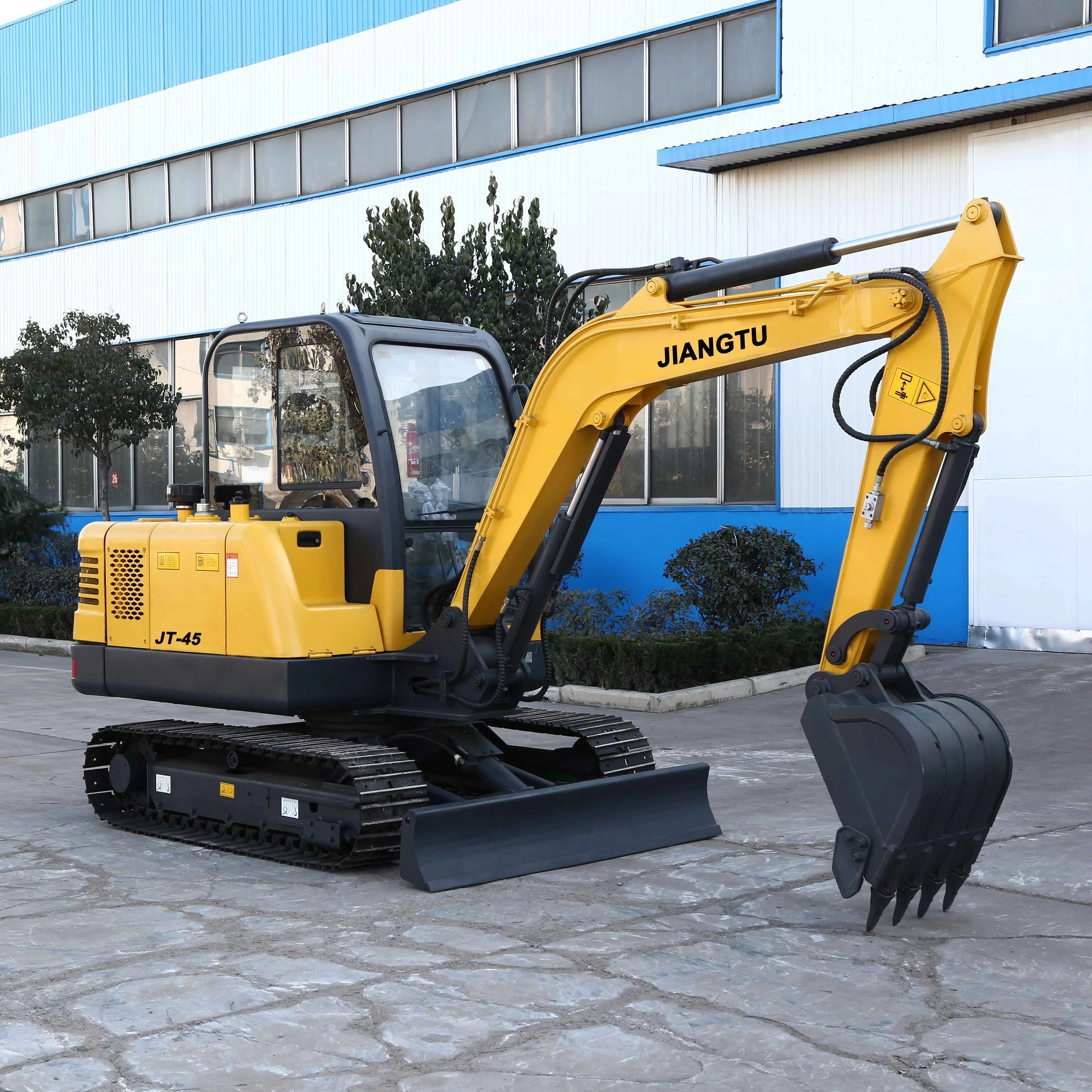

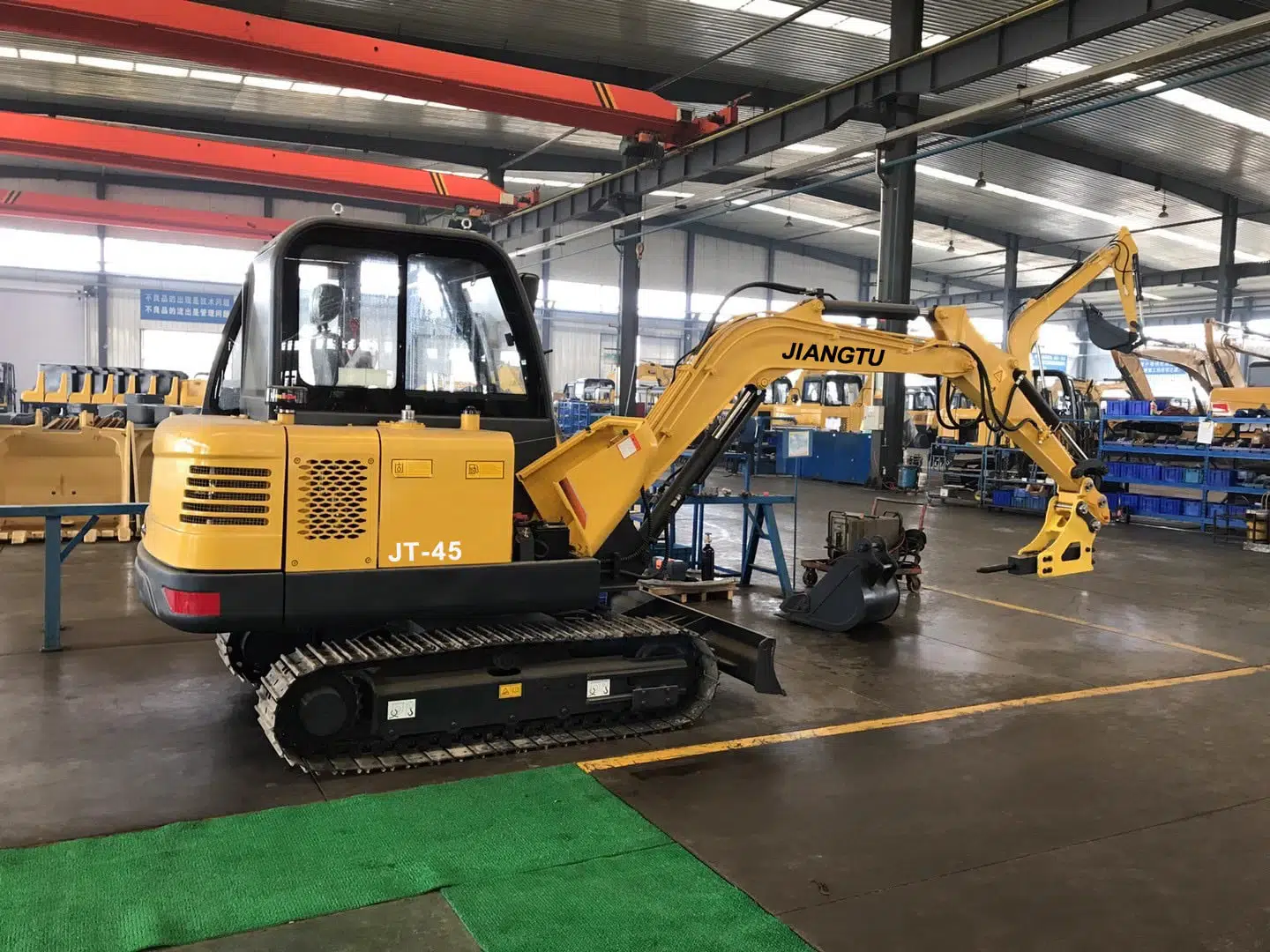

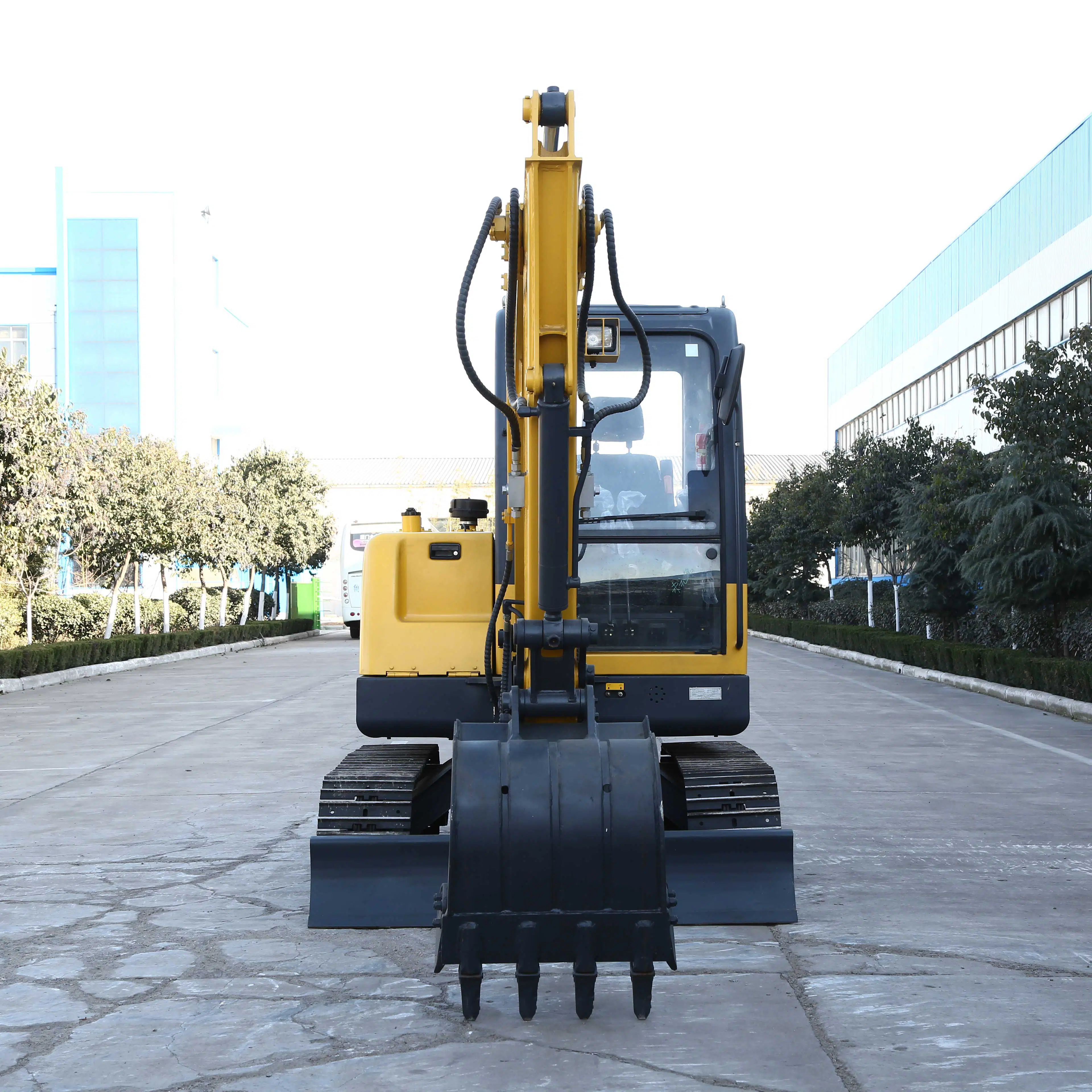

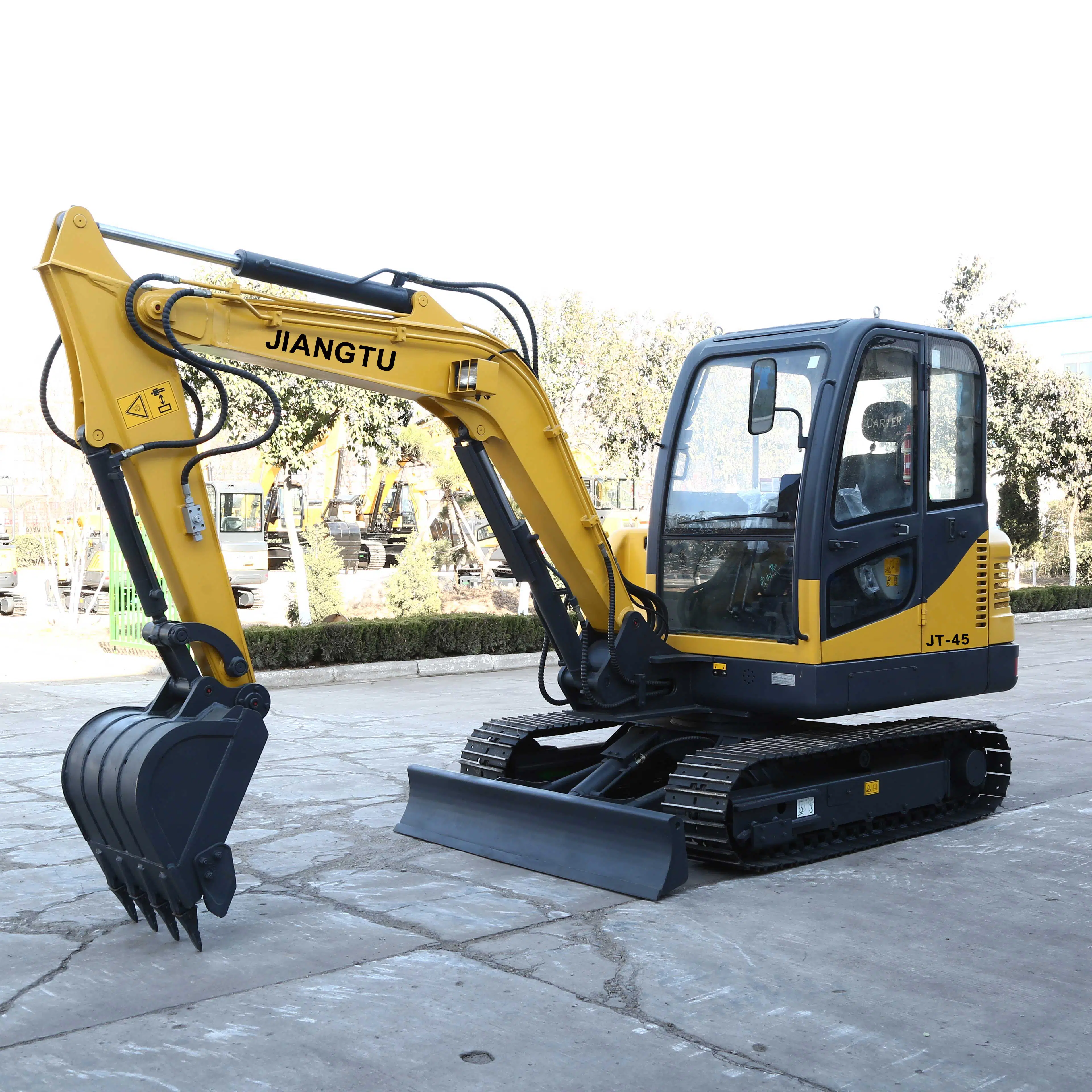

Product Images & Video
Main Advantages of JT45-Compact Excavator
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
