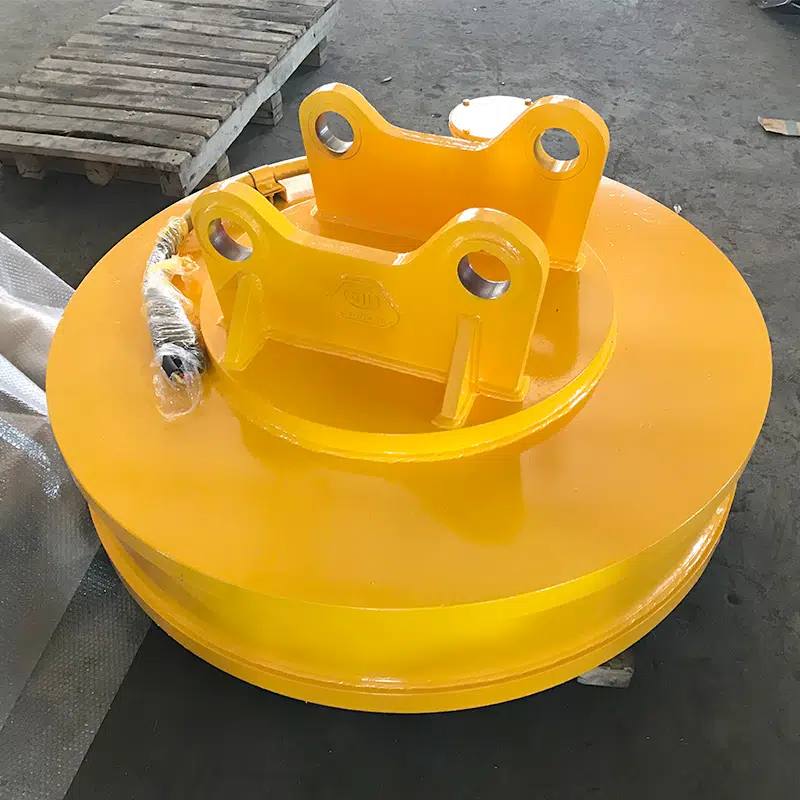

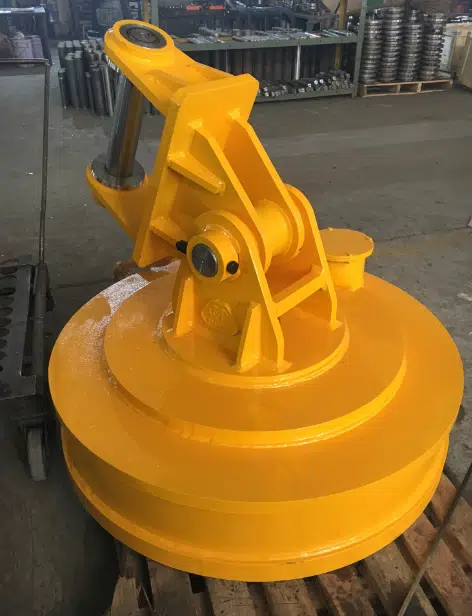

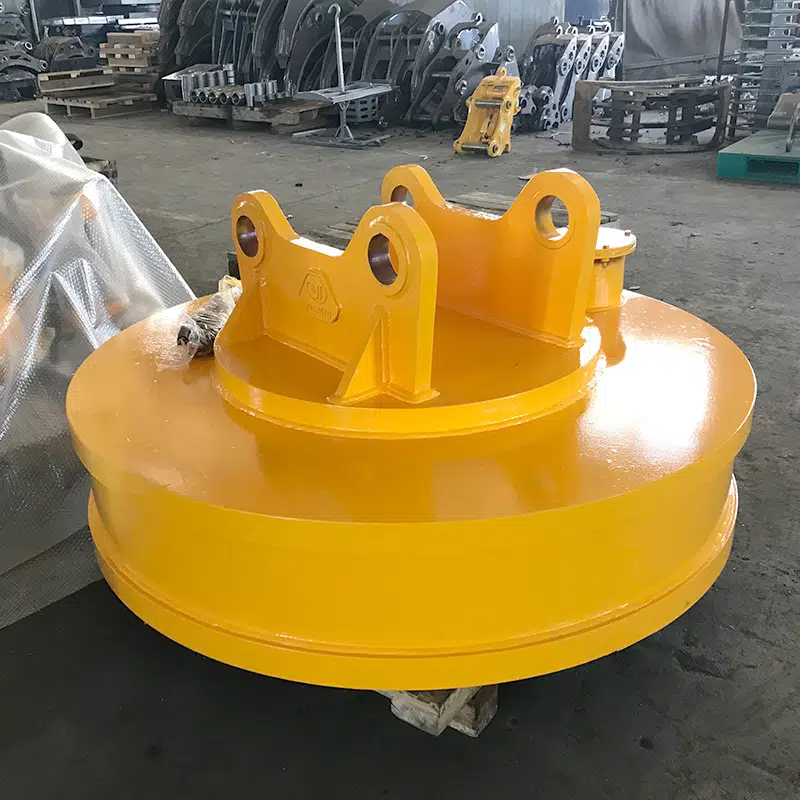

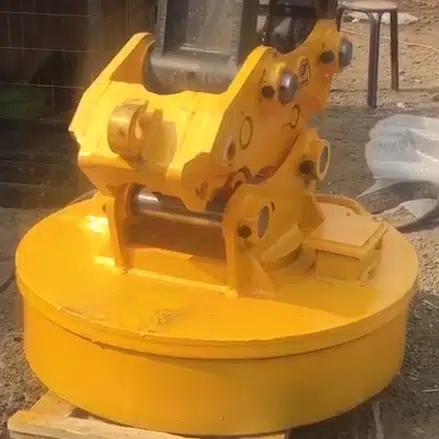

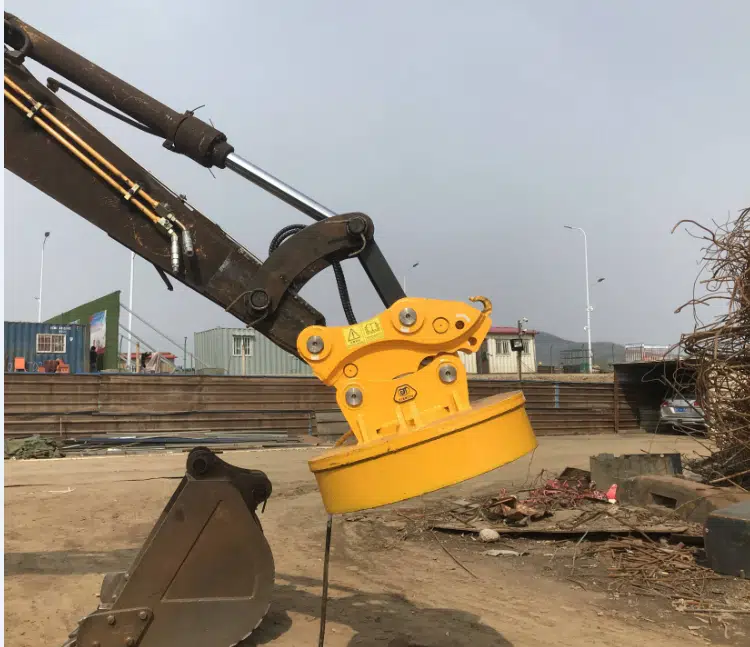

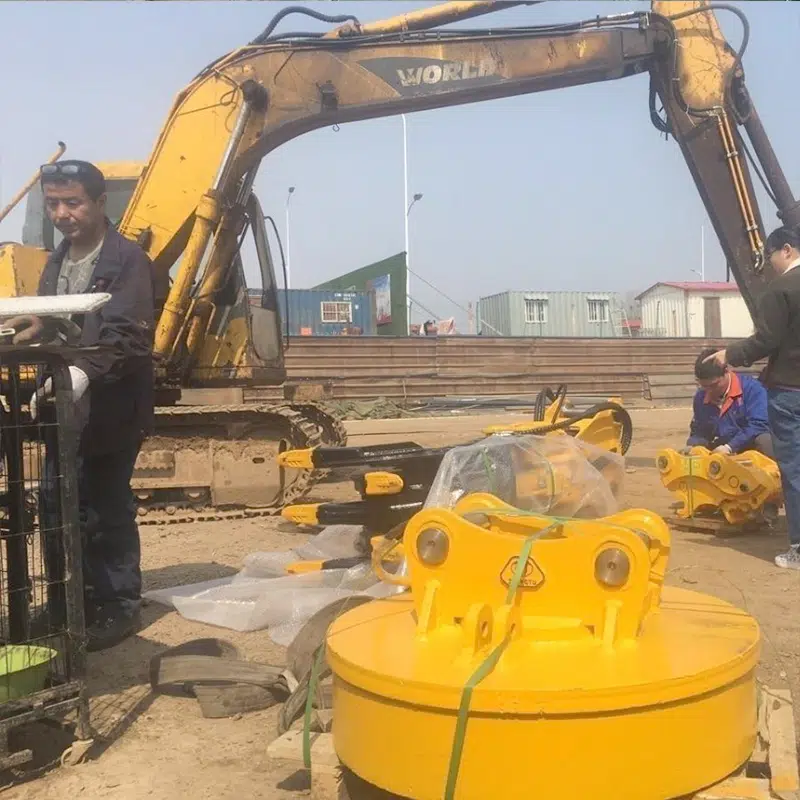

Excavator Electromagnet

JIANGTU Electromagnets are used in conjunction with various hoisting machinery and are widely used for handling and carrying pig iron, scrap, square billet, sheet, pipe, and other ferromagnetic materials in steelmaking plants, rolling mills, scrap steel processing plants, large foundry workshops, shipyards, heavy machinery factories, steel warehouses, port terminals, and stations.

Main Advantages of JIANGTU Electro Magnet:

  • High lifting capacity, light self-weight
  • Insulation grade can be up to F
  • Low power consumption, long service life

Specification – Excavator Electromagnet

The following are the technical parameters of the Excavator Electromagnet.

ModelMW5-70MW5-80MW5-90MW5-100MW5-110MW5-120MW5-130MW5-150MW5-165MW5-180MW5-210MW5-240
Amm700800900100011001200130015001650180021002400
Bmm8008001090109011401180124012501590149018602020
Cmm160160200200220220250350370370400450
Dmm9090125150150150175210230230250280
Emm303040454545506075758090

Power & lifting capacity

Rated voltageMW5-70MW5-80MW5-90MW5-100MW5-110MW5-120MW5-130MW5-150MW5-165MW5-180MW5-210MW5-240
Cold powerKw2.553.14.65.96.17.4911.312.216.321.725.9
Cold currentA11.6/7.614.1/9.221/13.624.4/15.827.7/1833.6/21.940.9/26.651.4/33.455.5/3674.1/48.298.6/64.1117.7/76.5
Big steel ingotkg25003000450055006500750085001100012500145002100023000
Cast iron ingotkg380/200480/250600/400750/5001000/80012001400/11001900/15002300/18002750/21003500/28004800/3800
Cuttingskg120/100150/130250/200350/300450/400600700/6001100/9001300/11001600/13502200/18502850/2250
Enforced Magnetic ForceMW5-70MW5-80MW5-90MW5-100MW5-110MW5-120MW5-130MW5-150MW5-165MW5-180MW5-210MW5-240
Power(cold、hot)Kw13.4/6.420.7/9.827.2/12.928.7/13.639.1/18.647/22.450.8/24.2
Current(cold、hot)A46.3/3271.3/4993.8/64.798.9/68.2135/93162/112175/121
Cast iron ingotkg1050/9001500/12502000/17002500/21002900/24003700/31005000/4200

Supporting facility

MW5-70MW5-80MW5-90MW5-100MW5-110MW5-120MW5-130MW5-150MW5-165MW5-180MW5-210MW5-240
Distribution box sizecm110*60*38110*60*38110*60*38110*60*38110*60*38110*60*38110*60*38110*60*38110*60*38128*65*35128*65*35128*65*35
Distribution weightkg414141414141484848424242
Wire harness weightkg63636363636380808097100100
Wire harness model2*10²2*10²2*10²2*10²2*10²2*10²2*16²2*16²2*16²2*25²2*35²2*35²

Main Advantages of Electromagnets

  • The protection plate for coil adopts abrasion-resisting and shockproof rolling high-manganese steel;
  • The electromagnet is dealt with special technology, thus insulation grade can be up to Grade F.
  • Coils of magnets are made of Aluminum (flat aluminum wire covered by double spun glass) or cooper.
  • High lifting capacity, light self-weight.
  • Low power consumption, long service life.
  • Contactor distribution cabinet

Suitable for scrap iron factories, contactors are easy to replace, time delay switch for automatic power failure. Protects the suction cups from burning when workers forget to cut off the power.

Images & Video

Certificate

Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.

Mini Excavator Models

Ready To Know More?

Find out which attachment works best for you and get a quote!
