Multi-functional Hydraulic Piston Compactor
The Multi-functional Hydraulic Piston Compactor is the advanced upgrade of Jiangtu’s standard model. Equipped with an integrated piston cylinder, it delivers 2-3 times more impact force. Featuring 360° rotation and a quick-change baseplate, it easily converts into a compaction wheel, offering unmatched versatility on the jobsite.
Designed for compacting and strengthening soil, gravel, and backfill in harsh construction environments. Ideal for road construction, foundation work, and other earthwork scenarios requiring high-impact compaction.

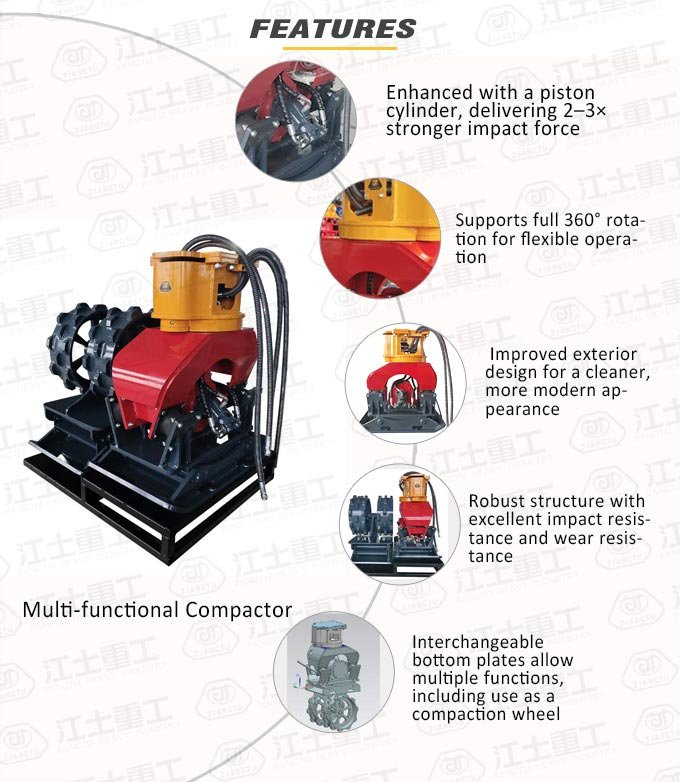

Main Advantages
- Enhanced with a piston cylinder, delivering 2–3× stronger impact force
- Robust structure with excellent impact resistance and wear resistance
- Improved exterior design for a cleaner, more modern appearance

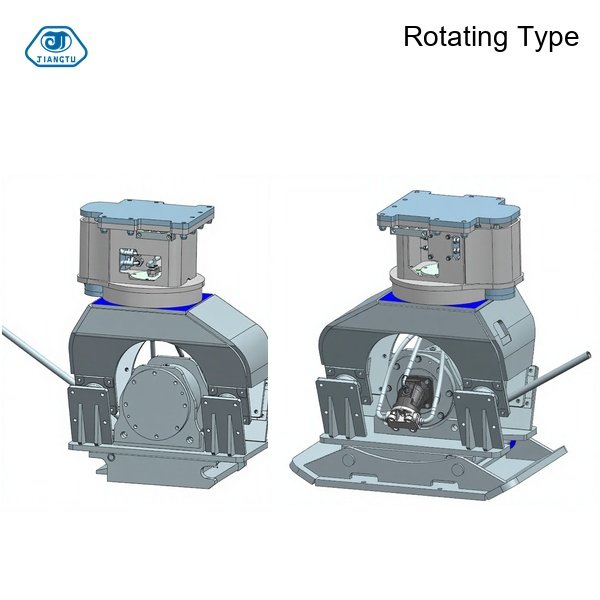

- Supports full 360° rotation for flexible operation

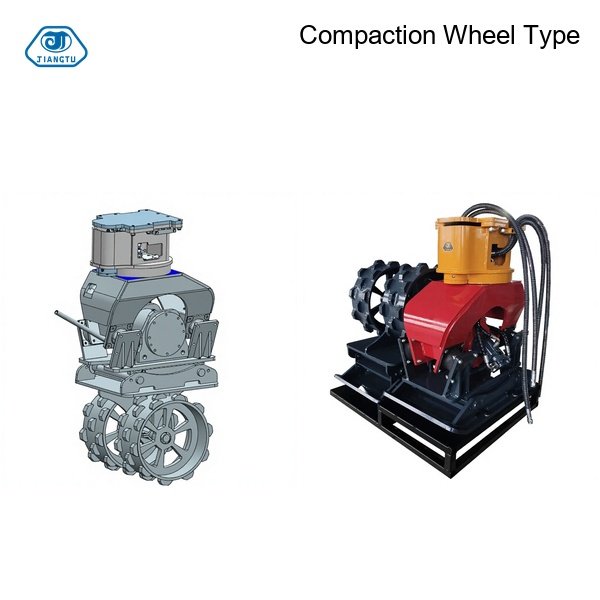

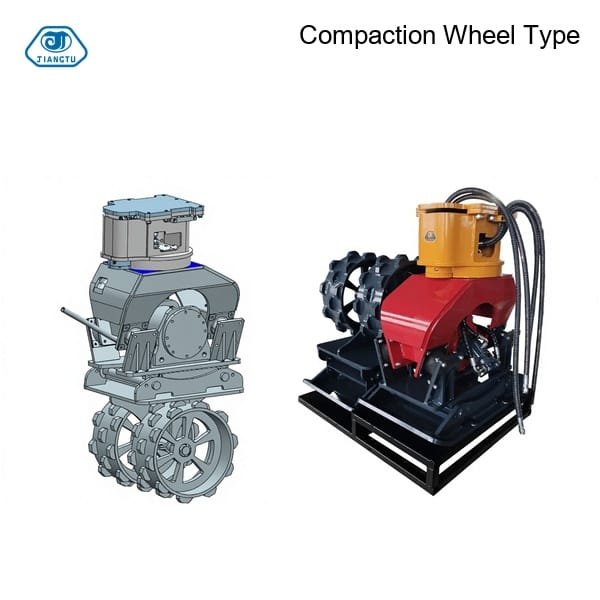

- Interchangeable bottom plates allow multiple functions, including use as a compaction wheel
Specification – Multi-functional Compactor
The following are the technical parameters of the Multi-functional Compactor.

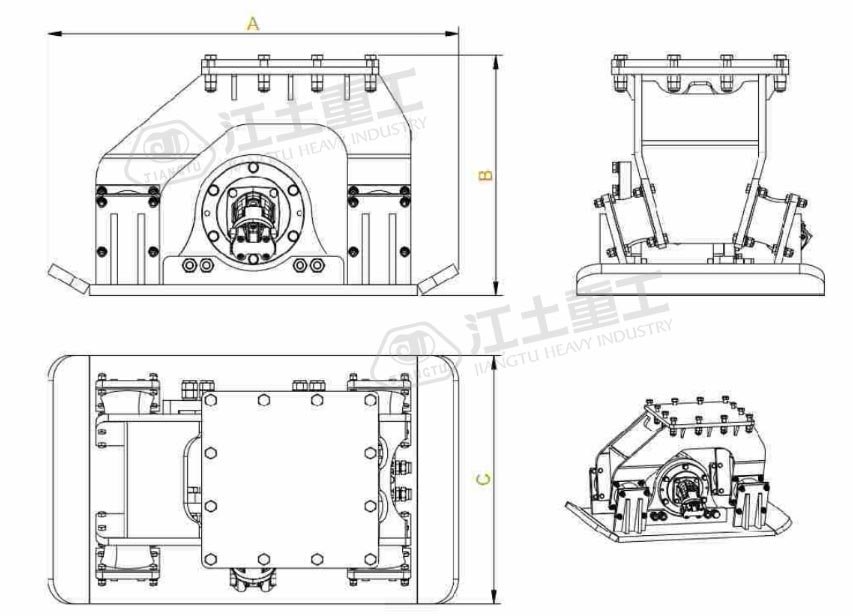

| Category | Unit | JT-01 | JT-02 | JT-R02（Rotating） | JT-06 |
|---|---|---|---|---|---|
| A Lengh | mm | 803 | 900 | 732 | 1160 |
| C Width | mm | 474 | 500 | 490 | 700 |
| B Height | mm | 444 | 590 | 980 | 678 |
| Rotation Angle | – | – | 360° | – | |
| Motor Displacement | CC | 16 | 23 | 23 | 45 |
| Necessary Flow | lpm | 60 | 80 | 80 | 180 |
| Rotational Speed | Min-1 | 3562 | 3304 | 3300 | 3800 |
| Suitable Excavator | ton | 3-4 | 4-6 | 4-6 | 12-16 |
| Weight | kg | 220 | 430 | 572 | 630 |

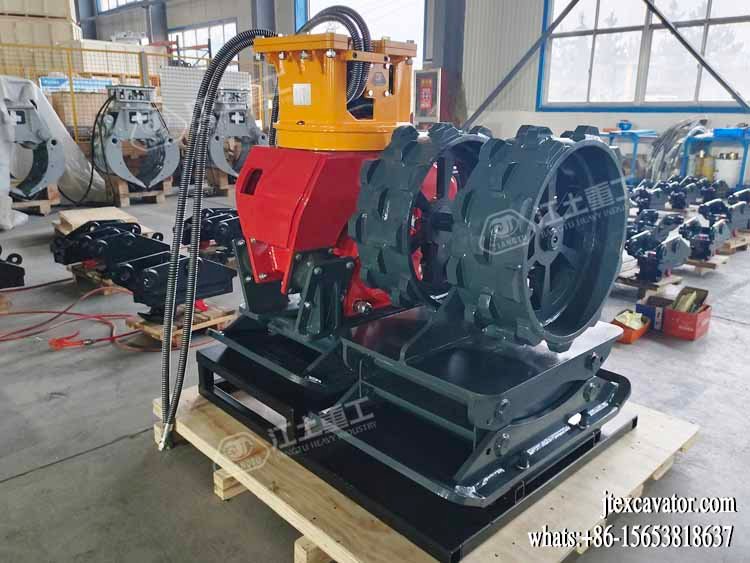

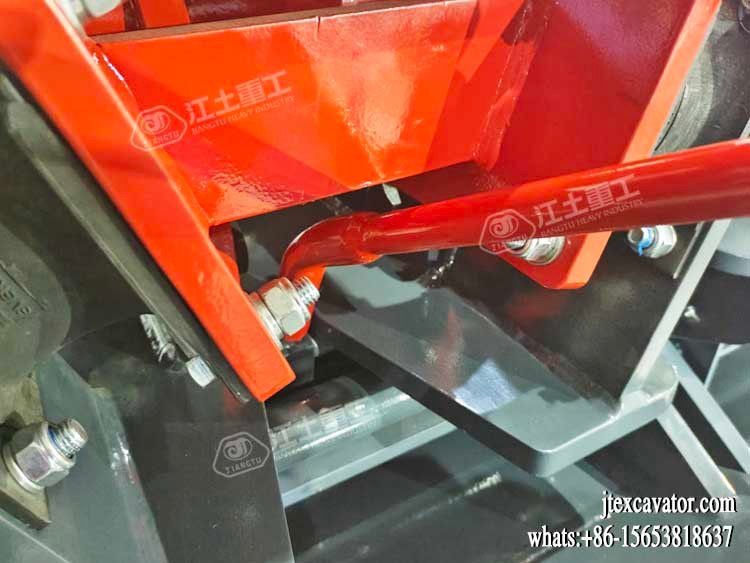

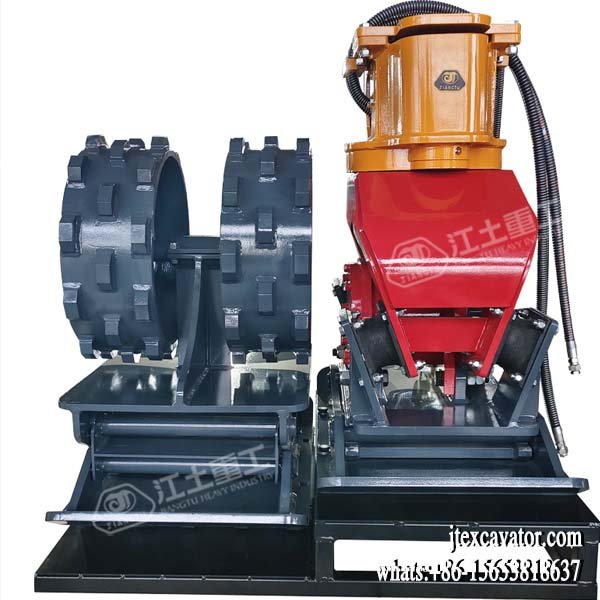

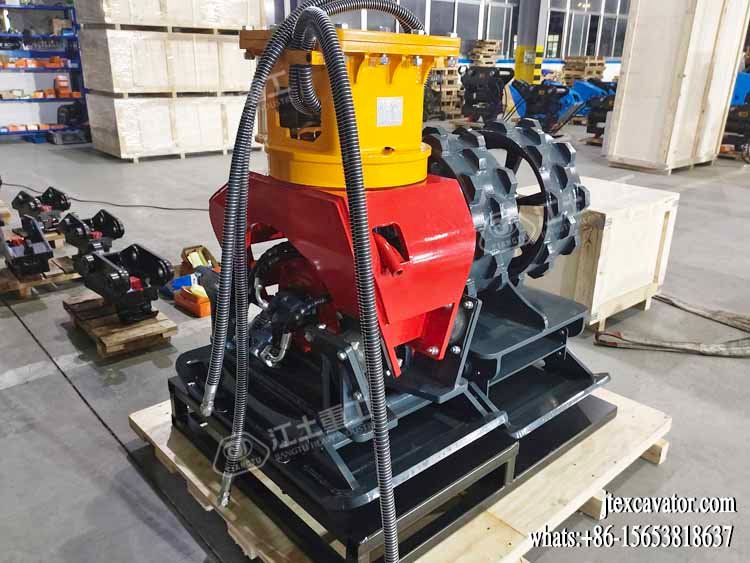

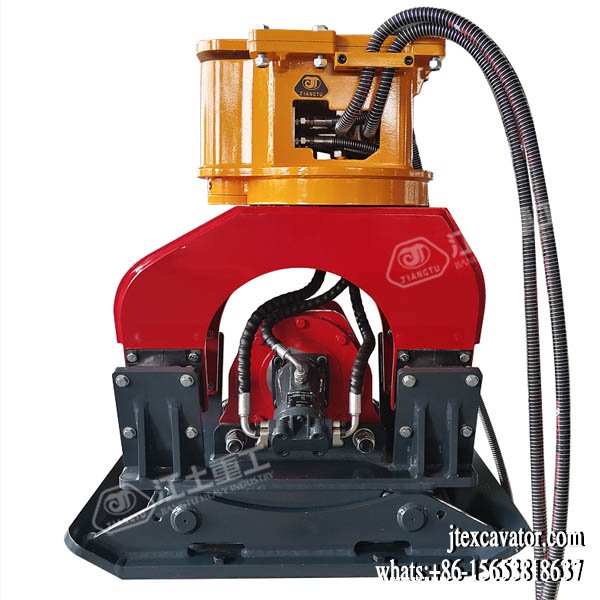

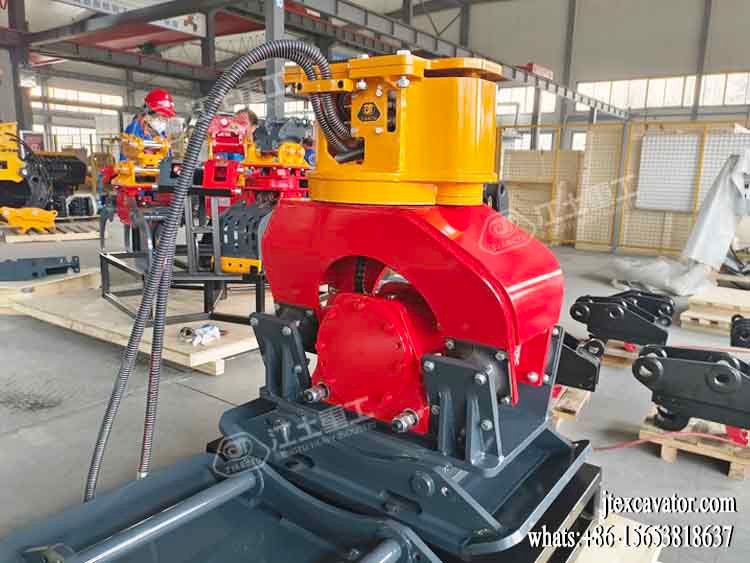

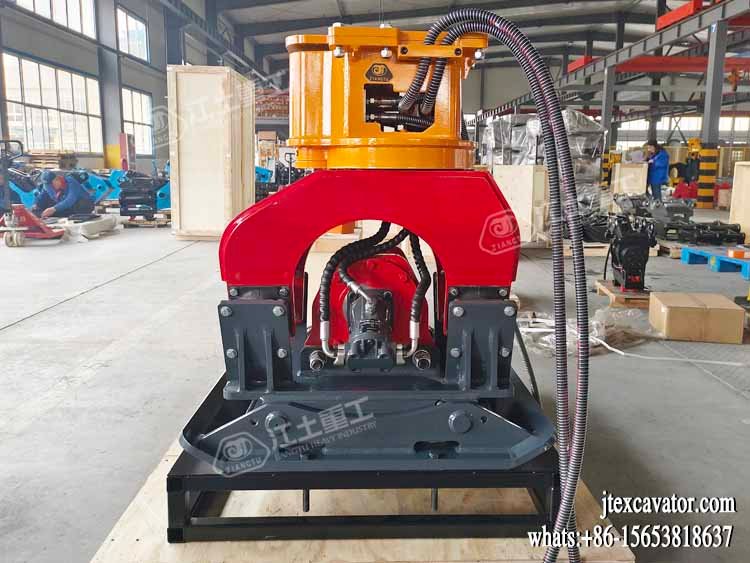

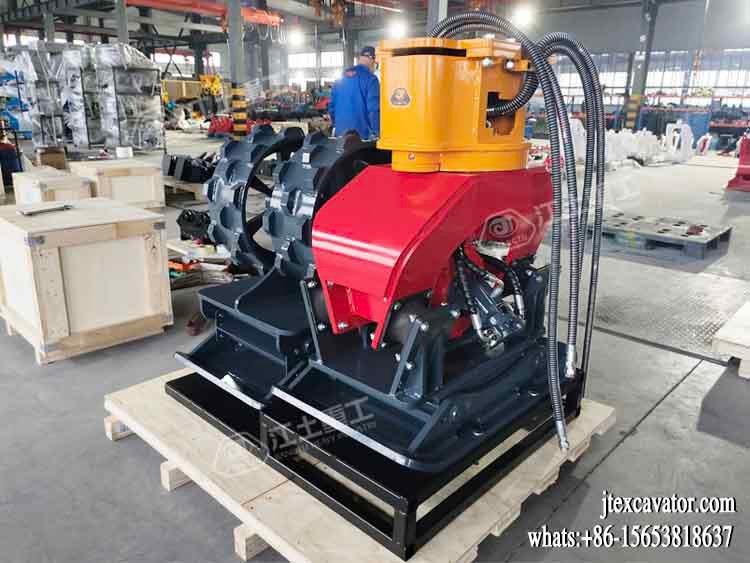

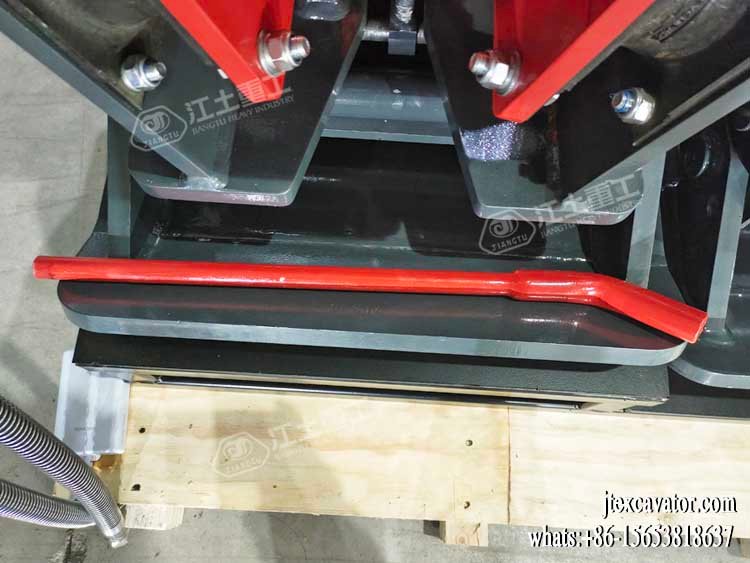

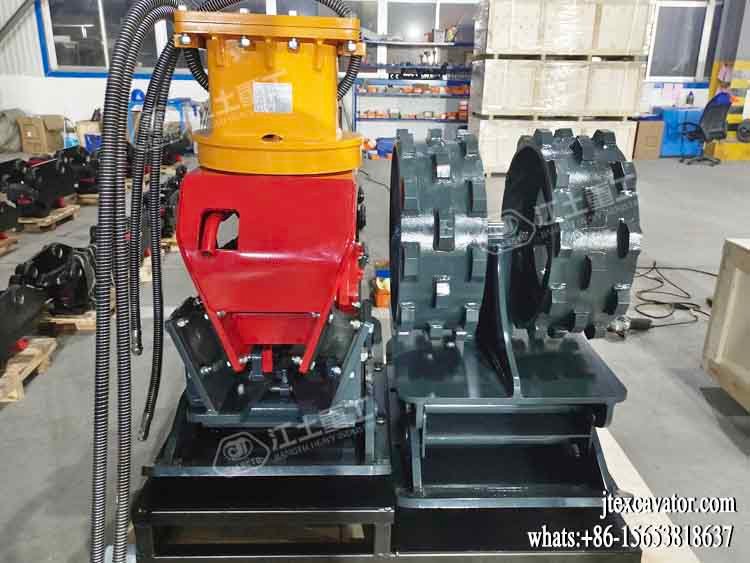

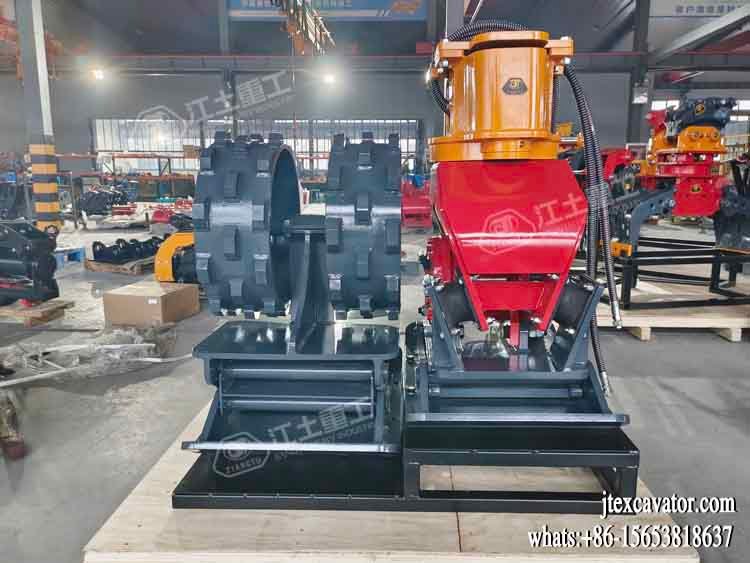

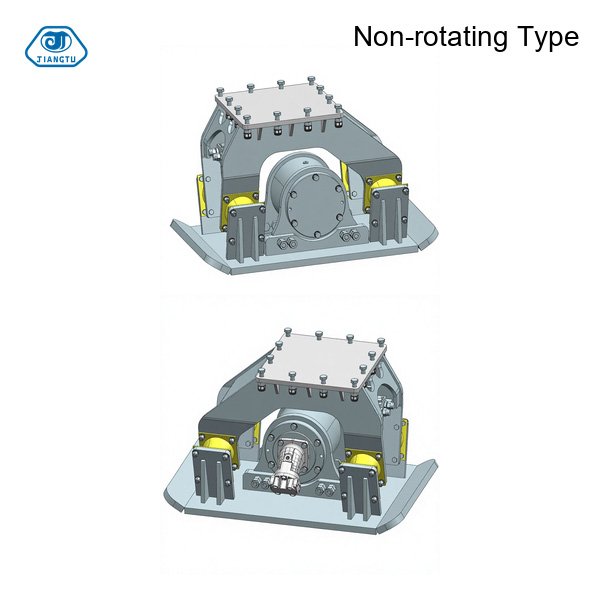

Product Images
Main Advantages of Hydraulic Plate Compactor
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
