Hydraulic Plate Compactor
Jiangtu hydraulic plate compactor is a kind of excavator attachment that is used to compress some types of soil and gravel for construction projects that require a stable subsurface.
JIANGTU hydraulic plate compactor excavator is used for leveling of high-speed way and railway slopes, roads, construction sites, and building floors.
As one of the leading hydraulic plate compactor manufacturers in China, JIANGTU has a full range of compactors for excavators from 1.5-40 tons. They are suitable for all kinds of brands and models of excavators.
Main Advantages of JIANGTU Hydraulic Plate Compactor:
- 12 months warranty, 6 months free replacement;
- Q345B materials for the body, NM400 wear plate for bottom plate;
Specification – Hydraulic Plate Compactor
The following are the technical parameters of the Hydraulic Plate Compactor.
| Category | Unit | JT-mini | JT-02/04 | JT-06 | JT-08 | JT-10 |
| Height | mm | 435 | 530 | 650 | 720 | 730 |
| Width | mm | 442 | 550 | 700 | 900 | 900 |
| Impulse force | ton | 3 | 4 | 6.5 | 11 | 15 |
| Vibration frequency | rpm/min | 2000 | 2000 | 2000 | 2200 | 2200 |
| Oil flow | l/min | 30-60 | 45-85 | 85-105 | 120-170 | 120-170 |
| Operating pressure | kg/cmยฒ | 100-130 | 100-130 | 100-150 | 150-200 | 150-200 |
| Bottom measurement | mm | 800*442 | 900*550 | 1160*700 | 1300*900 | 1500*1000 |
| Excavator weight | ton | 2-4 | 4-10 | 12-16 | 18-24 | 30-40 |
| Weight | kg | 200 | 350-500 | 650-800 | 900-1000 | 1100-1300 |
| Mortor Model | Brand PERMCO | 1221081B39 | 1221081B39 | 1215071138 | 1215071048 | M7600-F100NK7676G2 |
| Mortor Displacement | ml/rev | 25.39 | 25.39 | 63.2 | 84.3 | 100 |

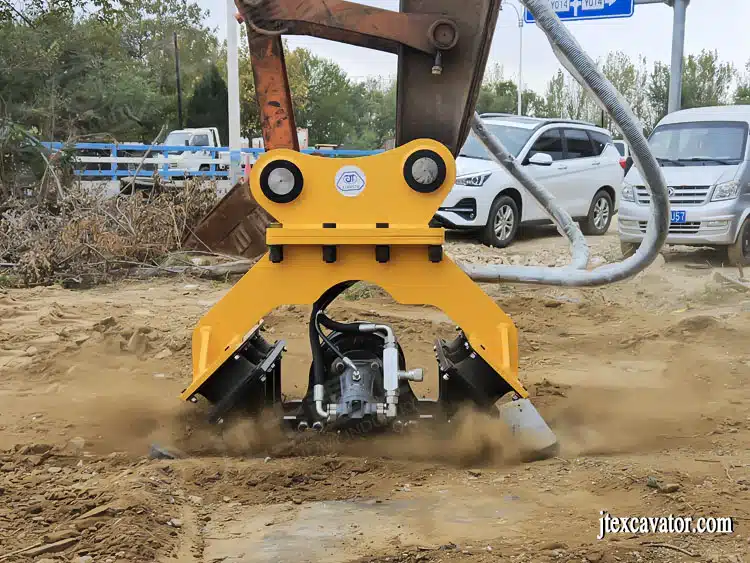

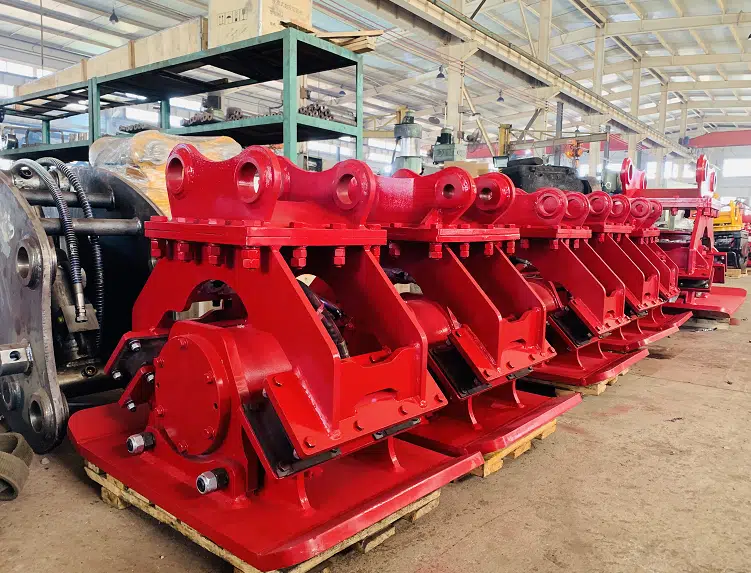

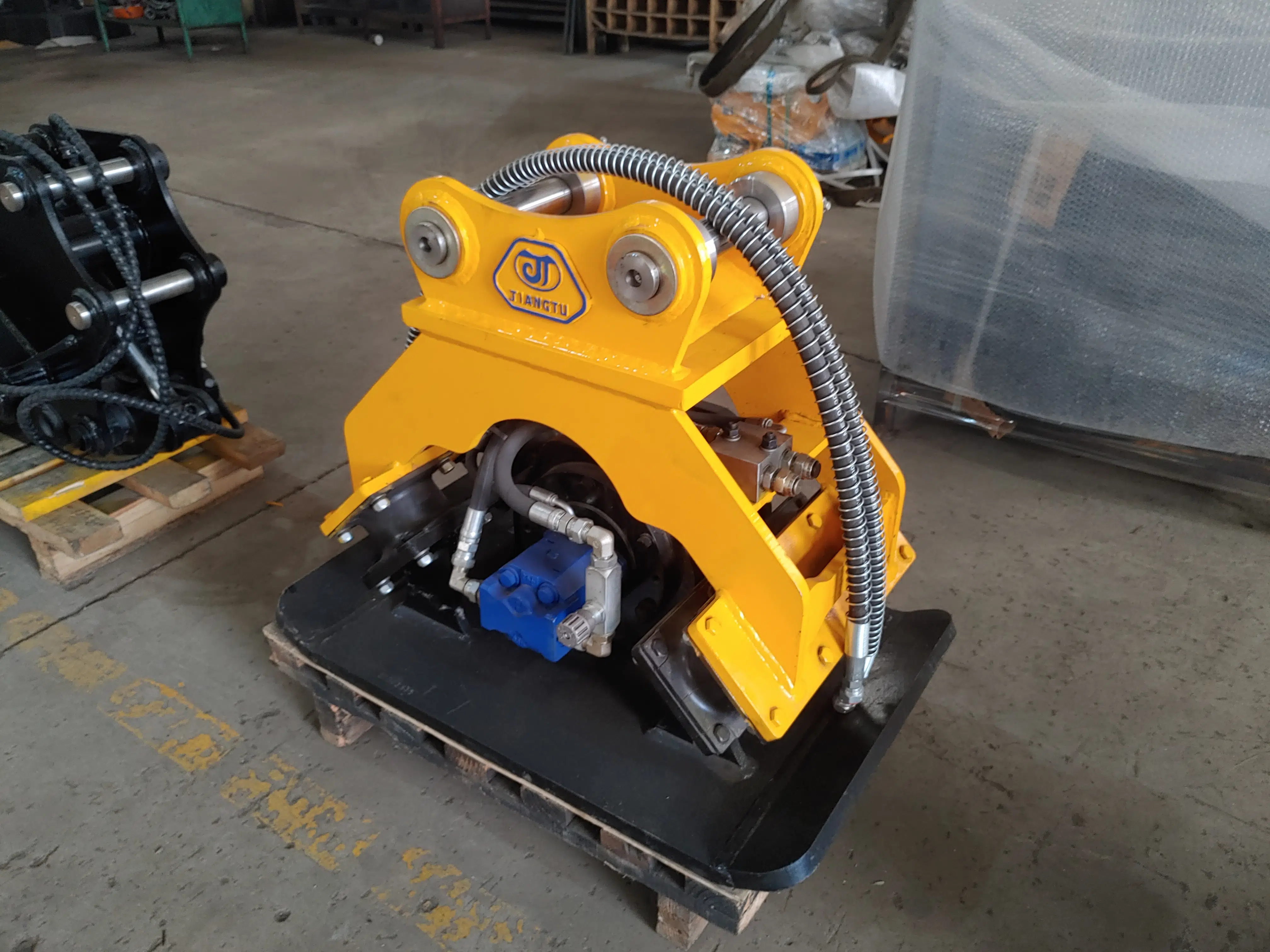

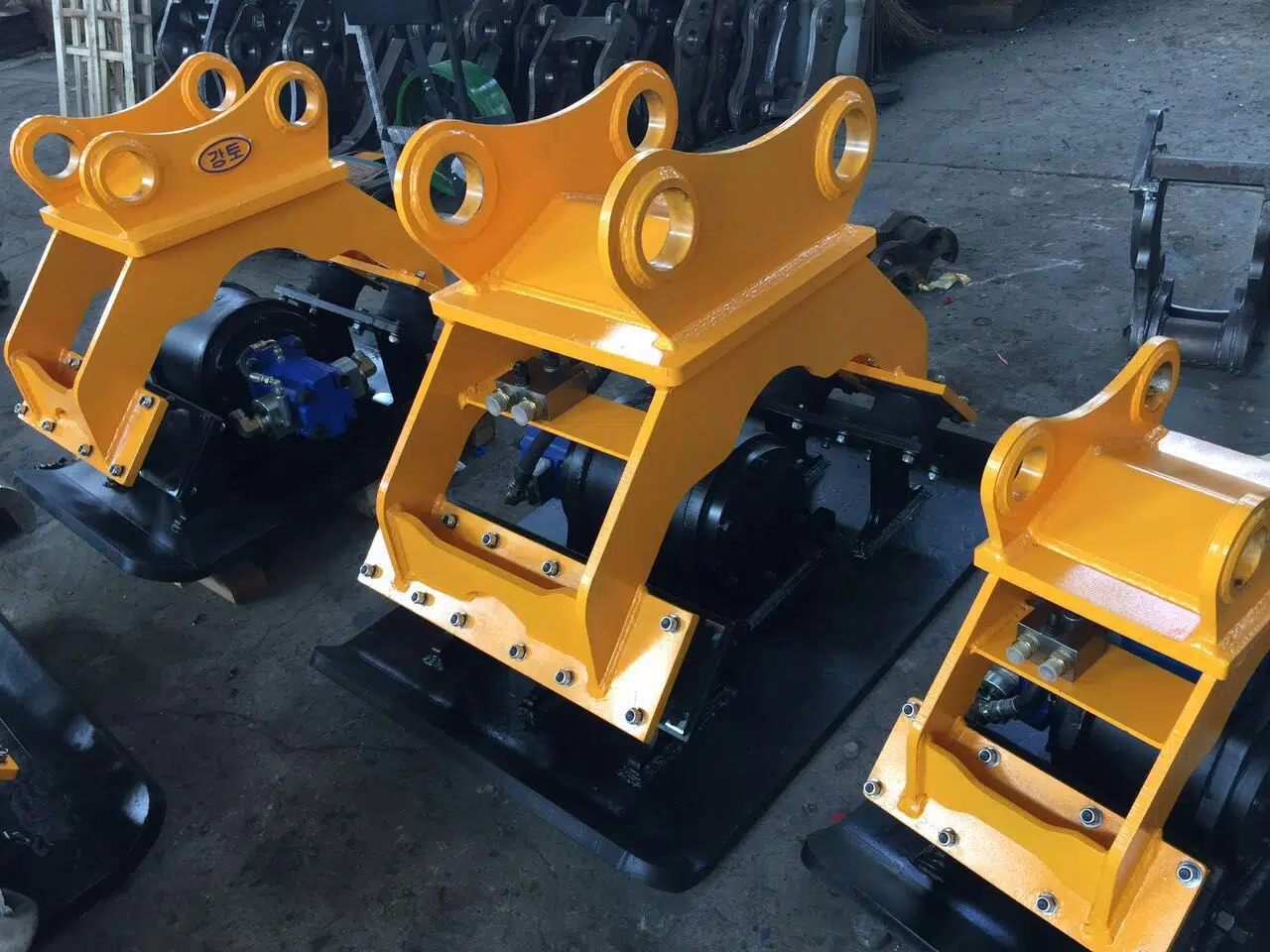

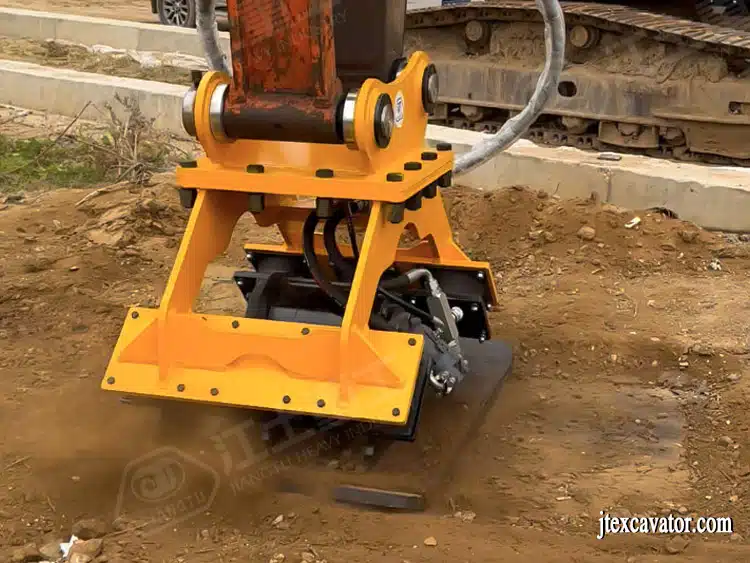

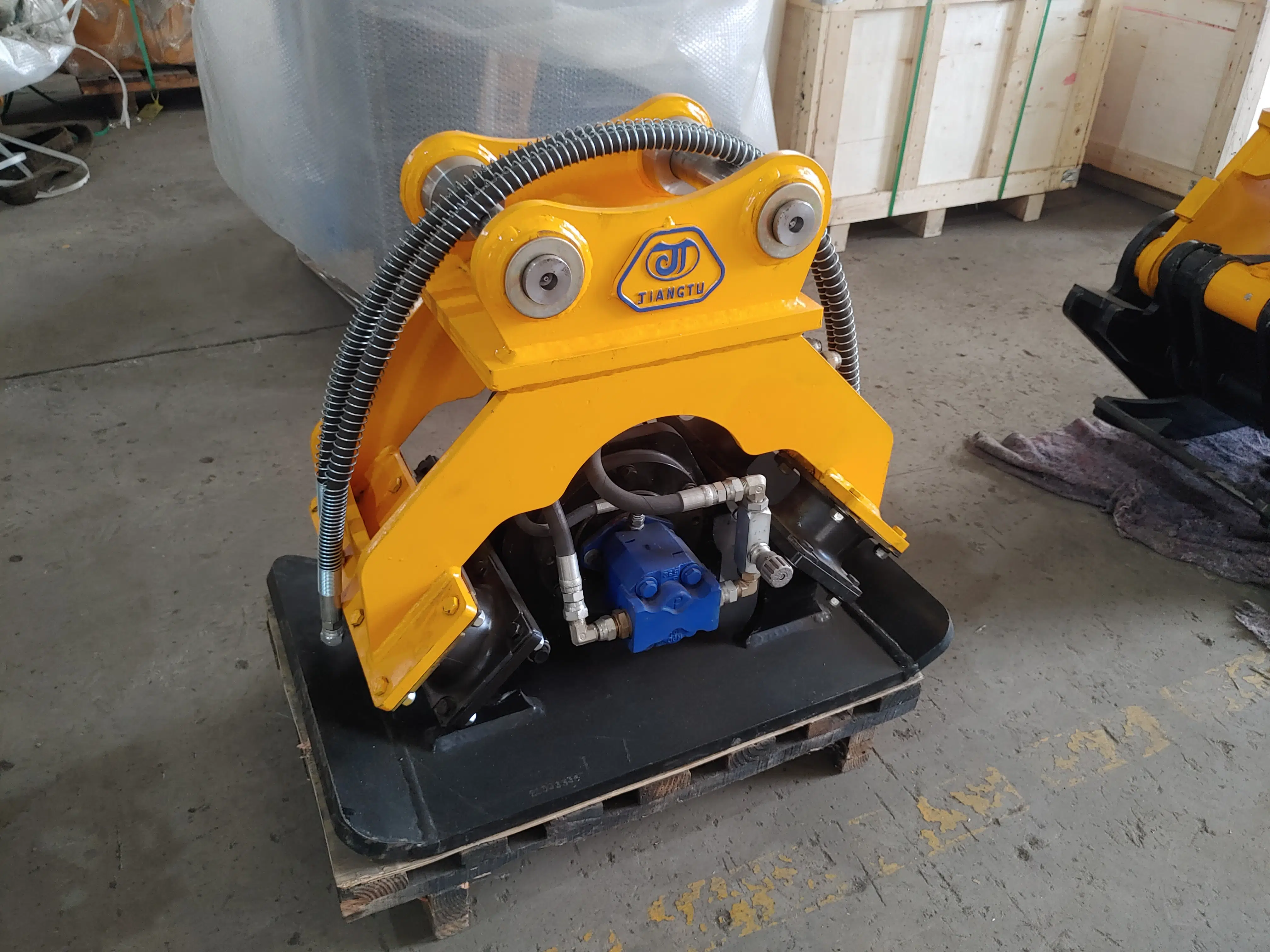

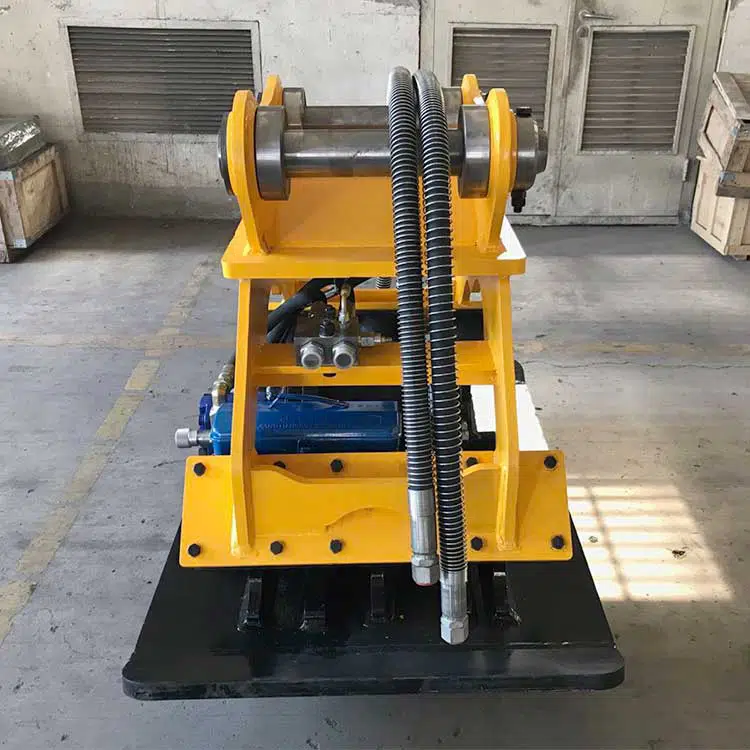

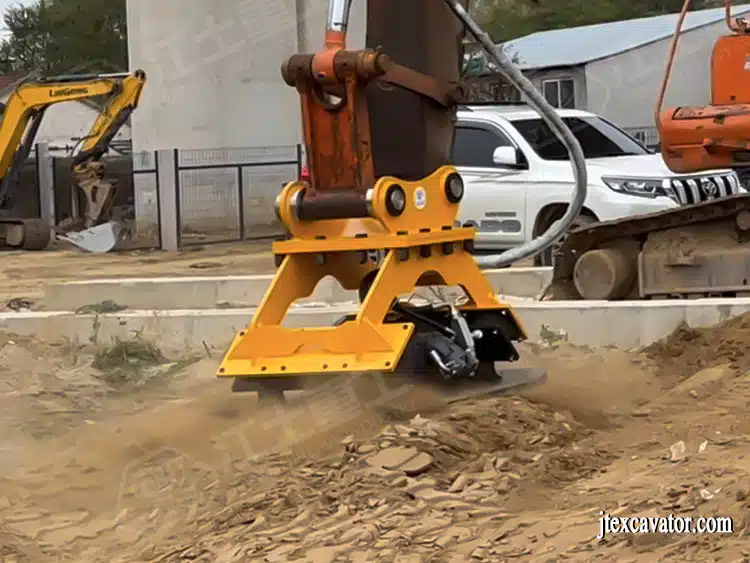

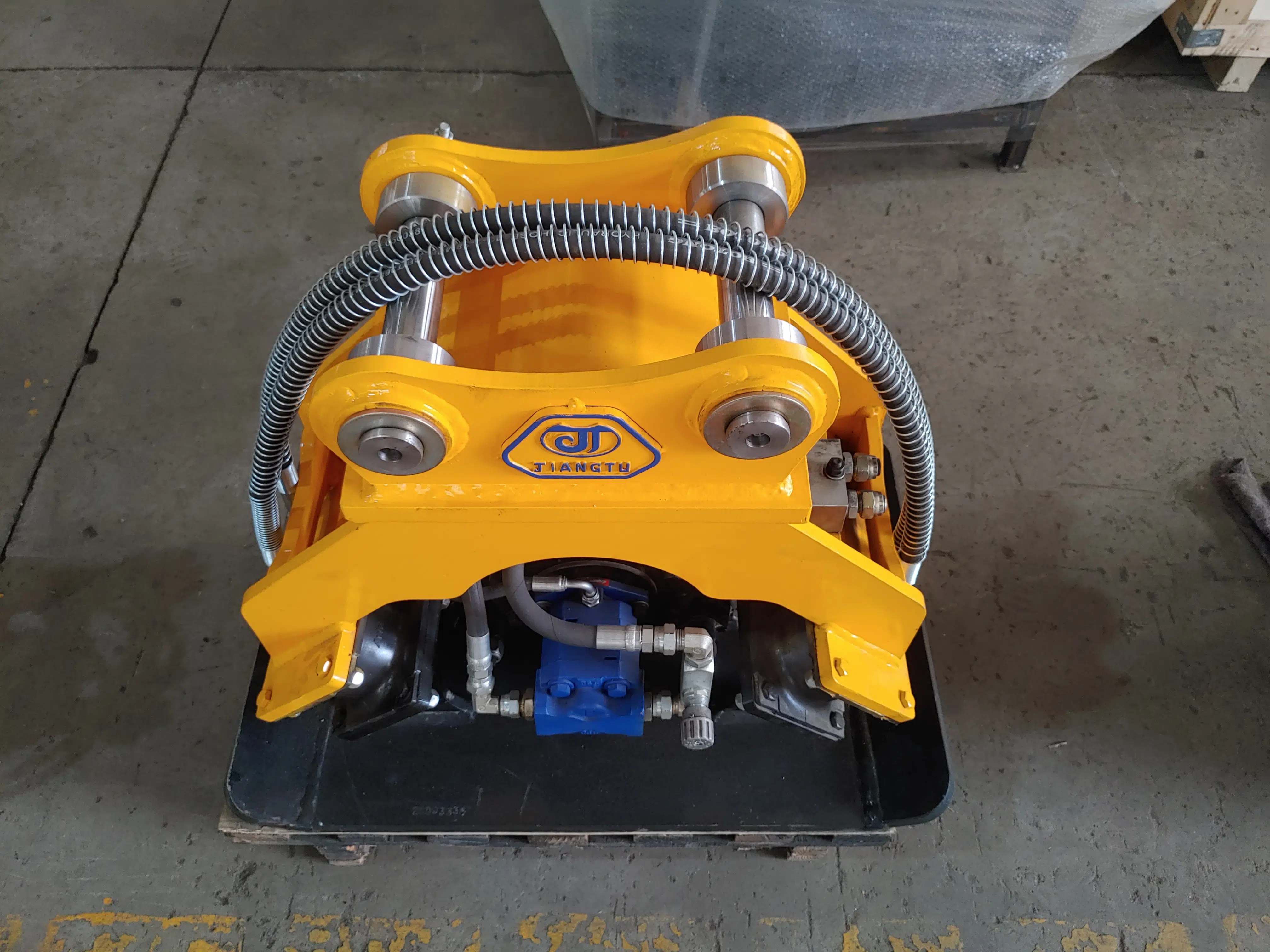

Product Images

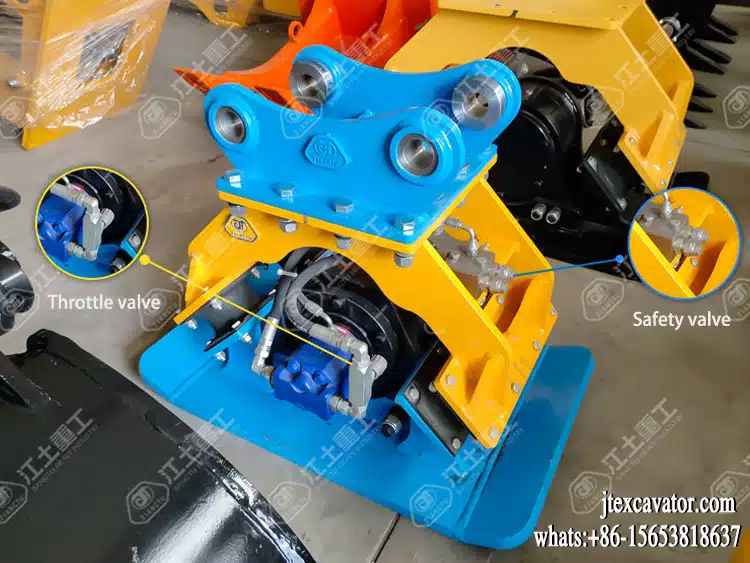

Main Advantages of Hydraulic Plate Compactor
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
