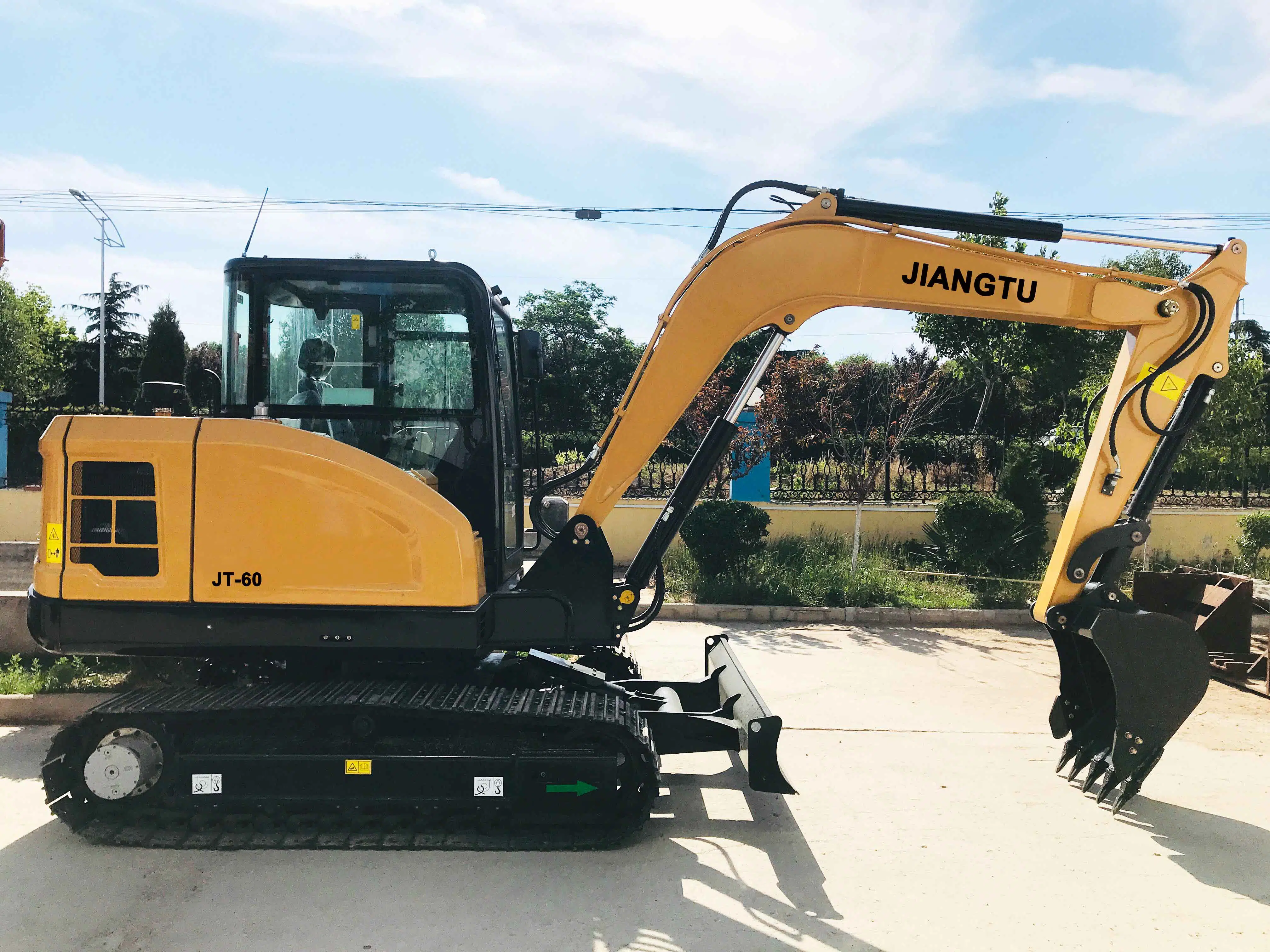

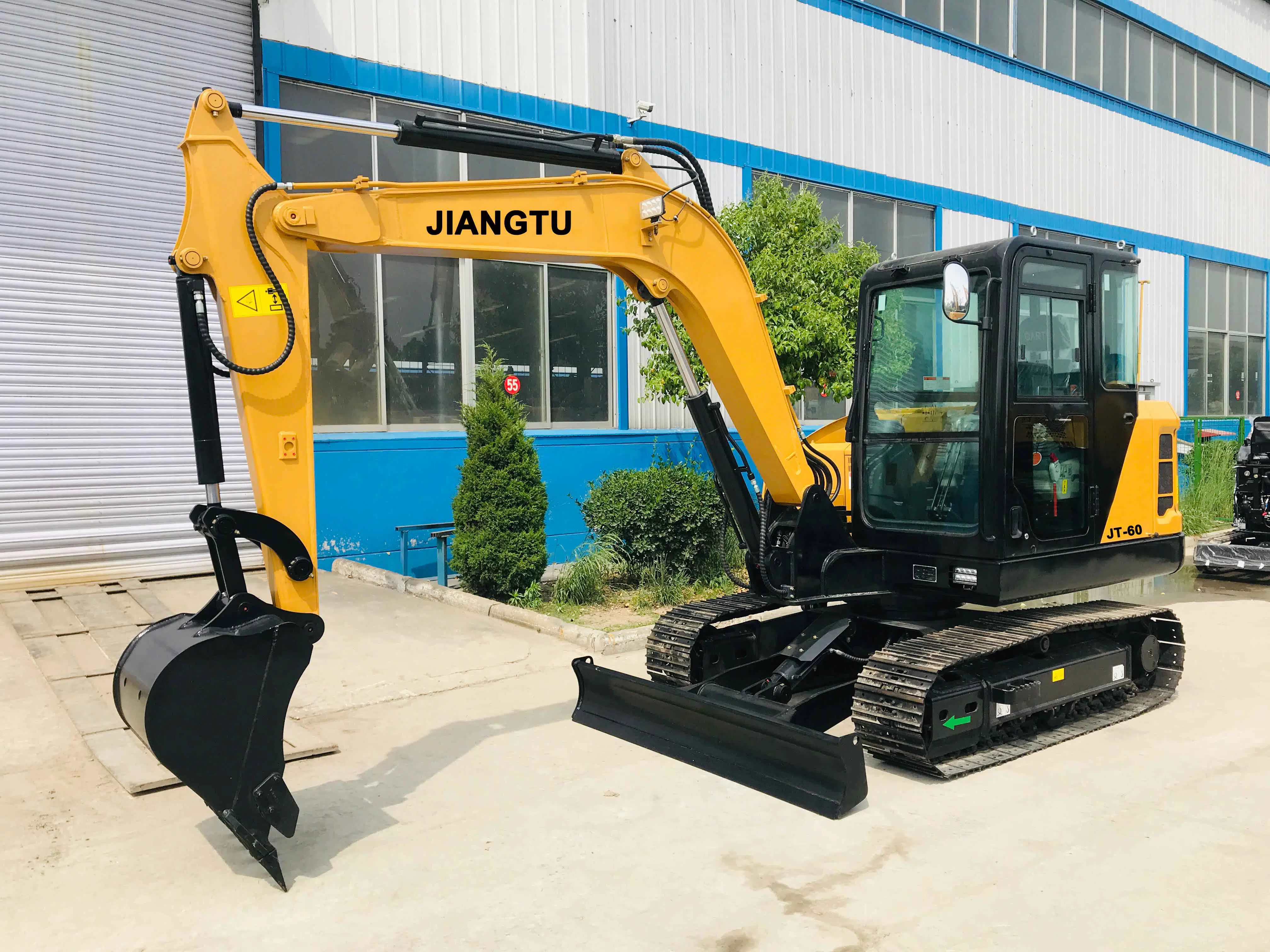

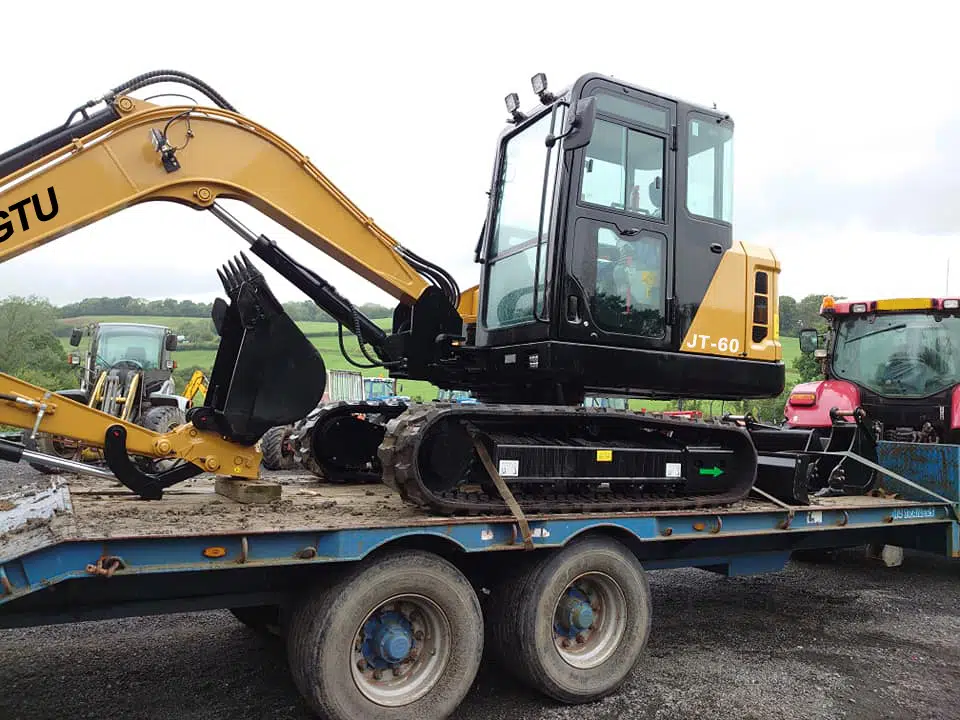

JT60-Compact Excavator(5.8 ton)

JIANGTU has a full range of small excavators, which are well-known in the global market for their low prices and high-cost performance, which are suitable for your various needs.

Main Advantages of JIANGTU JT60-Compact Excavator:

Imported Japan Yanmar Engine and KYB Pump.

Imported hydraulic system with dual pump and dual circuit, stable work performance, fast speed.

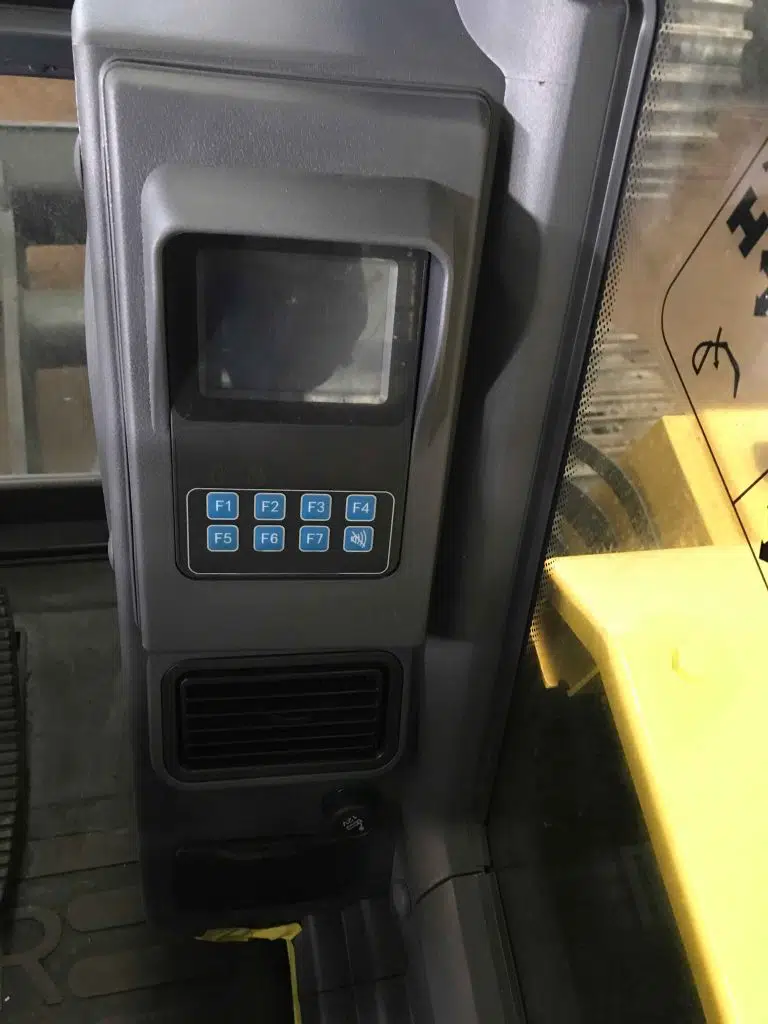

On-line digital monitoring and control system.

Lower energy consumption, faster response speed, and more precise control.

Brochures Download

Specification – JT60-Compact Excavator

The following are the technical parameters of the compact excavator JT60.

ModelJT60Overall width2000mm
Operating weight5820KgOverall height (to top of boom)1995mm
Bucket capacity0.22m3 (SAE)Overall height (to top of cab)2619mm
Engine modelYanmar 4TNV94LCounterweight ground clearance740mm
Rated power36.2kw/2100rpmMin. ground clearance360mm
Hydraulic pump modelKYB, JapanTail swing radius1745mm
Working pressure24.5 (Mpa)Track Ground Length2000mm
Max.flow160(L/min)Track length2665mm
Control valveKYB, JapanTrack gauge1600mm
Swing motorKYB, JapanTrack width2000mm
Travel motorKYB, JapanTrack shoe width400mm
Fuel tank capacity125 LMax. digging height5889mm
Hydraulic oil tank capacity78 L Tank Oil Level 100 L Hydraulic SystemMax. dumping height4201mm
Travel speed2.5/4.0(km/h)Max. digging depth3812mm
Swing speed10 r/minMax. vertical wall digging depth3008mm
Max. climbing degree70%Max. digging reach at ground level6102mm
Arm digging force26.1 KNMin. swing radius2585mm
Bucket digging force36.7KNDistance between center of rotation and tail length1745mm
Average grounding pressure34KpaArm length1580mm
Overall length5943mmBoom length3050mm

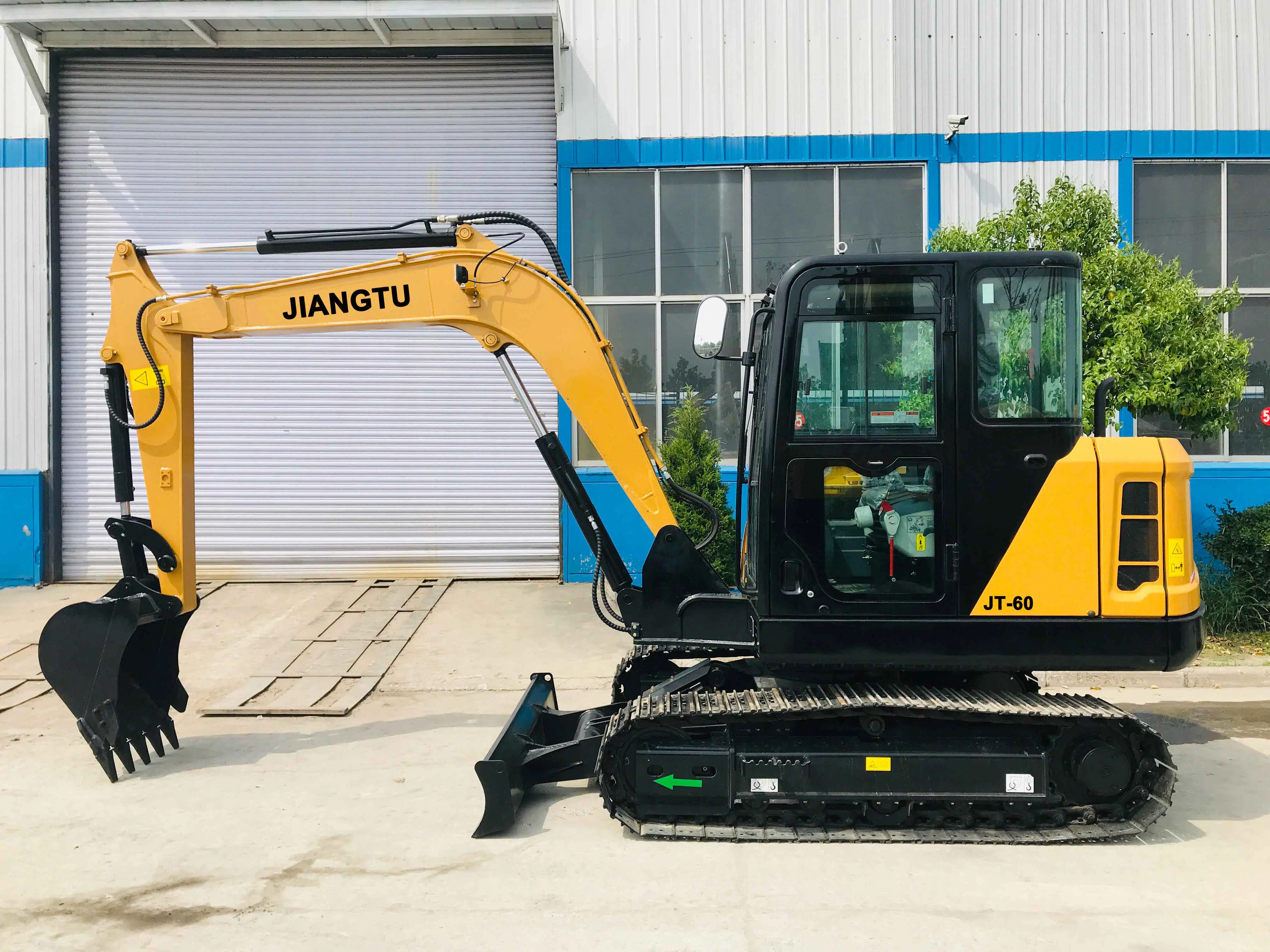

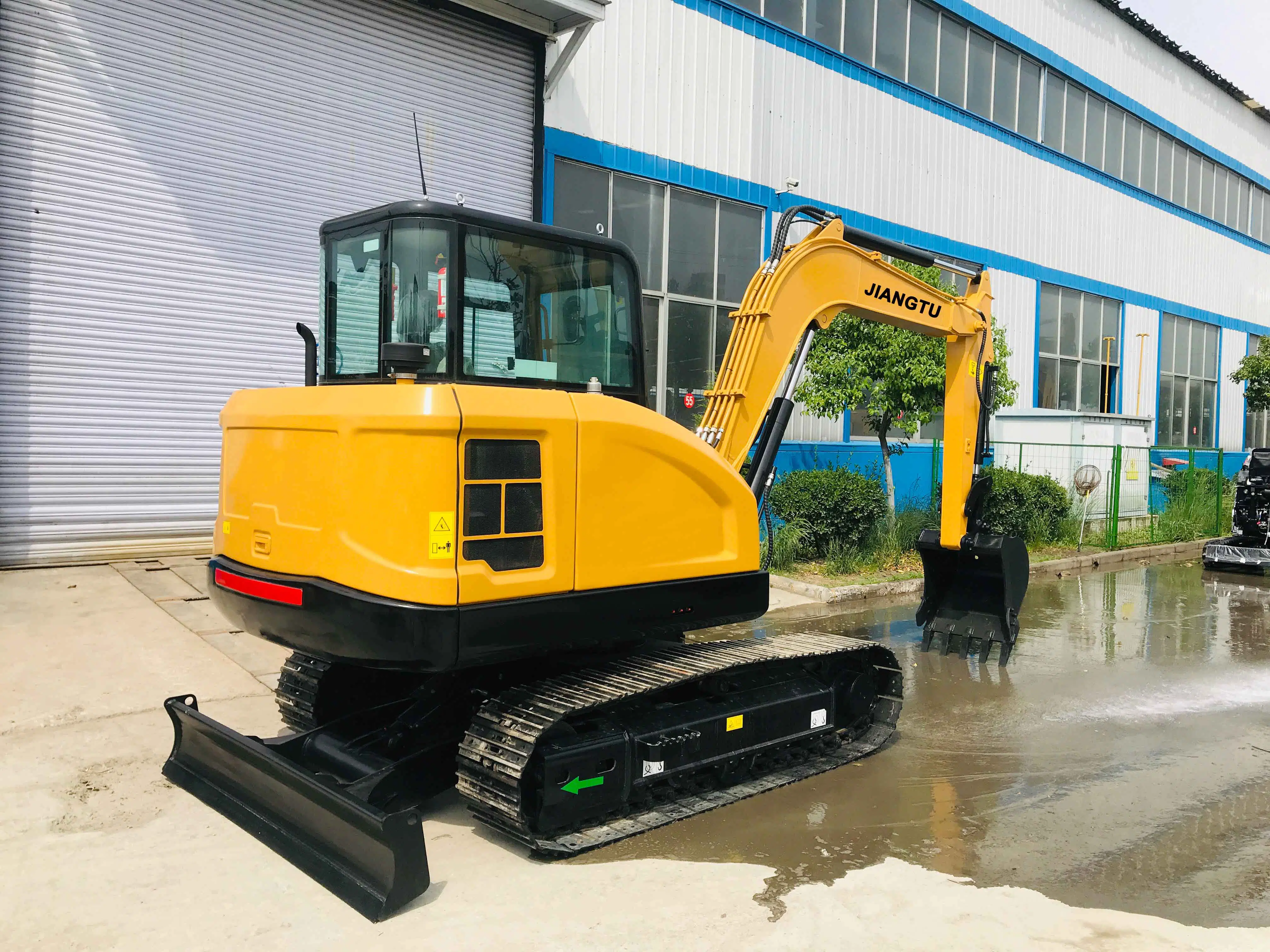

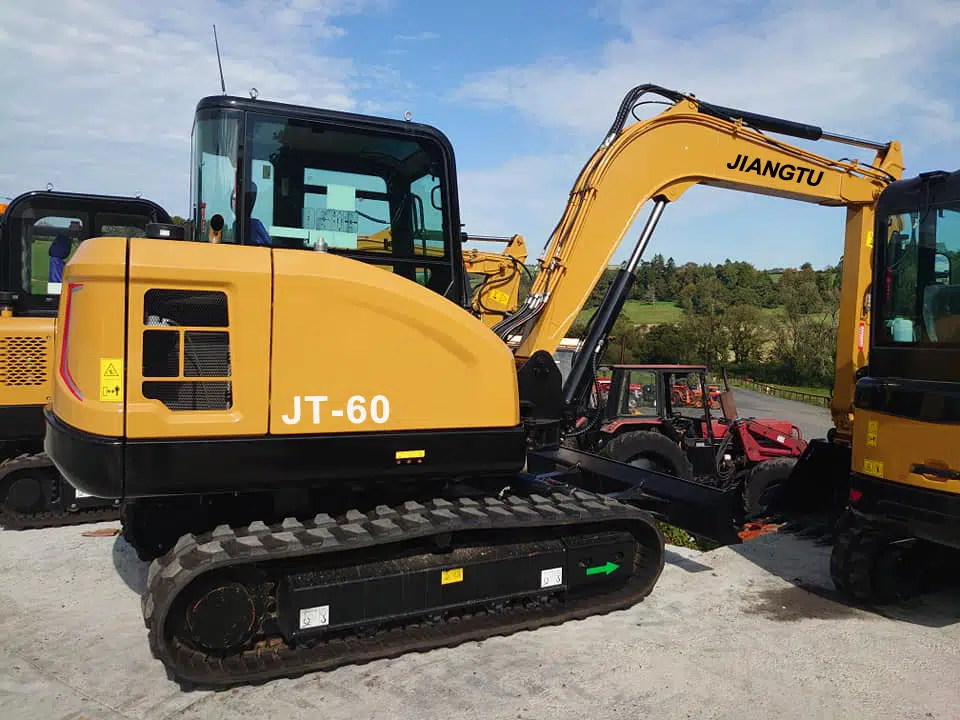

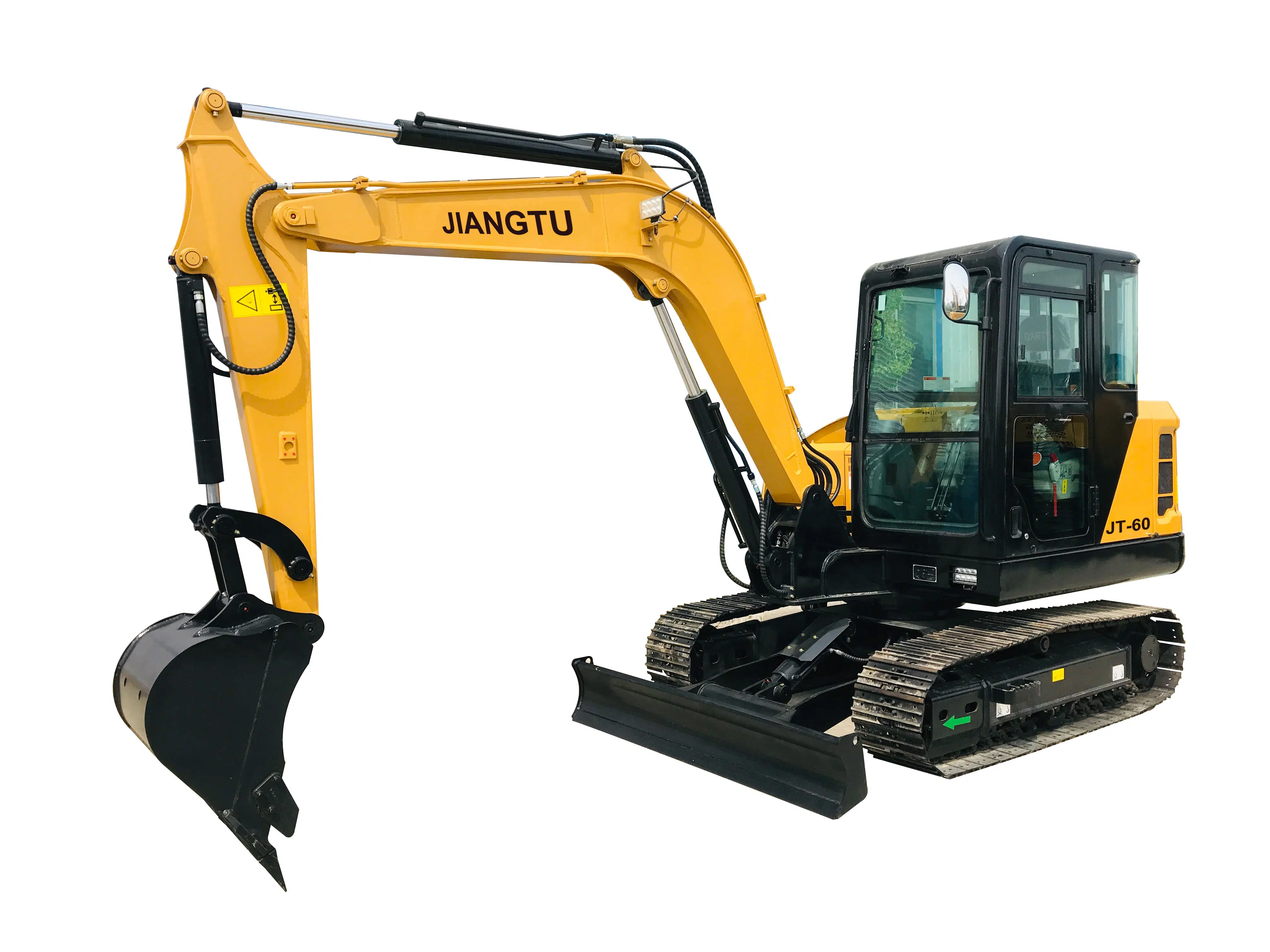

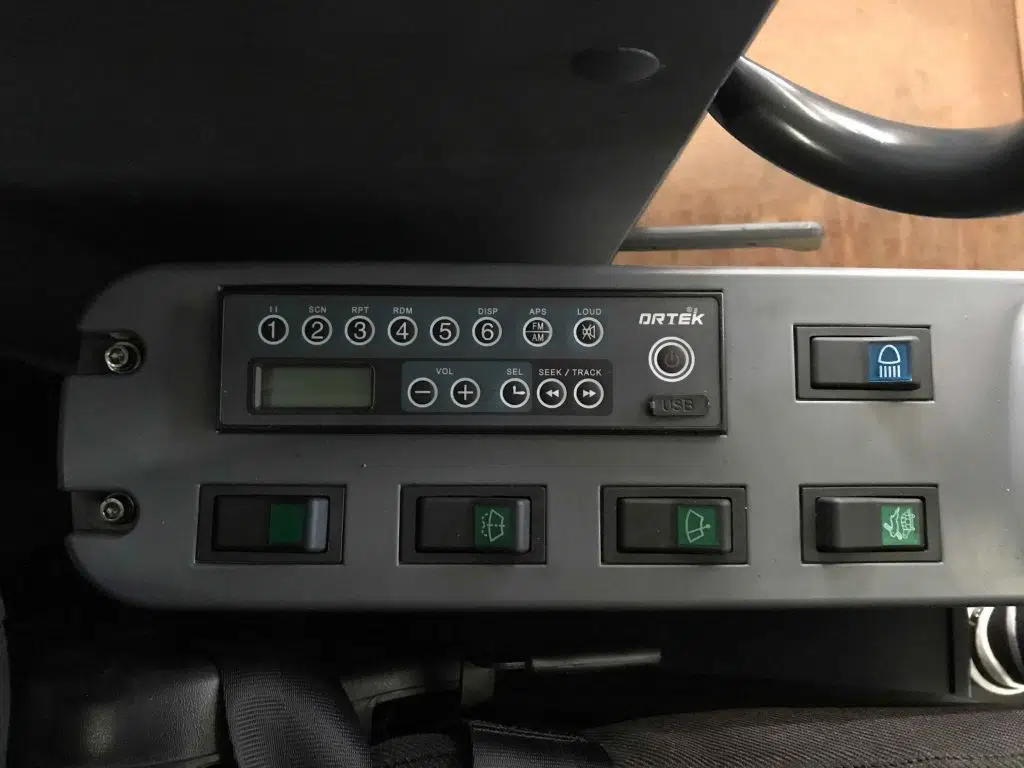

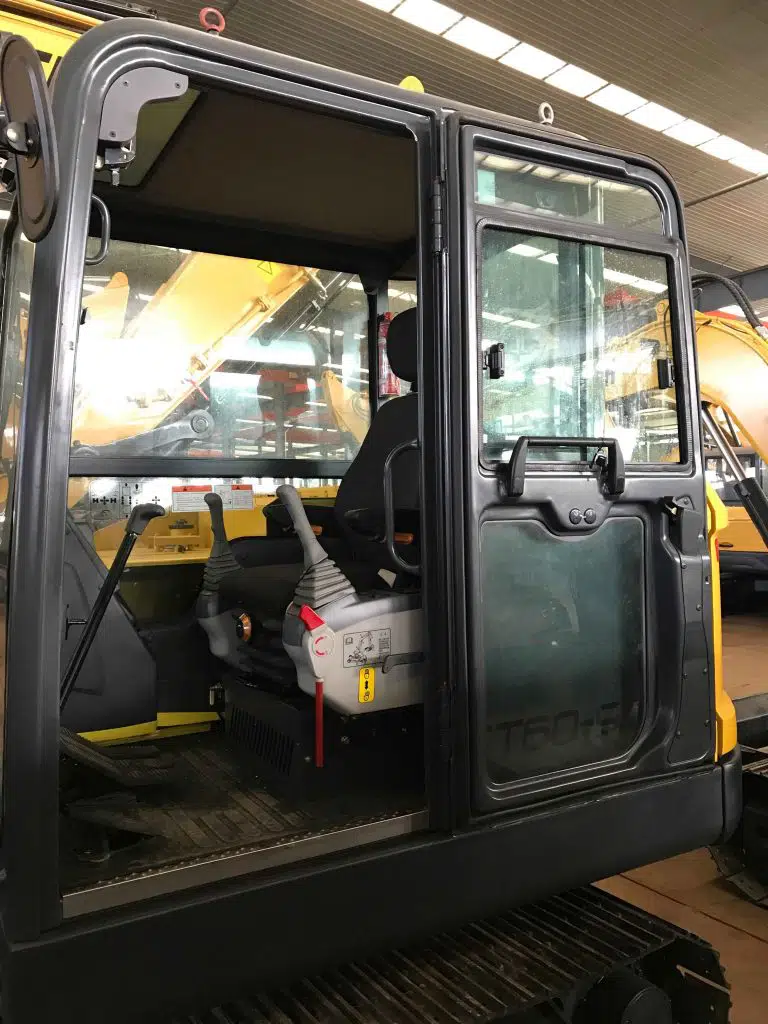

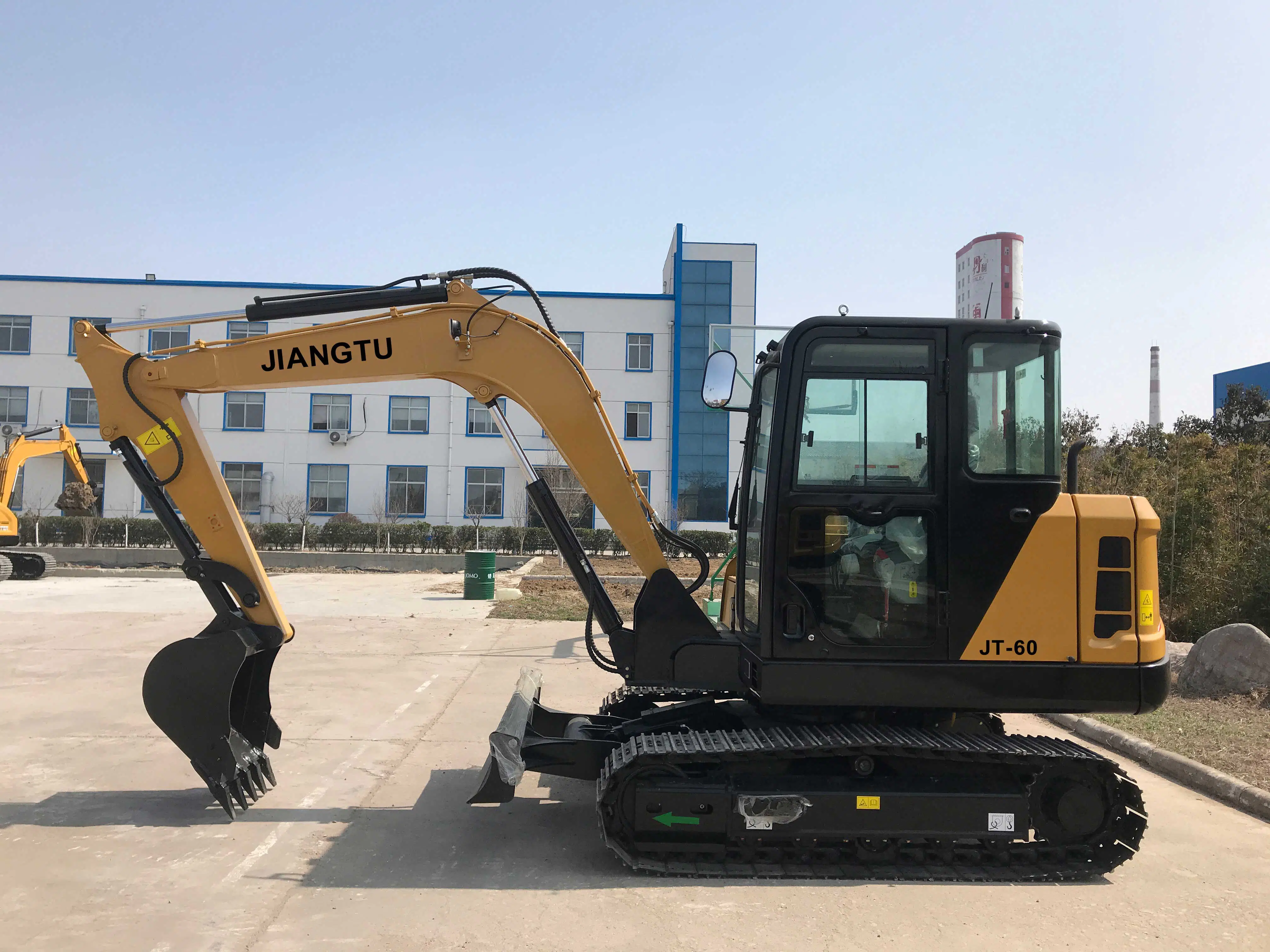

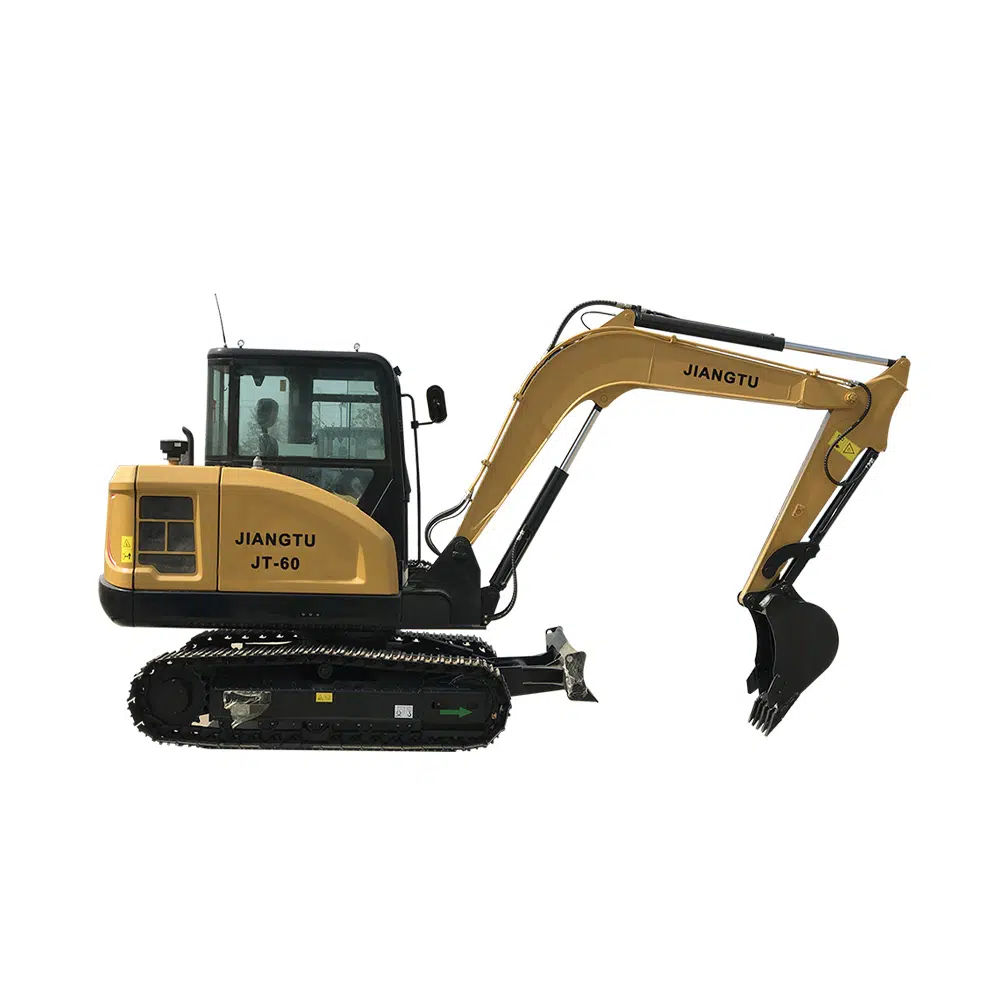

Product Images & Video

Main Advantages of JT60-Compact Excavator

  • 1. Imported Japan Yanmar Engine and KYB Pump.
  • 2. Imported hydraulic system with dual pump and dual circuit, stable work performance, fast speed.
  • 3. On-line digital monitoring and control system.
  • 4. Lower energy consumption, faster response speed, and more precise control.
  • 5. Fuel system can be divided into three stages of filtration. Two stages of the oil-water separator and one stage of fine filtration have high efficiency and good oil adaptability.
  • 6. Equipped with mature track idler, carrier roller, track roller, drive gear, and track, which makes high bearing capacity, good wear resistance, and high reliability.
  • 7. GPS satellite position and remote diagnosis system(optional).
  • 8. Cold & warm air conditioner supply under different kinds of weather conditions.

Certificate

Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
