Best Excavator Buckets Manufacturer

Save time, money and increase productivity with the right Excavator Bucket for your application. JIANGTU can help you select the right buckets for your excavator, with over 10 years of experience in attachment developing and manufacturing.

JIANGTU Excavator Bucket is the perfect choice for grading and leveling earthwork. Obliquely manipulate this excavator attachment to the precise angle required, so that you are more efficient in handling work, and do not have to constantly reposition your excavator.

Best Bucket Manufacturers in China

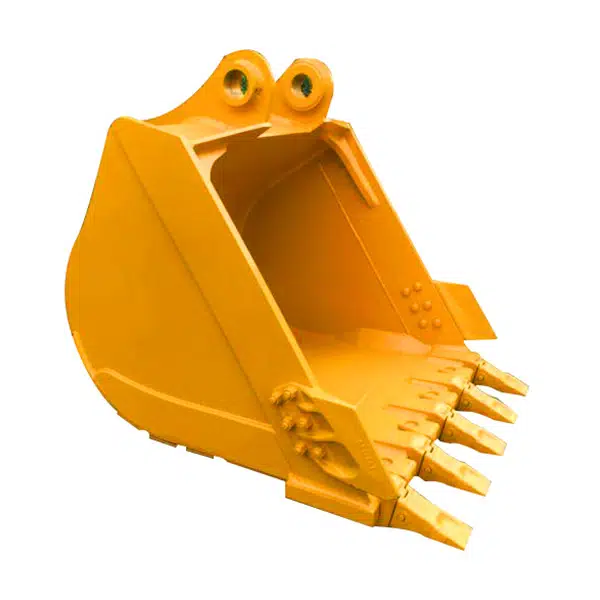

As one of the leading Excavator Buckets manufacturers in China, JIANGTU has a full range of excavator buckets for machines from 1.5-25 tonnes. Included in the range is thumb bucket, tilt bucket, skeleton bucket, clean up bucket, grab bucket, rock bucket, ripper bucket, mini-excavator buckets.

Technical Parameters

Please check the following specifications to choose the right excavator Bucket.

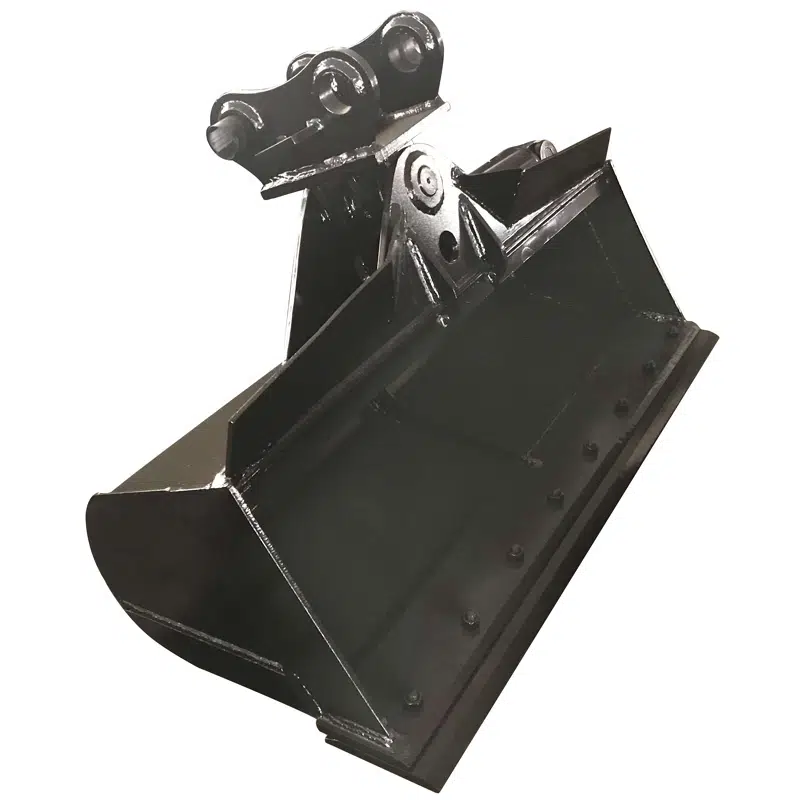

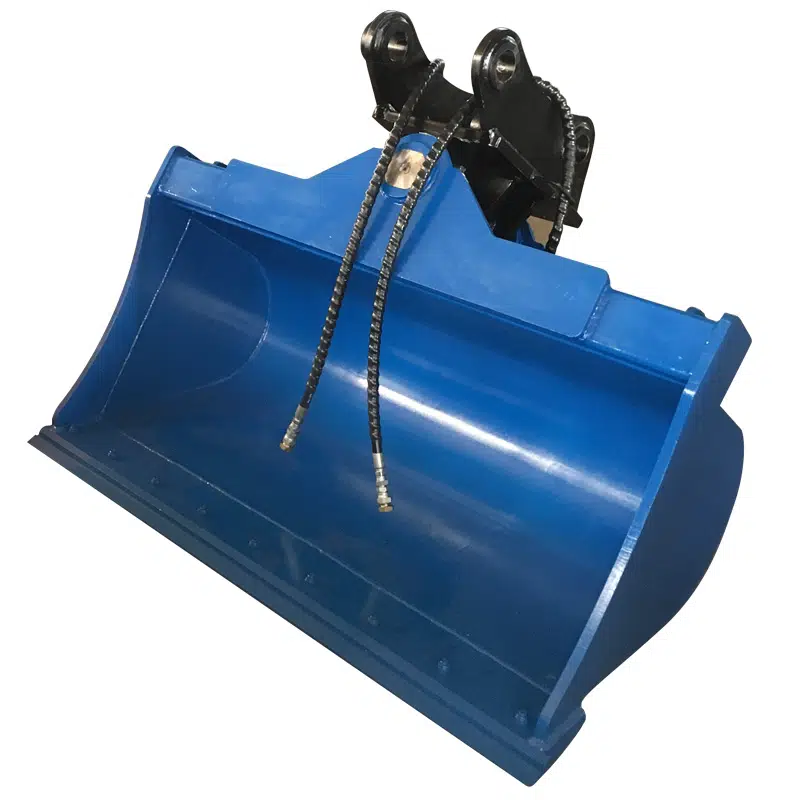

The following are the technical parameters of the Tilt Bucket.

CategoryUnitJT-miniJT-02JT-04JT-06JT-08
Rotation angle360360360360
Oil pressurebar80-120110-140120-160150-170160-180
Operating flowlpm25-4030-5550-10090-110100-140
Excavator weightton1.5-34-66-912-1617-23
Weightkg1201632407301260

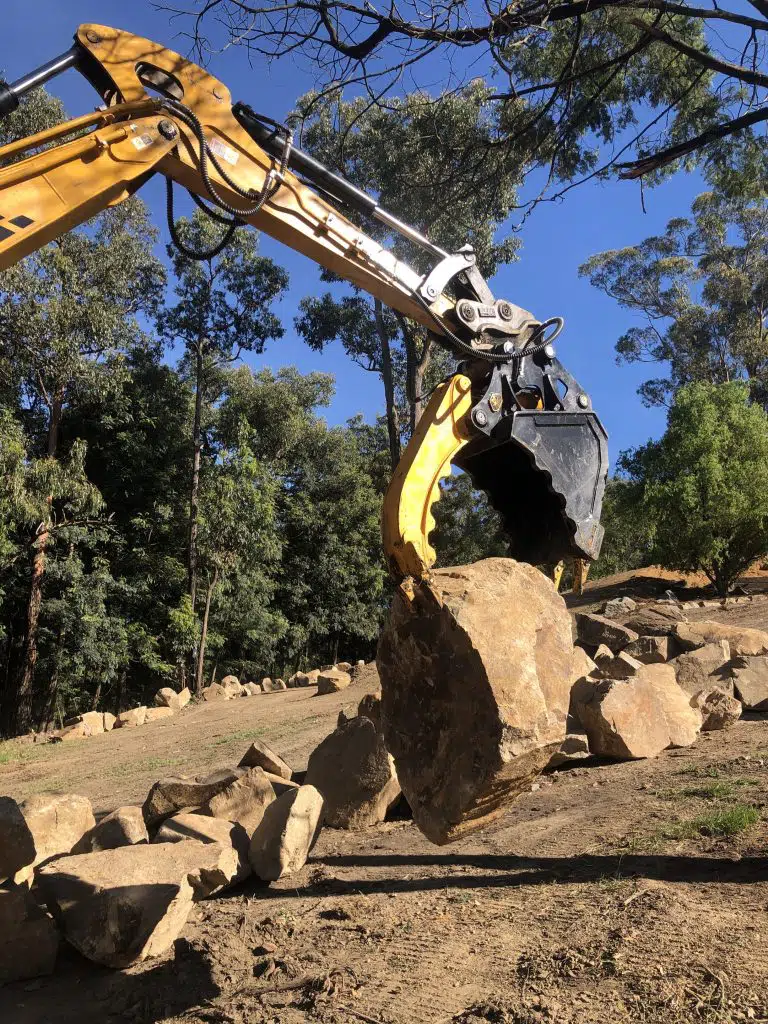

The following are the technical parameters of the Thumb Bucket.

MODELJT 02JT 03JT 04JT 06JT 08JT 10JT 14JT 20
Weight(kg)1102602906901190178021002400
Max jaw opening(m/m)8271300140018002300250025002700
Oil pressure(kg/cm2)100~130110~140120~160150~170160~180160~180180~200180~200
Set up pressure(kg/cm2)150170180190200210220250
Operating flux(lpm)15~4030~5550~10090~110100~140130~170180~250250~320
Cylinder volume(ton)45.45.48.210121415
Apply excavator(ton)2~34~67~1112~1617~2324~3031~4041~50

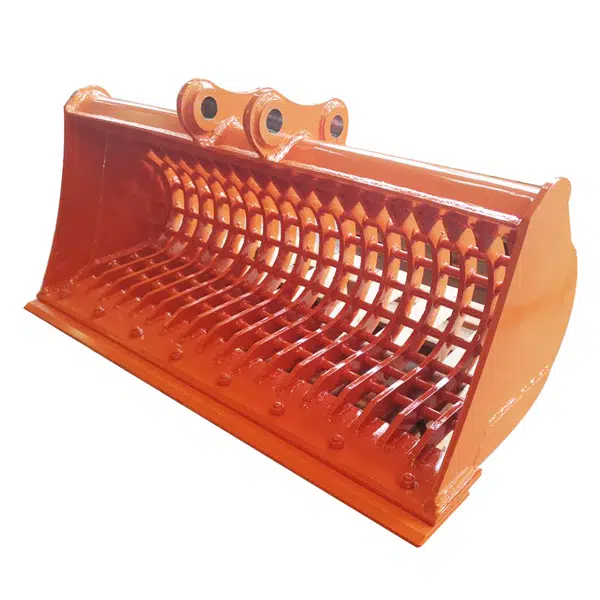

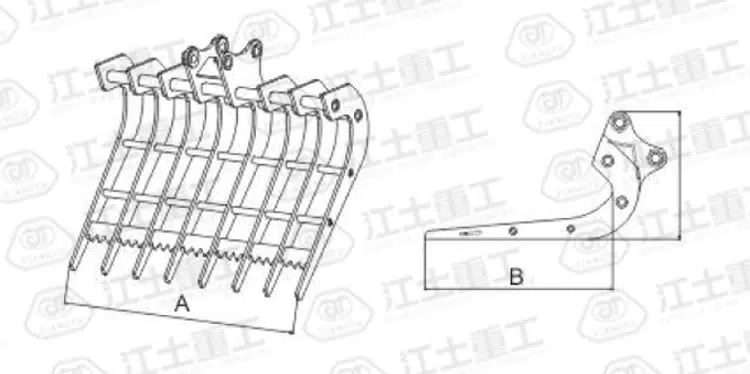

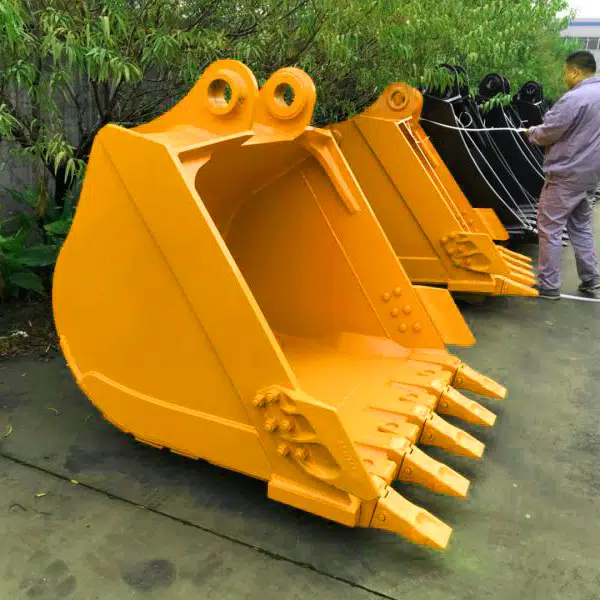

The following are the technical parameters of the Skechen Bucket.

TYPEMATERIALAPPLICATIONNOTES
Bucket (GP)Q345Mainly used for excavation and sand, gravel and soil, and other light load operating environments.OEM & Customizable manufacturing,Is Available
Bucket (HD)Q345+NM400Mainly used for digging hard soil, mixed with a relatively soft stone and clay, softer stones, and other light load operating environments.OEM & Customizable manufacturing,Is Available
Bucket(HDR)Q345+NM400/HARDOX400Used for mining hard gravel mixed with hard soil, sub-hard stone or flint, after blasting or loading, and heavy-loading.OEM & Customizable manufacturing,Is Available

Frequently Asked Question

Yes, our factory was established in 2011.

Yes, we are a professional attachments manufacturer, We make attachments according to your excavator bucket dimensions.

Sure, we can provide OEM and ODM services.

MOQ is 1 set. Payment by T/T, L/C, Credit Card, and Western Union is acceptable. Another payment method can be negotiated.

Usually 15 days subject to order quantity. Due to the surge in orders, please check with customer service staff for lead time.

Our attachments are packaged by standard export wooden cases free from fumigation.

Shipment can be made by sea, air, or land. Sea loading ports include Qingdao, Yantai, and Shanghai, etc. The sales manager will select an optimal shipping method for you. For more information, please contact with customer service staff.

Russia, USA, Canada, Japan, Korea, Malaysia, Hong Kong, Taiwan, India, Indonesia, Australia, New Zealand, Israel, South Africa, etc.

JIANGTU Service

  1. We can offer a comprehensive range of excavator attachments such as a hydraulic breaker, quick hitch, log grapples, plate compactor, earth drill auger, orange peel grab, demolition grapple, grab bucket, ripper, etc…
  2. You may rest assured that all of our products can be supplied in a wide range of designs, and the product can be customized according to your personalized requirements. Meanwhile, we can offer an excellent after-sale service.
  3. We will keep your business information confidential.
  4. We promise to reply to you upon receipt of your inquiry within 12 hours.
  5. The order will be produced exactly according to your detailed requirements and bucket dimensions. Each attachment will be tested before delivery. Our QC will submit an inspection report before shipment.

OEM: Offer your design documents or tell us your ideas and our R&D team will do the rest.

Warranty: JIANGTU Excavator Attachments are guaranteed against failure due to defective design, materials, or workmanship for a period of one year or 2,000 hours. Within the first 6 months, we offer a free replacement service.

Ready To Know More?

Find out which attachment works best for you and get a quote!
