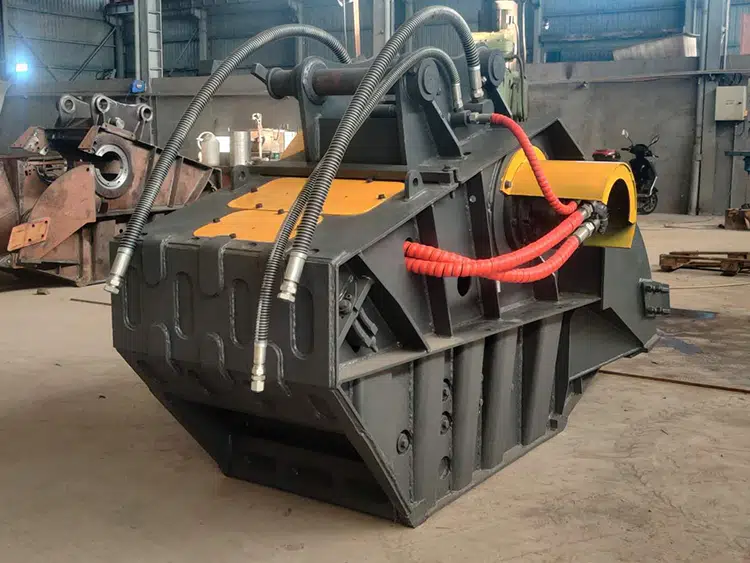

Crusher Bucket
The JIANGTU Excavator Crusher Bucket is a high-performance excavator attachment used to crush both wet and dry materials on construction sites.
It can be used for excavators, skid steer loaders, and installed backhoe loaders.
Main Advantages of JIANGTU Crusher Bucket:
- Up to 30% increase in output
- Automatic anti-lock mechanism
- Reversible running direction
- Quick granularity adjustment
- Precision drive system
- Compact design
Brochures Download
Specification – Crusher Bucket
The following are the technical parameters of the Crusher Bucket.
| Model | Unit | JT-06 | JT-08 | JT-10 |
| Excavator weight | T | 10-16 | 20-26 | 30-40 |
| Bucket volume | m³ | 0.4 | 0.7 | 0.8 |
| Hydraulic pressure | bar | 250 | 250 | 250 |
| Hydraulic flow | l/min | 150 | 260 | 320 |
| Inlet size | mm | 550X450 | 700X500 | 900X650 |
| Discharge size | mm | 15-120 | 15-120 | 15-120 |

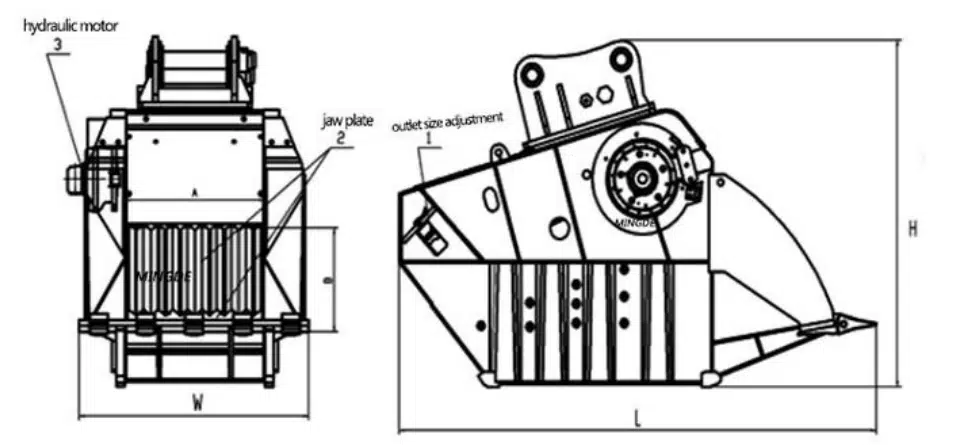

| Overall size | mm | 1850*1100*1200 | 2300*1400*1450 | 2400*1700*1600 |
| Bucket weight | kg | 1450 | 2700 | 4300 |

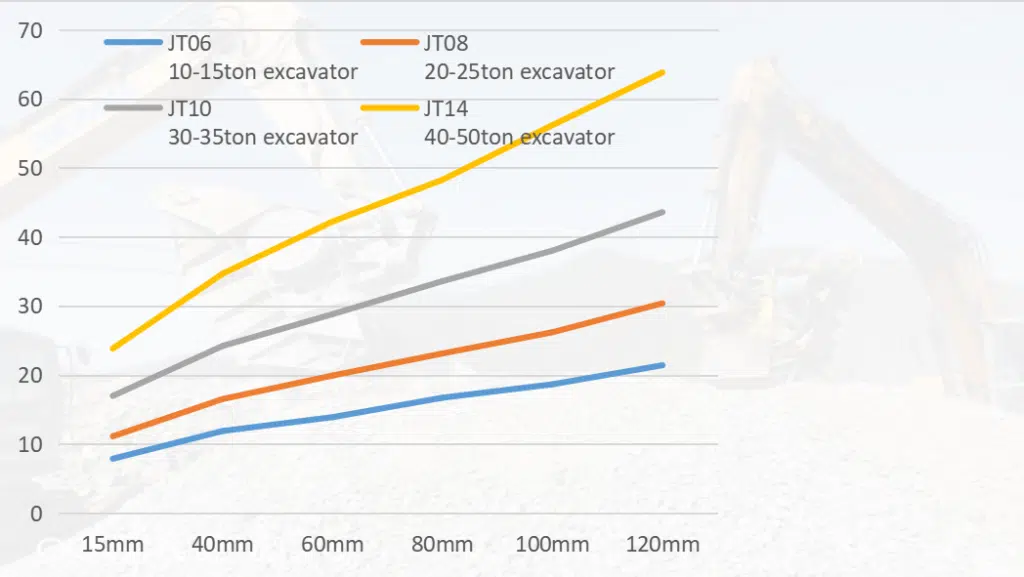

Production table of Crusher Bucket
| Model | JT06 | JT08 | JT10 | JT14 |
| 15mm(m³/h) | 7.87 | 11.12 | 16.97 | 23.82 |
| 40mm(m³/h) | 11.89 | 16.52 | 24.21 | 34.68 |
| 60mm(m³/h) | 13.89 | 19.92 | 28.81 | 42.23 |
| 80mm(m³/h) | 16.71 | 23.12 | 33.59 | 48.27 |
| 100mm(m³/h) | 18.65 | 26.19 | 38.01 | 56.19 |
| 120mm(m³/h) | 21.41 | 30.38 | 43.58 | 63.81 |

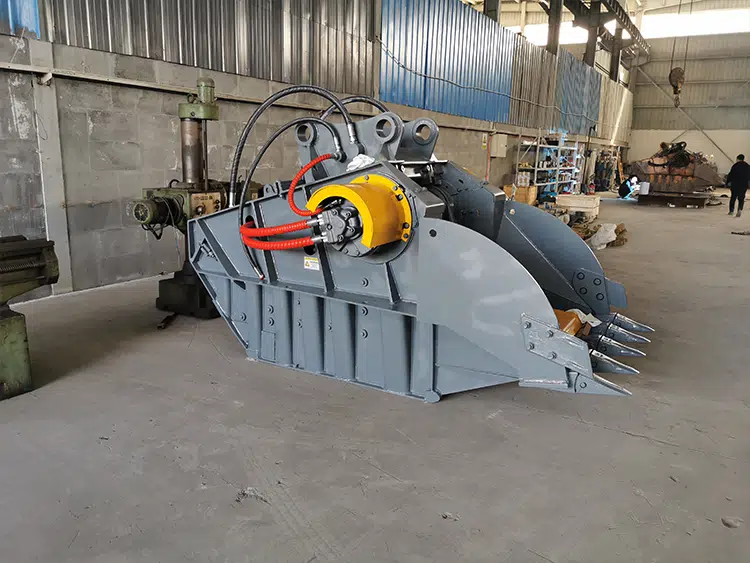

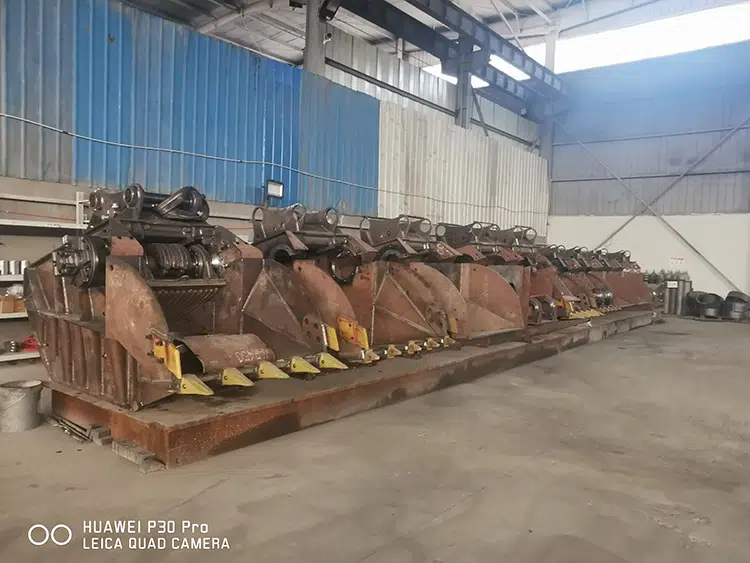

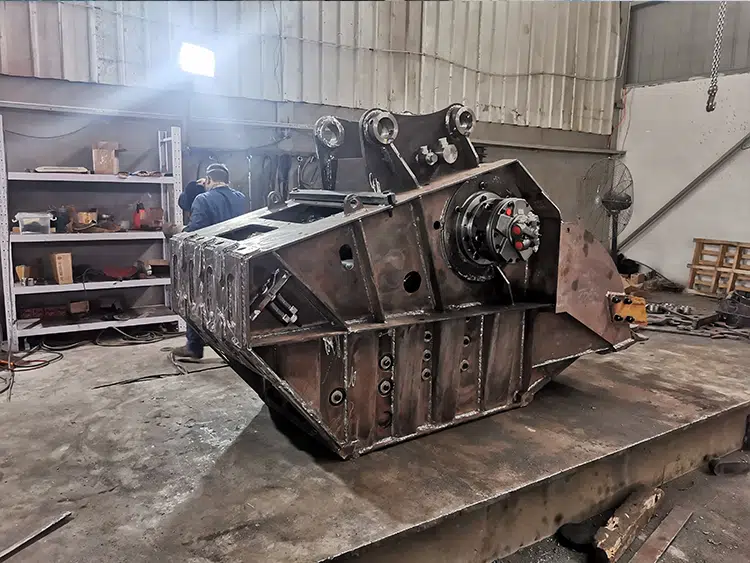

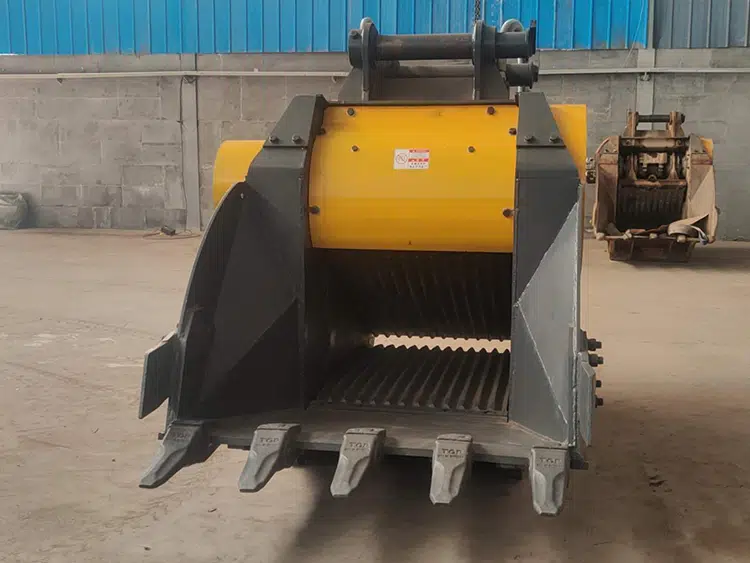

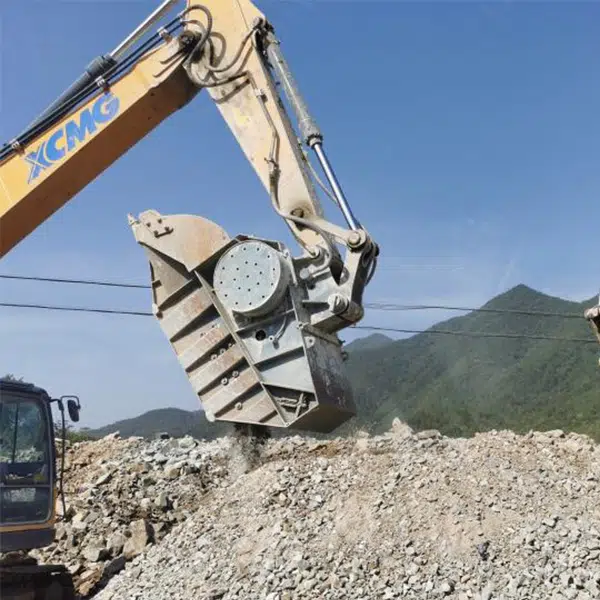

Product Images
Main Advantages of Skechen Bucket

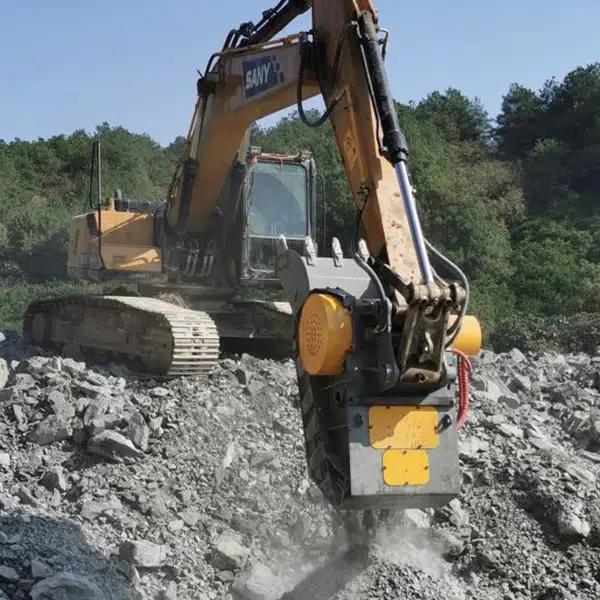

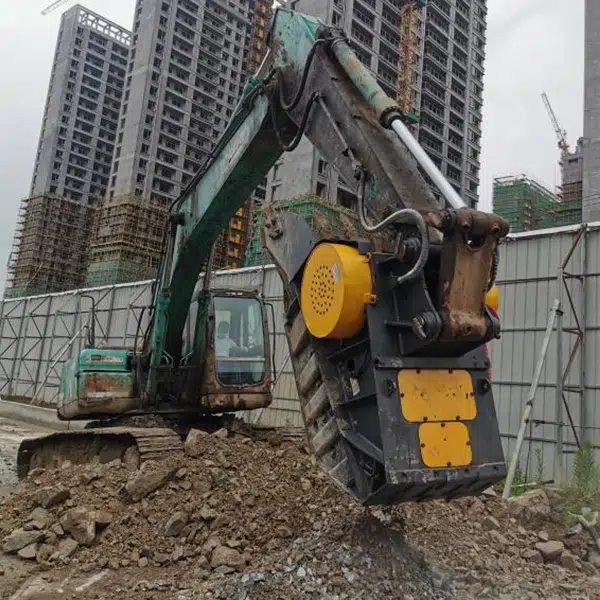

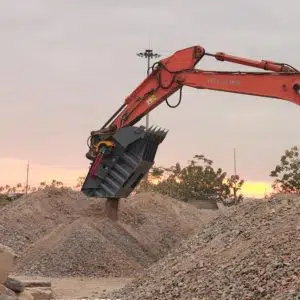

It has a wide range of applications: from general demolition of buildings to re-identification of old industries and urban areas to the processing of excavation materials, from the earthmoving industry to road engineering, from quarries to mines, from environmental reclamation to rock applications mud.
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
