• Hydraulic Auger

    JIANGTU Excavator Earth Auger is a Kind of digging machine. Used for tree planting, pole hole, drilling, photovoltaic pile.

    It can be mounted on all common hydraulic excavators as well as mini-excavator and other carriers like skid steer loader, backhoe loader, crane, telescopic handler, wheel loader and Loader, and other machinery.

    Main Advantages of JIANGTU Auger:

    Efficient: digging holes move strongly, deep pit probably can be completed in 30 seconds,

    3, High work quality: using high strength drill, tensile spiral drill pipe, dug the holes, solid, pit soil-less allowance, the maximum depth can reach 250 cm;

    4, Strong adaptability: with two wheels move, this type of equipment has strong off-road performance

    Specification – Hydraulic Auger

    The following are the technical parameters of the Hydraulic Auger

    Model No.JTminiJT02JT04JT06JT06SJT08JT08S
    Excavator Weight (ton)2.5-4.54.5-65-813-1715-1715-2017-30
    Measurement (mm)ฯ†200X585ฯ†270X850ฯ†270X850ฯ†300X945ฯ†300X945ฯ†345X1155ฯ†345X1155
    Weight(kg)60100152170175265272
    Working Pressure(bar)205205205205205205205
    Max Pressure(bar)310310310310310310310
    Max Torque(nm)37607300824012300152001980024920
    Rated Oil Flow(lpm)150150150150150150150
    Max Oil Flow(lpm)210225225170210210225
    Diameter of Oil PipeG1/2โ€G1/2โ€G1/2โ€G3/4โ€G3/4โ€G3/4โ€G1โ€

    Digging Function

    ฯ†150-250 mm3m10m10m10m10m10m10m
    ฯ†300-400 mm–8m10m10m10m10m10m
    ฯ†450-550 mm–6m8m10m10m10m10m
    ฯ†600-700 mm––6m10m10m10m10m
    ฯ†750-850 mm–––10m10m10m10m
    ฯ†900-1000 mm––– 10m10m10m

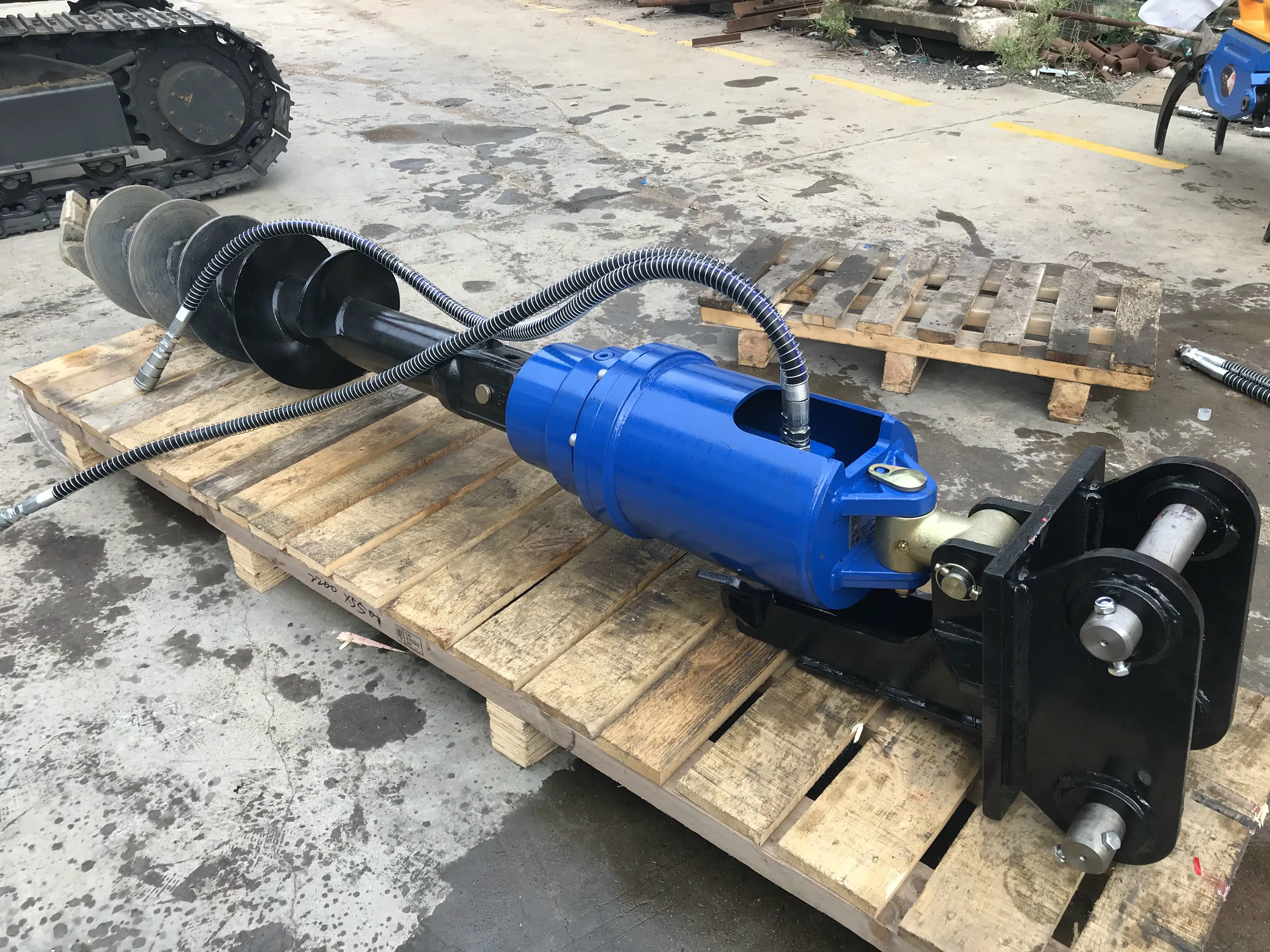

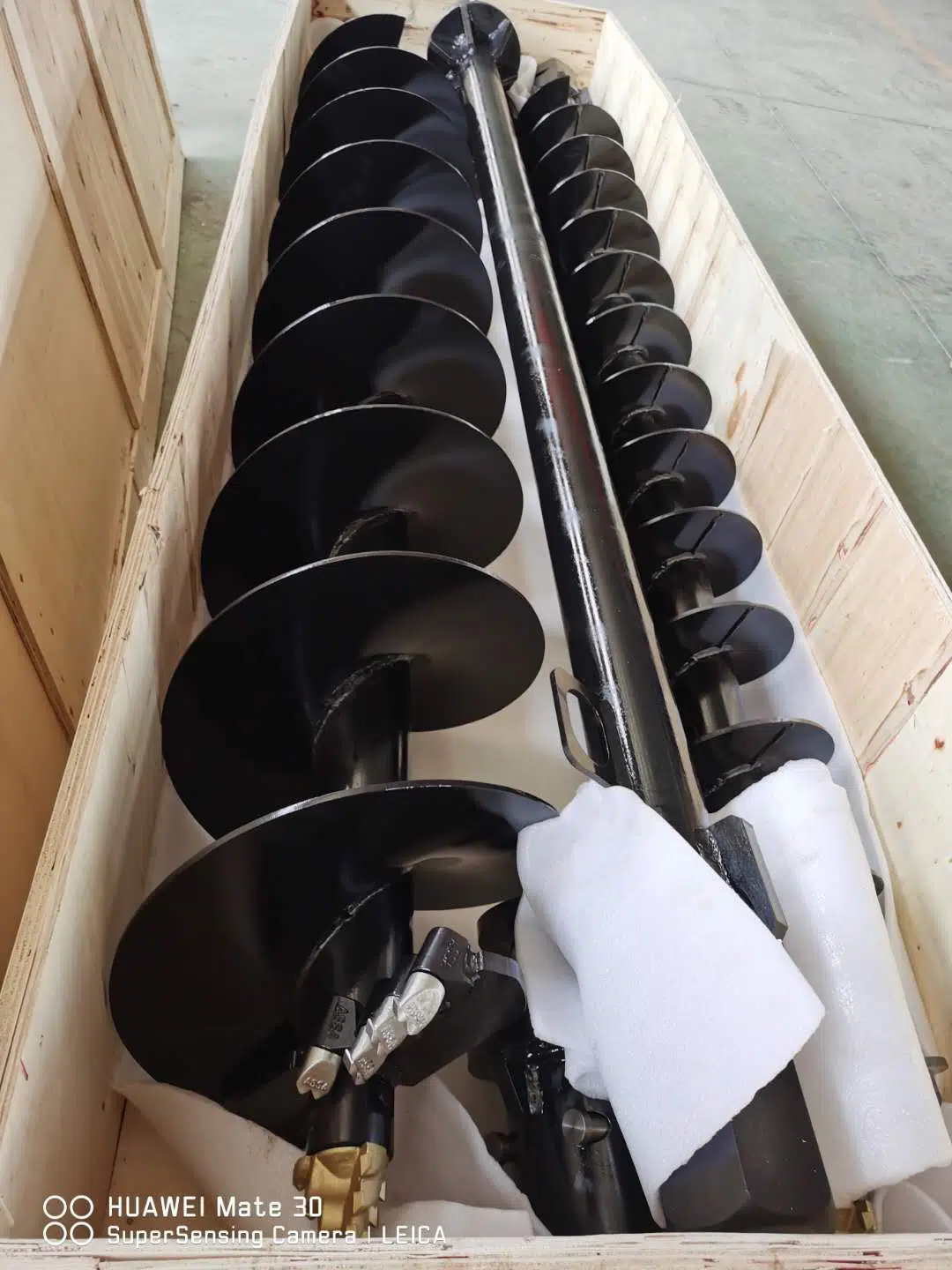

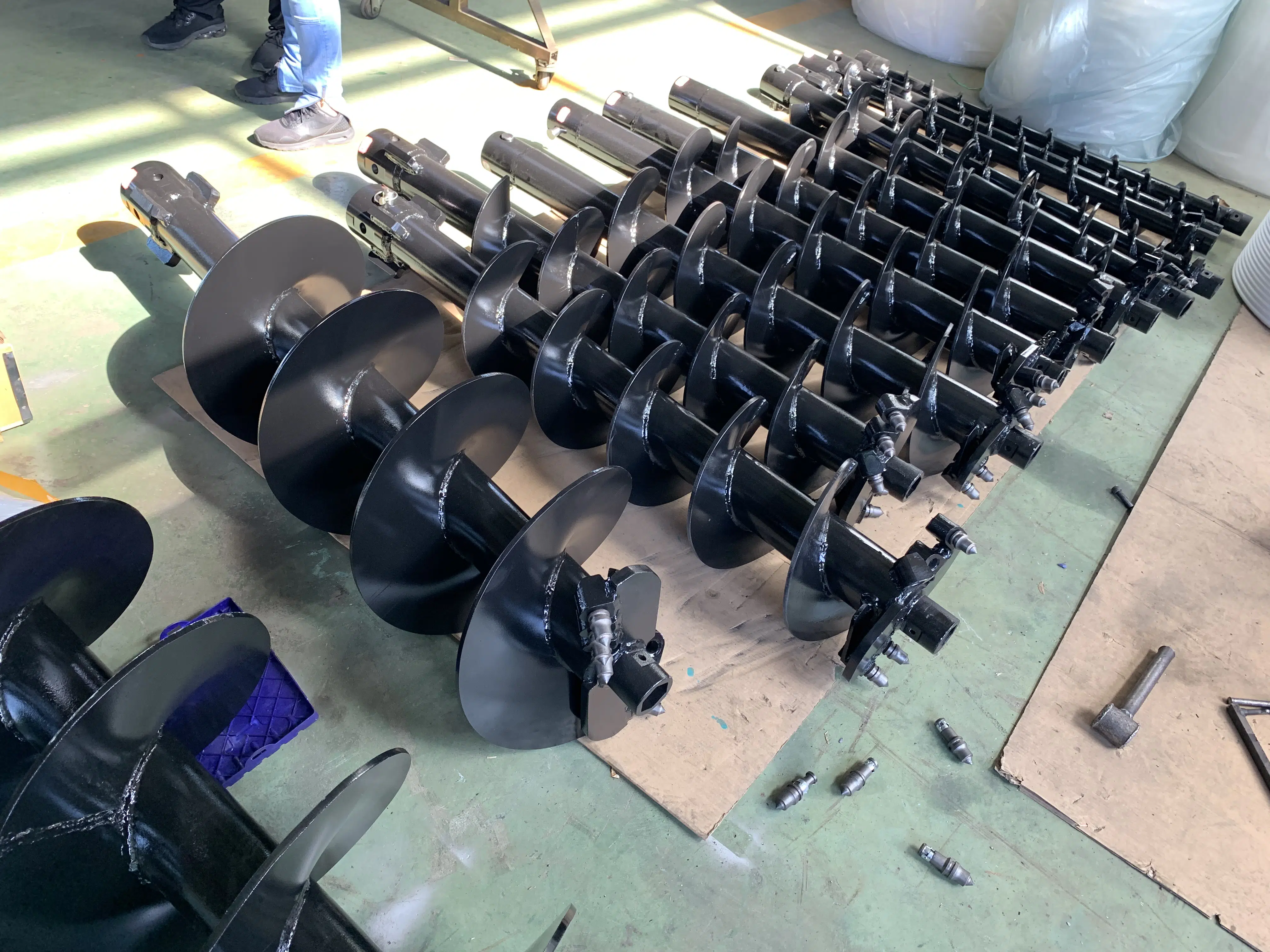

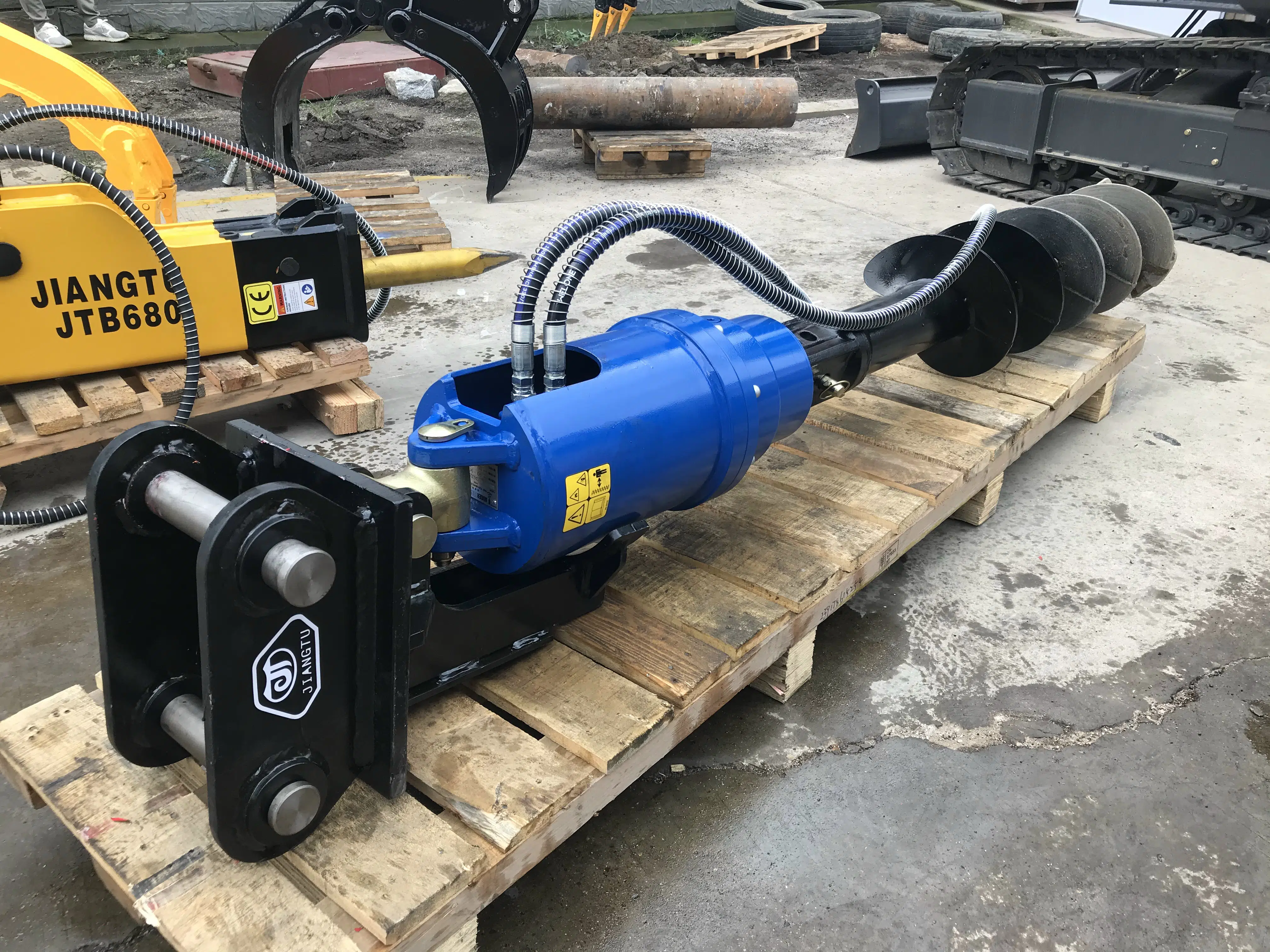

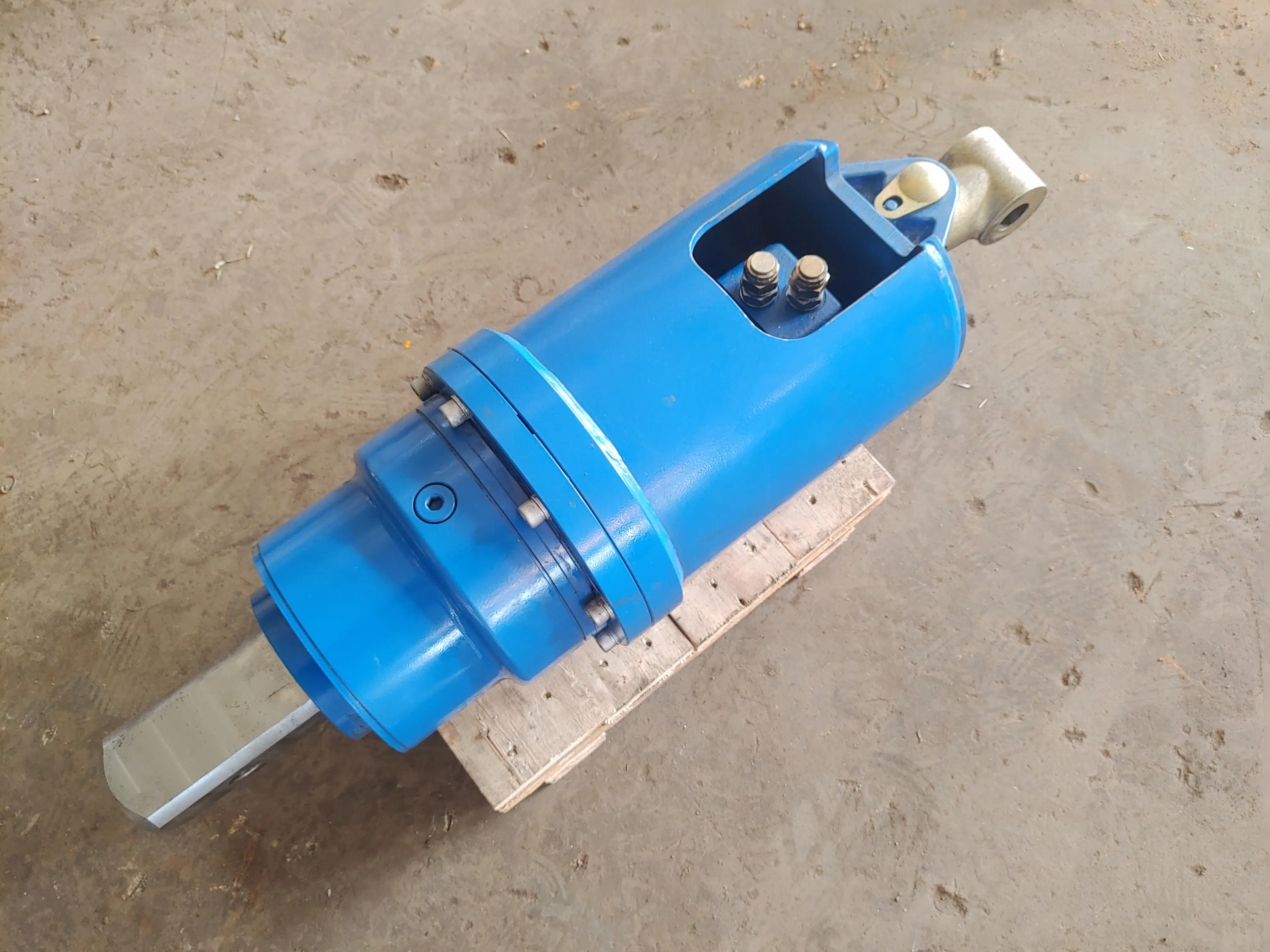

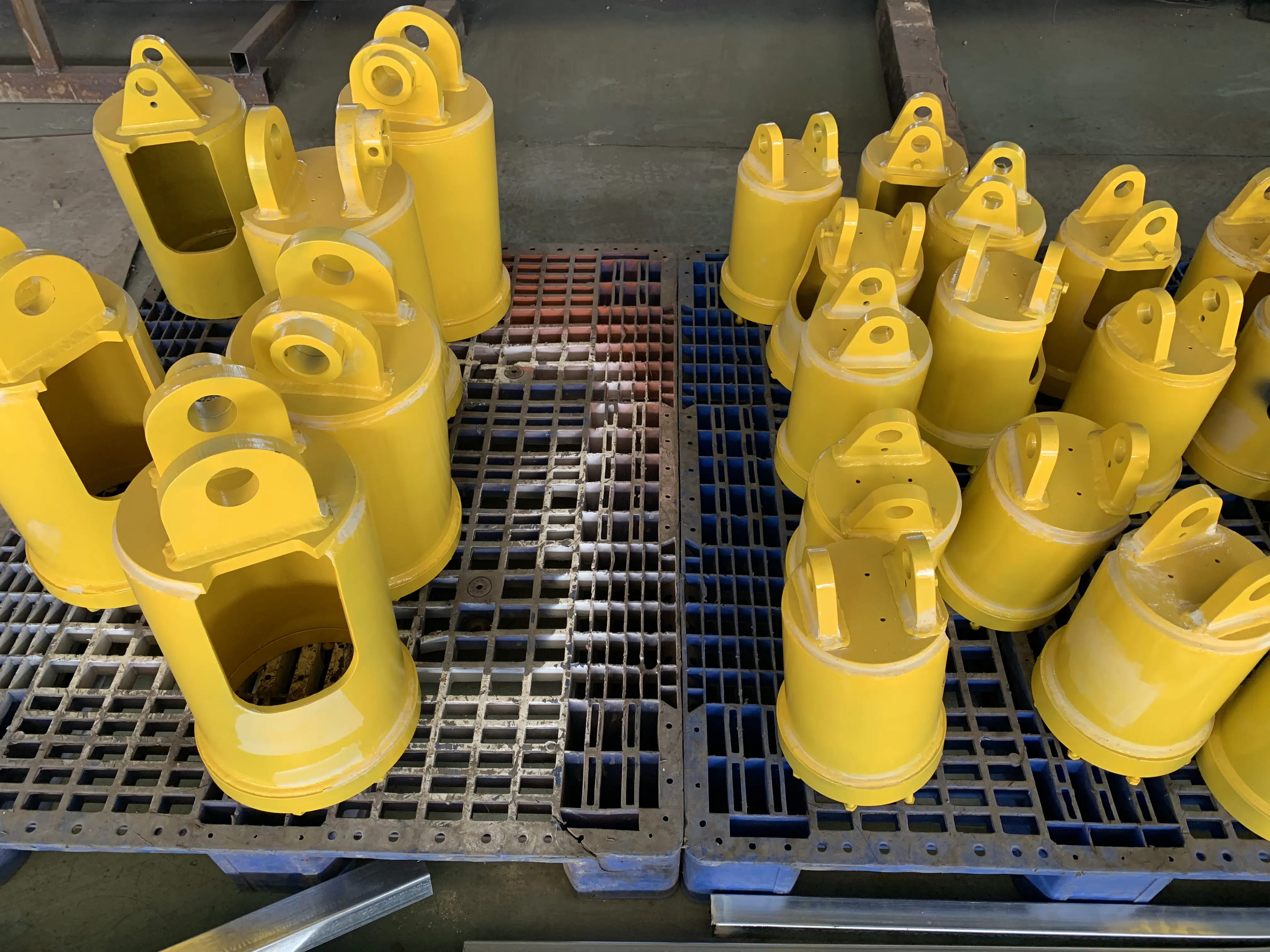

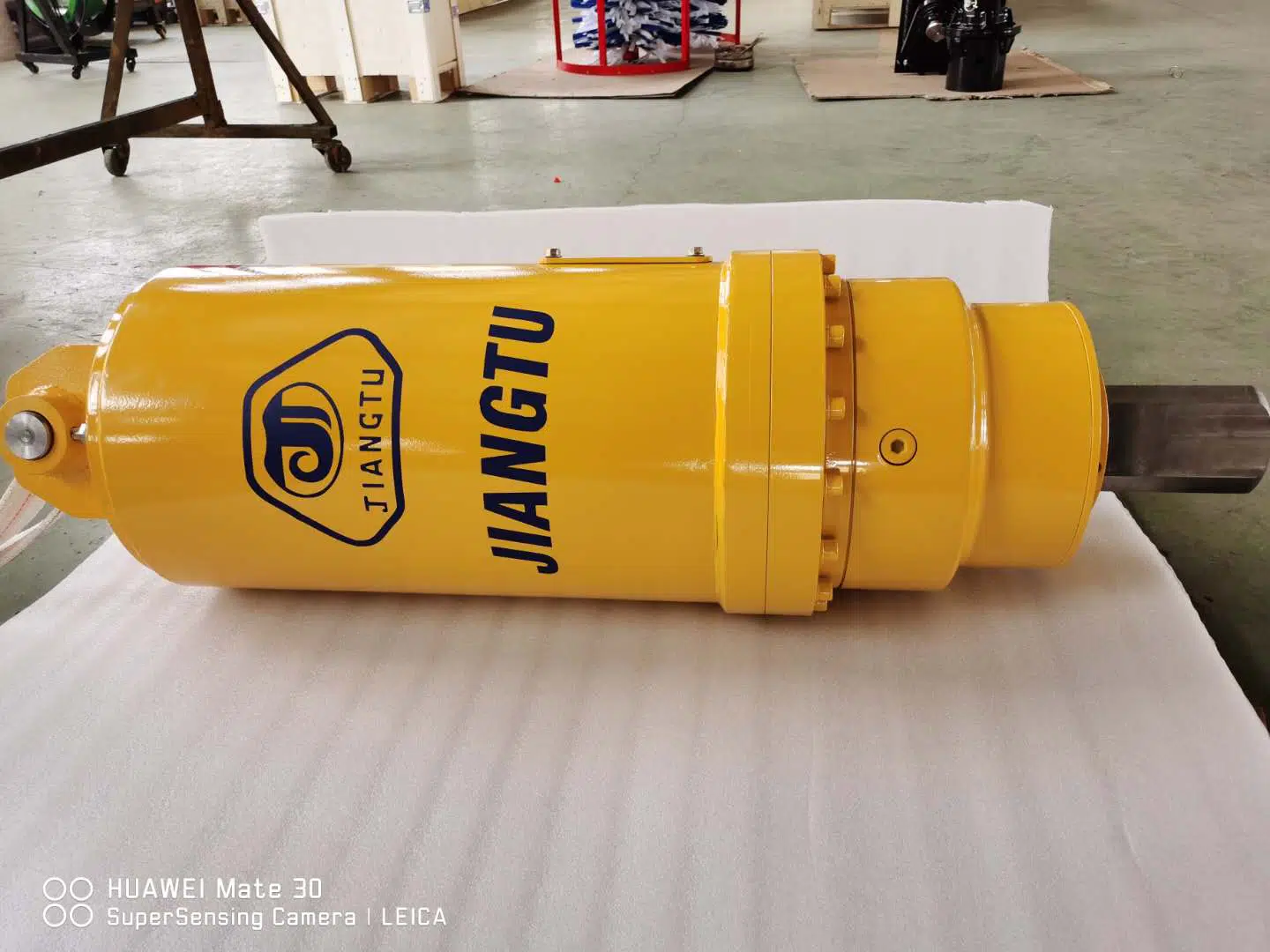

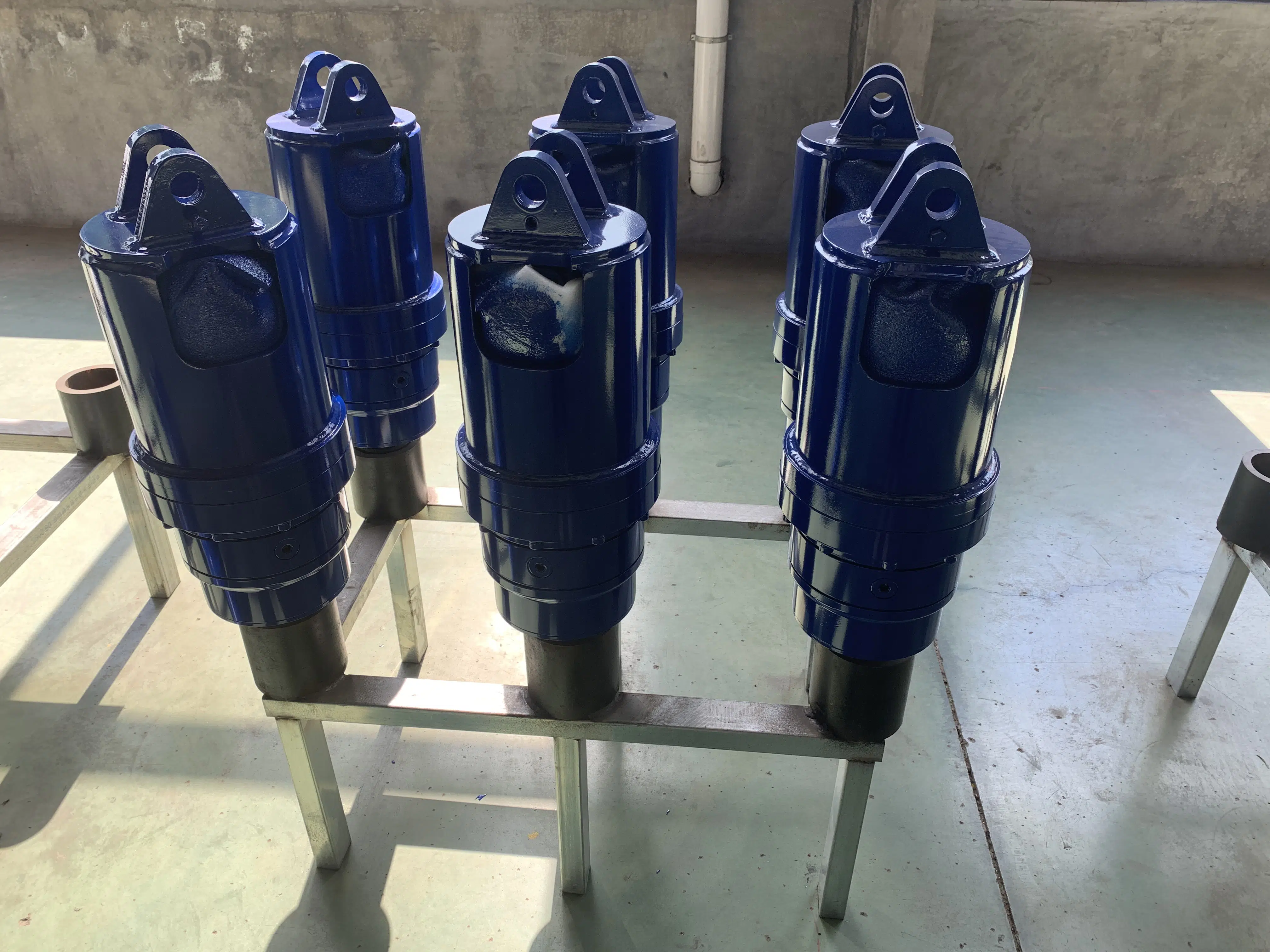

    Product Images

    Main Advantages of

    1, Efficient: digging holes move strongly, deep pit probably can be completed in 30 seconds, efficiency is the traditional way of artificial digging holes more than one hundred times;
    2, Operation is simple; An operator can complete all kinds of earth auger holes dug drilling work;

    3, High work quality: using high strength drill, tensile spiral drill pipe, dug the holes, solid, pit soil-less allowance, the maximum depth can reach 250 cm;

    4, Strong adaptability: with two wheels move, this type of equipment has strong off-road performance, hills, mountains, etc all can well adapt to the complex terrain, can in the north, clay layer, containing pebbles gravel soil and weathered rock and soil layer construction work on most of the soil;

     Choose the right auger on the excavator

    In order to choose the most proper model auger drill for your excavator/crane, you need to provide:1.Model of your excavator/skid steer/backhoe/tractor/crane.
    2. The diameter of the hole to be drilled.
    3. Depth of hole to be drilled.
    4.Your working ground condition(ground type).

    Certificate

    Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
