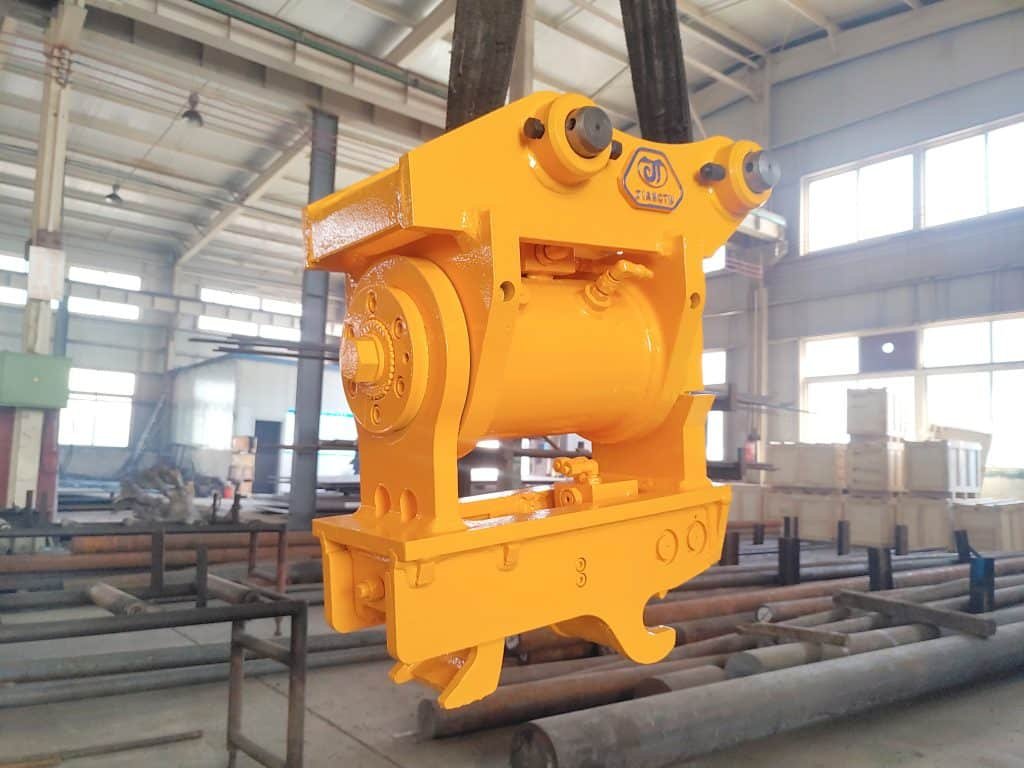

Tilt Quick Coupler

The JIANGTU tilting quick hitch makes your excavator attachments have instant tilt capability, which can be completely tilted 90 degrees in two directions, suitable for excavators from 0.8 tons to 22 tons.

Main features of JIANGTU Excavator Tilting Hitch

  • Tilt 180 degree
  • Double safety locking
  • No exposed cylinder, Safe design
  • Extra hitch strength steel
  • Variable Pin Centre design

Brochures Download

What is Tilting Quick Coupler?

The tilting quick coupler is an advanced excavator quick coupler. In addition to quickly installing and switching various configurations(bucket, ripper, breaker, hydraulic shear, etc.) on the excavator. It can also achieve 180 degrees Rotating left and right allows the operator to position the accessories more accurately without repositioning the machine. Thereby increasing overall productivity and versatility.

Specification – Tilt Quick Coupler

Please check the following specifications to choose the right hydraulic breaker model. Tell us the brand and model of your excavator, We are very glad to help you to select the right breaker.

Category/ModelJT-00JT-01JT-02AJT-02BJT-04AJT-04BJT-06JT-08
Tilt Degree180°180°180°180°180°180°140°140°
Drive Torque930 NM2870 NM4400 NM4400 NM4400 NM7490 NM10623 NM18600 NM
Tilt Displacement0.627 L/MN0.627 L/MN1.016 L/MN1.016 L/MN1.016 L/MN1.896 L/MN2.3 L/MN3.62 L/MN
Tilt Working Pressure210 bar210 bar210 bar210 bar210 bar210 bar210 bar210 bar
Tilt Necessary Flow2-4 Lpm5-16 Lpm5-16 Lpm5-16 Lpm5-16 Lpm15-44 Lpm19-58 Lpm35-105 Lpm
Quick Coupler Working Pressure25-300 bar25-300 bar25-300 bar25-300 bar25-300 bar25-300 bar25-300 bar25-300 bar
Necessary Flow15-25 Lpm15-25 Lpm15-25 Lpm15-25 Lpm15-25 Lpm15-25 Lpm15-25 Lpm15-25 Lpm
Excavator0.8-1.5 Ton2-3.5 Ton4-6 Ton4-6 Ton7-9 Ton7-9 Ton10-16 Ton16-22Ton
Overall Dimension (L2*W1*H1mm)477*280*567477*280*567518*310*585545*310*585541*350*608582*350*649720*450*784858*500*911
Weight55 Kg112 Kg156 Kg156 Kg170 Kg208 Kg413 Kg655 Kg

Product Images & Video

Main Advantages of Hydraulic Quick Coupler(Double Locking)

Applied to change excavator attachments, like a bucket, grapple, breaker, earth auger, and so on. It enlarges the excavator working range, saving time and improving efficiency.

Certificate

Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.

Ready To Know More?

Find out which attachment works best for you and get a quote!
