Fully Automatic Triple-locking Quick Hitch Coupler
It realizes that excavator operators can automatically replace the buckets, hydraulic breakers, and other attachments while staying in the cab. Tripe safety design makes it lighter weight, safer, and has a longer service life.

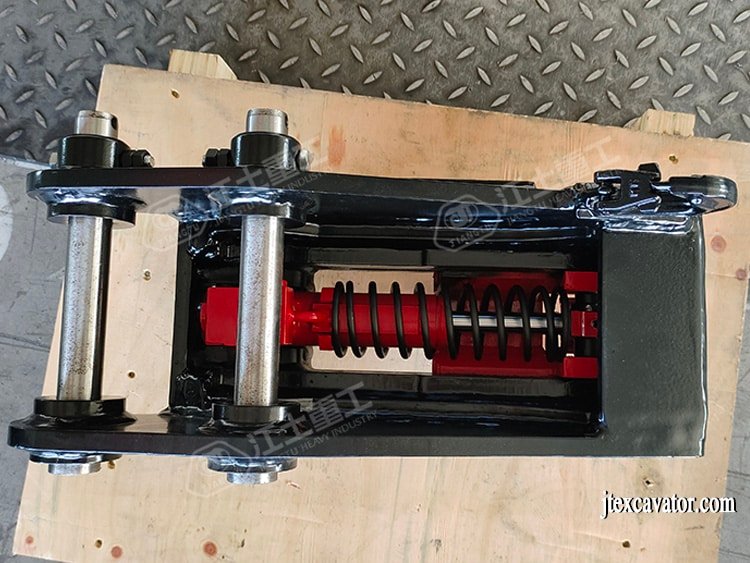

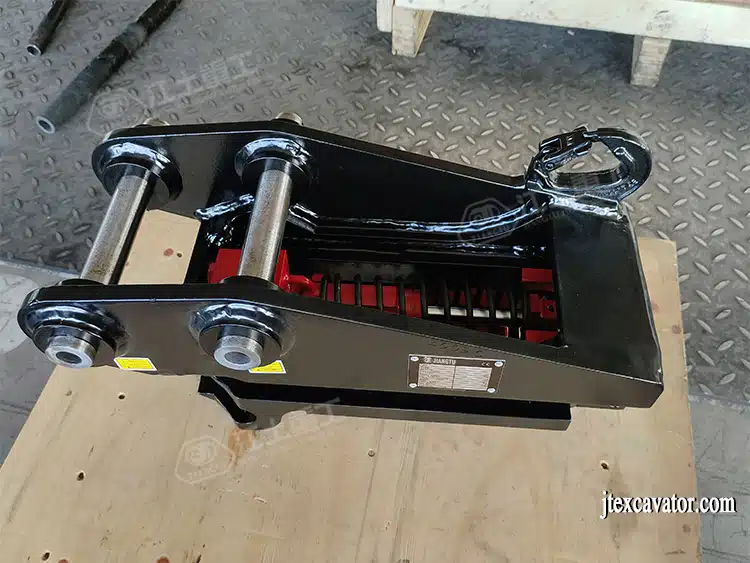

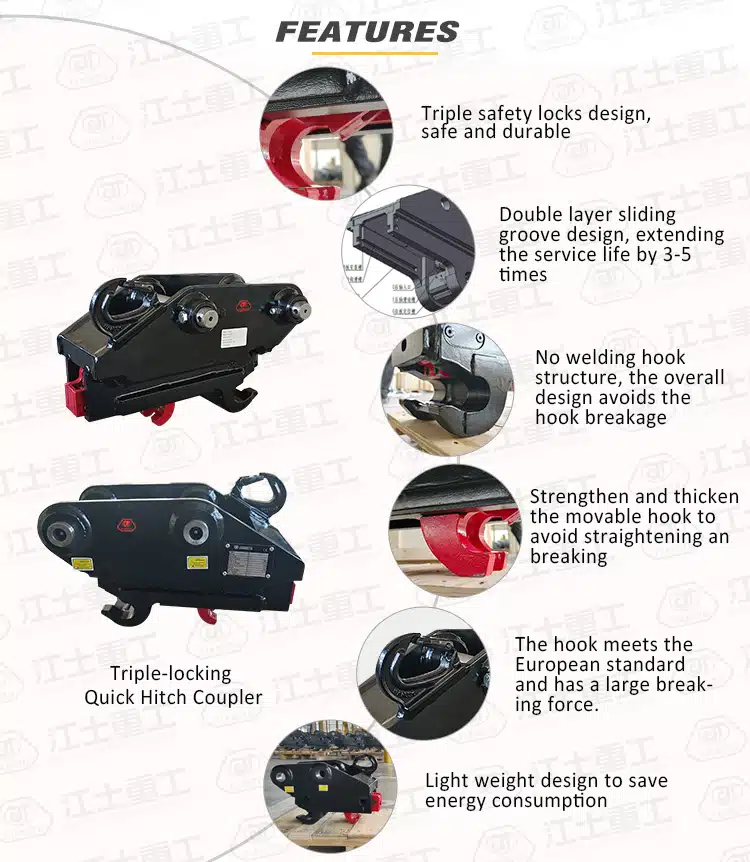

Product Feature
- Triple safety locks design, safe and durable, eliminate all accidents involving fall of the bucket.
- Lightweight design to save energy consumption
- Double layer sliding grooveย design, extending the service life by 3-5 times
- No welding hook structure, the overall design avoids the hook breakage
- Strengthen and thicken the movable hook to avoid straightening an breaking
- The hook meets the European standard and has a large breaking force.
- โCompensation quantityโย design
We can offer the OEM/ODM services of excavators attachments. The product can be customized according to your personalized requirements. Please offer your design documents or tell us your ideas and our R&D team will do the rest.

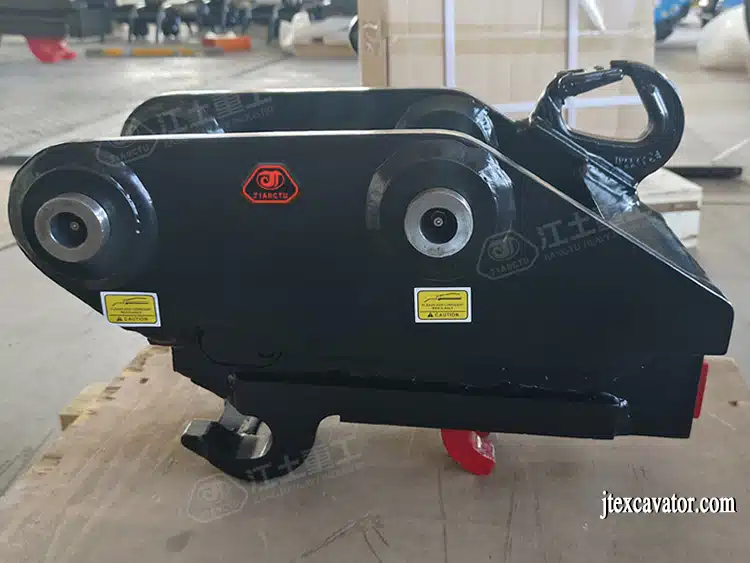

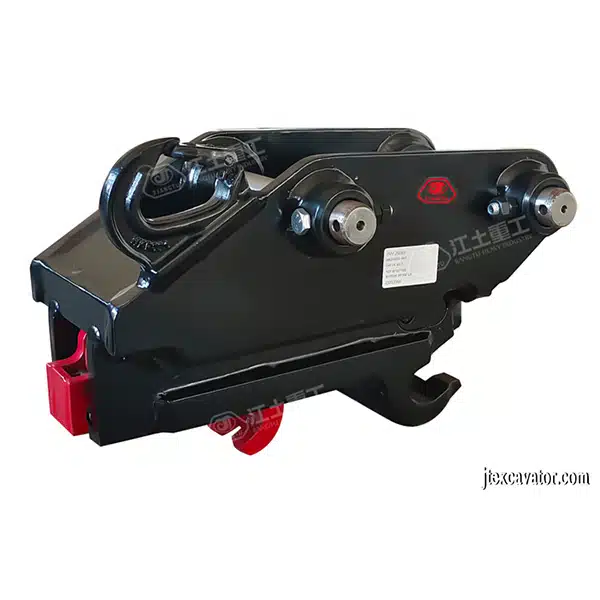

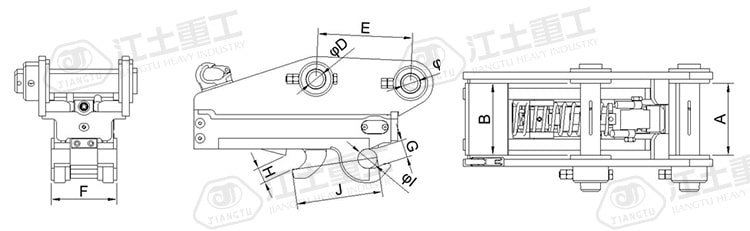

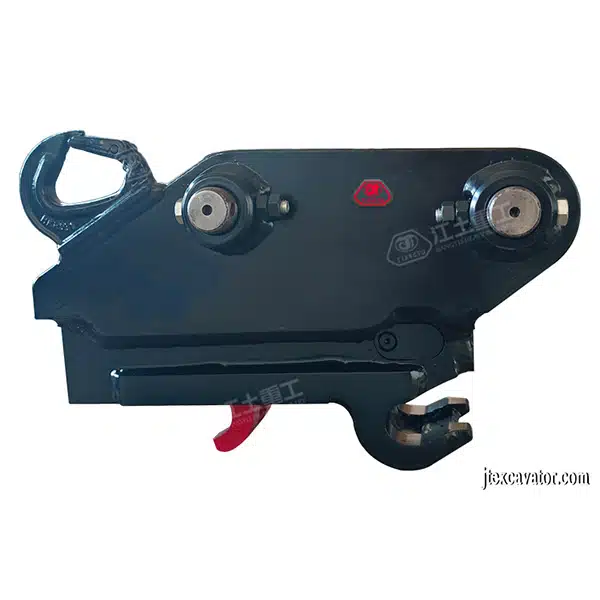

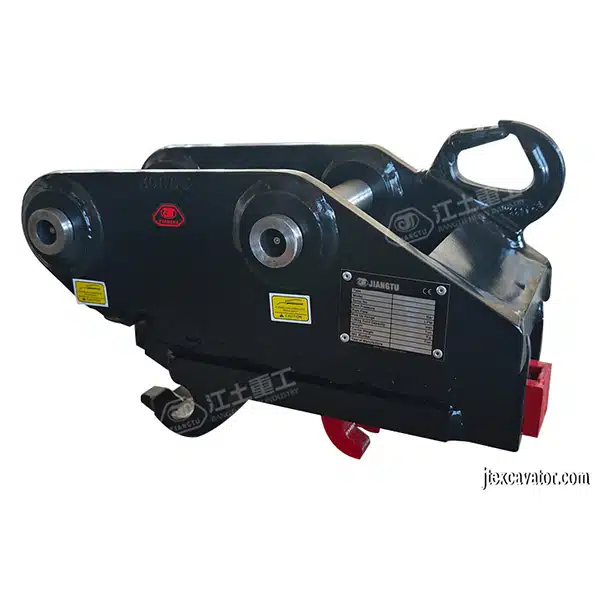

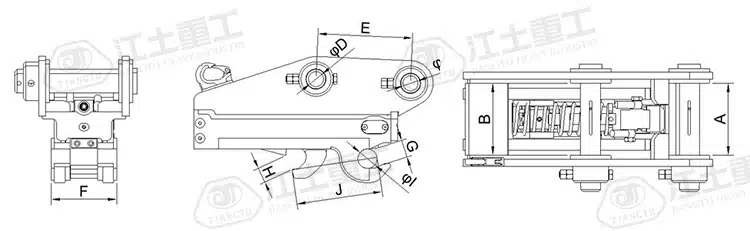

Fully Automatic Triple-locking Quick Hitch Coupler specification
| Category/Modelย | Unit | JT00 | JT01 | JT02 | JT04 | JT06 | JT08 | JT10 |
|---|---|---|---|---|---|---|---|---|
| Width A | mm | 90-120 | 107-148 | 127-166 | 172-205 | 172-266 | 280-366 | 346-420 |
| Width B | mm | 90-120 | 107-148 | 127-166 | 172-205 | 172-266 | 280-366 | 346-420 |
| Pin Diameter C | mm | 25/30 | 35/40 | 45/50 | 45/55 | 60/65 | 70/80 | 90/100 |
| Pin Diameter D | mm | 25/30 | 35/40 | 45/50 | 45/55 | 60/65 | 70/80 | 90/100 |
| Pins Centre Distance E | mm | 85-164 | 107-184 | 180-300 | 172-415 | 240-555 | 320-685 | 500-300 |
| Bottom Minimum Width F | mm | 89 | 128 | 138 | 178 | 218 | 288 | 390 |
| Bottom Pin Diameter I | mm | 25-30 | 35-40 | 45-50 | 45-55 | 60-65 | 70-80 | 90-100 |
| Pick Up Range J | mm | 84-180 | 158-240 | 200-362 | 272-380 | 300-420 | 350-520 | 500-596 |
| Tongue Stroke | mm | 36 | 40 | 44 | 50 | 70 | 100 | 100 |
| Quick Hitch Working Pressure | Bar | 25~300 | 25~300 | 25~300 | 25~300 | 25~300 | 25~300 | 25~300 |
| Necessary Flow | Lpm | 15~25 | 15~25 | 15~25 | 15~25 | 15~25 | 15~25 | 15~25 |
| Excavator | Ton | 0.8~1.5 | 2~3.5 | 4~6 | 7~9 | 10~15 | 20~25 | 28-36 |
| Weight | KG | 24 | 44 | 70 | 96 | 220 | 340 | 550 |
Main features of Jiangtu Fully Automatic Triple-locking Quick Hitch Coupler

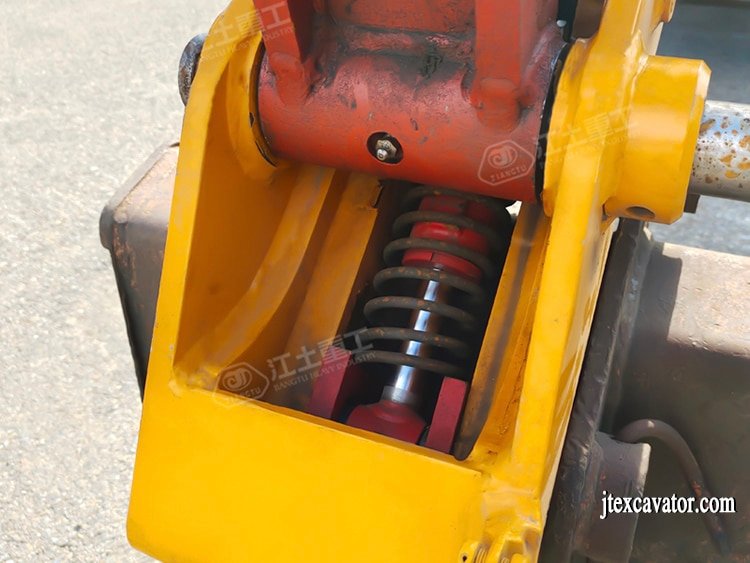

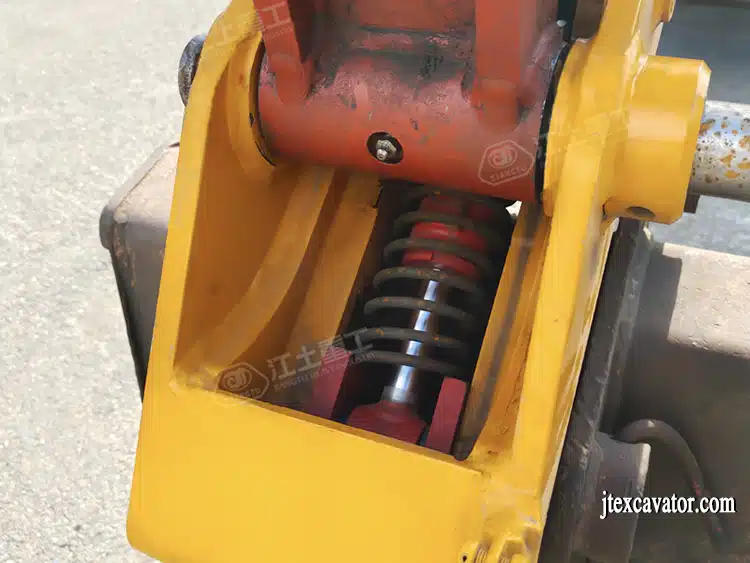

Triple safety locks design, safe and durable, eliminate all accidents involving fall of the bucket: Adopting the triple safety locks design that meets the EU/ISO13031 legal standard and the Australian legal standard for operational safety. When encountering problems such as cylinder leakage, piston rod breakage, etc, the triple safety locks can be locked to prevent the bucket from falling and hitting people to ensure safe operation. TheโSemi-close evasive rigid spring safety lock structureโof JIANGTU automatic quick hitch coupler can effectively prevent the rigid movable mechanism from being touched and rusted by wind, sun, rain, and damage.
Lightweight design to save energy consumption: More compact structure design and optimized material make the overall product size smaller and lighter than the previous generation. This design can reduce the load of the excavator arm, reduce the loss of excavator power, and observably reduce fuel consumption.
Double layer sliding groove design, extending the service life by 3-5 times: The โMoving hookโ is a significant part of the automatic quick hitch coupler. JIANGTU specially adopts the double layer sliding groove design, makes the overall force more uniform, avoiding the concentration of force when it moving, and this design is more suitable for connecting heavy-duty attachments. It overall adopts precision machining technology, with higher dimensional accuracy and high compactness of the whole shell. The gap between the slides is less than 1mm, and the vibration amplitude is small. The impact force is reduced by 80% compared with the previous generation. It extends the service life by 3-5 times.
No welding hook structure, the overall design avoids the hook breakage: JIANGTU automatic quick hitch coupler adopts a moving hook design. The hook is welded by whole high strength plate to avoid moving hook breakage.
Strengthen and thicken the movable hook to avoid straightening an breaking: The closed reinforced moving hook is treated by strengthened and thickened avoid to fracture.
The hook meets the European standard and has a large breaking force: The lifting hook adopts a casting welded hook with a safety device that meets European standards. The breaking force is 2.5-4 times than the maximum allowable force, which is safe and reliable.
โCompensation quantityโย design: concept solves the problems of โsprinkling soilโย and โexcavation power decreasingโย when the excavator loads in a truck. Through theโincreasing compensationโย design, the bucket is compensated by the lifting height under the premise that the end of the flat does not spill soil. Compared with other quick hitch couplers, the excavation force is increased by 4% and the lifting force is increased by 4-7%.

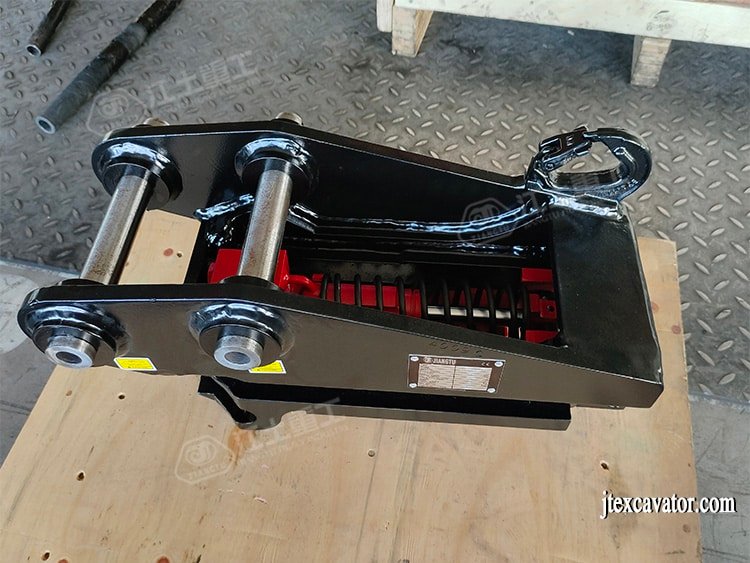

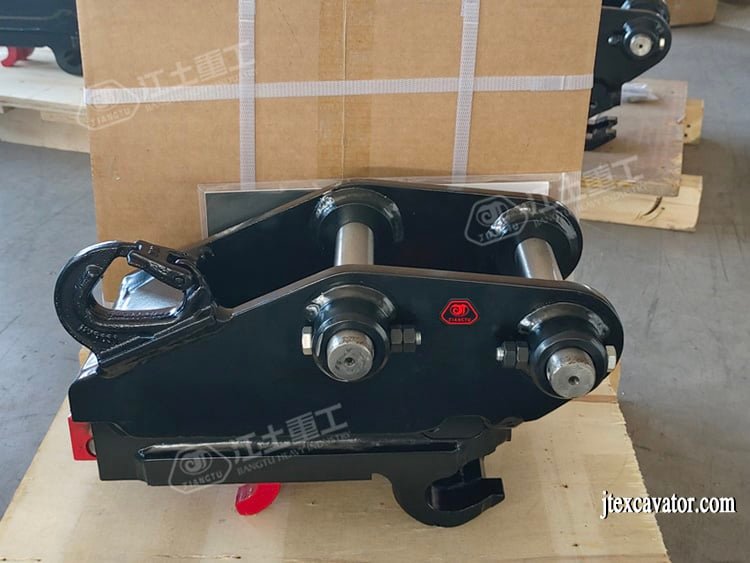

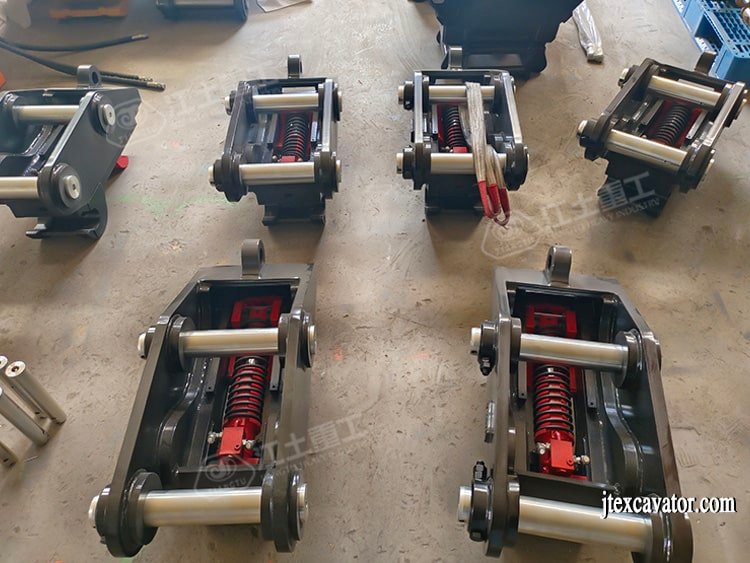

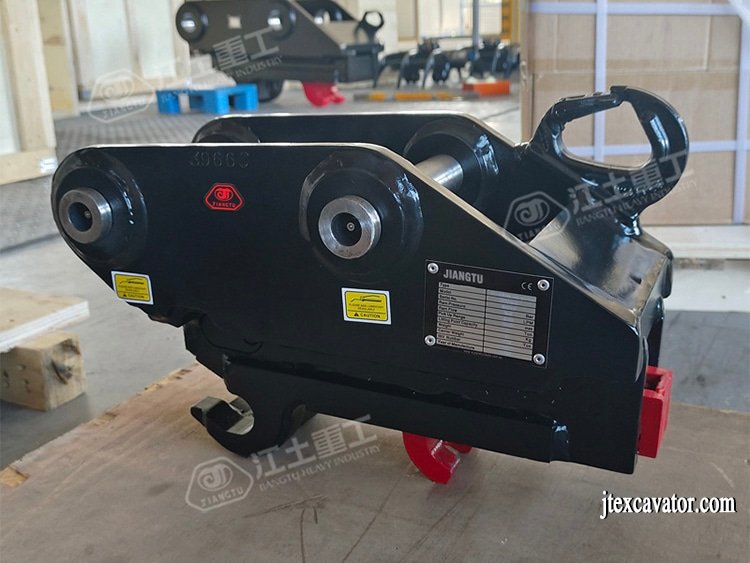

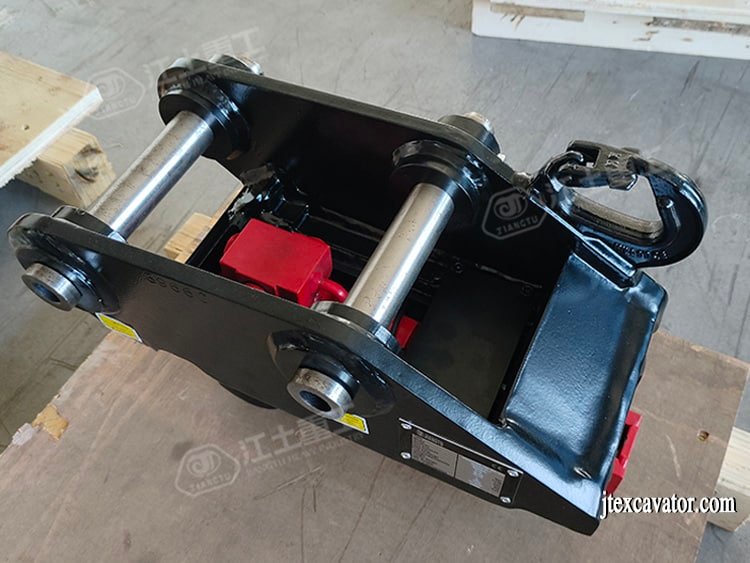

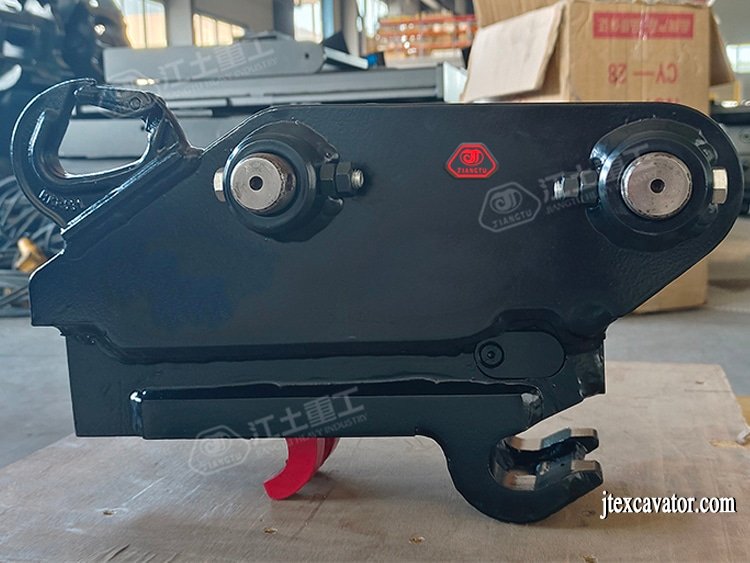

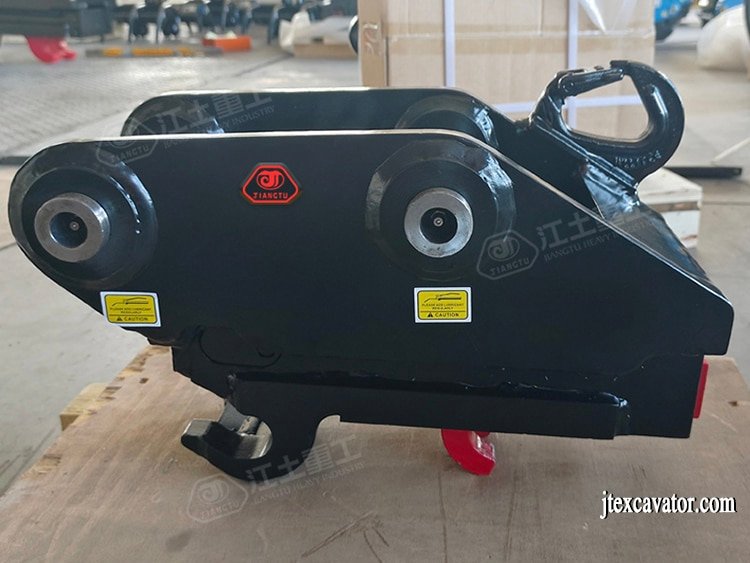

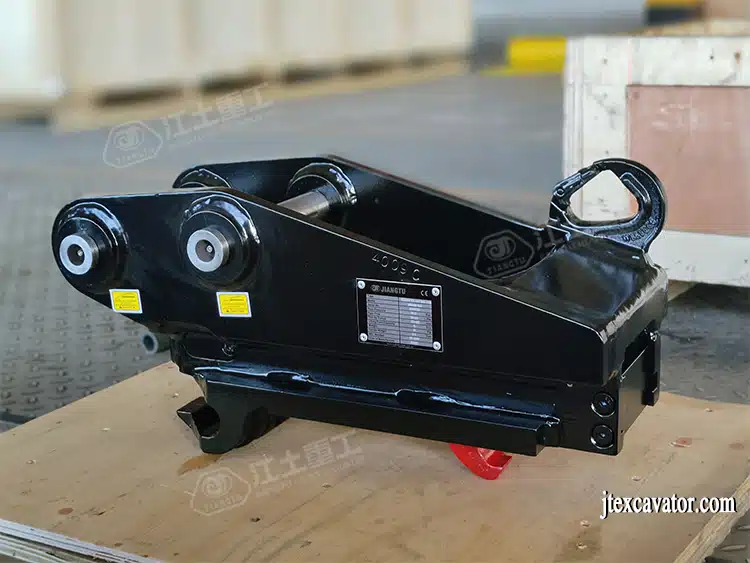

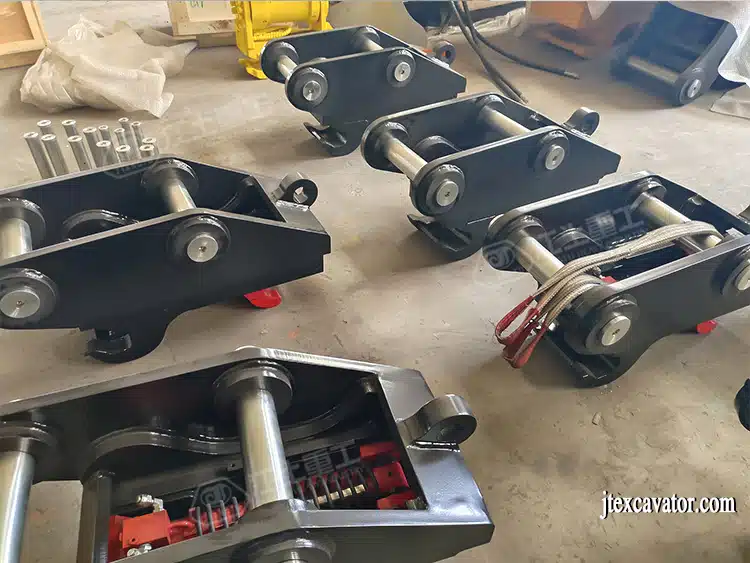

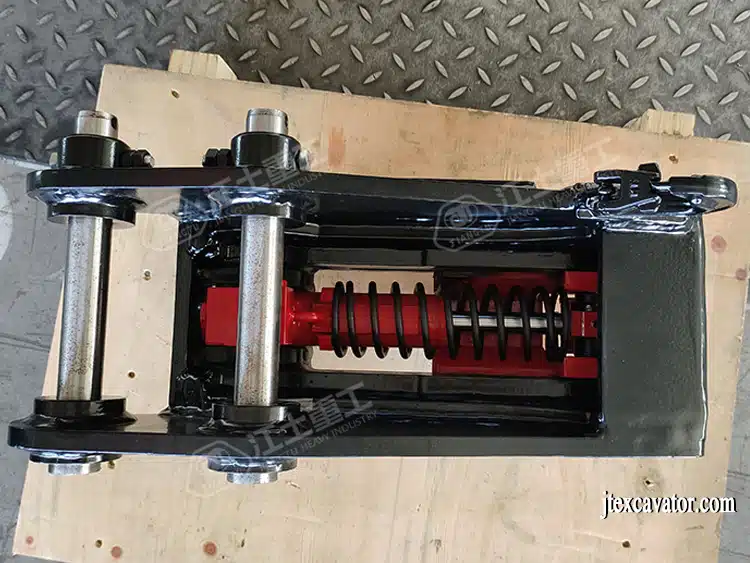

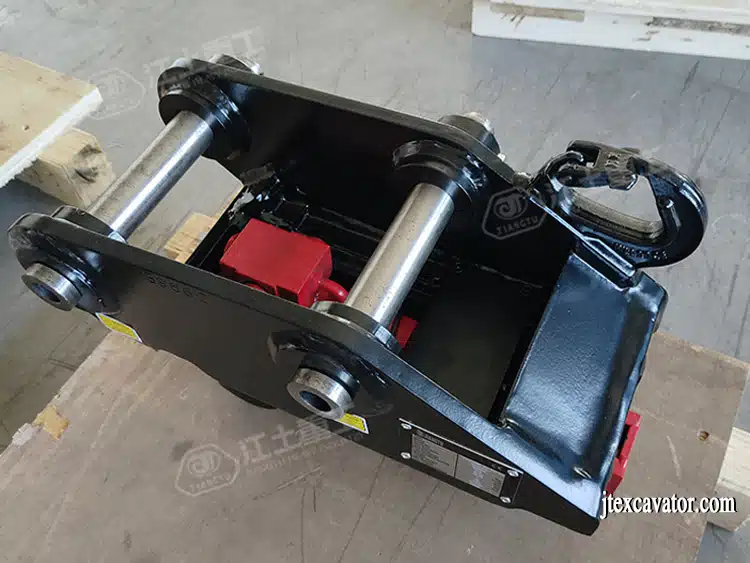

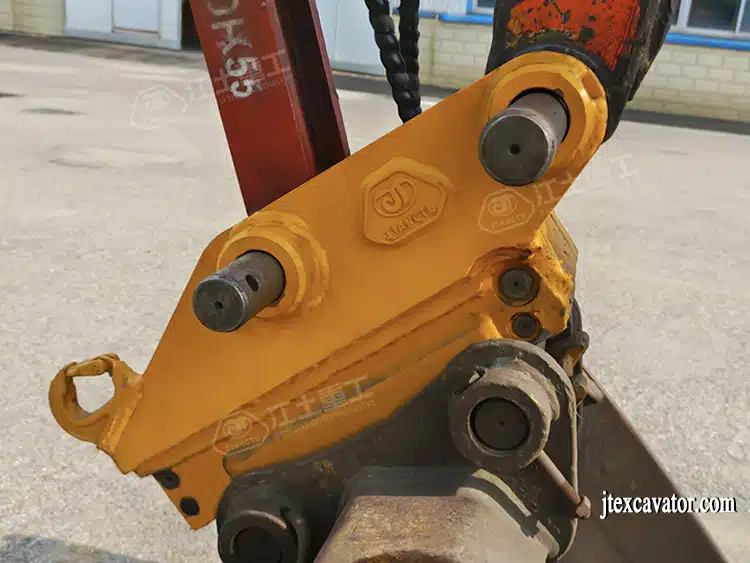

Product Images & Video
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
