Hydraulic Coupler for Excavator - Attachments

Hydraulic Coupler

The hydraulic quick hitch is used with construction machines to allow the rapid change of buckets and attachments on the machine. It removes the need to use hammers to manually drive out and insert the mounting pins for attachments. It can be used on the excavator, mini-excavator, backhoe loader, and so on.

Main Advantages

Fit to5-90 ton machine; Q345B material with advanced mechanical design; Long service life.
Driven by a hydraulic system, the operator can easily switch attachments by turning on the switch in the cab.
Equipped with a check valve on the cylinder, the attachment will not drop off even when some failures happen like hoses burst.
Mechanical safety pin increases its safety.

Brochures Download

Specification
Product Video
Features
Certificate
Production Process

Specification – Hydraulic Coupler

Please check the following specifications to choose the right hydraulic breaker model. Tell us the brand and model of your excavator, We are very glad to help you to select the right breaker.

Category/Model	Unit	JT-MINI	JT-02	JT-04	JT-06	JT-08	JT-08S	JT-10	JT-14	JT-17	JT-20
Length C	mm	300-450	520-542	581-610	760	920-955	950-1000	965-1100	980-1120	1005-1150	1100-1200
Width B	mm	150-250	260-266	265-283	351-454	450-483	445+493	543-572	550-600	602-666	610-760
Height G	mm	225-270	312	318	400	512	512-540	585	550-600	560-615	620-750
Arm open width A	mm	82-180	155-172	181-205	230-317	290-345	300-350	345-425	380-450	380-480	500-650
D Pins center distance	mm	95-220	220-275	290-350	350-400	430-480	450-505	485-530	550-600	520-630	600-800
Pin diameter	mm	20-45	40-45	45-55	50-70	70-90	90	90-100	100-110	100-110	120-140
Cylinder strok E	mm	95-200	200-300	300-350	340-440	420-510	450-530	460-560	510-580	500-650	600-700
F Vertical pins center distance	mm	170-190	200-210	205-220	240-255	300	320	350-370		370-380
Weight	kg	30-40	50-75	80-110	170-210	350-390	370-410	410-520	550-750	550-750	1300-1500
Working pressure	kgf/cm3	30-400	30-400	30-400	30-400	30-400	30-400	30-400	30-400	30-400	30-400
Necessary flow	l	10-20	10-20	10-20	10-20	10-20	10-20	10-20	10-20	10-20	10-20
Excavator	ton	0.8-4	4-6	6-9	10-16	18-25	25-26	26-30	30-40	40-52	55-90

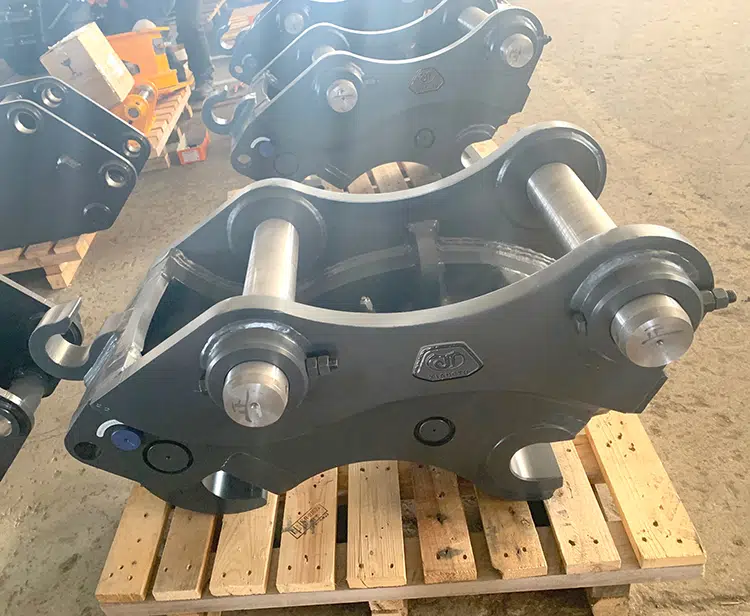

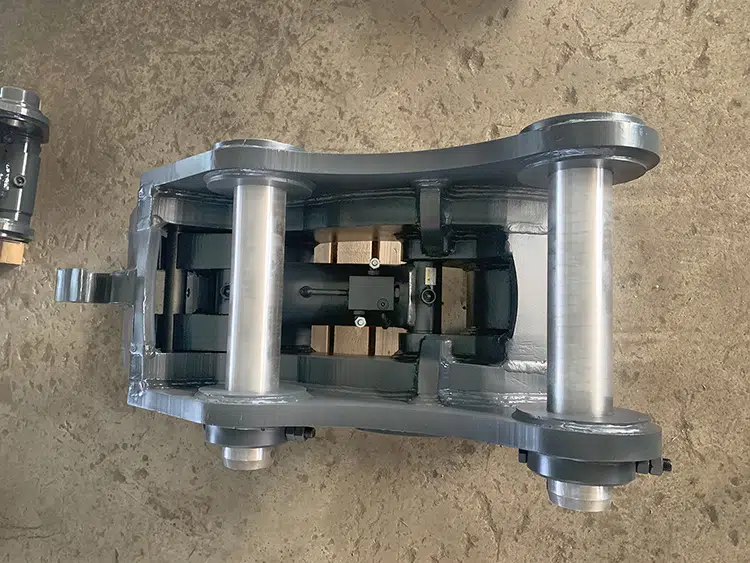

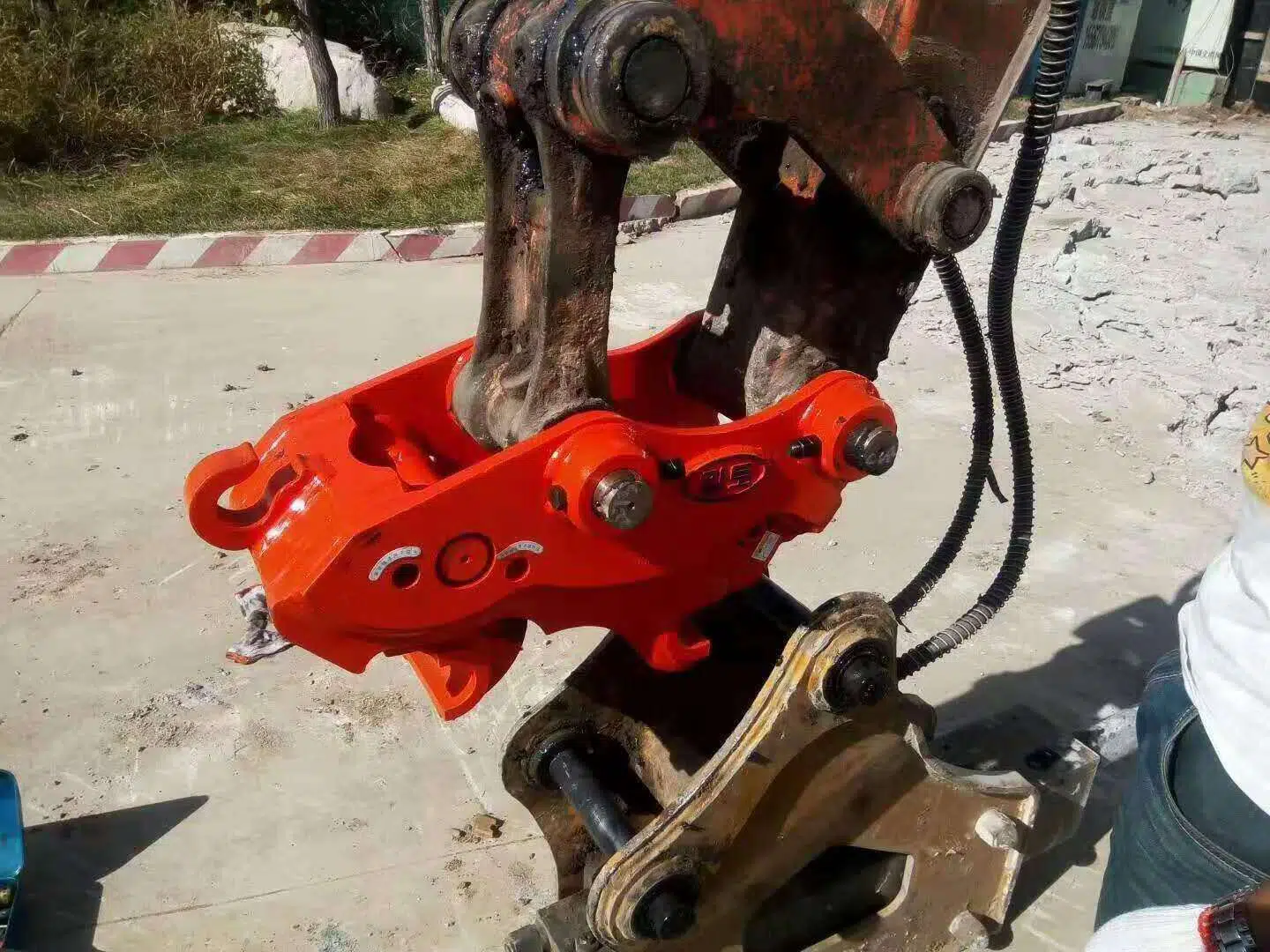

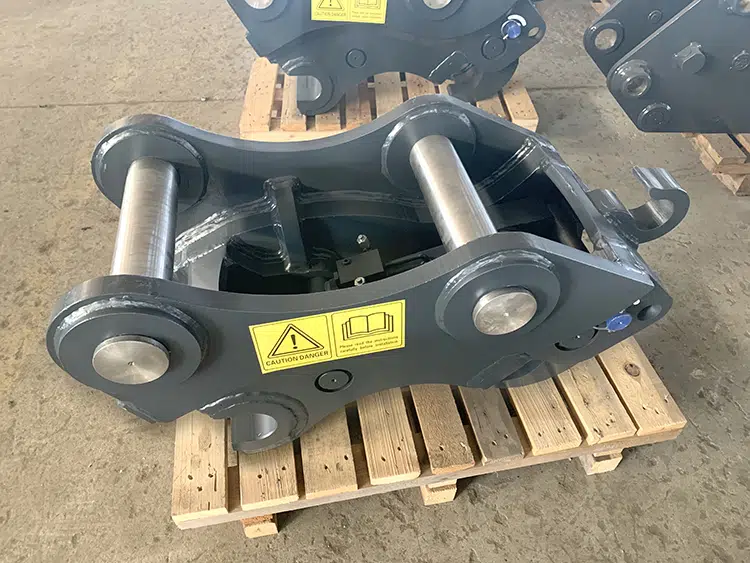

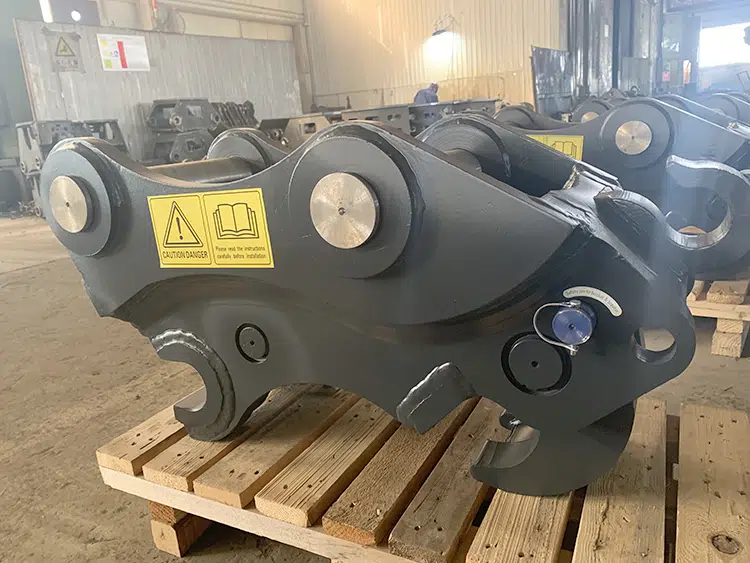

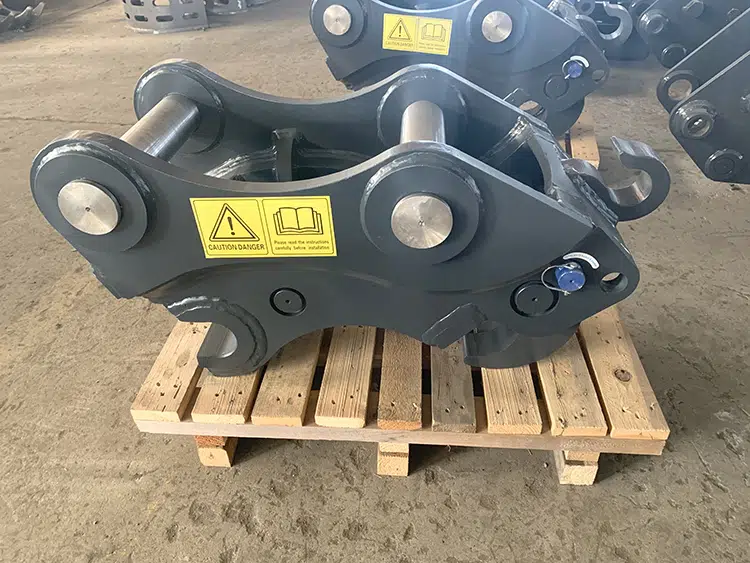

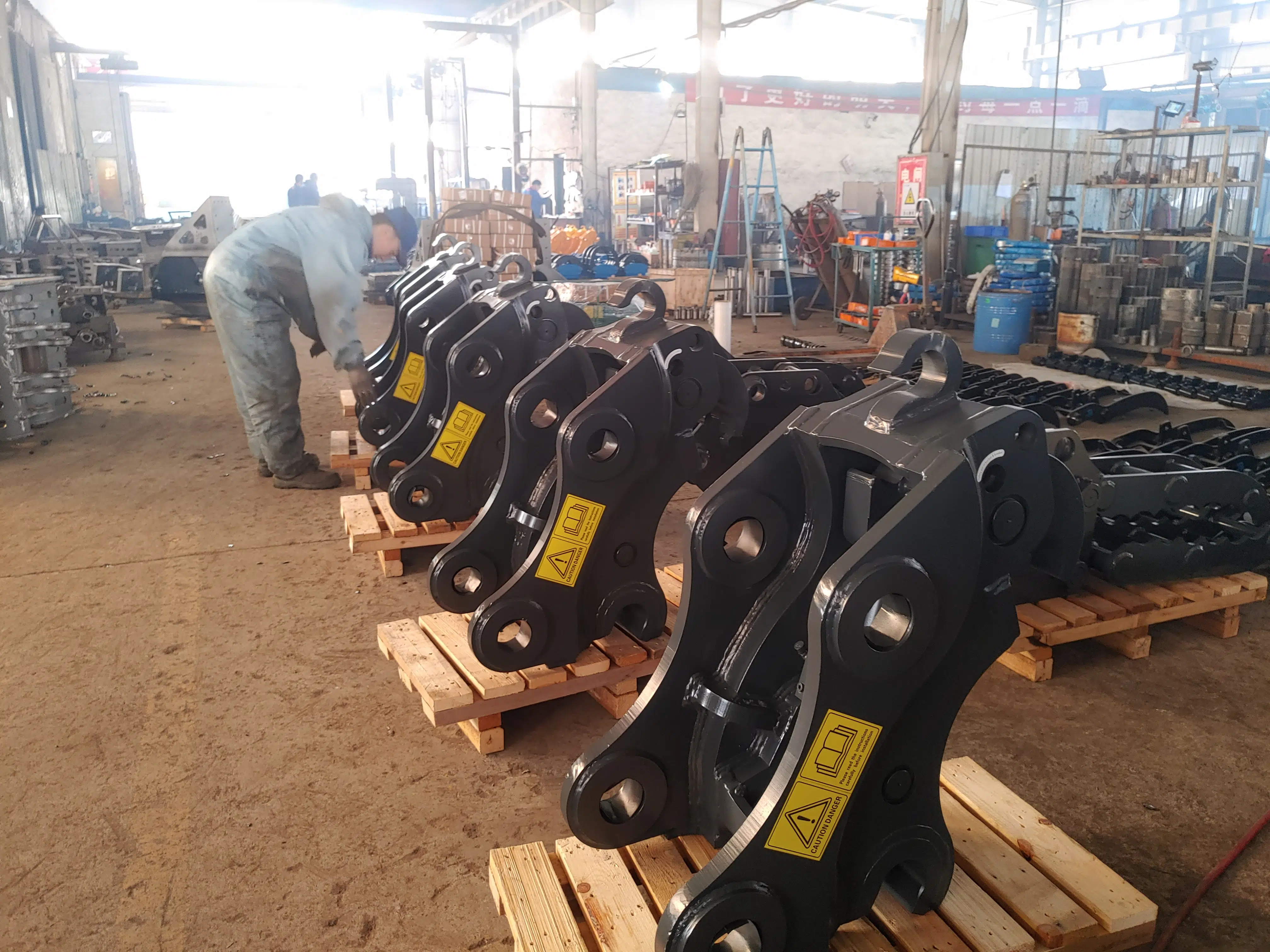

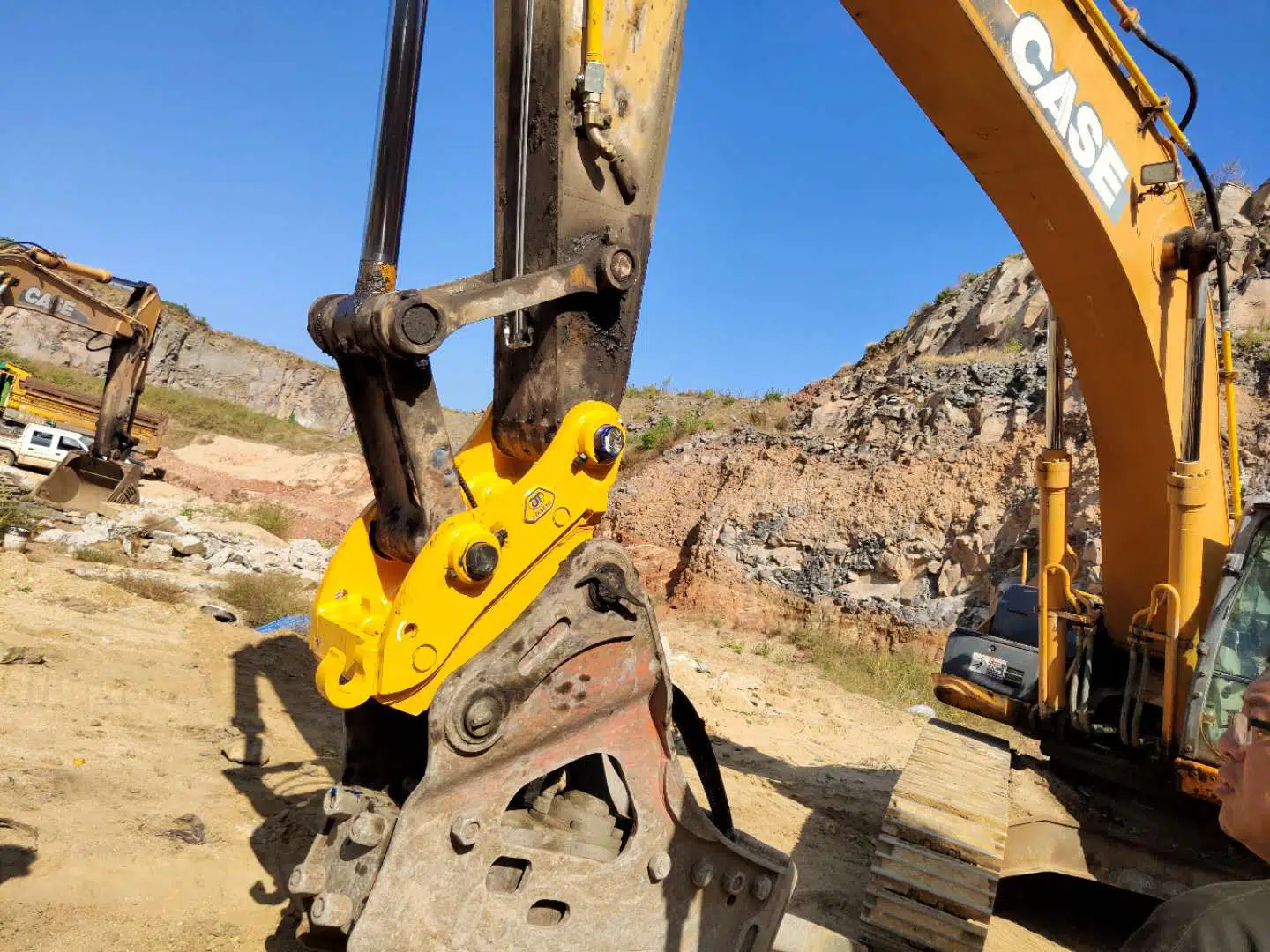

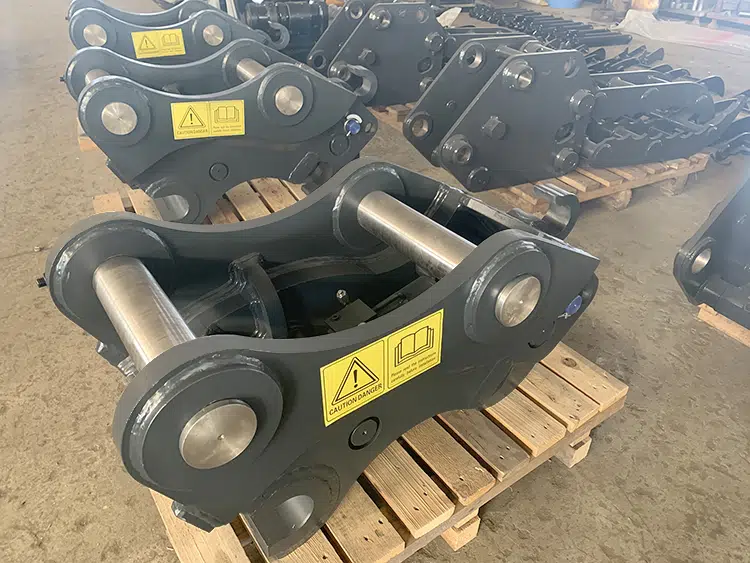

Product Images & Video

Main Advantages of Mechanical Coupler(LOCK)

The Specifications of this equipment are subject to change for improvements.

Excellent performance with high durability. The company has been developed to meet the high standards of the current market. The demand for high durability and low maintenance costs on hydraulic equipment are combined in the total design of our attachments.

12 months warranty;
Q345B materials body with USA-made solenoid valve;
Original Germany-made oil seals and joints;
Original Japan-made switch;
Full set spare parts ready for installation: pins, pipes, solenoid valve, switch, wire harness, manual, kit, bolts, and nuts, etc.

Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
