Tilt Rotator

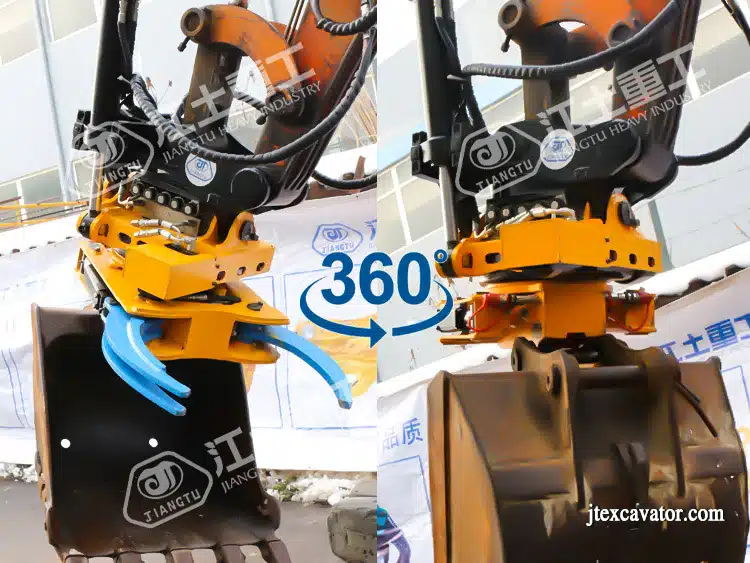

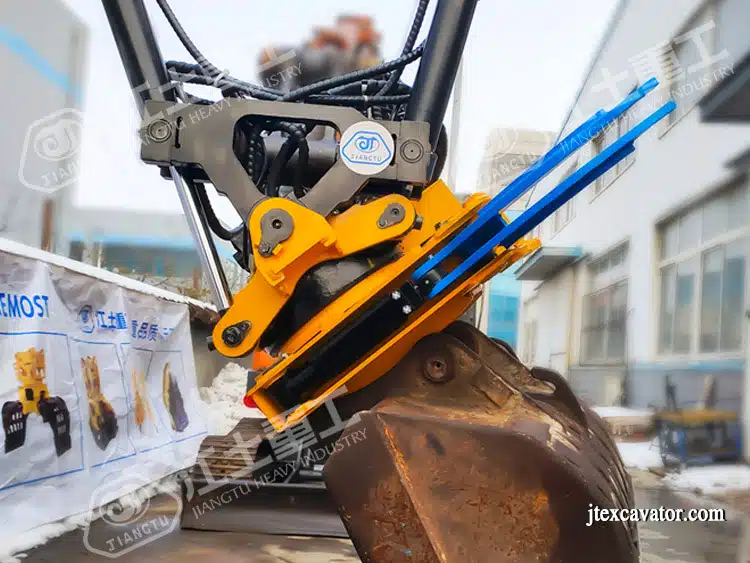

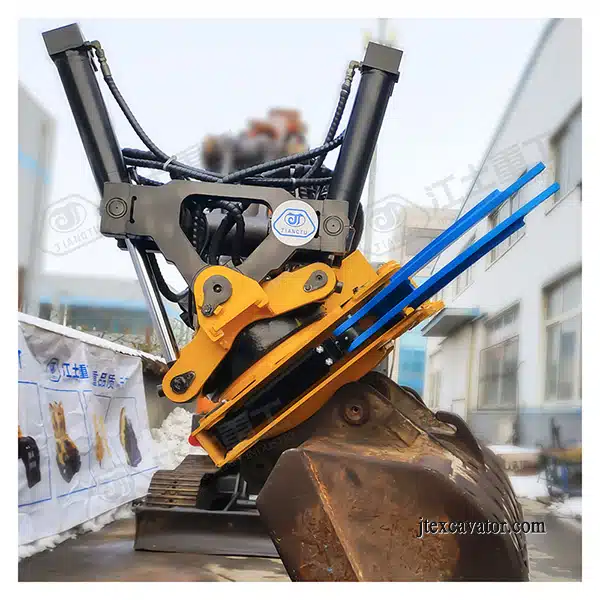

Jiangtu Tilt Rotator is a kind of hydraulic quick hitch coupler for excavators, also called Tiltrotators or Rototilt Coupler, it can flexibly grasp other attachments like a human wrist, and also achieve 360-degree rotation and 45 degree tilt operations, which enables multi-directional and multi-type works while reducing the movement of the excavator, making it more efficient.
We can offer the OEM/ODM services of excavators attachments. The product can be customized according to your personalized requirements. Please offer your design documents or tell us your ideas and our R&D team will do the rest.
Main features of JIANGTU Tilt Rotator
| Category/Model | Unit | JT01 | JT02/04 |
| L*W*H*Pin center (top&bottom) | mm | 560*540*920*420 | 830*660*1020*490 |
| Tilt Degree | ° | ±45°/ single ram | ±45° double ram |
| Total weight (grab wieight) | kg | 177kg（27kg） | 330（55） |
| Solenoid valve chanel | 4 | 5 | |
| Tilt torque | kn.m | 13.5 | 13.5 |
| Excavator | T | 2-4-6T | 5-9T |
| Pin dia./pin distance/bucket width at link | mm | 35–45/140–300/120–200 | 35-50/230-320/154-210 |

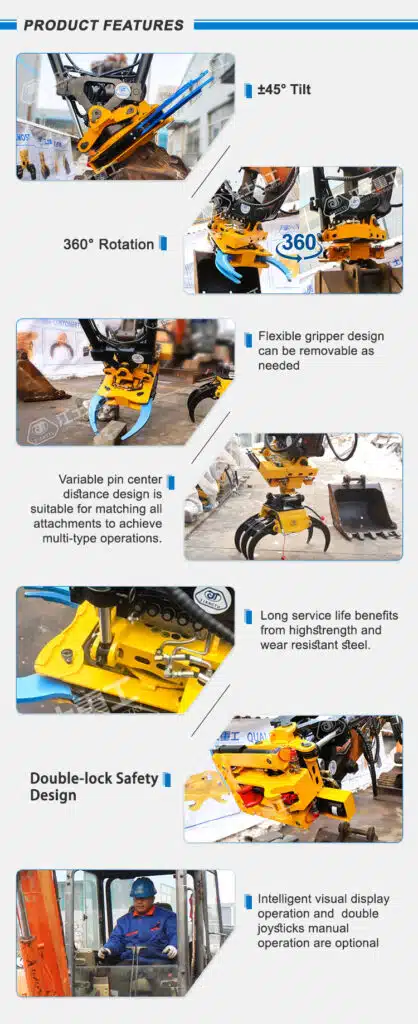

Main Advantages of Hydraulic Tilt Rotator

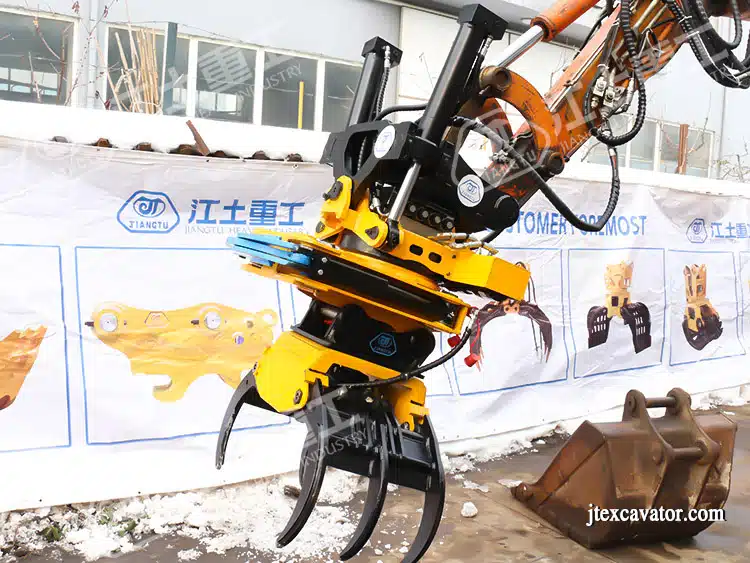

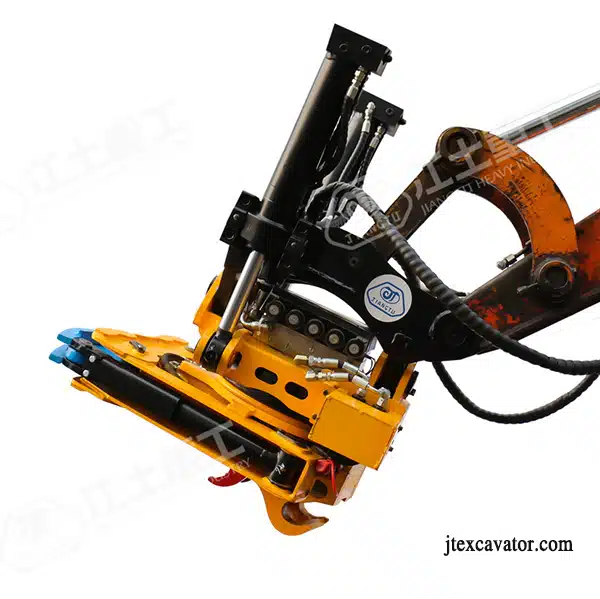

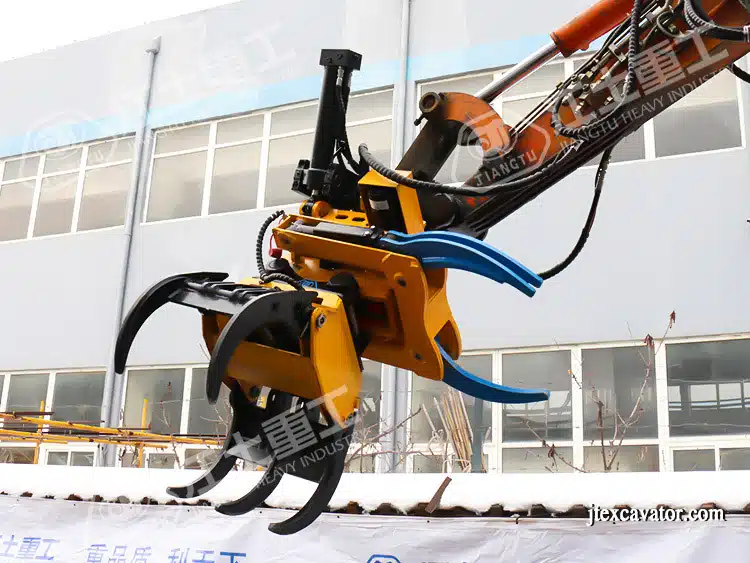

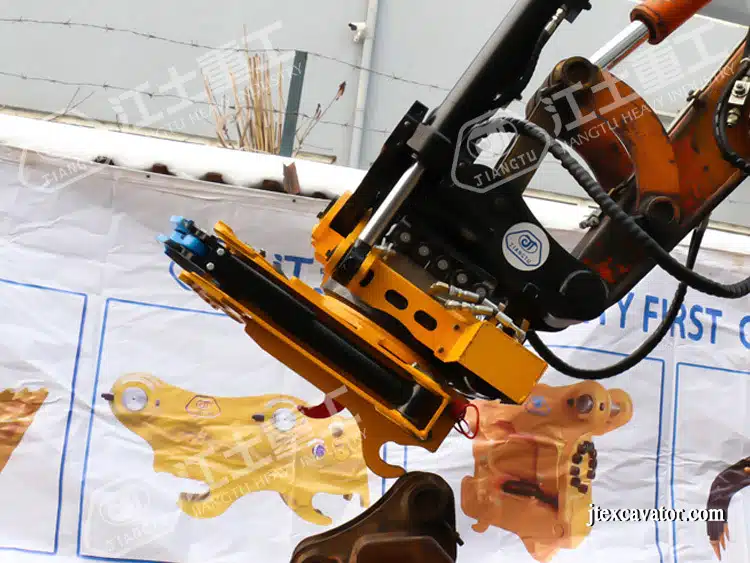

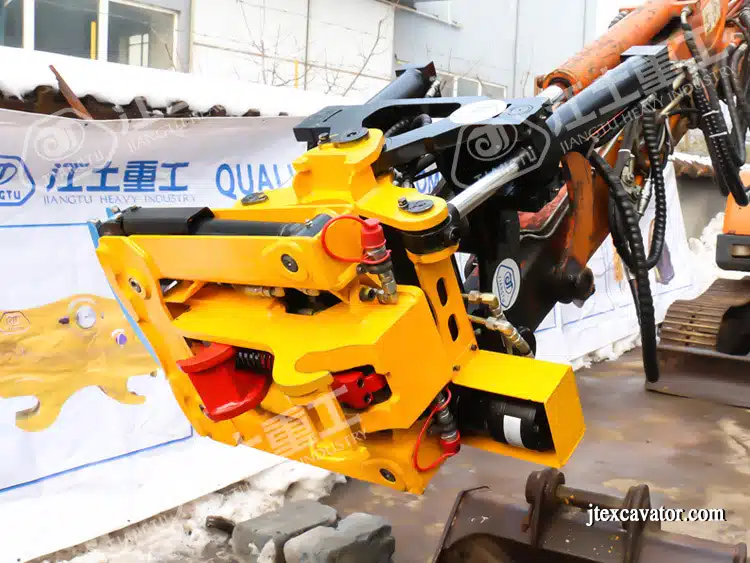

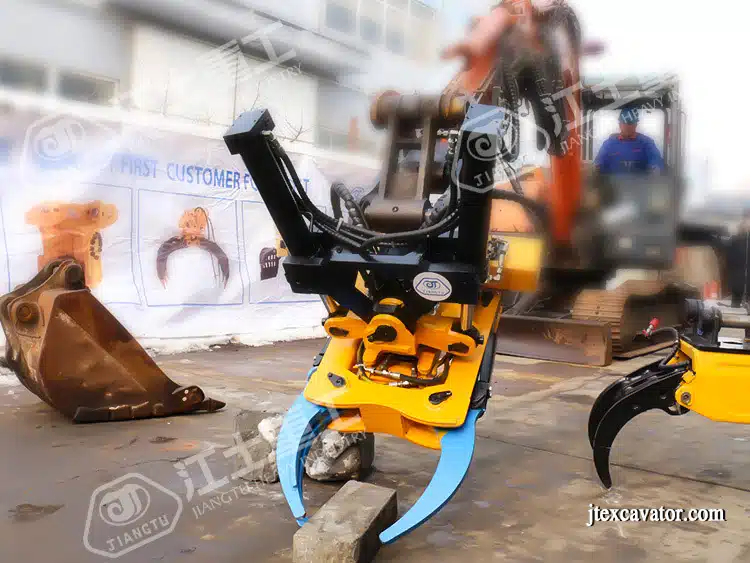

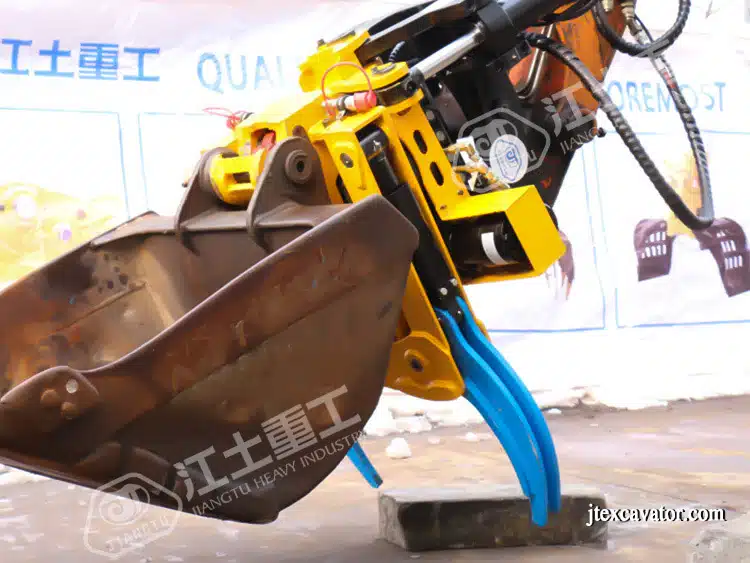

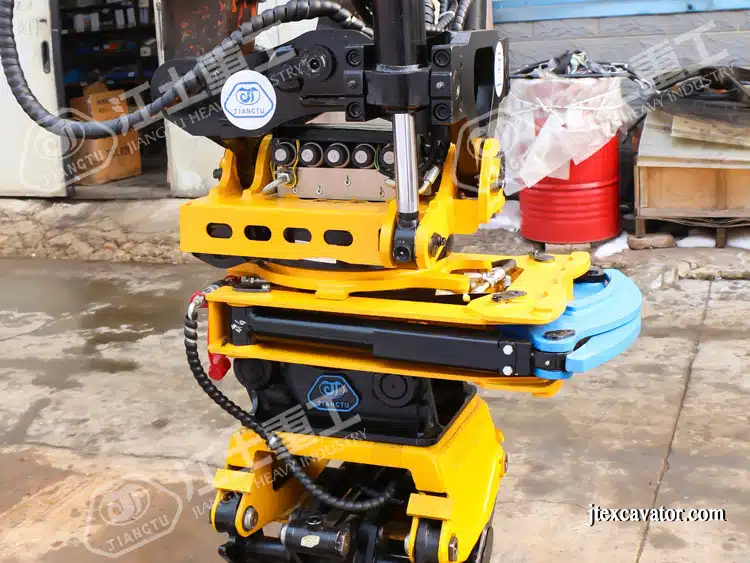

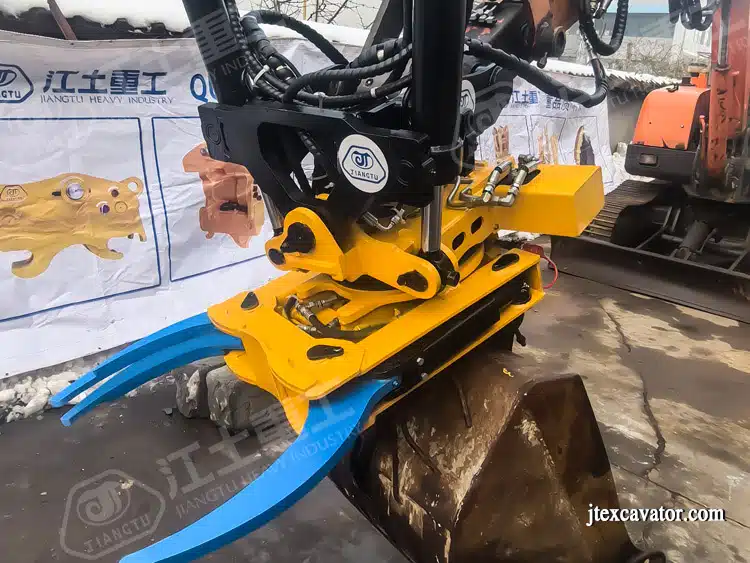

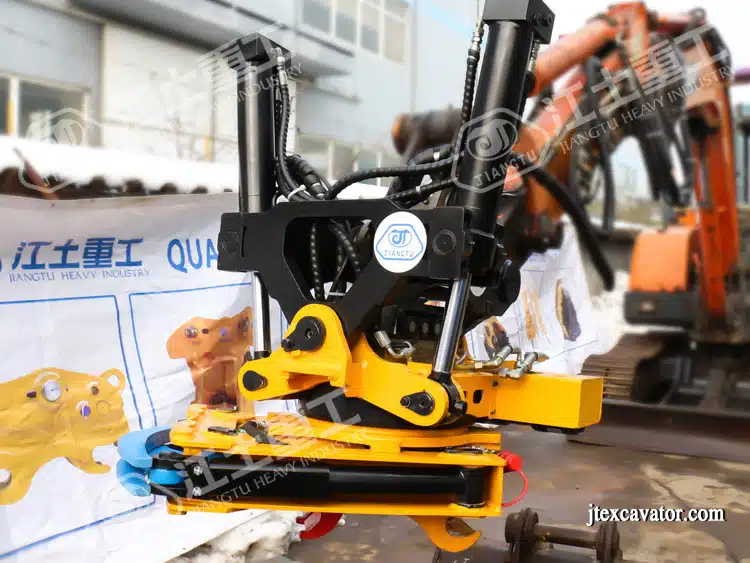

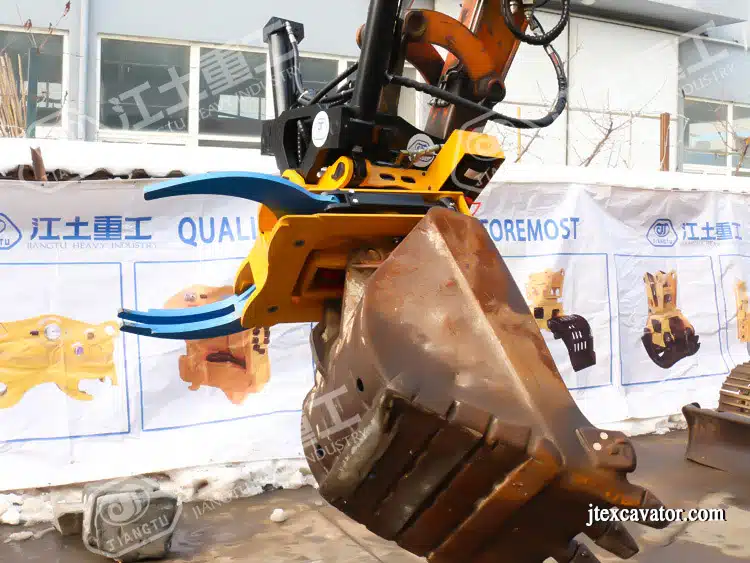

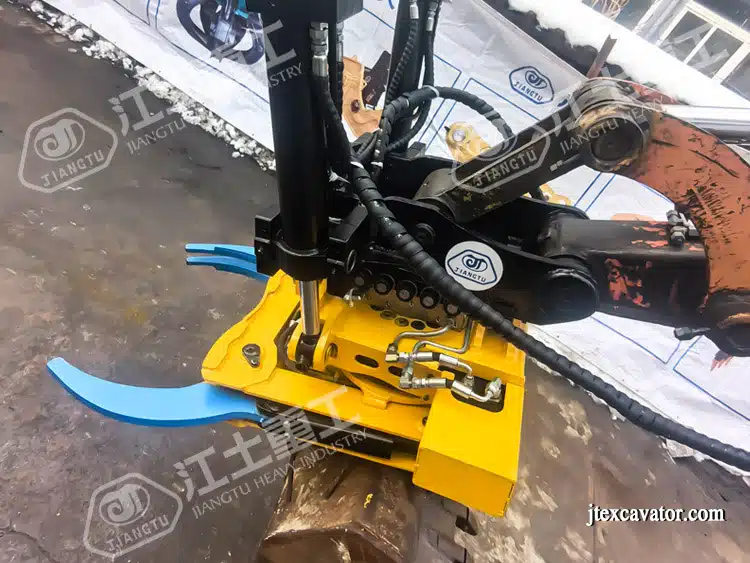

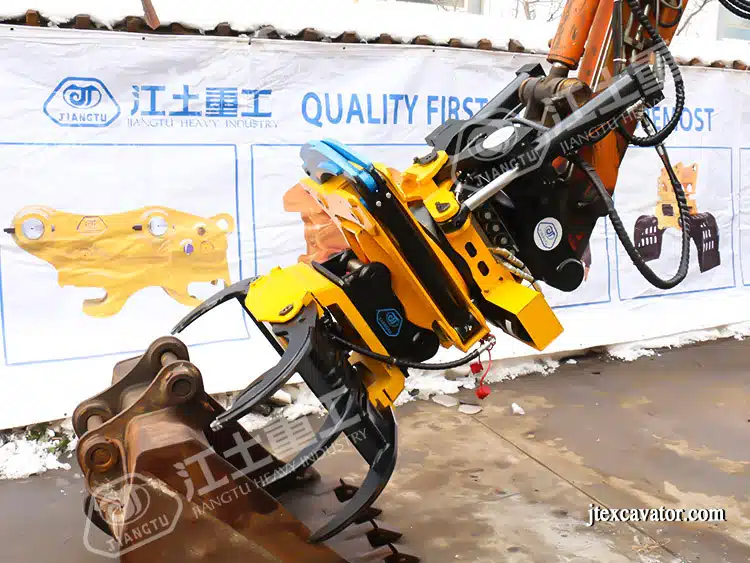

Product Images & Video
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
