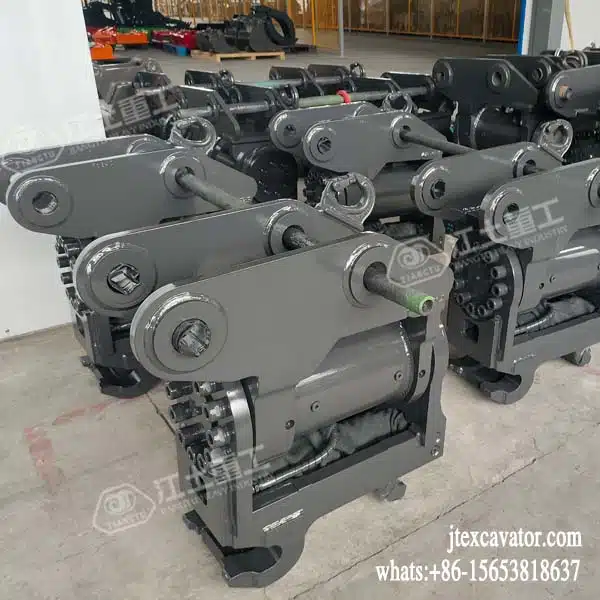

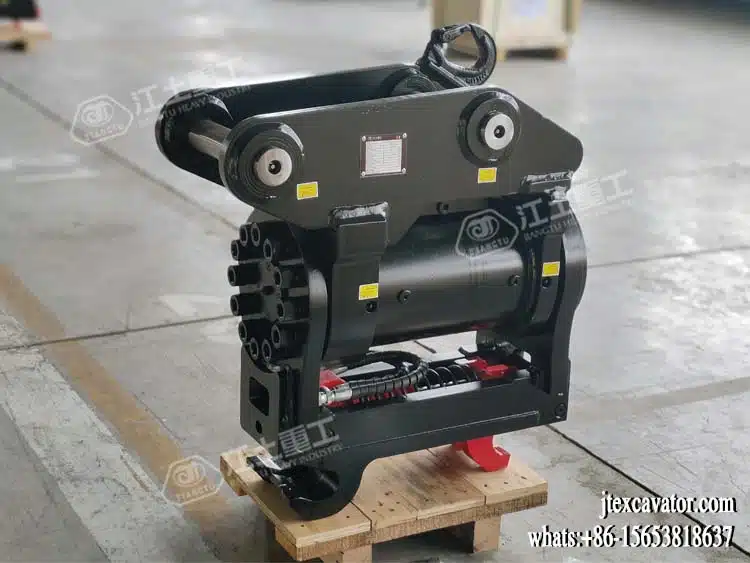

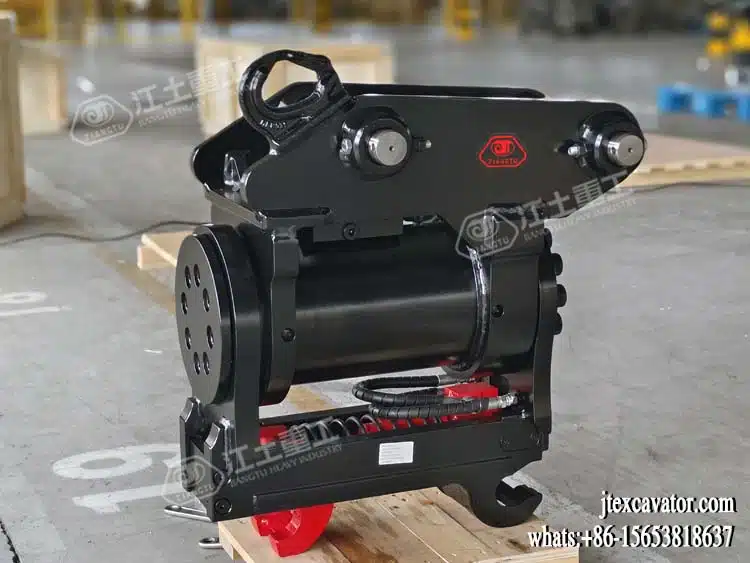

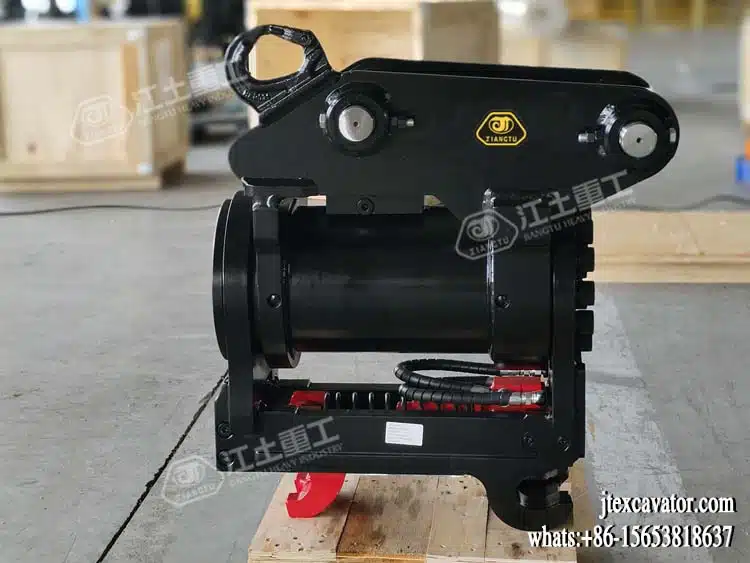

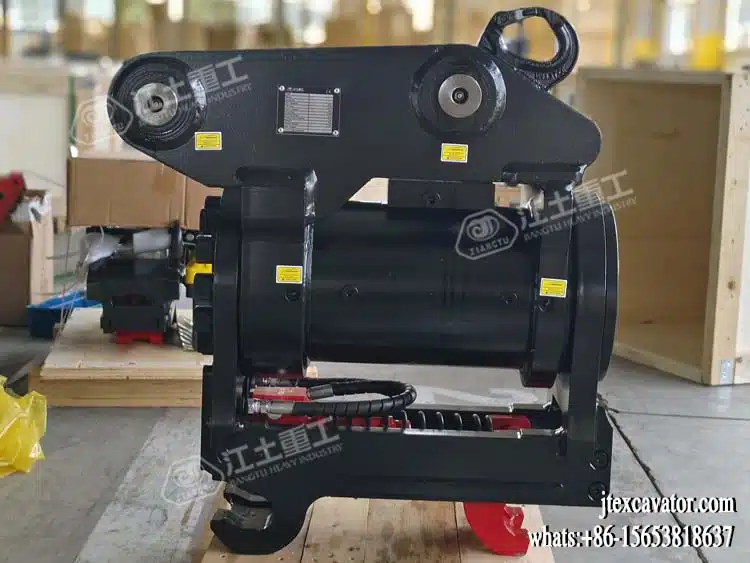

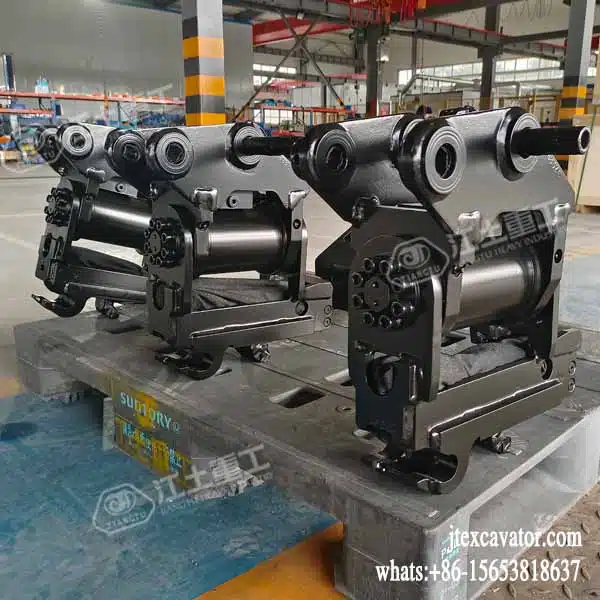

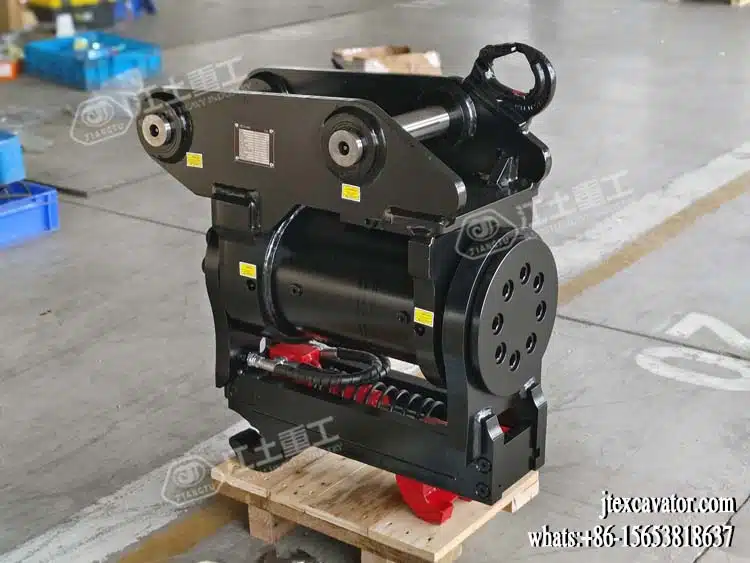

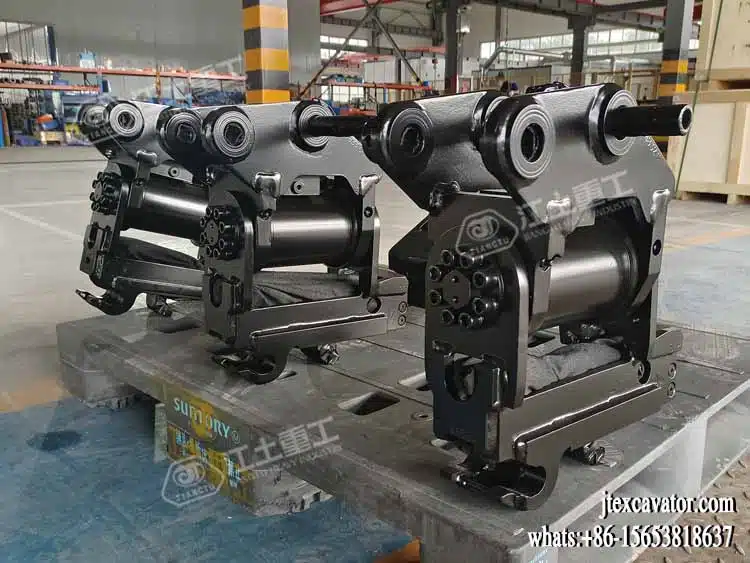

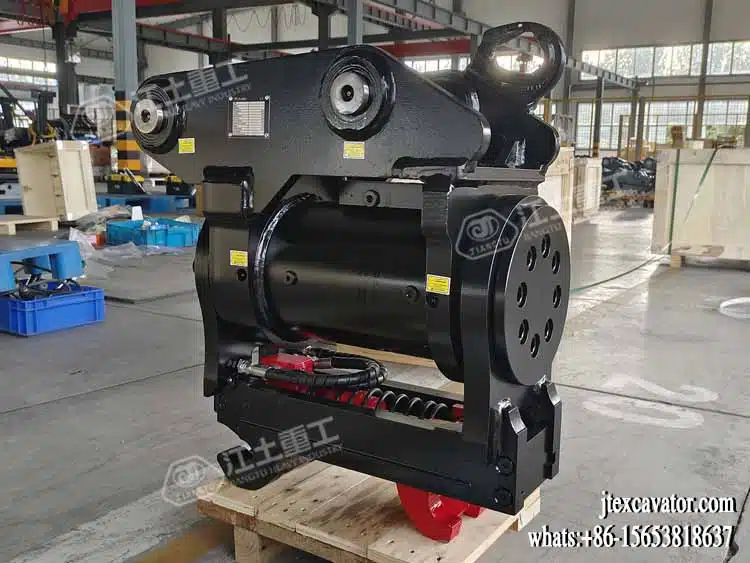

Triple Locking Tilting Quick Hitch Coupler
JIANGTU fully automatic triple locking tilting quick hitch coupler helps the excavator operators to automatically change the bucket, breaker and other attachments in the cab. It has triple locking design and can tilt 180ยฐ, which is highly safe and has a long service life.

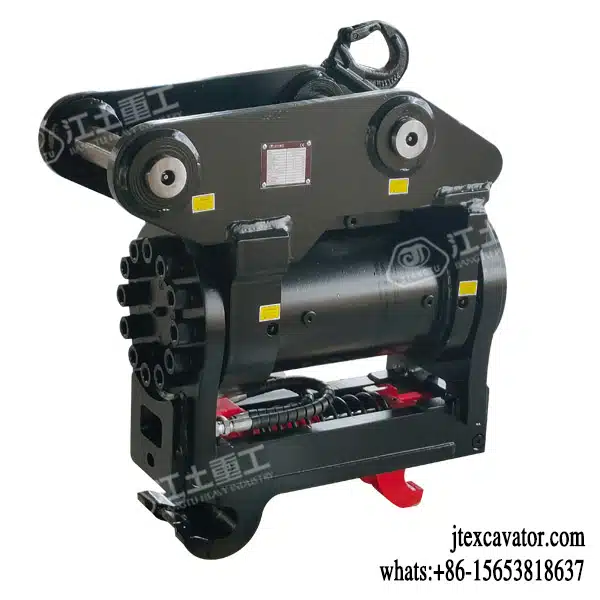

Features of triple locking tilting quick hitch coupler
We can offer the OEM/ODM services of excavators attachments. The product can be customized according to your personalized requirements. Please offer your design documents or tell us your ideas and our R&D team will do the rest.
Triple Locking Tilting Quick Hitch Coupler Specification

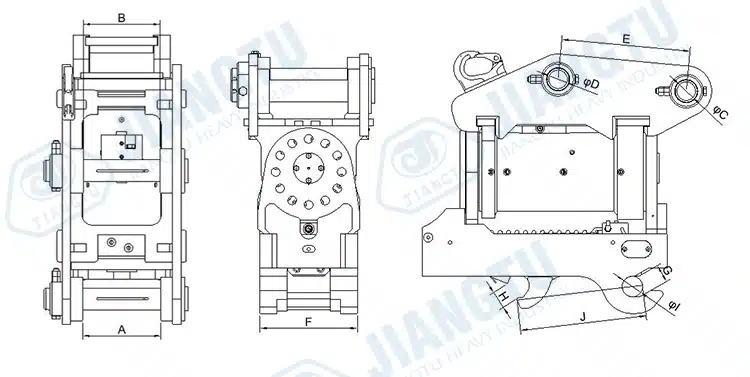

| Category/Model | Unit | JT00 | JT01 | JT02 | JT04 | JT06 | JT08 | JT10 |
|---|---|---|---|---|---|---|---|---|
| Width A | mm | 90-120 | 107-148 | 127-166 | 172-205 | 172-266 | 280-366 | 346-420 |
| Width B | mm | 90-120 | 107-148 | 127-166 | 172-205 | 172-266 | 280-366 | 346-420 |
| Pin Diameter C | mm | 25-30 | 35-40 | 45-50 | 45-55 | 60-65 | 70-80 | 90-100 |
| Pin Diameter D | mm | 25-30 | 35-40 | 45-50 | 45-55 | 60-65 | 70-80 | 90-100 |
| Pins Centre Distance E | mm | 85-164 | 107-184 | 180-300 | 172-415 | 240-555 | 320-685 | 500-300 |
| Bottom Minimum Width F | mm | 89 | 128 | 138 | 178 | 218 | 288 | 390 |
| Bottom Pin Diameter I | mm | 25-30 | 35-40 | 45-50 | 45-55 | 60-65 | 70-80 | 90-100 |
| Pick Up Range J | mm | 84-180 | 158-240 | 200-362 | 272-380 | 300-420 | 350-520 | 500-596 |
| Tilt Degree | ยฐ | 180ยฐ | 180ยฐ | 180ยฐ | 180ยฐ | 140ยฐ | 140ยฐ | 120ยฐ |
| Tilt Working Pressure | Bar | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
| Tilt Necessary Flow | Lpm | 5~16 | 1.8-2.4 | 3.3-6.8 | 7.6-10 | 15-19 | 18-24 | 60-80 |
| Quick Hitch Working Pressure | Bar | 25~300 | 25~300 | 25~300 | 25~300 | 25~300 | 25~300 | 25~300 |
| Necessary Flow | Lpm | 15~25 | 15~25 | 15~25 | 15~25 | 15~25 | 15~25 | 15~25 |
| Excavator | Ton | 0.8~1.5 | 2~3.5 | 4~6 | 7~9 | 10~15 | 20~25 | 28-36 |
| Weight | kg | 56 | 108 | 180 | 210 | 410 | 594 | 1138 |

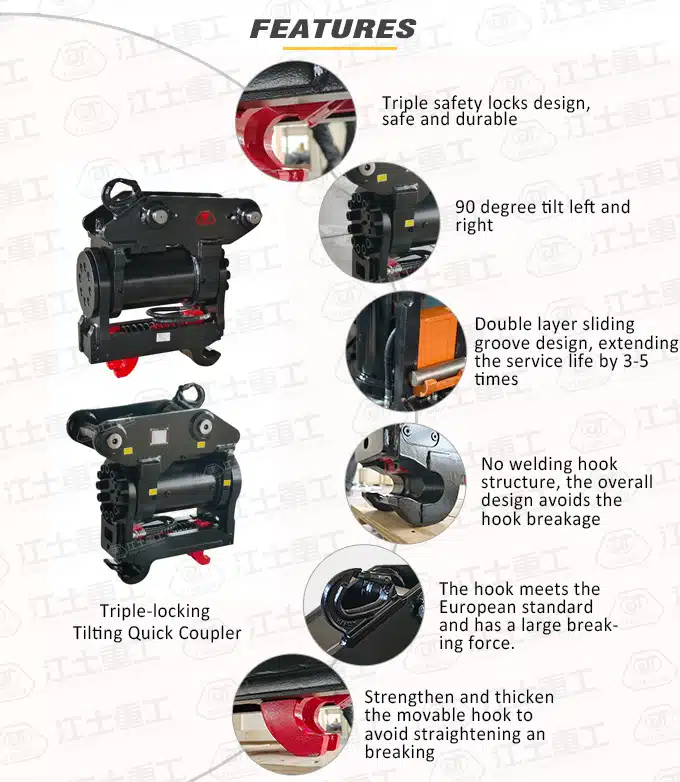

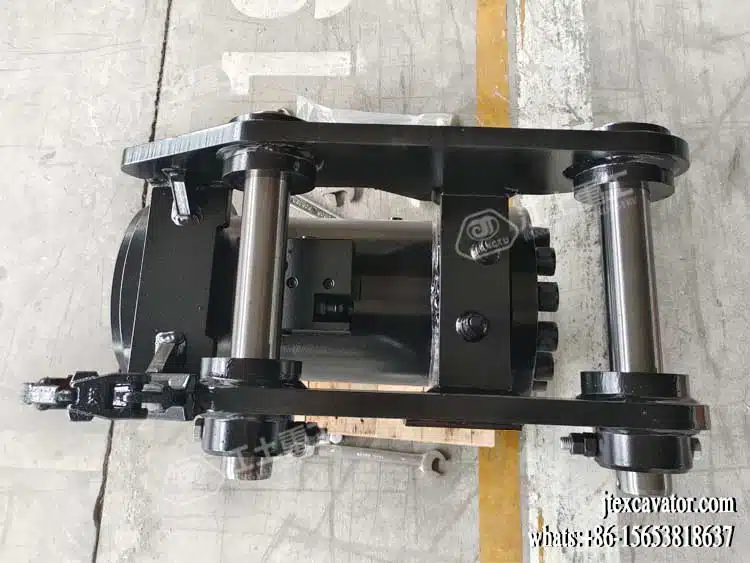

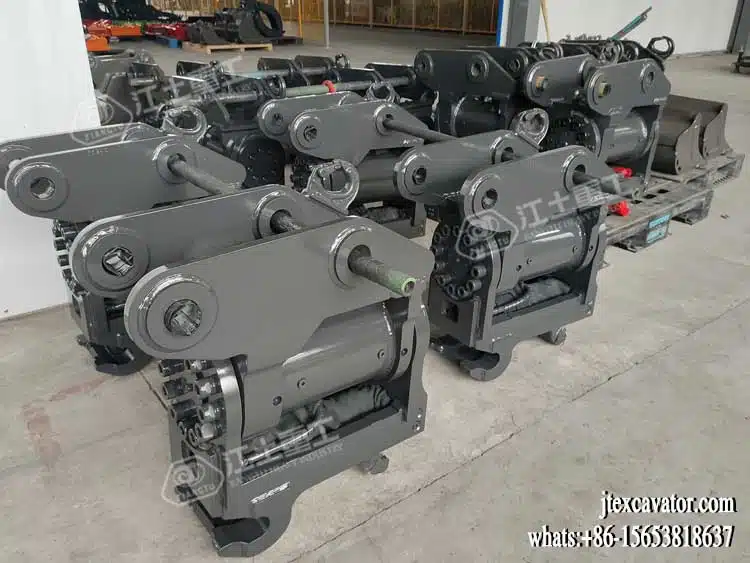

Features of triple locking tilting quick hitch coupler
1ใTriple locking designs, safe and durable, no bucket falling
The triple locking design complies with EU ISO 13031 and Australian legal standards for safe attachment use. In the event of a cylinder leak or piston rod breakage, the attachment pins are locked, preventing the bucket from falling and striking anyone, ensuring safe use of the tilting quick hitch coupler.
TheโSemi-close evasive rigid spring safety lock structureโof JIANGTU triple locking tilting quick hitch coupler, can effectively prevent the rigid movable mechanism from being touched and rusted by wind, sun, rain, and damage.

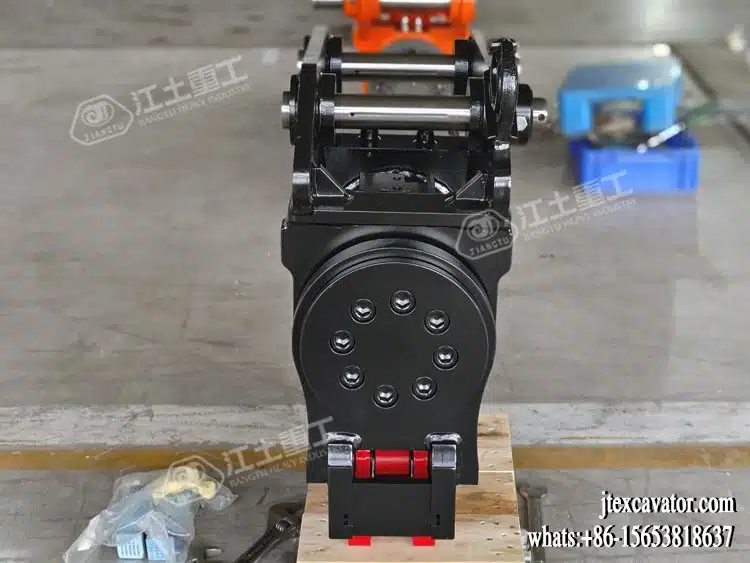

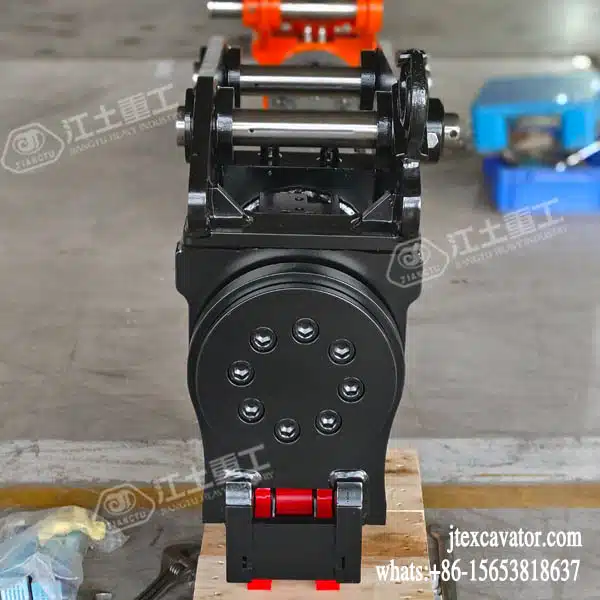

2ใThe tilt angle is 140-180 degrees, and the performance is stable.
The max tilt angle of excavators below 25 tons can reach 180ยฐ, and the max tilt angle of excavators above 25 tons can reach 140ยฐ; JIANGTUโs specially designed tilting cylinder structure and bolts can prevent bolt breakage and tilting cylinder oil leakage.
3ใDouble-layered slide design extends life by 3-5 times.
The “slide jaw” a key component of the tilting quick hitch coupler, adopts double-layer slide slot design. This design ensures more even distribution of force across the entire product, avoiding concentrated stress and making it more suitable for carrying heavy attachments. Precision machining ensures higher dimensional accuracy and a tighter fit within the housing body. The clearance between the slides is less than 1mm, minimizing vibration and reducing impact force by 80% compared to previous generations, extending lifespan by 3-5 times.
4ใNo welding hook, ensuring a seamless structure that prevents jaw breakage.
The tilting quick hitch coupler adopts no welding hook design, fabricated and welded from a single piece of high-strength plate to prevent jaw breakage.
5ใReinforced and thickened slide jaw to prevent stretching and breakage
The enclosed, reinforced slide jaw of the tilting quick hitch coupler system features reinforced and thickened areas to prevent breakage.
6ใThe lifting hook complies with European standards and offers high breaking force.
The lifting hook is a cast and welded hook with a safety device that complies with European standards. The breaking force is 2.5-4 times the maximum allowable force, ensuring safety and reliability.
The lifting hook is positioned for optimal operation and provides high visibility.
7ใThe “compensation” concept design solves the problems of soil spillage and reduced digging force when the excavator is attached to tilting quick hitch coupler loading.
This “increased compensation” design compensates for the bucket’s lifting height while ensuring the bucket remains level and does not spill. Compared to other quick couplers, digging force is increased by 4% and lifting force by 4-7%.
