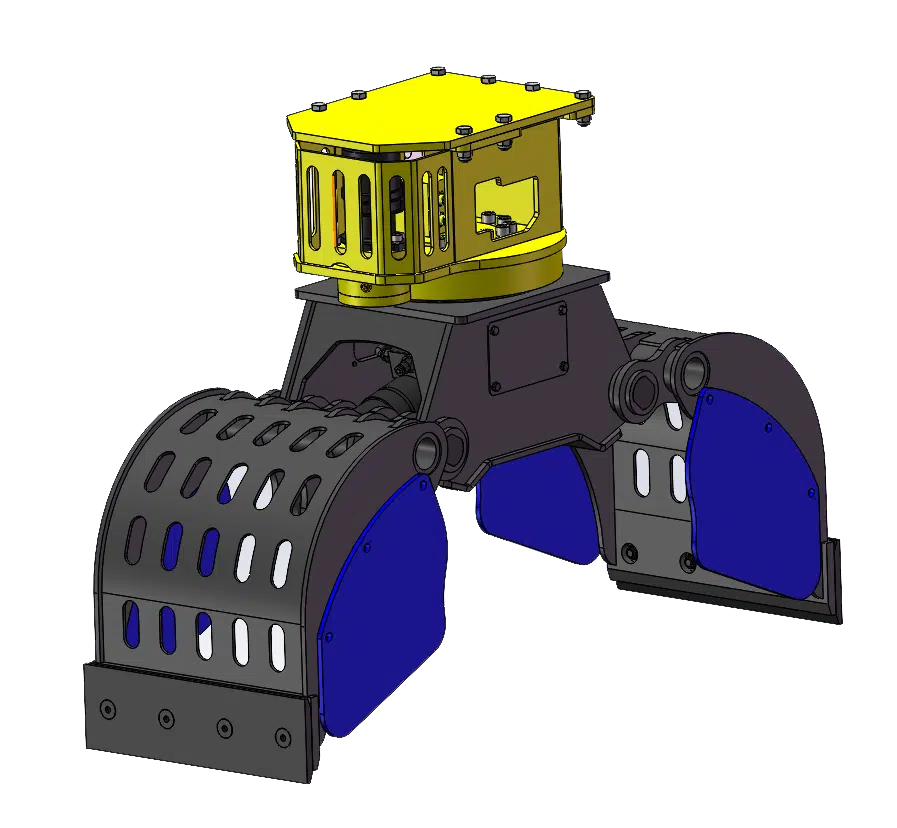

Excavator Grapple Dredging Bucket

Jiangtu Excavator Grapple Dredging bucket is a kind of excavator attachment that is used for dredging, port management, demolishing, material handling, and sorting of all kinds of materials such as rocks, scrap, and other debris.

As one of the leading hydraulic excavator grapple manufacturers in China, JIANGTU has a full range of grapple dredging buckets for excavators from 4-30 tons. They are suitable for all kinds of brands and models of excavators.

Main Advantages of JIANGTU Excavator Grapple Dredging bucket:

Unlimited clockwise and anti-clockwise 360° rotatable swing bearing system;
Equipped with a German-made M+S motor, more powerful and stable.
Using handles to operate the grapple which is more comfortable and flexible for the driver.
Original German oil seals, balance valve, safety valve making cylinder more durable and safe.
Brake valve making it safer from inertia or accidents.

Specification
Video & Images
Features
Certificate
Production Process

Specification – Excavator Grapple Dredging Bucket

The following are the technical parameters of the Excavator Grapple Dredging Bucket.

Category	Unit	JT01	JT-02	JT-04	JT-06	JT-08	JT-10
Rotation angle		360	360	360	360	360	360
Motor Pressure	kg/cm²	90-110	110-120	110-120	130-150	130-150	130-150
Motor Flow	lpm	20-35	30-55	30-55	40-70	40-70	40-70
Oil Cylinder FORCE	ton	4	8	9	15	16	18
Oil Cylinder Pressure	kg/cm²	110-140	160-200	160-200	180-230	180-230	200-250
Operating flow	lpm	25-40	30-55	50-100	90-110	100-140	90-150
Excavator weight	ton	3-4	4-6	6-9	12-16	17-25	26-35

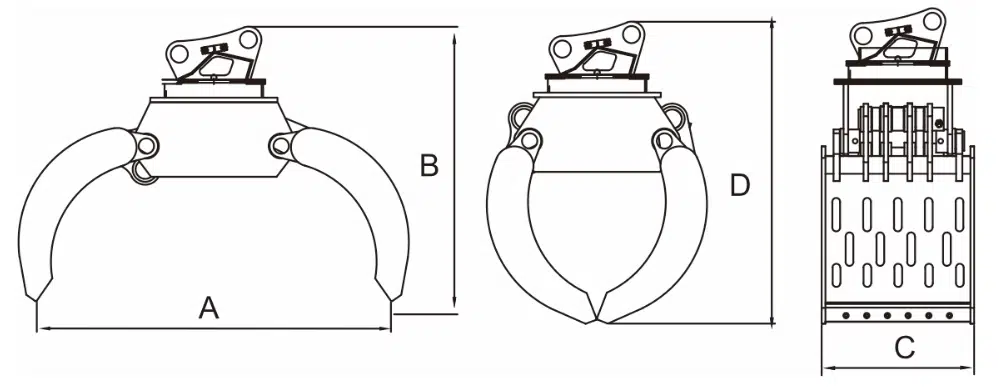

Open width A	mm	1160	1400	1500	1700	1950	2400
Width C	mm	450	500	600	800	1030	1200
Weight	kg	200-220	310-330	440-460	900-960	1350-1500	1700-2100

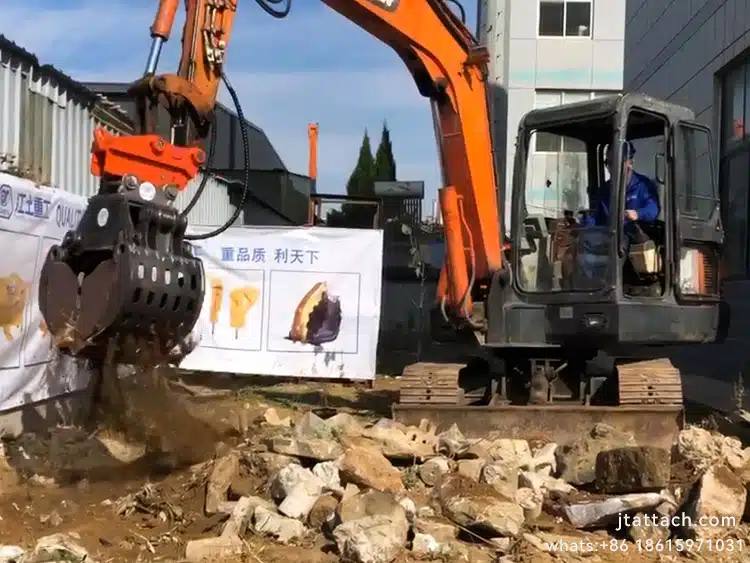

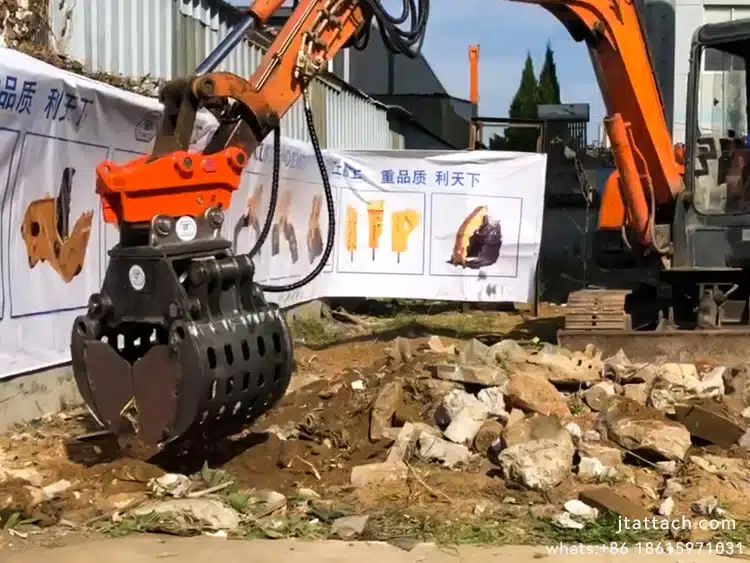

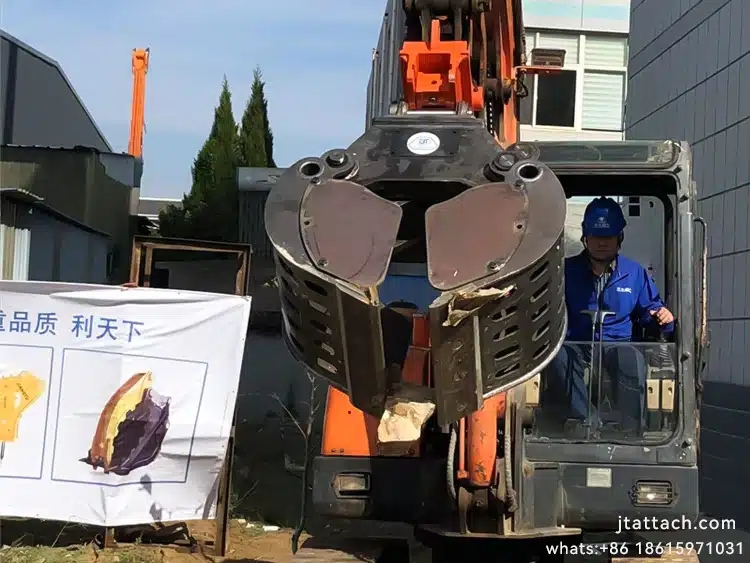

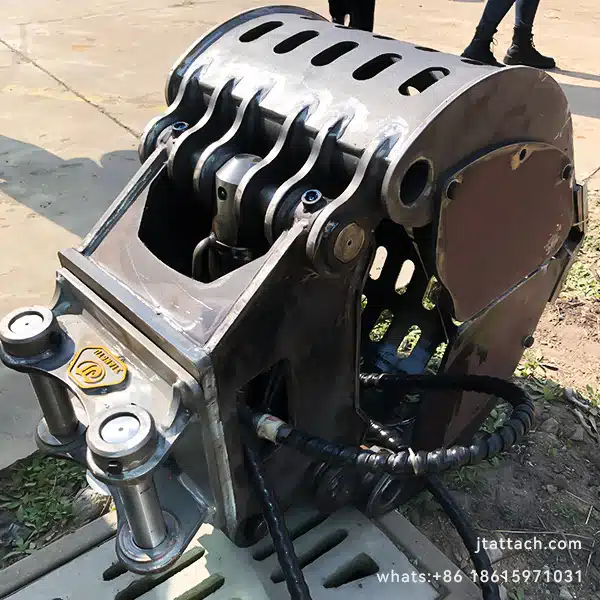

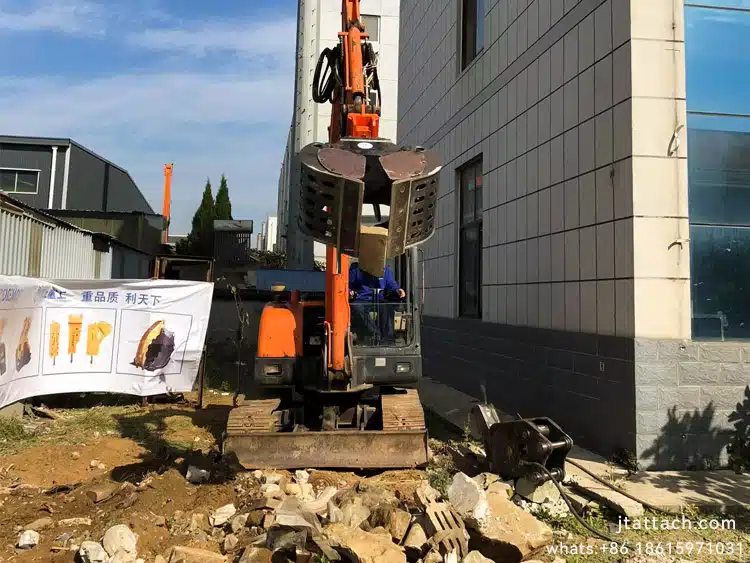

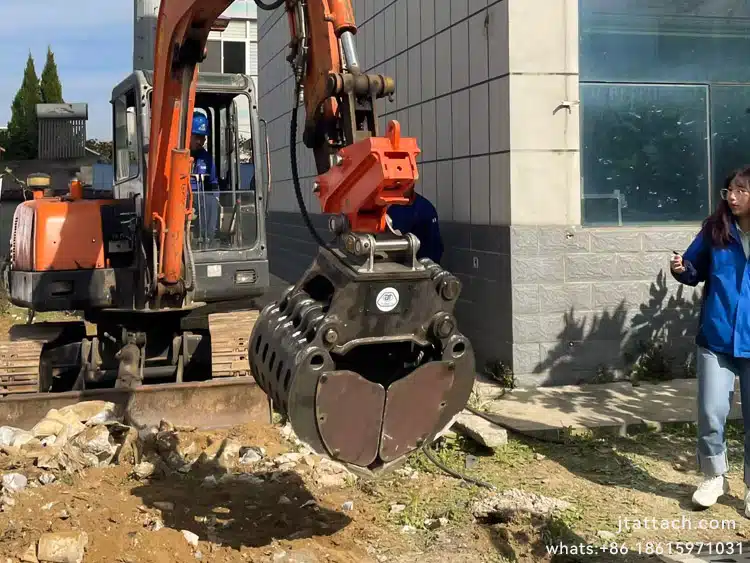

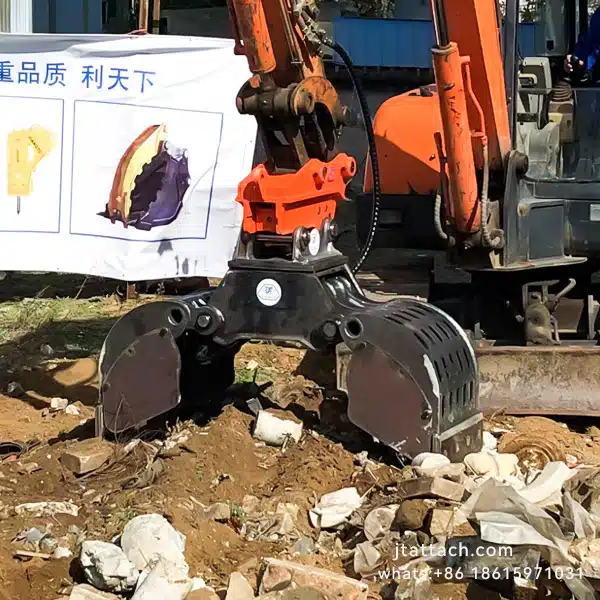

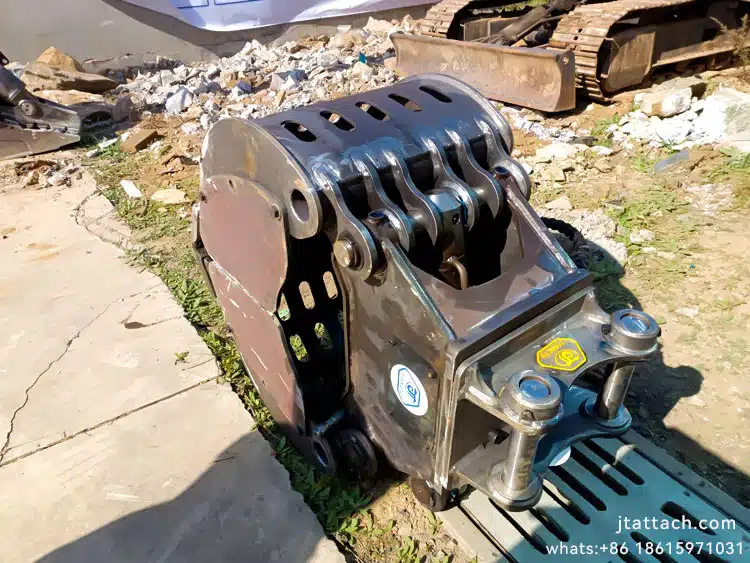

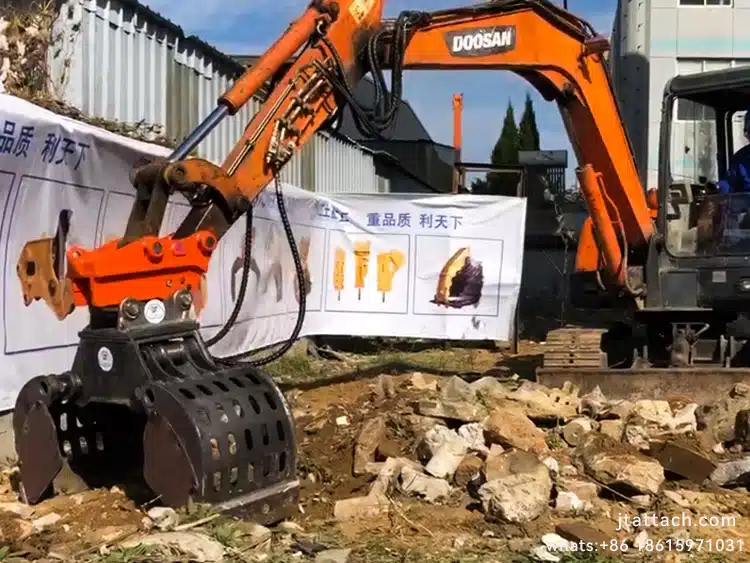

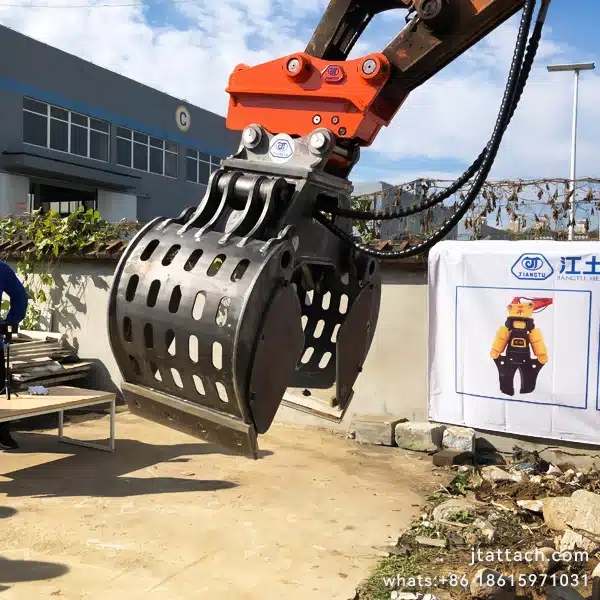

Video & Images

Main Advantages of Grapple Dredging Bucket

Unlimited clockwise and anti-clockwise 360° rotatable swing bearing system;
Equipped with a German-made M+S motor, more powerful and stable.
Using handles to operate the grapple which is more comfortable and flexible for the driver.
Original German oil seals, balance valve, safety valve making cylinder more durable and safe.
Brake valve making it safer from inertia or accidents.
All pins are heat-treated, firm, and durable.
6 months free replacement;12 months quality warranty.

Certificate

Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
