Orange Peel Grapple

Jiangtu Orange Peel Grapple is a kind of excavator attachment that is mainly used for steel scraps, wastes handling, loading, and unloading.

As one of the leading orange peel grapple manufacturers in China, JIANGTU has a full range of orange peel grapples for excavators from 1.5-50 tons. They are suitable for all kinds of brands and models of excavators.

Main Advantages of JIANGTU Orange Peel Grapple:

1, 12 months warranty, 6 months free replacement;

2. Q345B materials for the body, NM400-500 wear plate for claws;

3. Original Germany-made oil seals and joints;

Specification
Product Images
Features
Certificate
Production Process

Specification – Orange Peel Grapple

The following are the technical parameters of the Orange Peel Grapple.

Category	Unit	JT-01	JT-02/04	JT-06	JT-08	JT-10
(A) Open width	mm	1100	1275	1623	1998	2474
(B) Close width	mm	887	1064	1283	1684	2067
(C) Hight	mm	937	990	1083	1335	1550
(D) Hight	mm	1065	1117	1255	1537	2024
Cylinder thrust	ton	3.14	3.14	5.6	9	15.7
Oil pressure	Mpa	16-20	16-20	18-23	18-23	20-25
Capacity (closed)	m³	0.10	0.15	0.25	0.60	0.90
Capacity (open)	m³	0.39	0.61	1.08	2.24	2.99
Excavator weight	ton	3-4	4-9	12-16	17-25	26-35
Weight	kg	200-250	400-600	900-1100	1200-1500	1800-2200

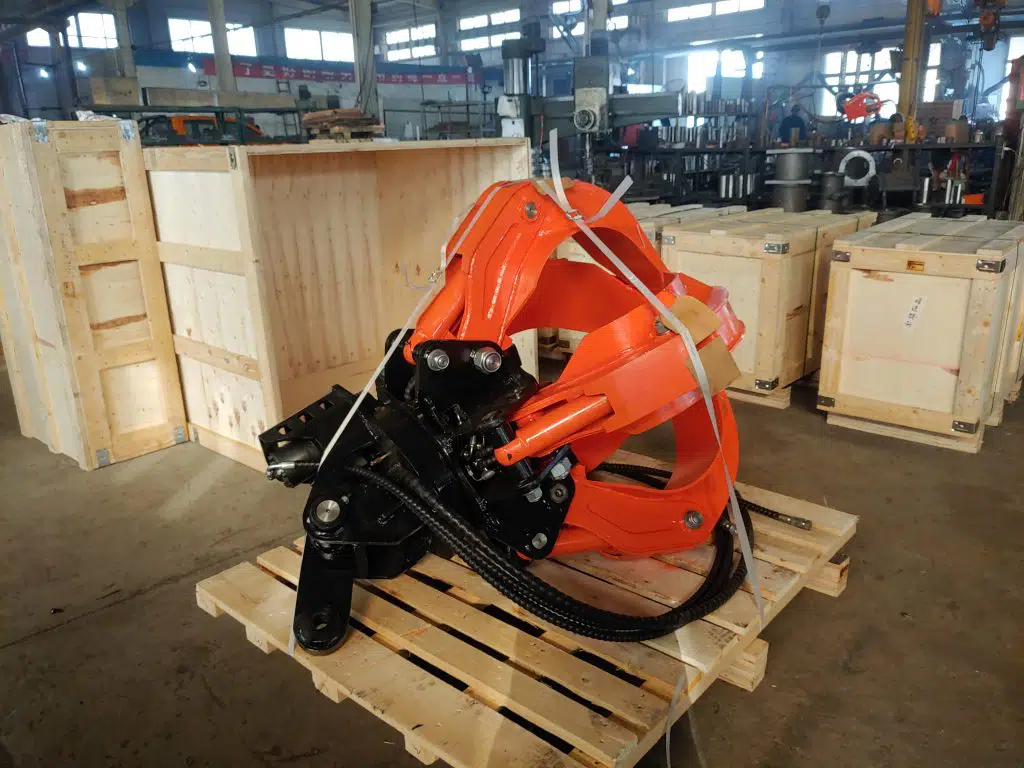

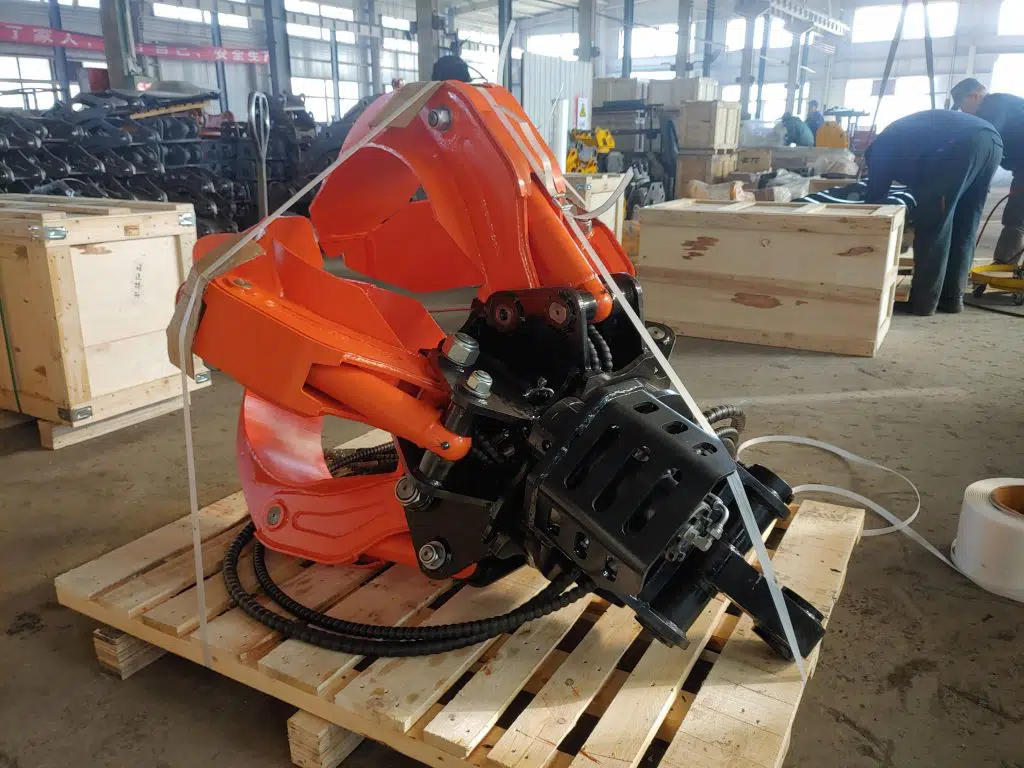

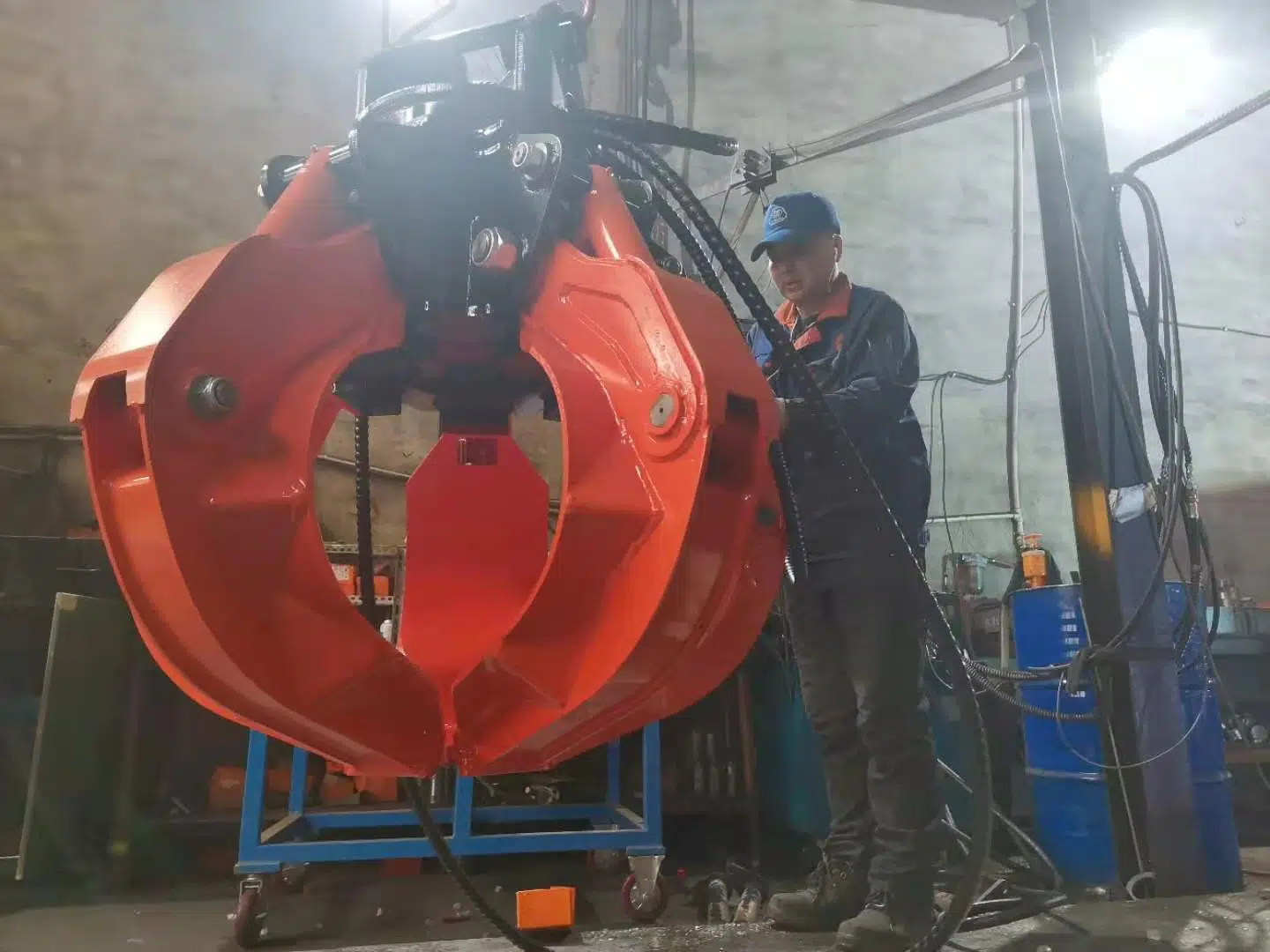

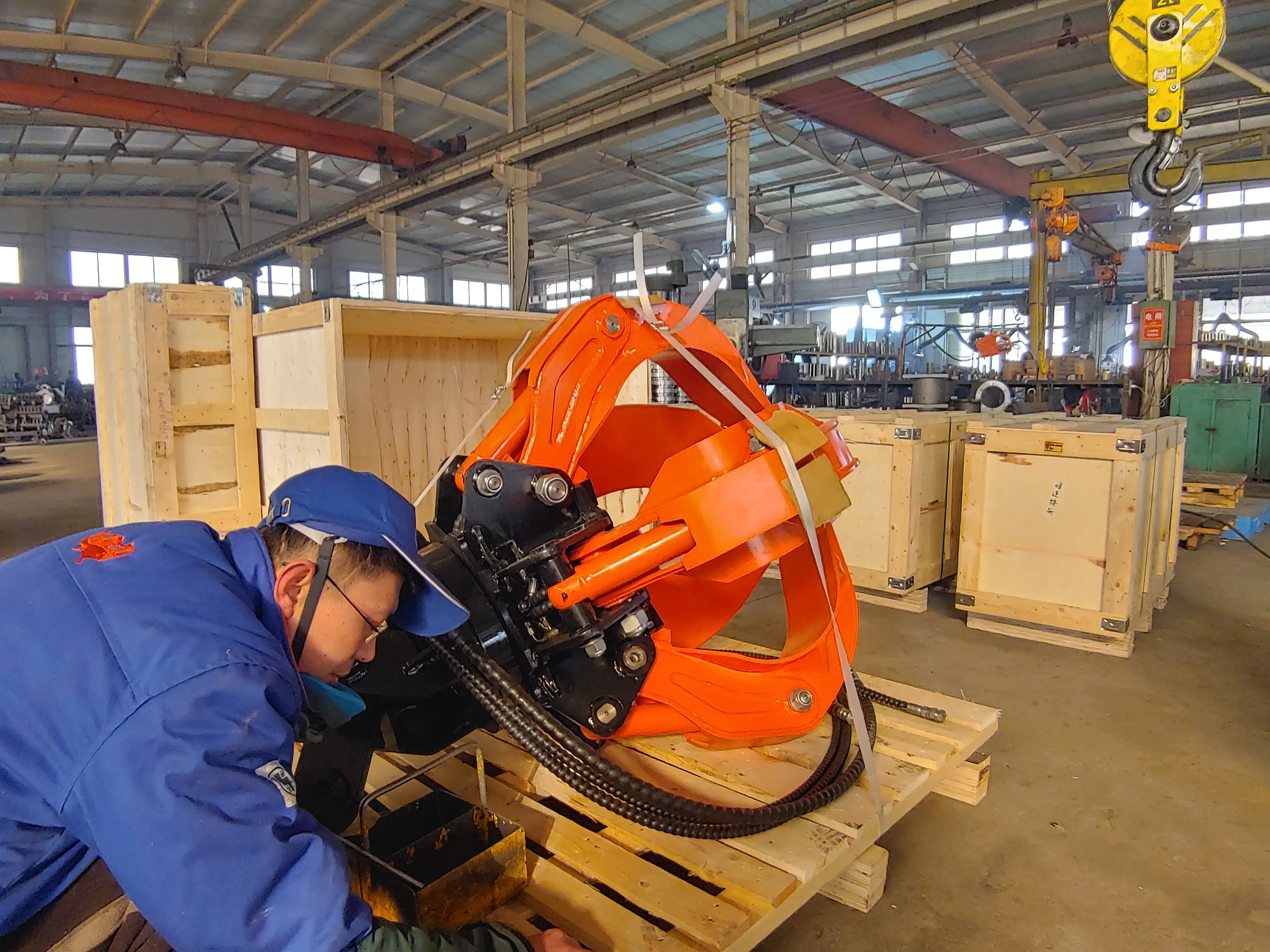

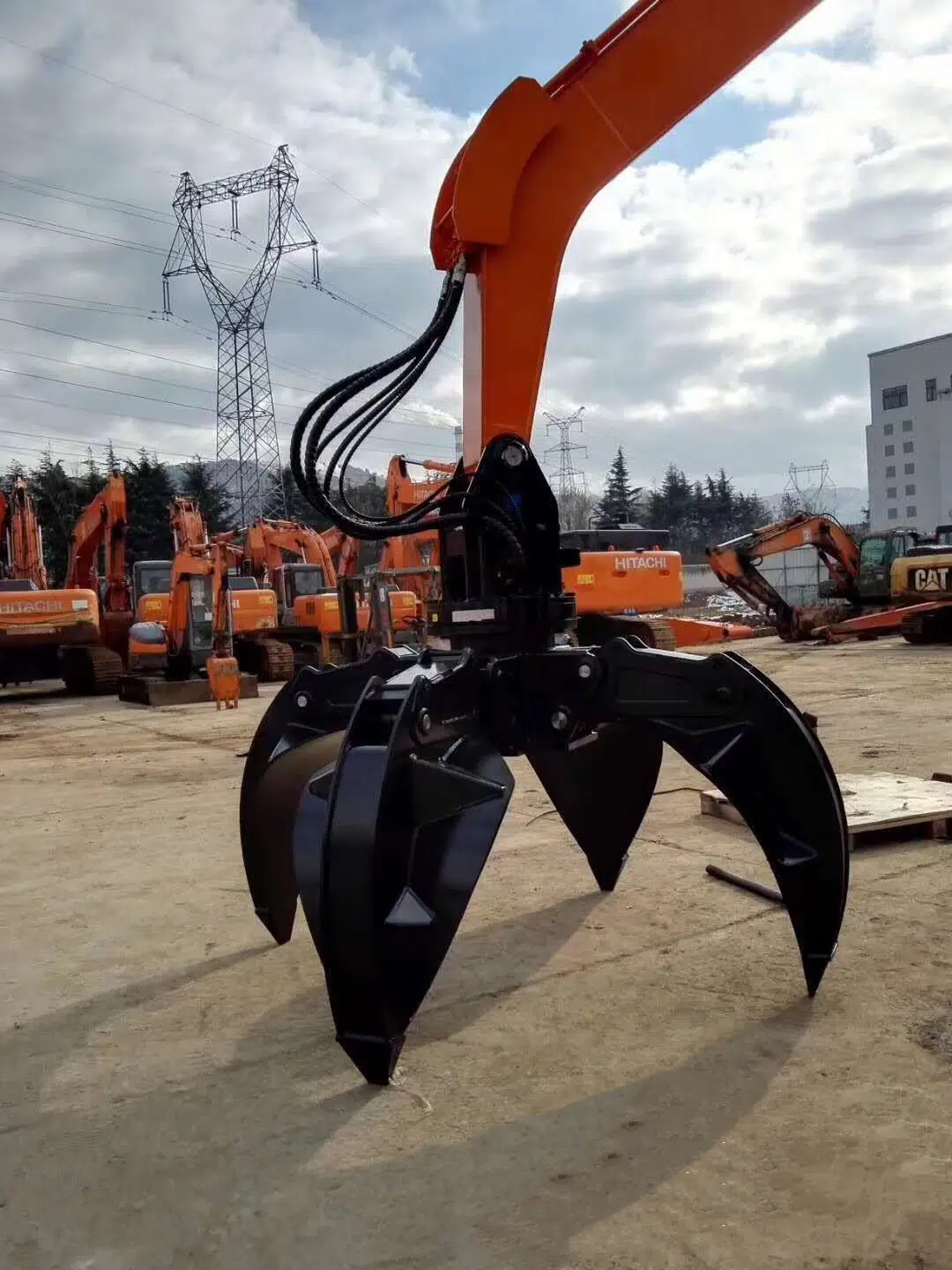

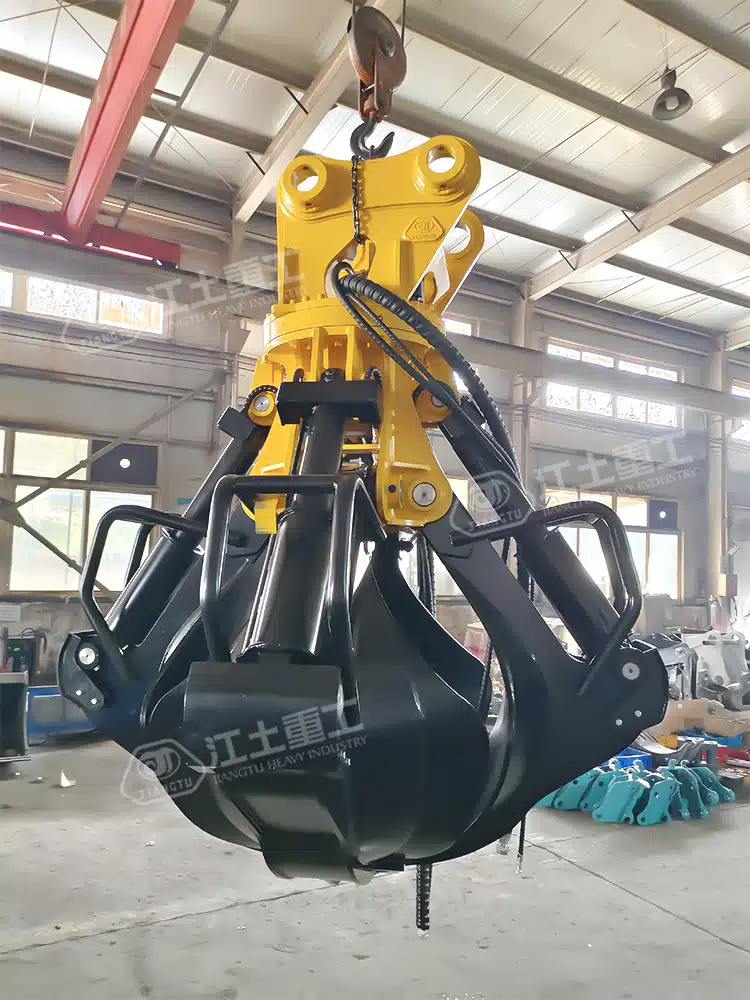

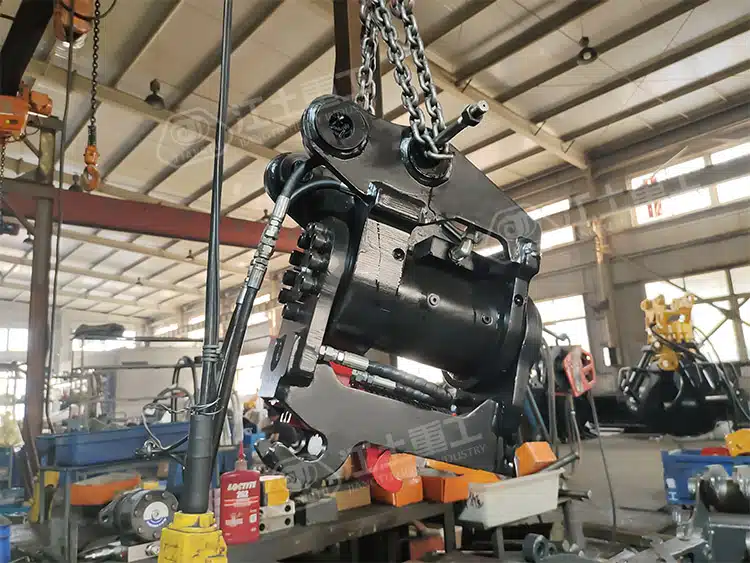

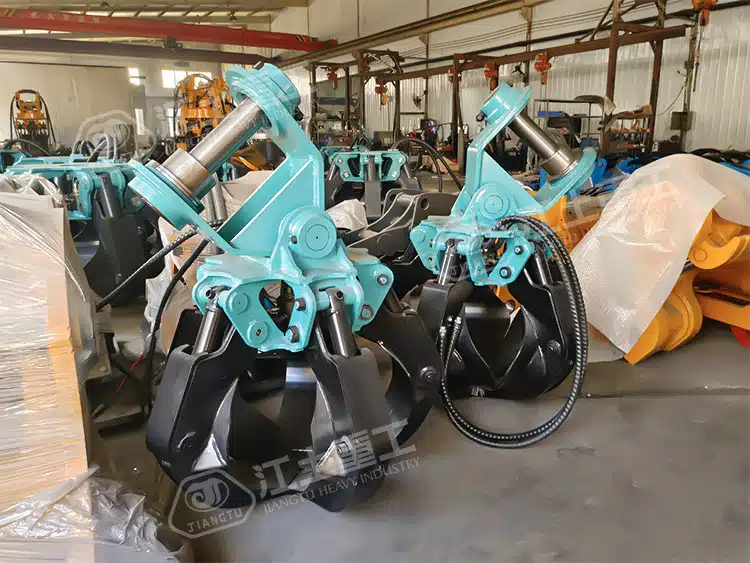

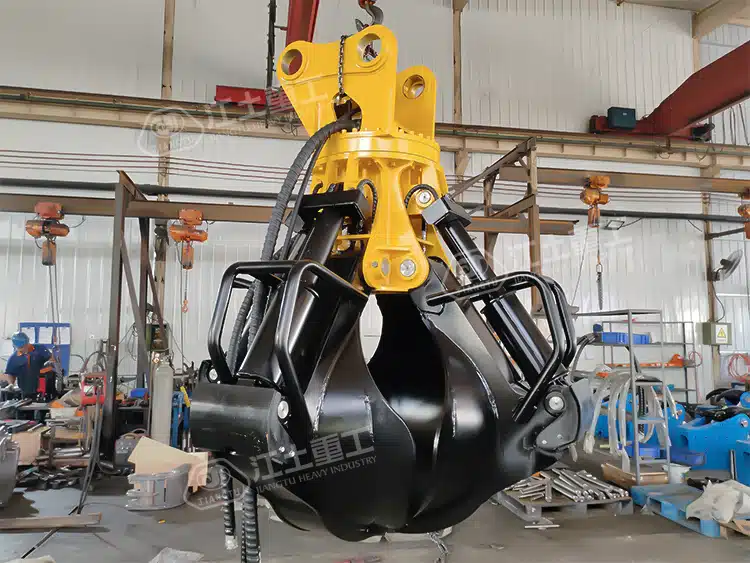

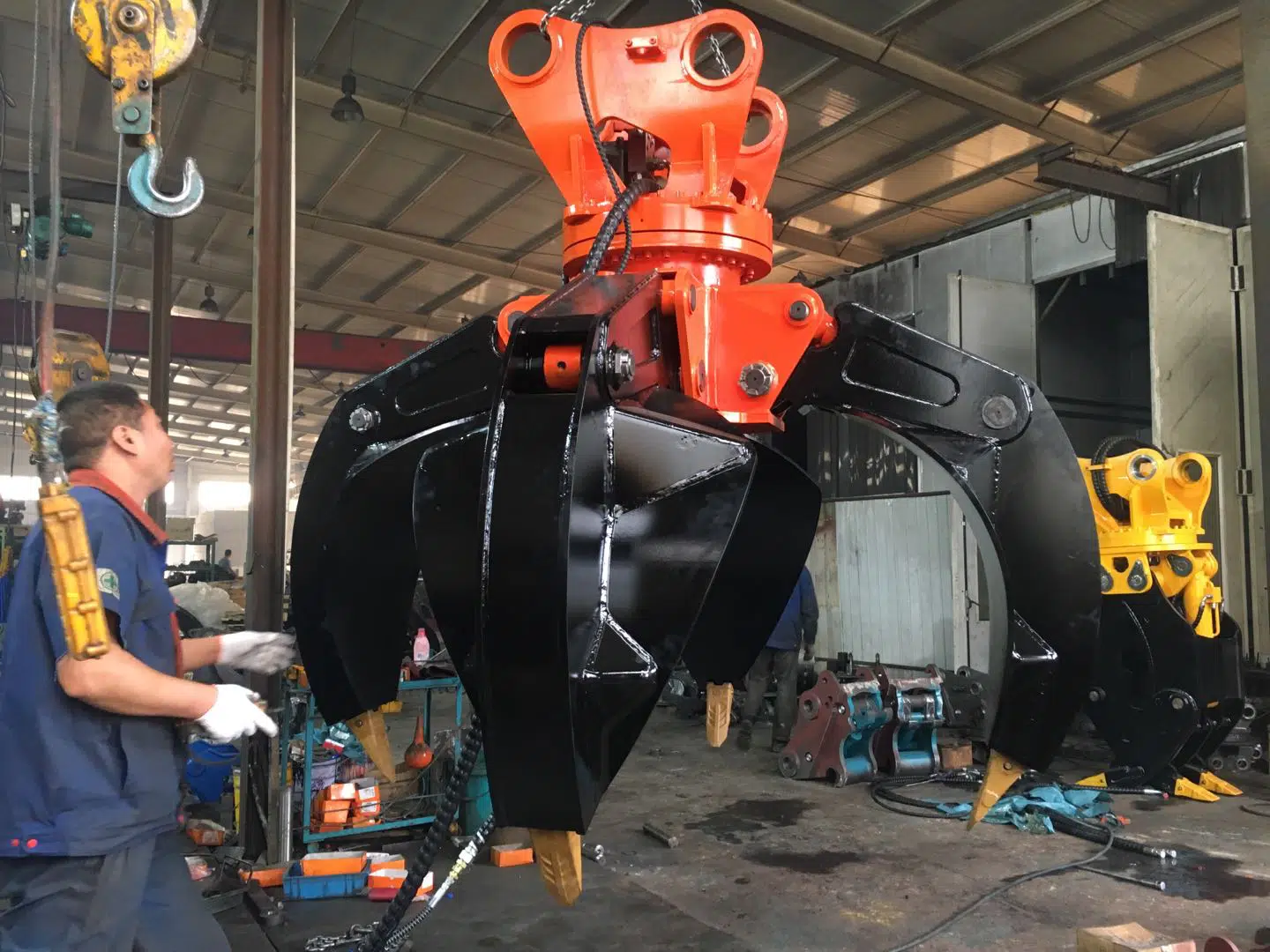

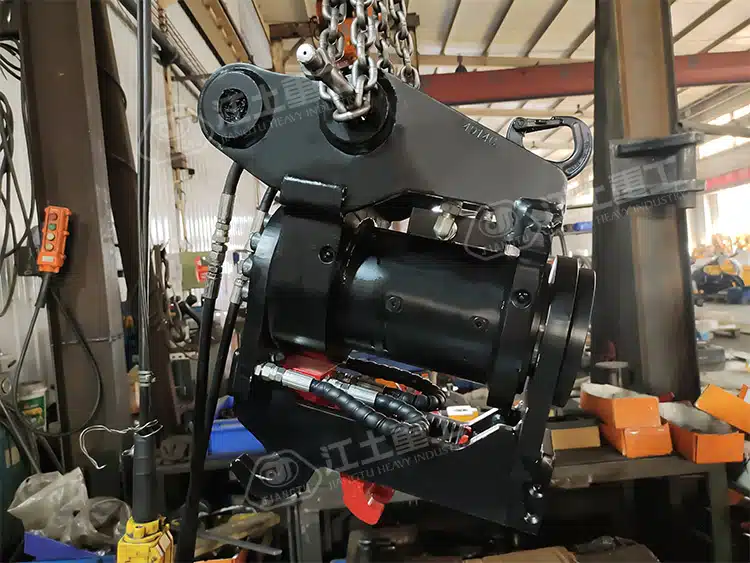

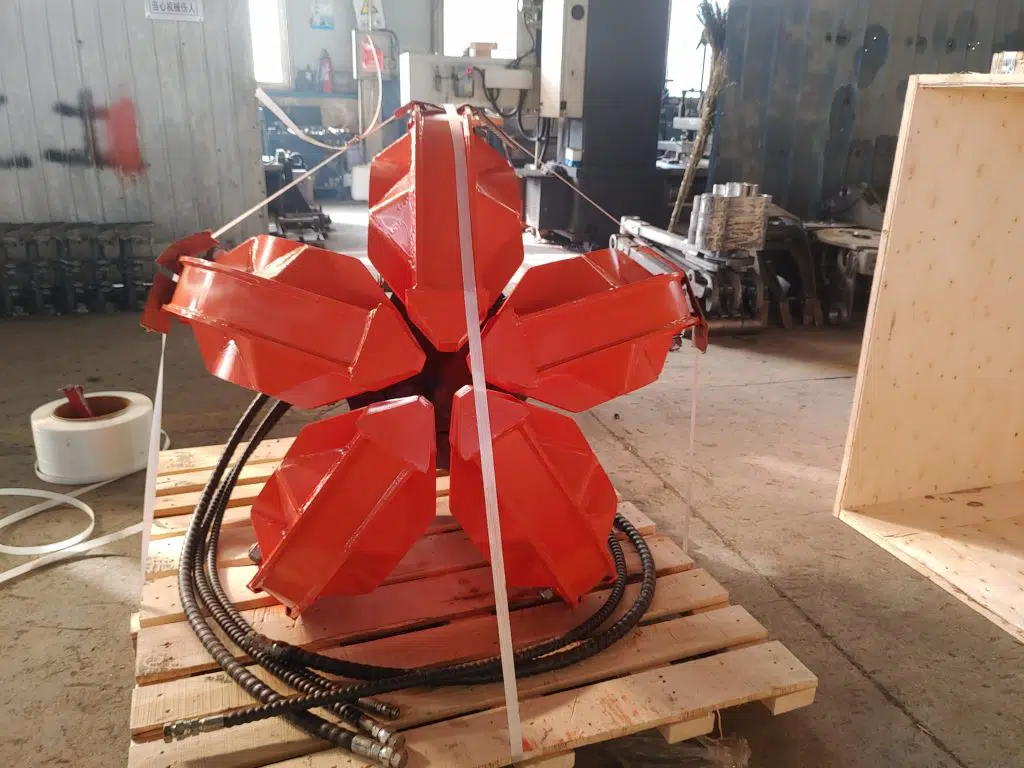

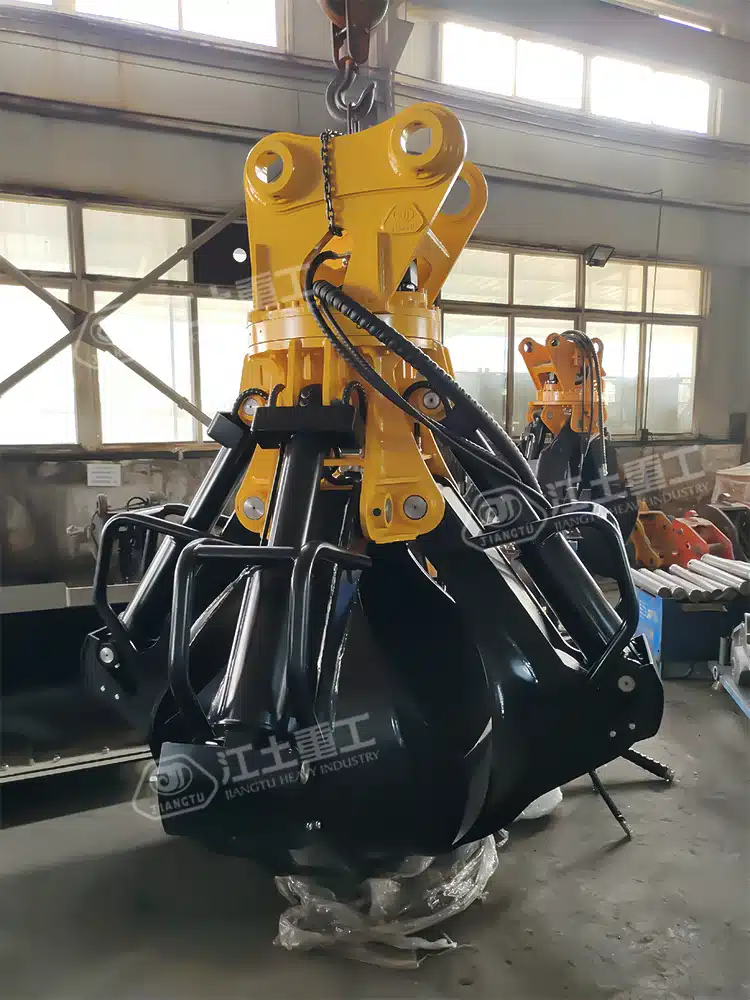

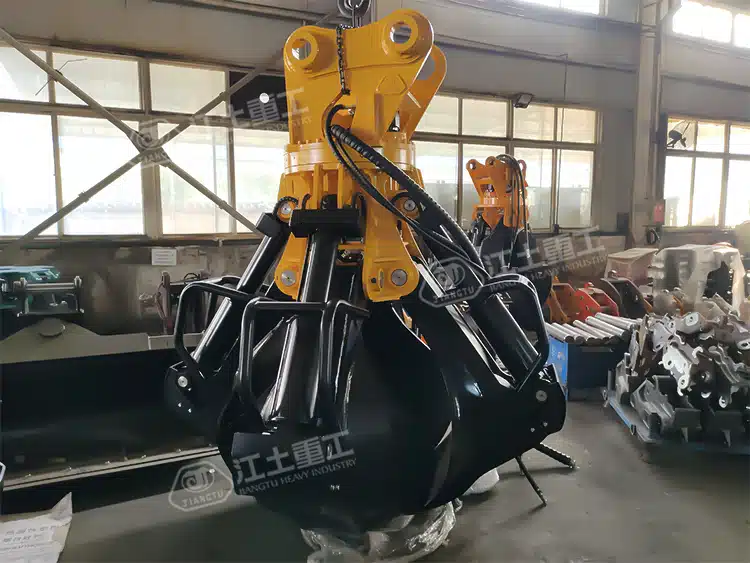

Product Images

Main Advantages of Orange Peel Grapple

Unlimited clockwise and anti-clockwise 360° rotatable swing bearing system;
Equipped with a German-made M+S motor, more powerful and stable.
Using NM500 steel and all pins are heat-treated making our grapple with a very long service life.
Original German oil seals, balance valve, safety valve making cylinder more durable and safe.
Using handles to operate the grapple which is more comfortable and flexible for the driver.
All pins are heat-treated, firm, and durable.
6 months free replacement;12 months quality warranty.

Certificate

Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
