Hydraulic Breaker Chisel

Main Advantages of JIANGTU Chisel:

  • Material: 42 CrMo
  • CNC machine to make it more accuracy
  • Full controlled Capacity for whole process of heat treatment
  • All QC data was recorded and kept more than 3 years, to make it tracking easily.
  • ISO 9001 Quality Assurance and CE certification
  • Special process to ensure the hardness of the whole chisel, which is well proportioned. (Integral, quenching, segmented tempering)
  • Generally paint spraying two or three layers, instead of just ignoring this process directly or just spraying one layer.

Brochures Download

Specification – Hydraulic Breaker Chisel

ModelSizeMaterial
SB20Φ45*50040Cr or 42CrMo
SB30Φ53*58040Cr or 42CrMo
SB40Φ68*70040Cr or 42CrMo
GB2TΦ70*70040Cr or 42CrMo
SB43Φ75*75040Cr or 42CrMo
SB45Φ85*85040Cr or 42CrMo
SB50Φ100*100040Cr or 42CrMo
SB81N/GB8ATΦ135*130040Cr or 42CrMo
SB81Φ140*130040Cr or 42CrMo
SB100Φ150*150040Cr or 42CrMo
SB121Φ155*150040Cr or 42CrMo
SB131Φ165*160040Cr or 42CrMo
SB151Φ175*170040Cr or 42CrMo

How to Choose Chisel

Moil Point Chisel

  1. General use with demolition work and in quarries.
  2. Breaking up stag in steel mills.
  3. Demolishing foundations.
  4. Roadway drivage and roadway shots in mining.

Blunt type Chisel

  1. Crushing large rock pieces in quarries.
  2. Crushing slag
  3. Group compression

Wedge type Chisel

  • General use with additional cutting cation.
  • Drawing pits in the rocky subsoil.
  • Separating rock slabs

Cone type Chisel

General demolition work where penetrative breaking is required.

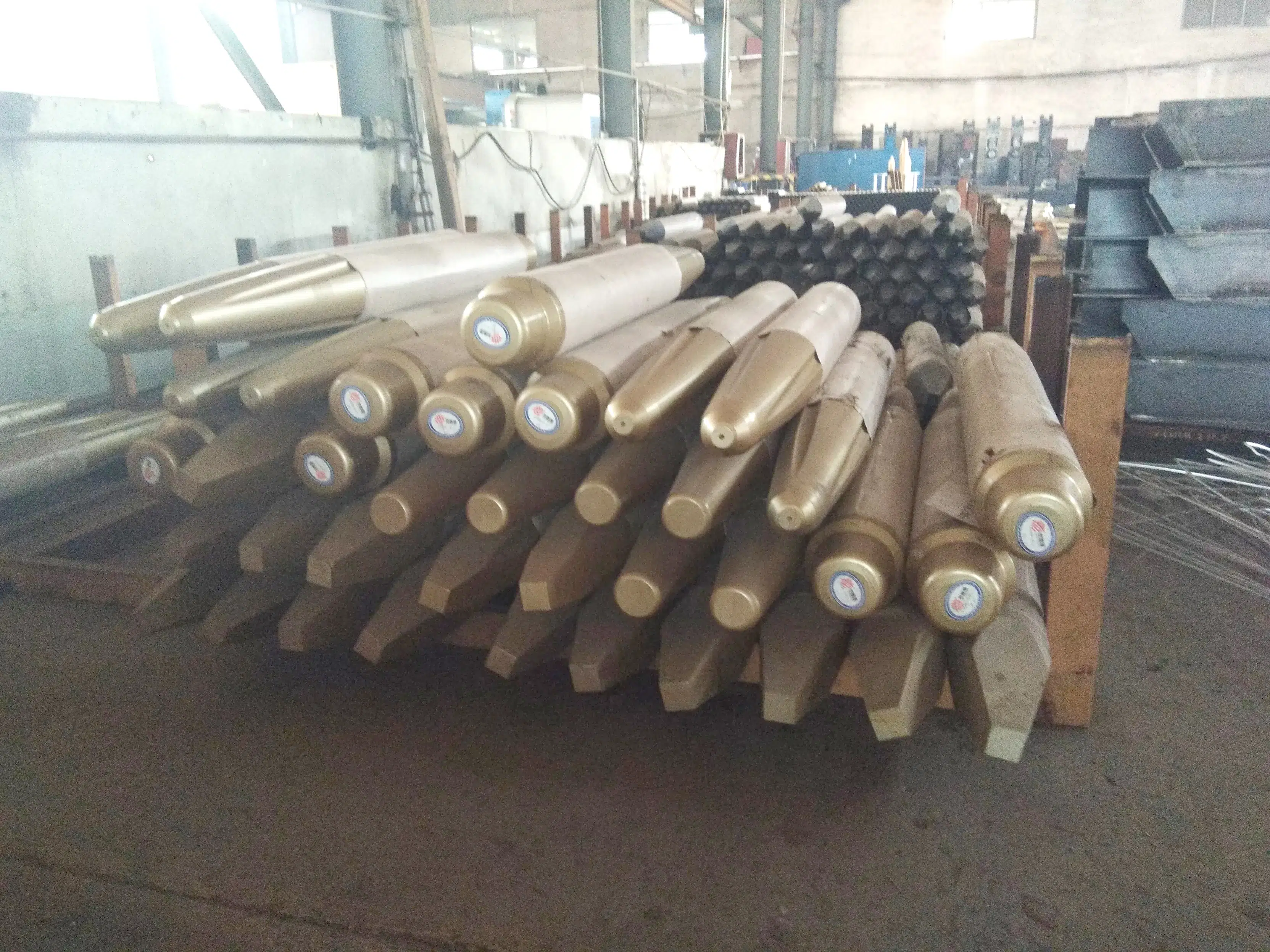

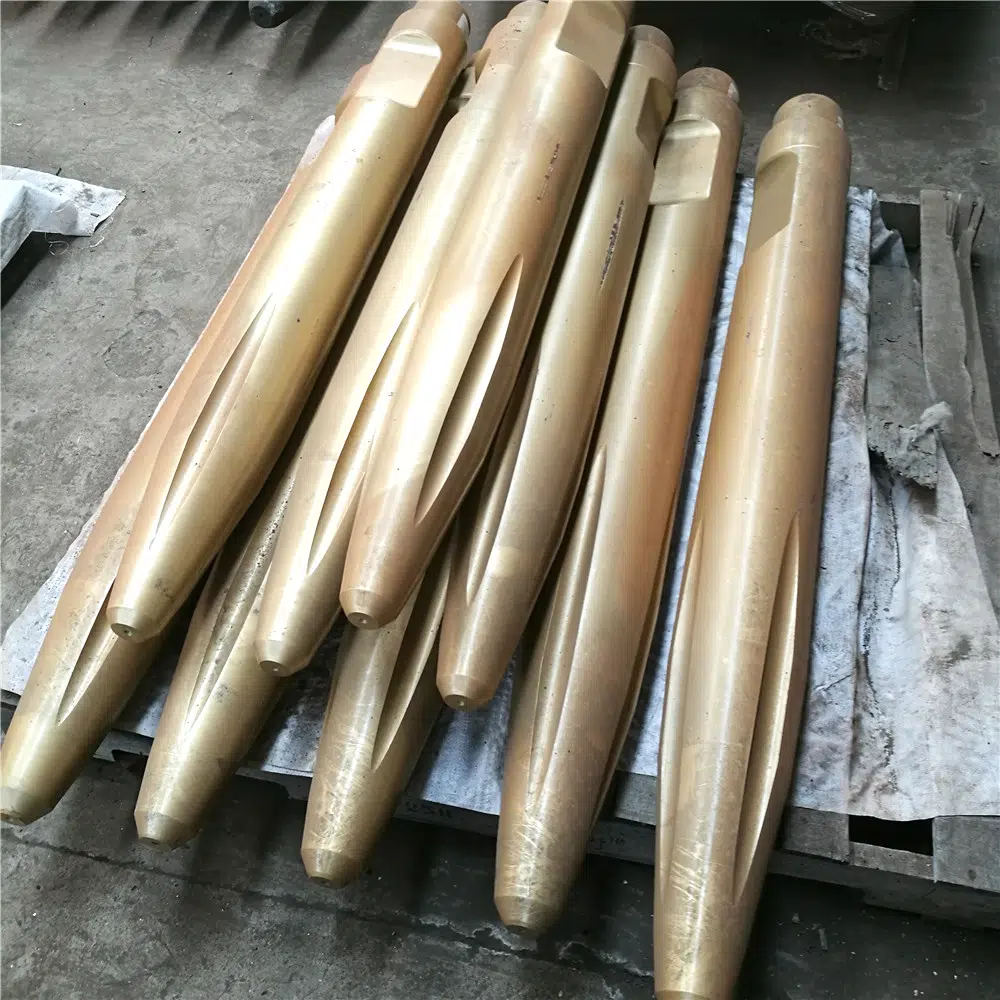

Product Images & Video

Certificate

Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
