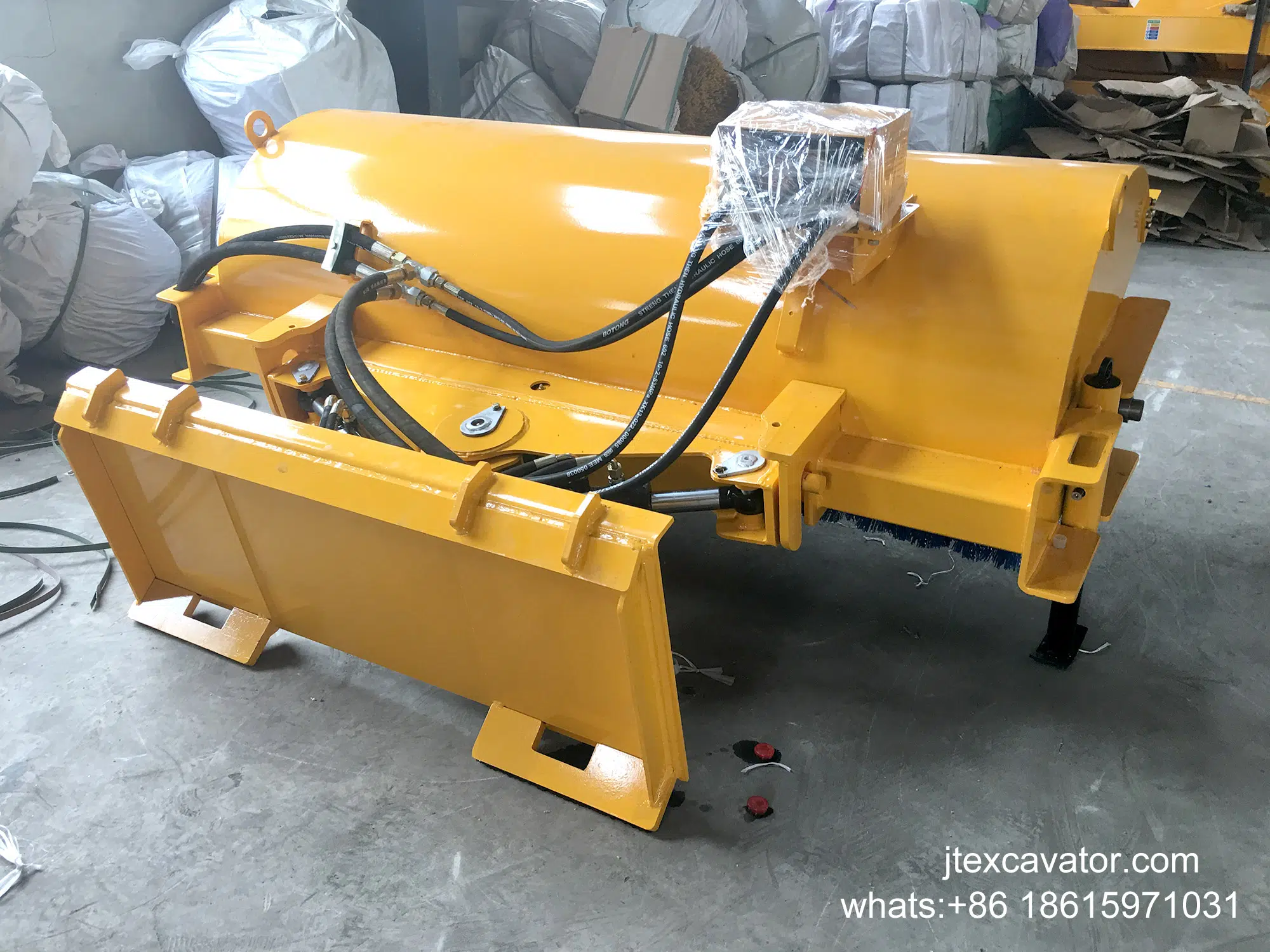

Angle Sweeper

JIANGTU Broom Sweeper is one attachment that can be mounted on skid steer loaders, wheel loaders, excavators and other machines, and moved forward or backward to clean the road dust and waste. And quickly clean the parking lot, sidewalks, docks, warehouses and ports and other venues. It can hold the garbage in the collection hopper and put it in the specified position. There are 3 models from 60-84 inches (1524 mm-2130 mm)

Main Advantages of JIANGTU Angle Sweeper:

  • Eaton motor (optional) provides optimum performance and longevity and allows forward and reverse operation.
  • Swing linkage system with multiple pivot points better centers broom in front of loader when angled.
  • Deck material is Grade 50 Plate (345 MPa or 50,000 PSI Minimum Yield Strength), deck steel with a formed edge fold for additional strength.
  • Wafers can be replaced quickly and easily without disconnecting the hydraulic hoses.
  • Parallel linkage allows sweeper to follow ground contours
  • Flip down for easy storage and bristle protection. No pins required.
  • Motor is guarded while allowing easy access for maintenance
  • Quick-change brush without breaking hydraulic lines
  • Greasable bearing for longer wear life
  • Choose poly, wire, or poly/wire brush

Specification of Angle Sweeper

Total Dimension LWH(mm) 1600*2000*8001600*2300*8001600*2600*800
Total Weight (kg)550600650
Operating Width (mm)152018202130
Brush Diameter(mm)800800800
Rotation Angle(degree)303030
Working Pressure (MPa)161616
Working Flow (L/min)50-9050-9050-90

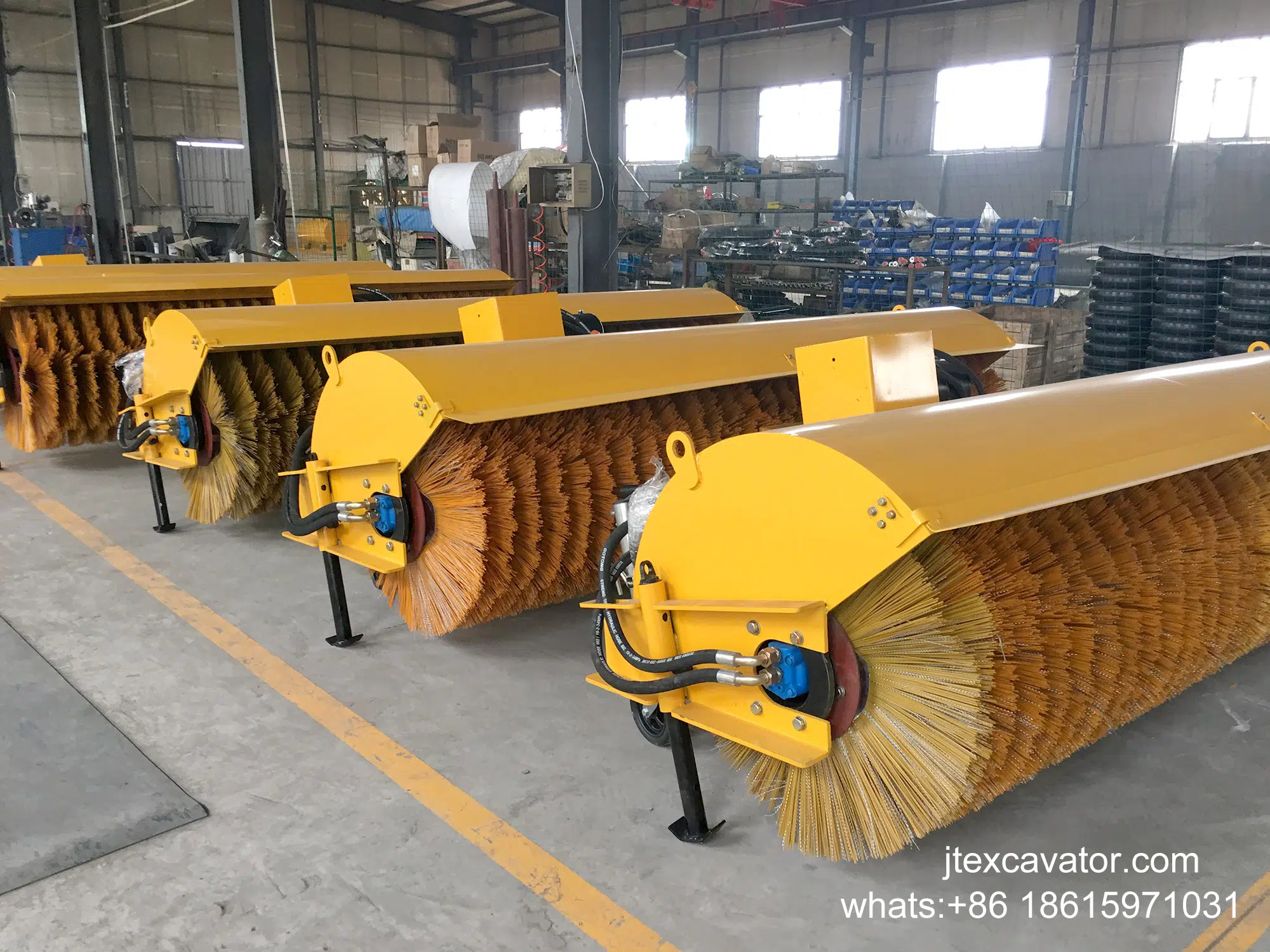

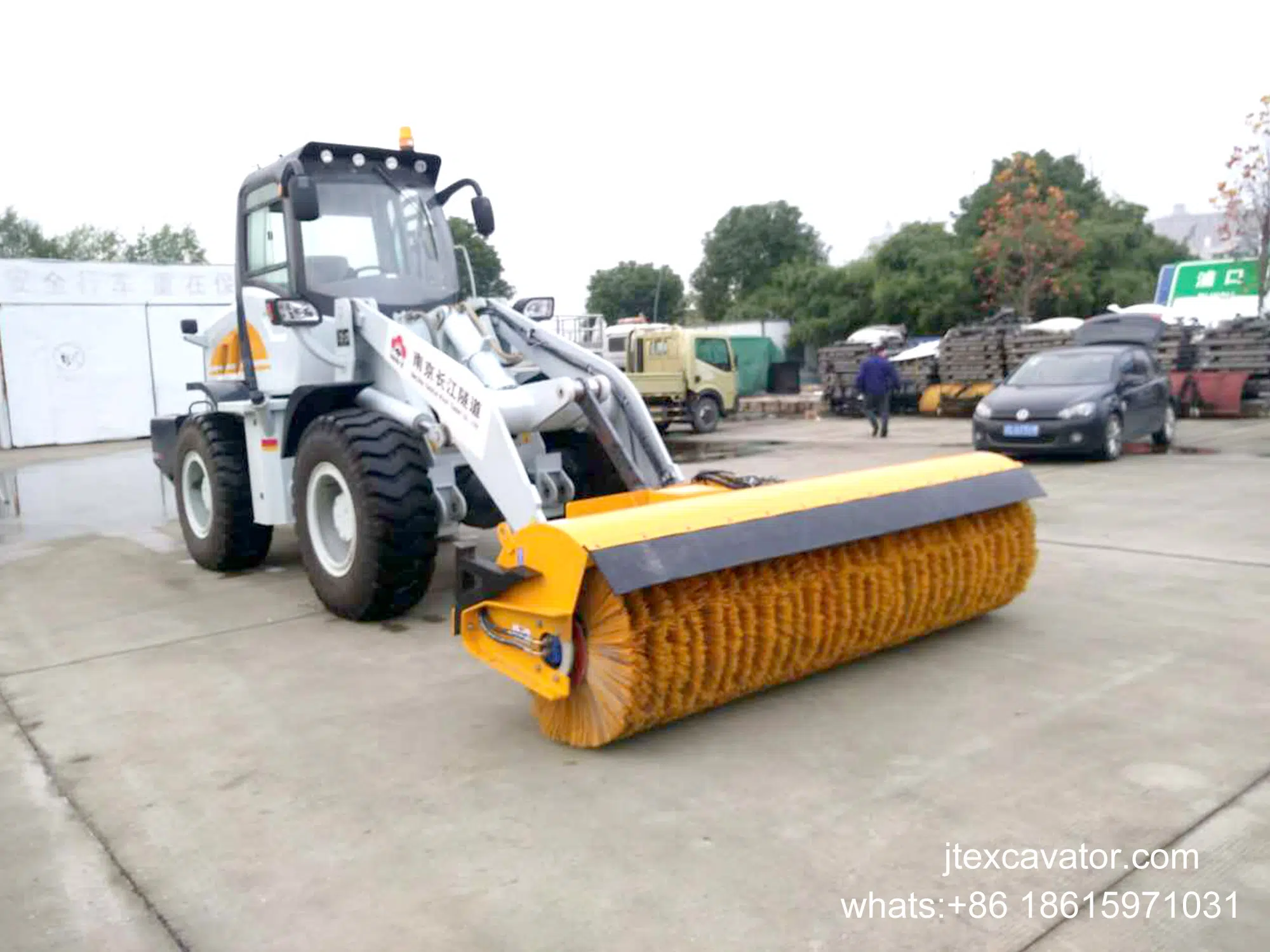

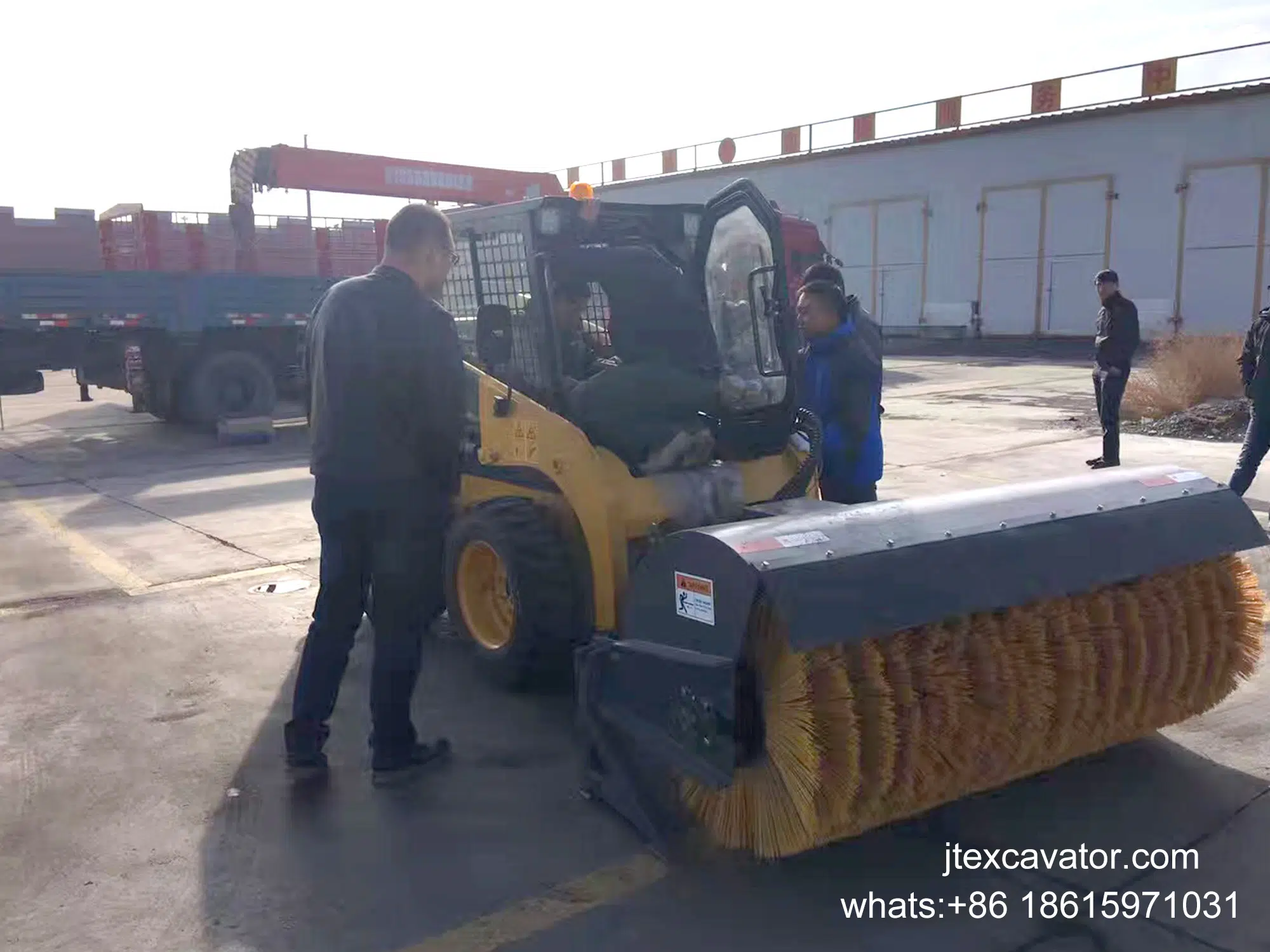

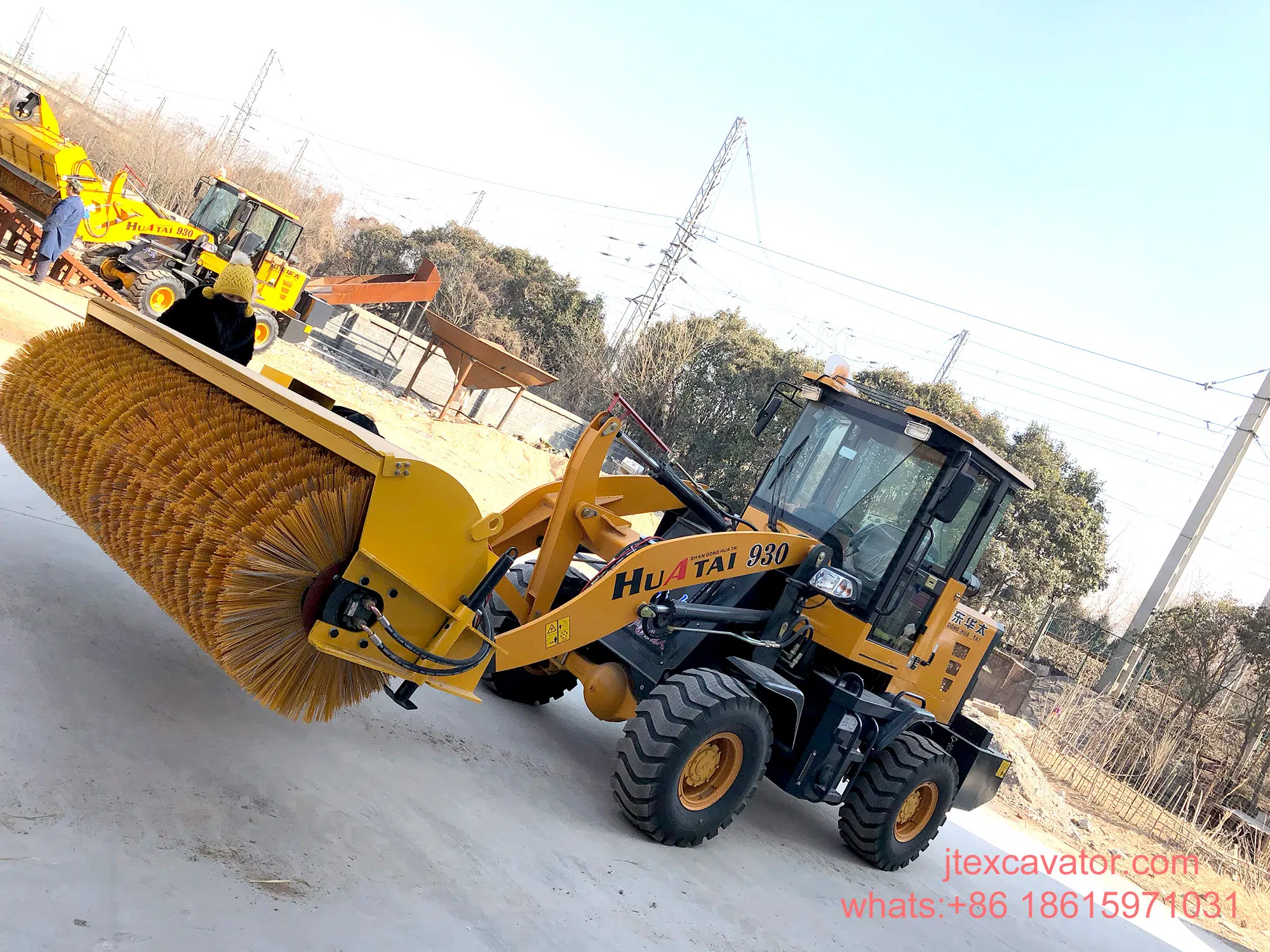

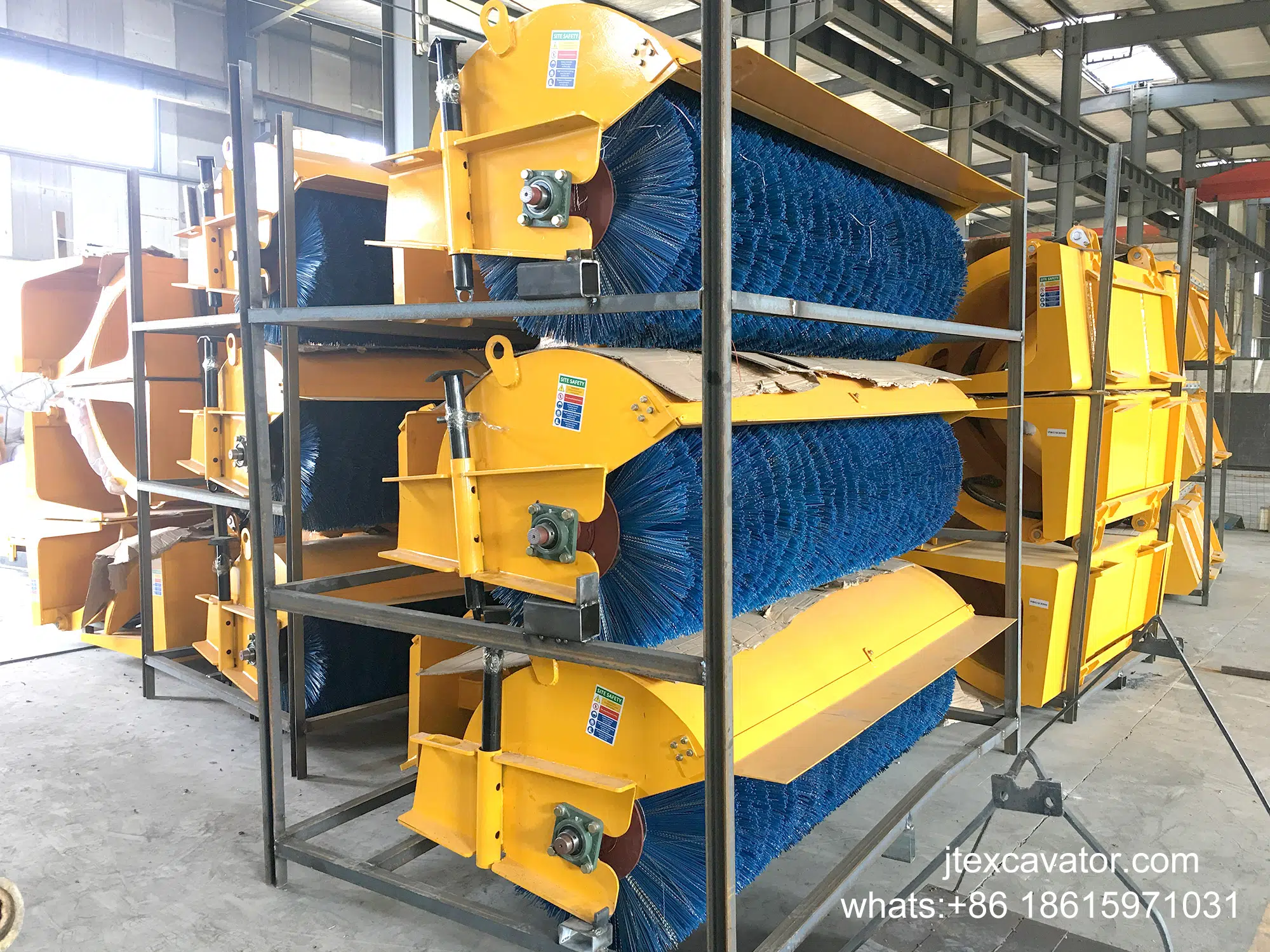

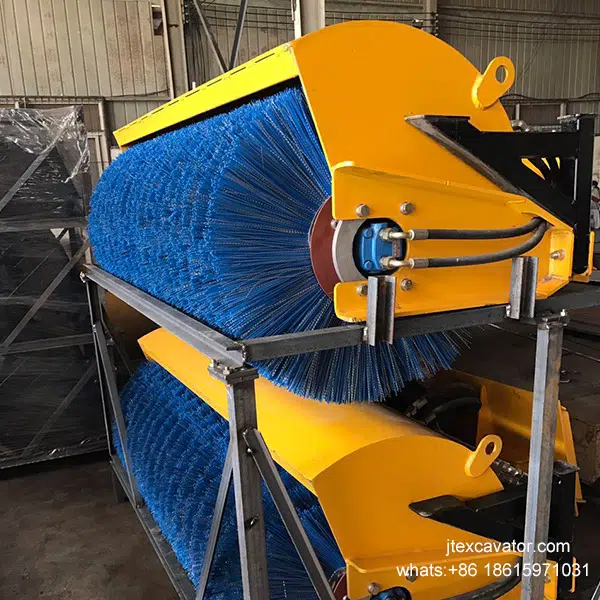

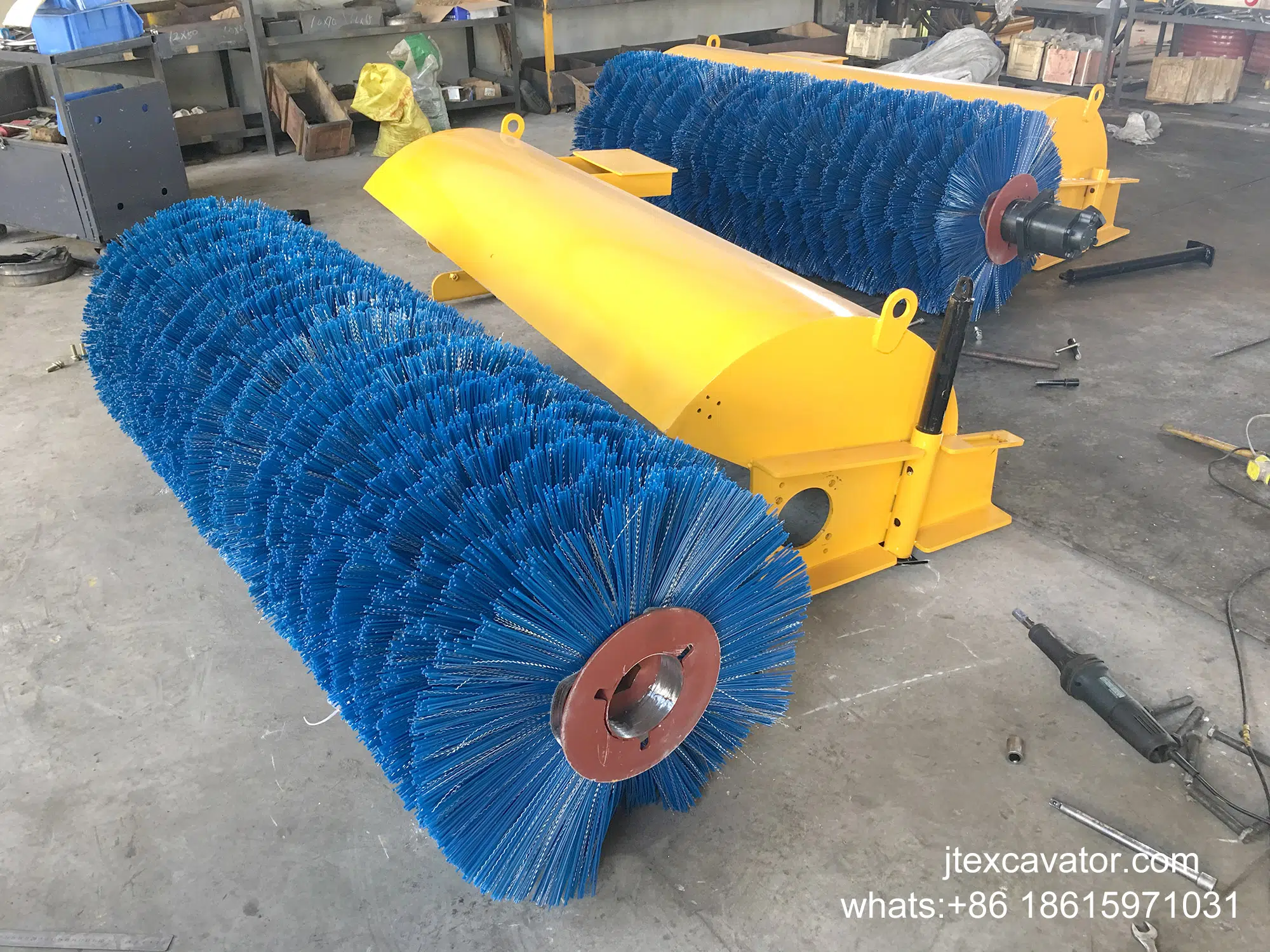

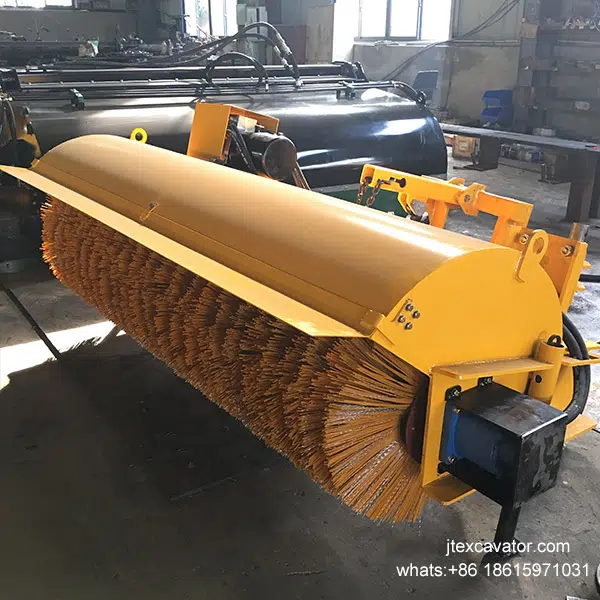

Product Images & Video


Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
