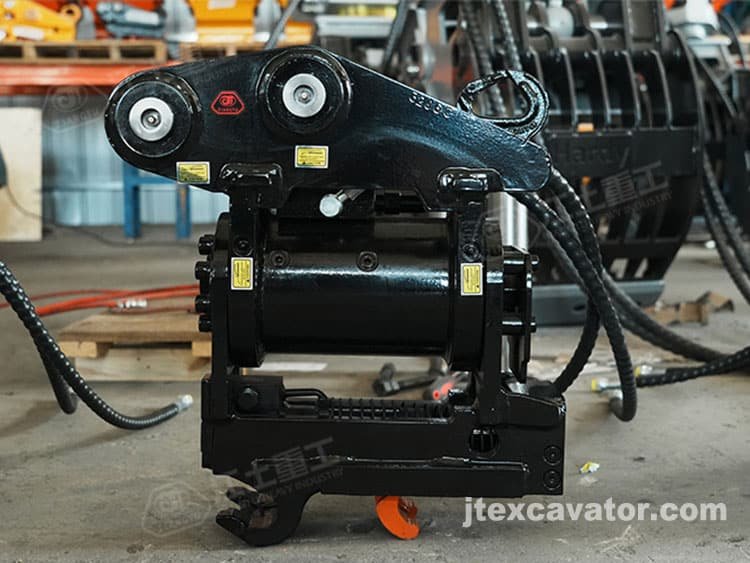

Detachable Tilt Quick Coupler

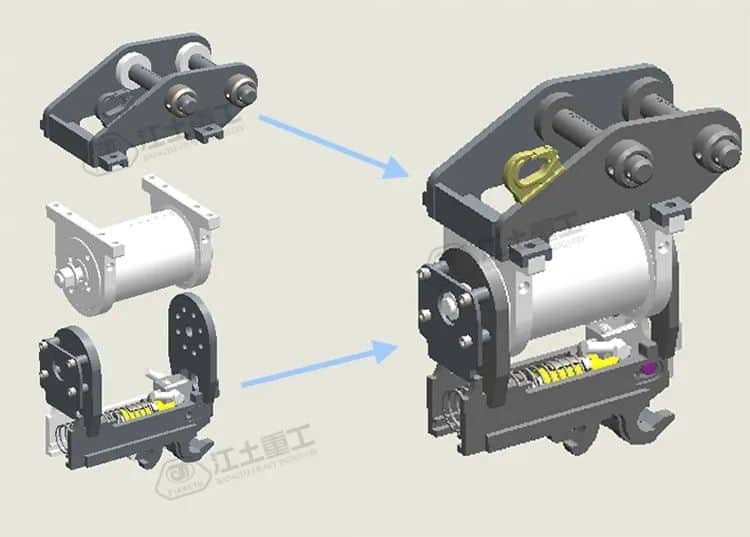

Yantai Jiangtu detachable tilt quick coupler adopts a detachable design, which divides the overall tilt quick coupler structure into three parts: upper, middle and lower. Each part exists independently and can be replaced separately. This design not only improves the convenience of maintenance, but also saves costs for customers.
The upper and middle parts of Yantai Jiangtu detachable tilt quick coupler are installed and fixed with 8 bolts combined with spigots, which is firm and reliable and not easy to break, making customers feel more at ease when using it.
We can offer the OEM/ODM services of excavators attachments. The product can be customized according to your personalized requirements. Please offer your design documents or tell us your ideas and our R&D team will do the rest.
Detachable Tilting Quick Coupler for Excavators 0.8-36T
Category | Unit | JT-00 | JT-01A | JT-01B | JT-02 | JT-04 | JT-06 | JT-08 | JT-08s | JT-10 |
|---|---|---|---|---|---|---|---|---|---|---|
Tilt Degree | ยฐ | 180 | 180 | 180 | 180 | 180 | 140 | 140 | 140 | 140 |
Tilting Torque | nm | 930 | 1600 | 2870 | 4400 | 7190 | 10623 | 14000 | 18600 | 43000 |
Tilt Working Pressure | bar | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
Tilt Necessary Flow | lpm | 1.8-2.4 | 2.8-4.0 | 4.3-6.8 | 7.6-10 | 14-19 | 18-24 | 23-30 | 28-37 | 60-80 |
Quick Couler Working Pressure | bar | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 | 25-300 |
Necessary Flow | lpm | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 |
Excavator | ton | 0.8-1.8 | 1.8-2.5 | 2.5-3.6 | 4-6 | 7-9 | 10-15 | 18-22 | 22-25 | 28-36 |
Pin Diameter | mm | 20-30 | 20-30 | 35-40 | 40-45 | 50-55 | 60-65 | 70-80 | 70-80 | 90-100 |
Weight | kg | 56 | 82 | 120 | 180 | 220 | 385 | 594 | 620 | 1150 |

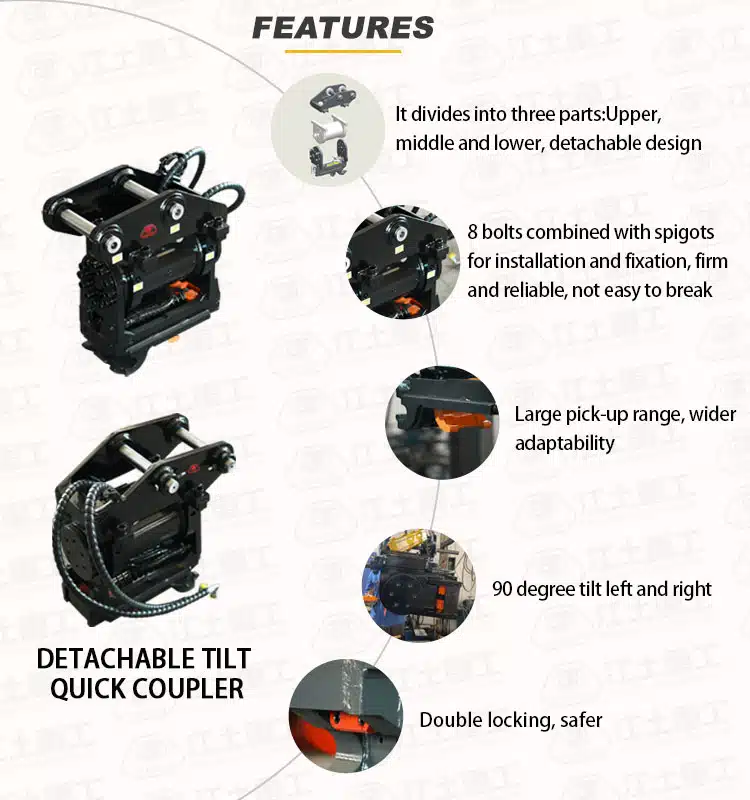

Main features of Jiangtu Detachable Tilt Quick Coupler
Four advantages of detachable structureโโ
Reduce maintenance costs: if any part fails, the customer can replace the corresponding parts in time without replacing the entire device, which greatly reduces maintenance costs and time.
Extend service life: our swing cylinder is independent, processed by professional equipment, which increases the matching accuracy by 2-3 times. The probability of oil leakage is greatly reduced and the product service life is extended by 2-3 times.
โEasy to prepare and adjust goodsโ: The upper, middle and lower detachable structure makes it more convenient to prepare and adjust goods for different pin center distance, pin diameter and ear width,which meets the diverse needs of customers.
Reduce oil leakage:we optimize the oil passage system to make its accuracy and deformation fully controllable, which essentially reduces the oil leakage caused by accuracy problems.

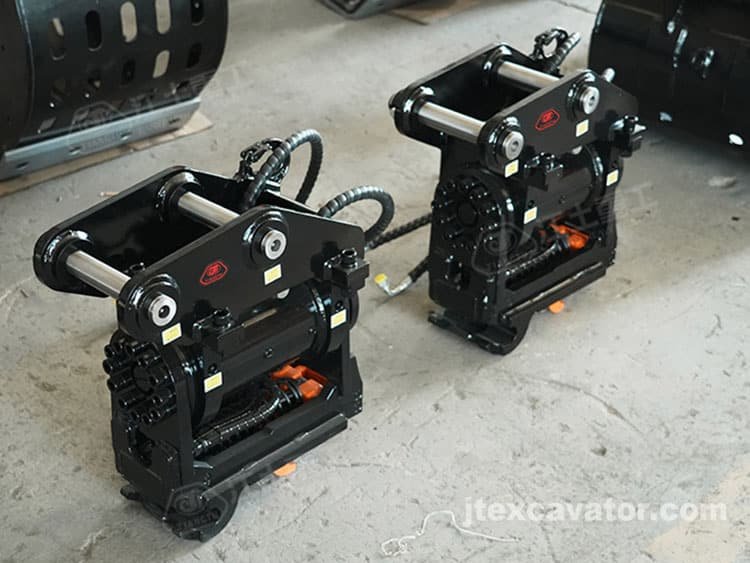

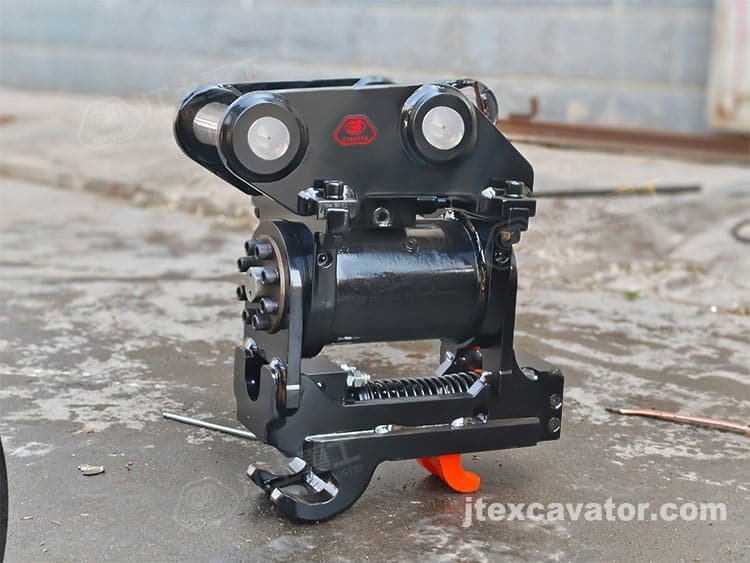

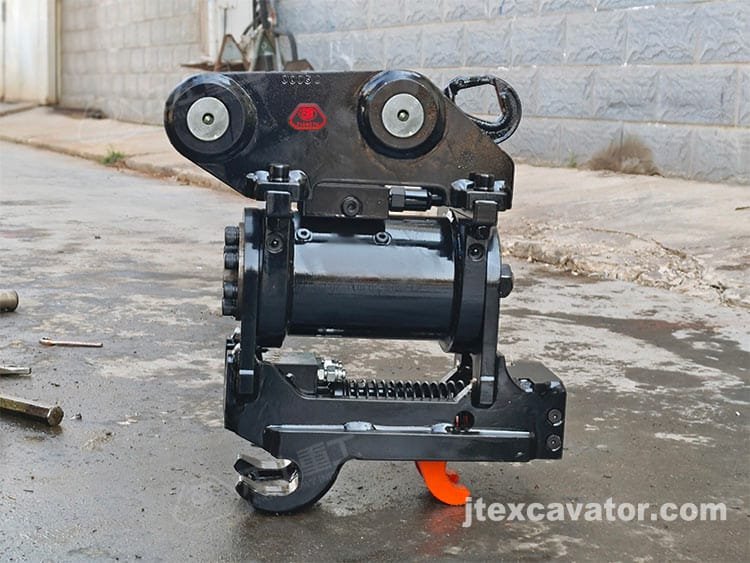

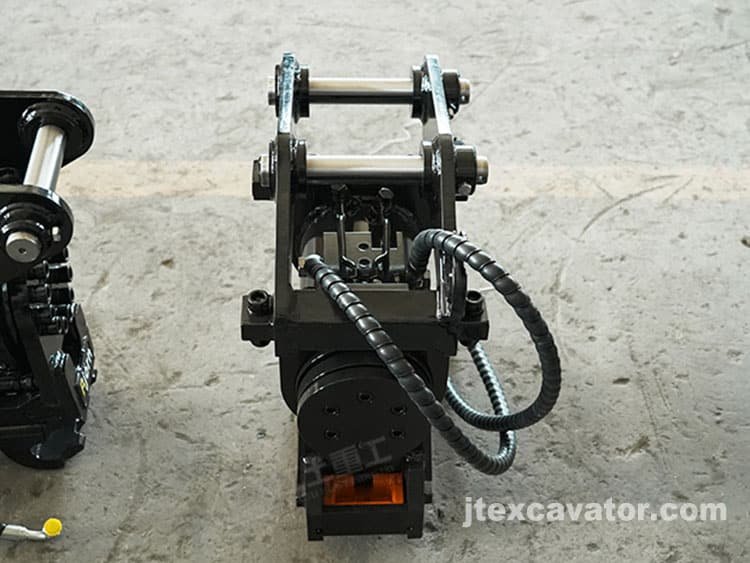

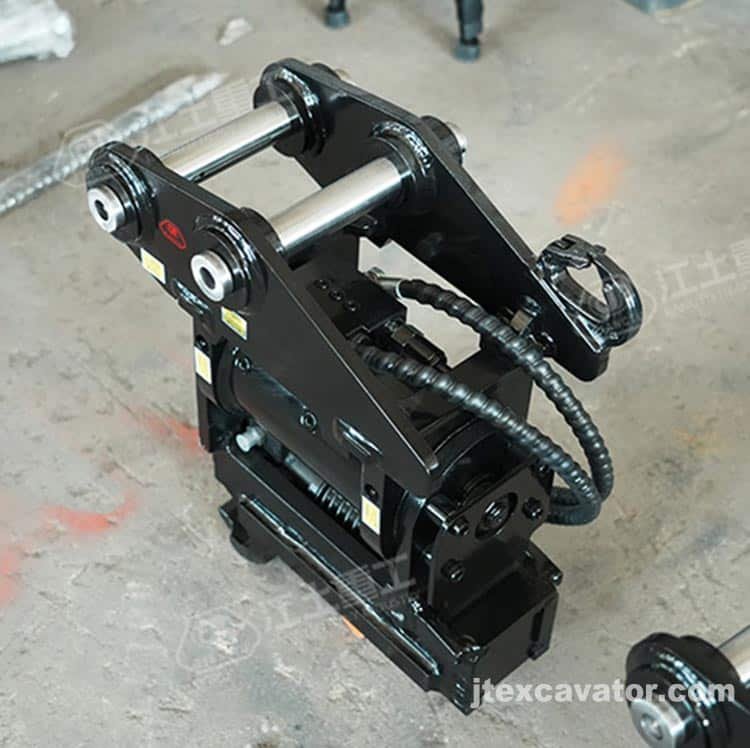

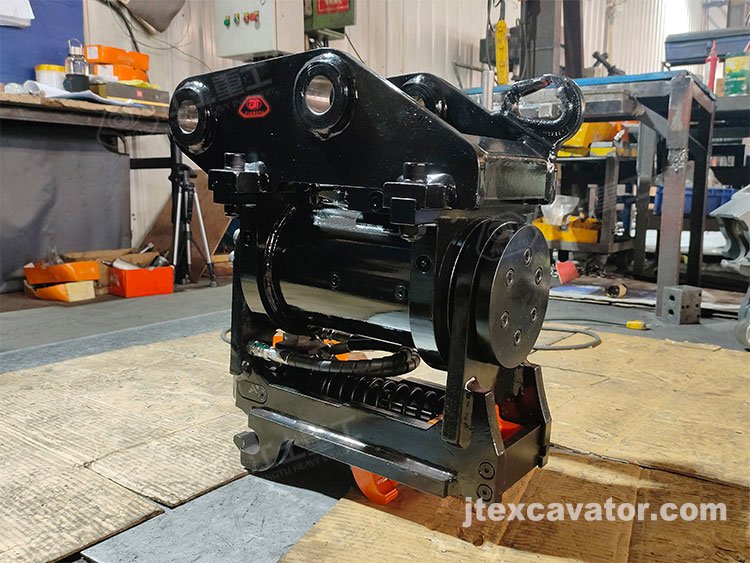

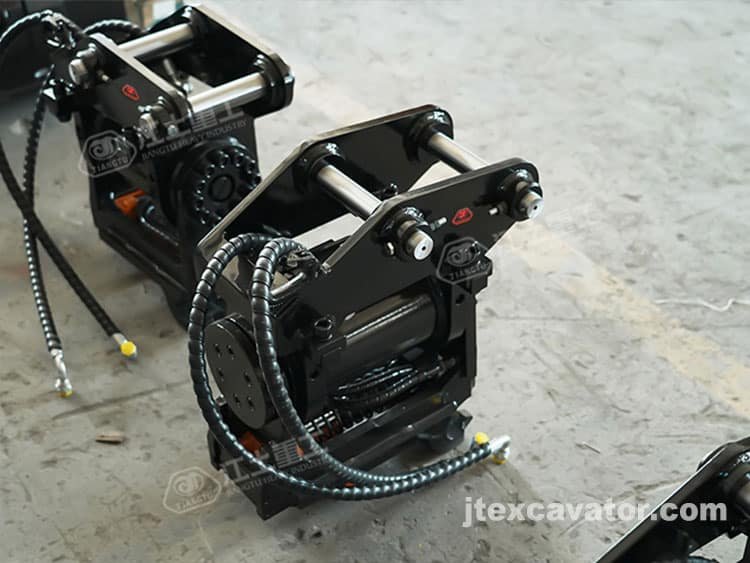

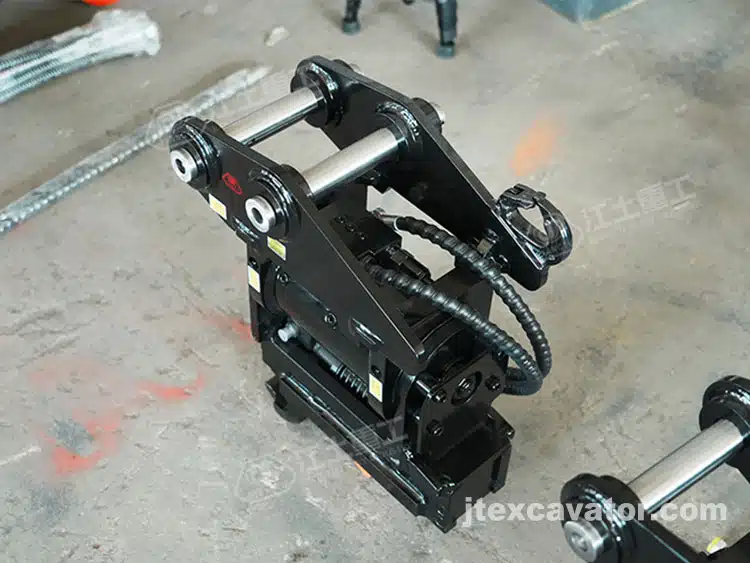

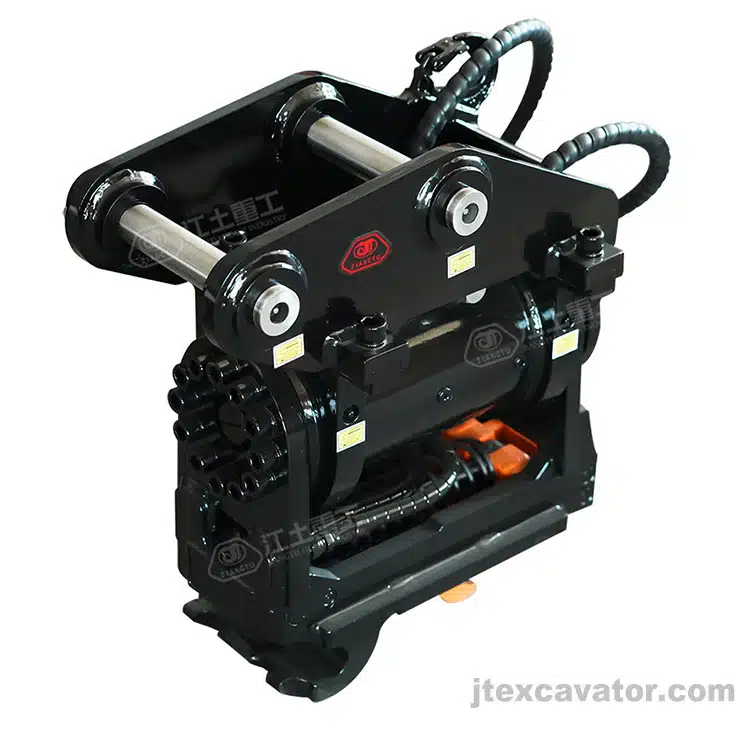

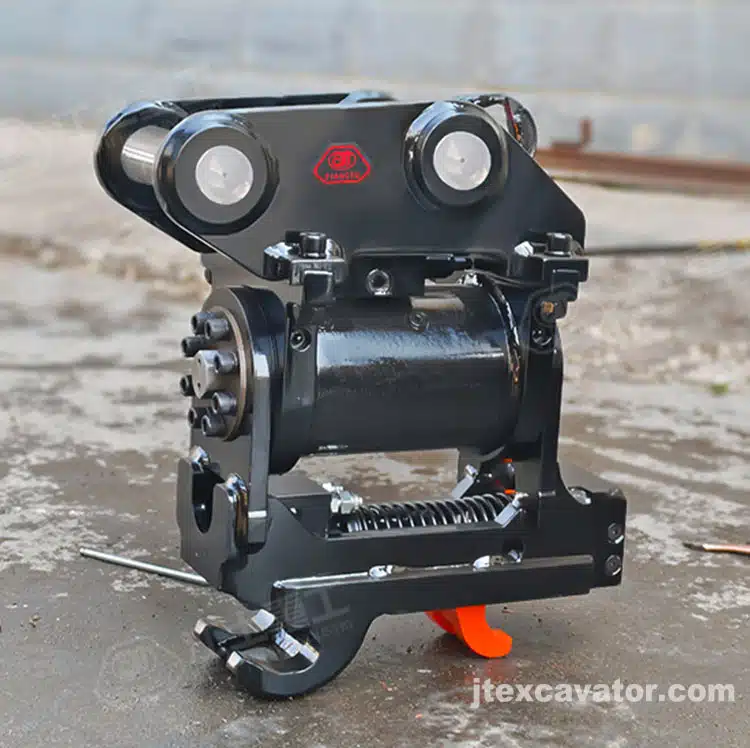

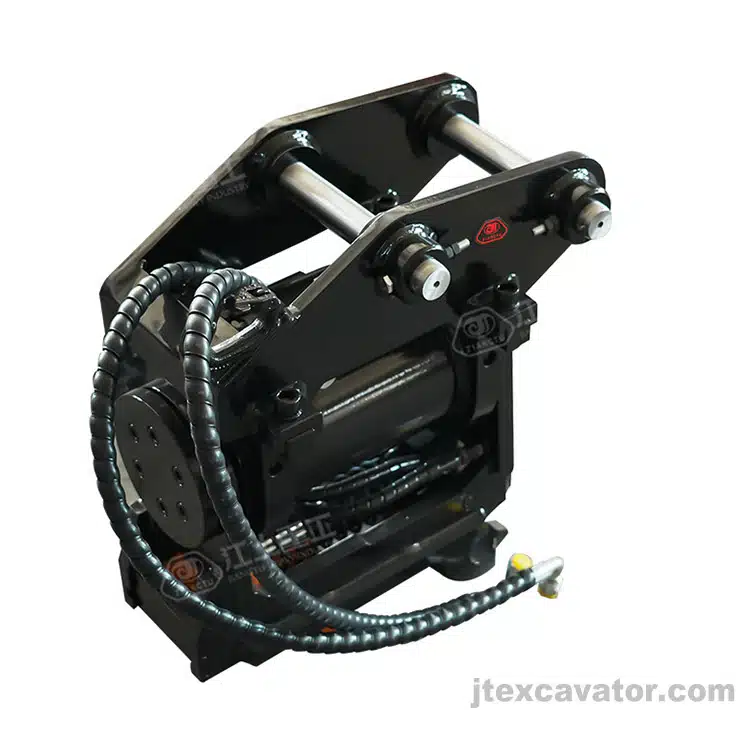

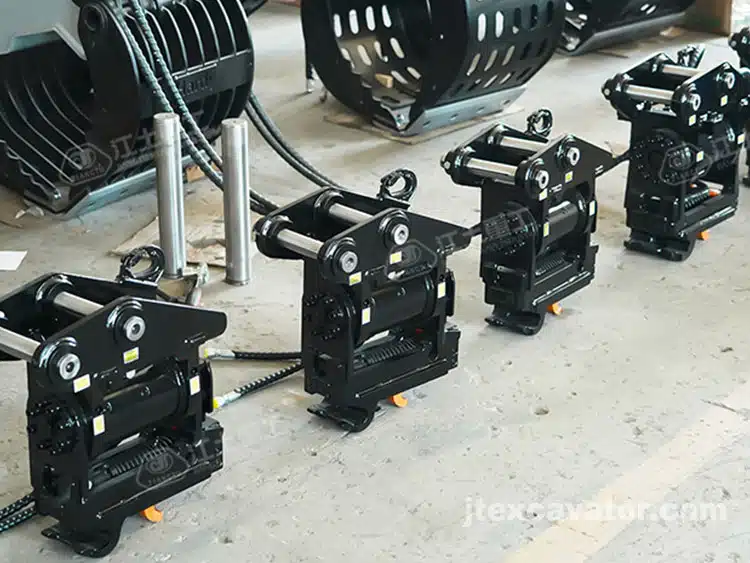

Product Images & Video
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
