PowerTilt Tilt Coupler MS/HS 01 03 08
JIANGTU POWERTILT quick coupler for MS and HS. mechanical or hydraulic version, Operating Weight 0.8 to 9 Tonnes,Works on site with a true 180° working range. JIANGTU Quick coupler with tilt motor, Combines all the advantages of a quick coupler and a tilt motor. Flexible with a wide range of attachments and excavator buckets, especially for narrow buckets. The ideal solution, e.g. for sewer construction or directional backfilling.
- Large working range: up to 2 x 90° (180°) tilt angles on both sides
- Including rotary pass-through for hydraulics (Powertilt)
- Tilt motor sealed to protect against damage
- No exposed cylinder, safe design.
- High holding force and robust design for the toughest applications
We can offer the OEM/ODM services of excavators attachments. The product can be customized according to your personalized requirements. Please offer your design documents or tell us your ideas and our R&D team will do the rest.
PowerTilt Tilt Coupler MS/HS 01 03 08
| Category/Model | Unit | JT00-HS01 | JT00-HS03 | JT01-HS03 | JT02-HS08 | JT04-HS08 |
|---|---|---|---|---|---|---|
| Tilt Degree | ° | 180° | 180° | 180° | 180° | 180° |
| Tilting Torque | NM | 930 | 1600 | 2870 | 4400 | 7190 |
| Tilt Working Pressure | Bar | 210 | 210 | 210 | 210 | 210 |
| Tilt Necessary Flow | Lpm | 1.8-2.4 | 2.8-4.0 | 4.3-6.8 | 7.6-10 | 14-19 |

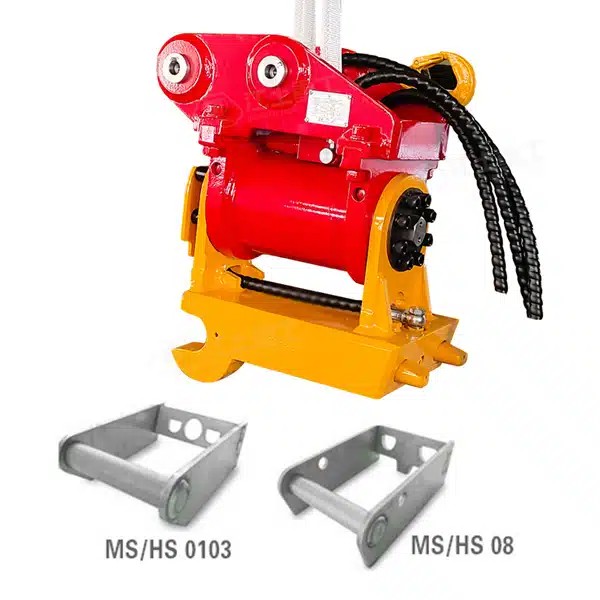

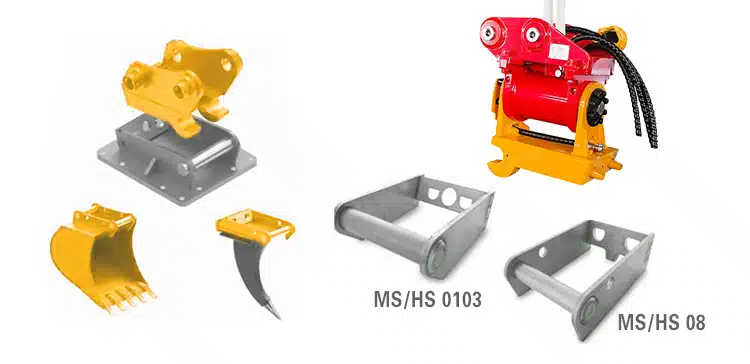

| Adapter Model | MS/HS 01 | MS/HS 03 | MS/HS 03 | MS/HS 08 | MS/HS 08 | |
| Excavator | Ton | 0.8–2 | 1.8-3 | 3-4 | 4-6 | 6-9 |
| Weight | Kg | 60 | 85 | 125 | 180 | 230 |

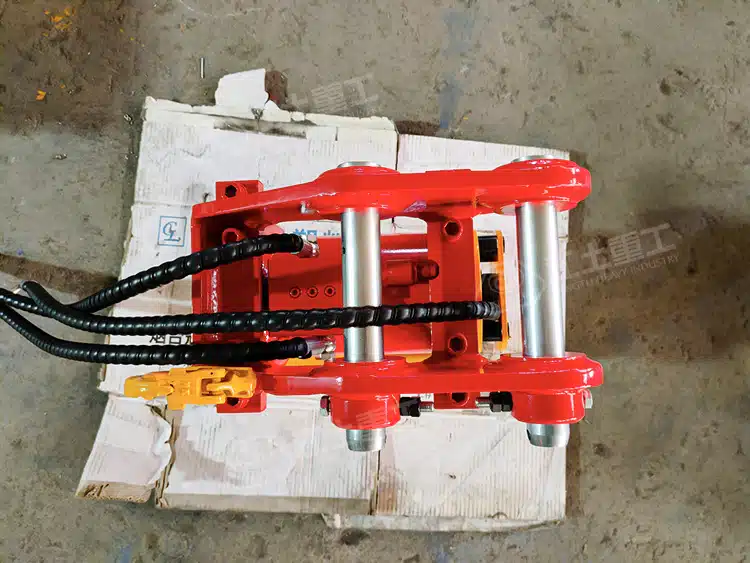

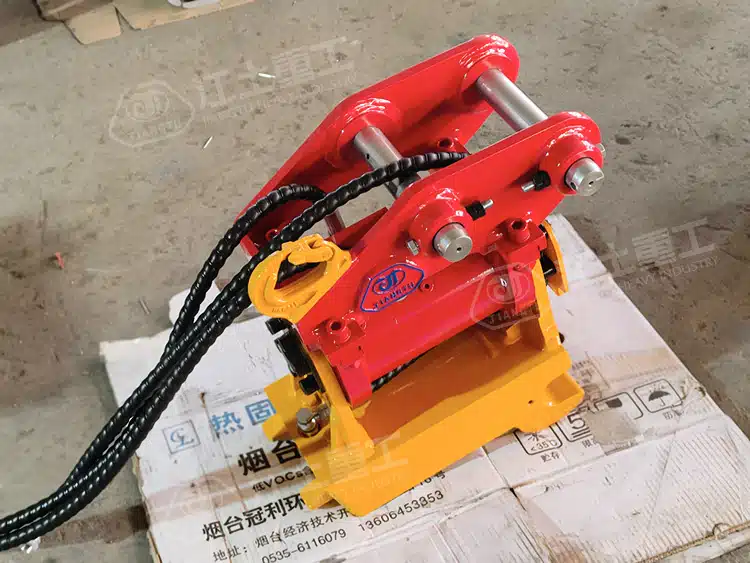

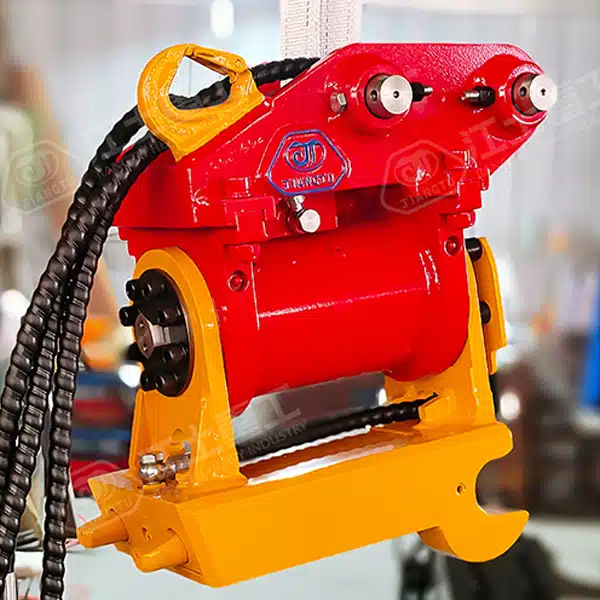

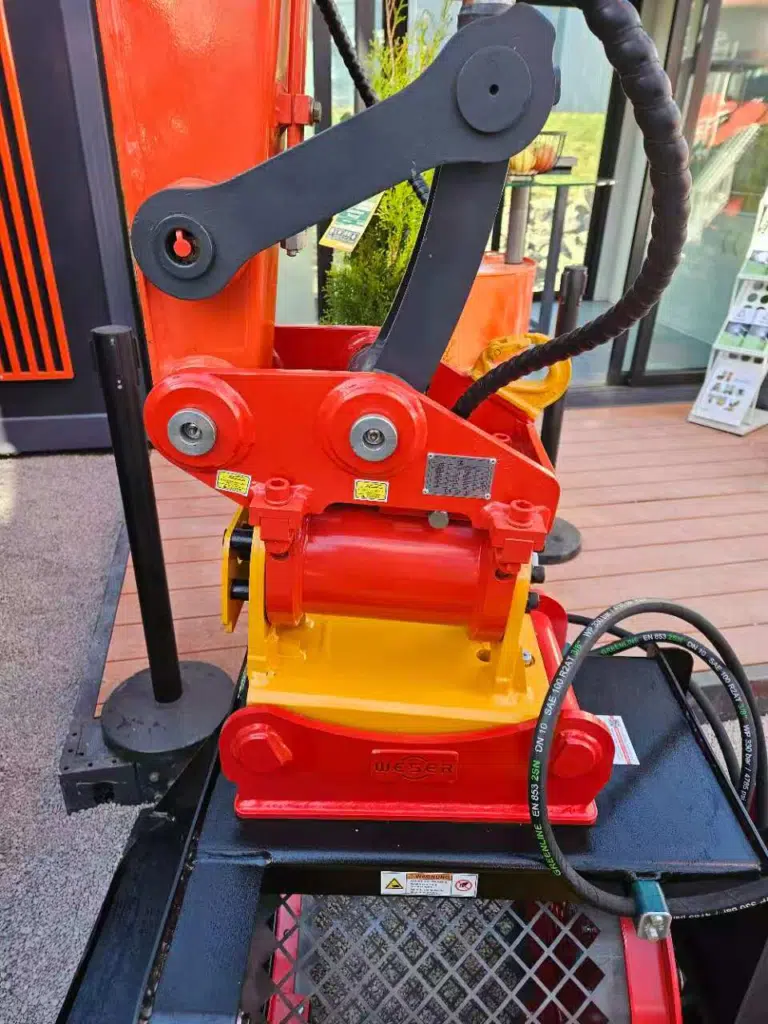

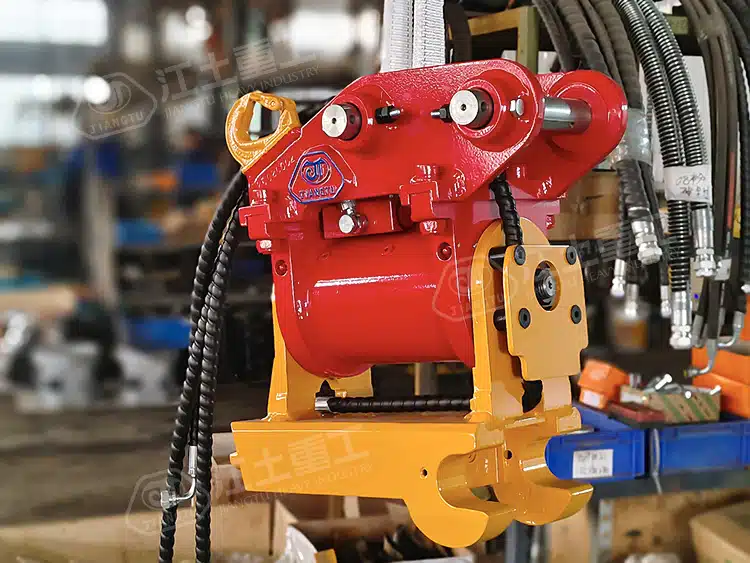

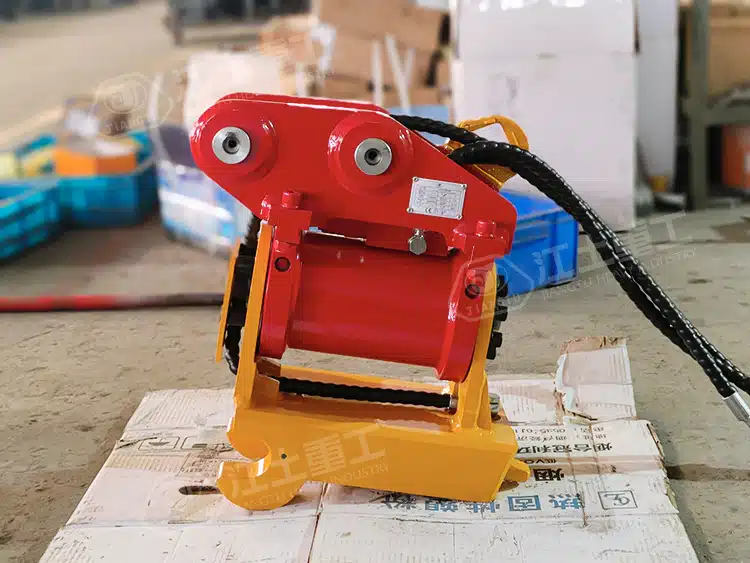

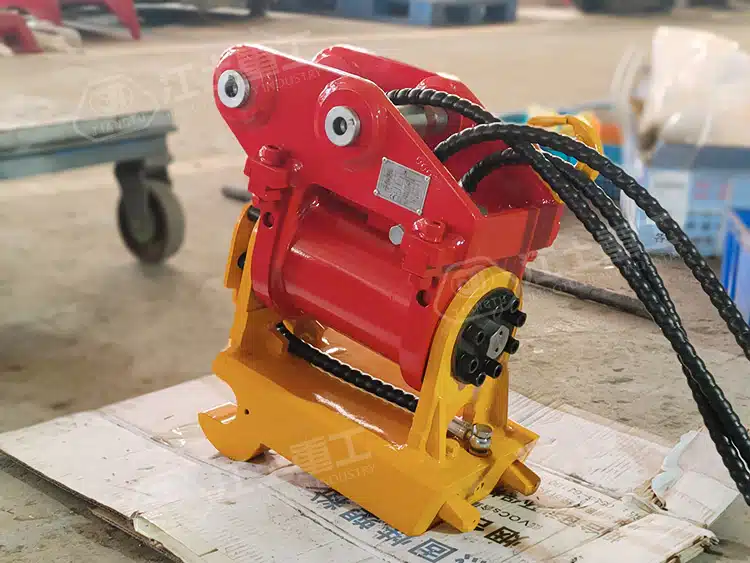

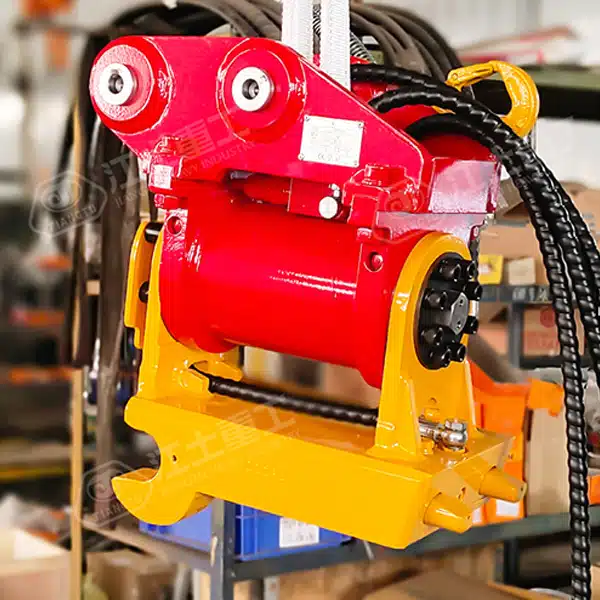

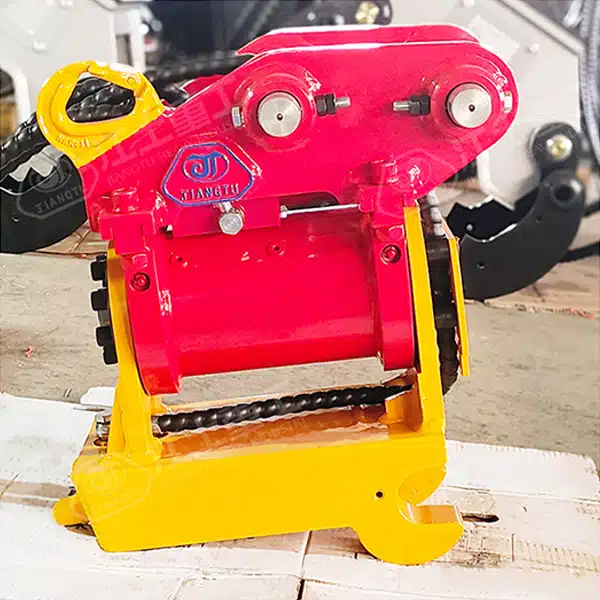

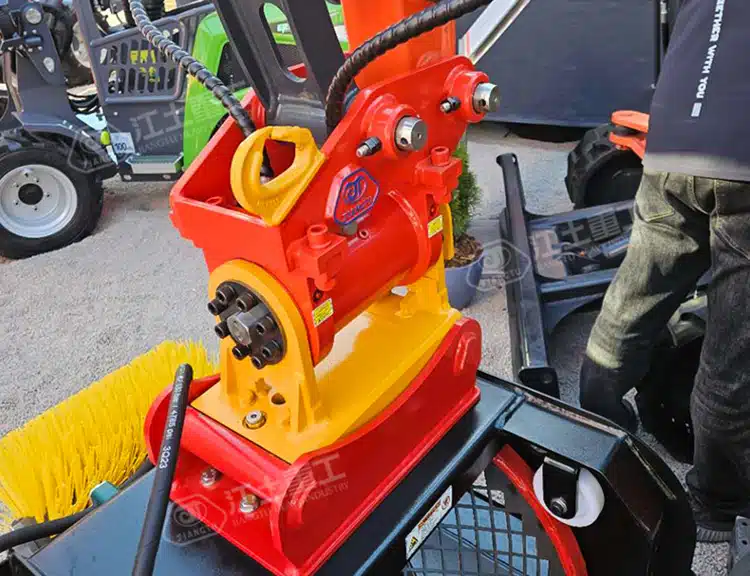

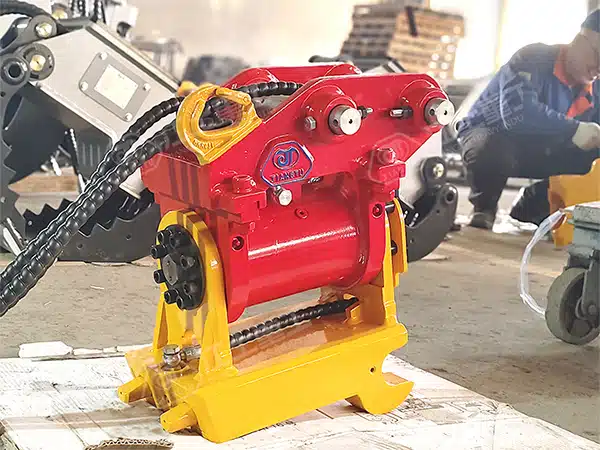

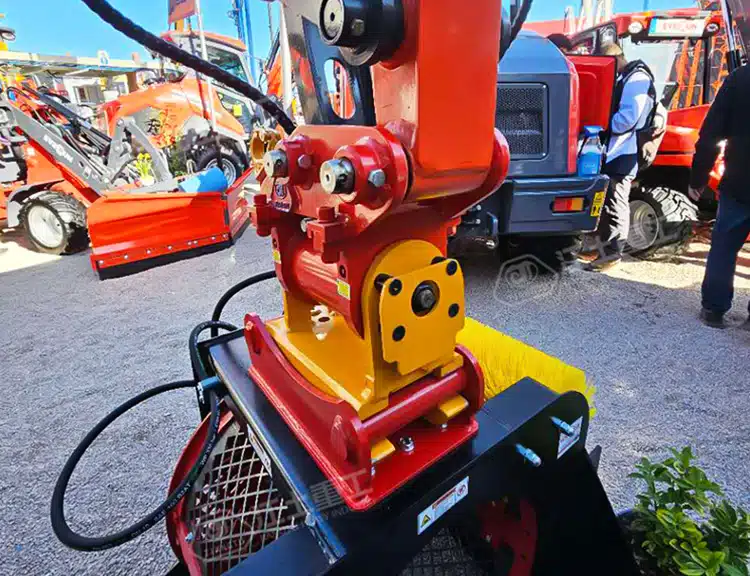

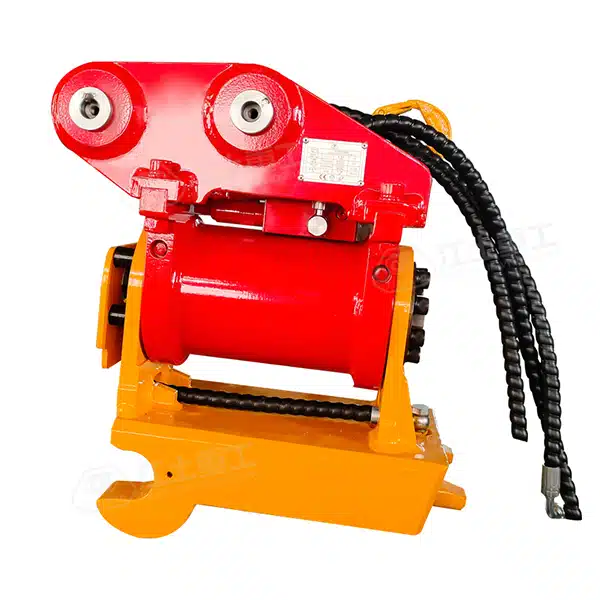

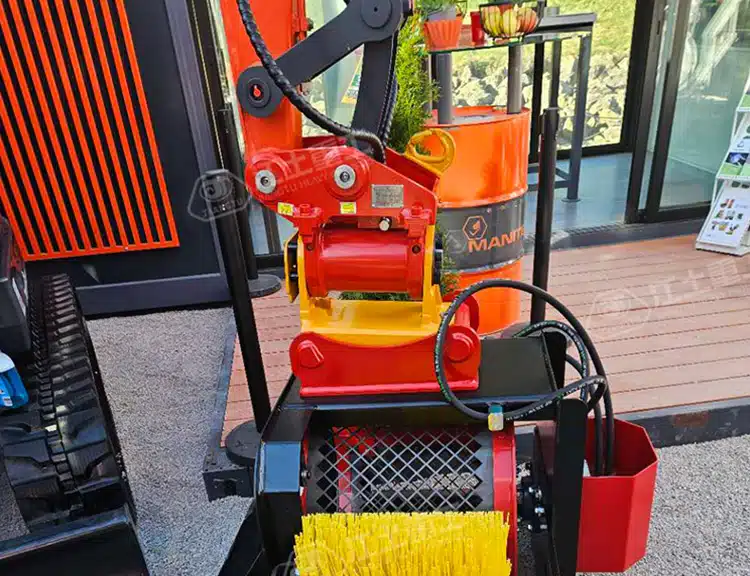

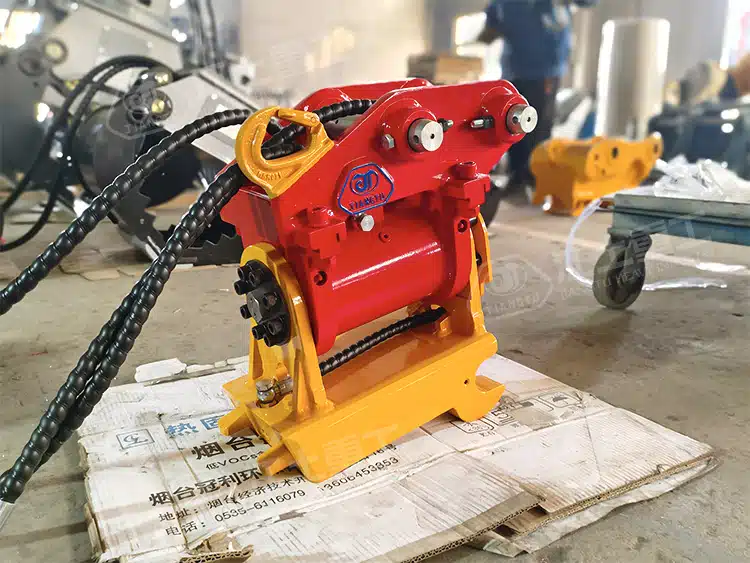

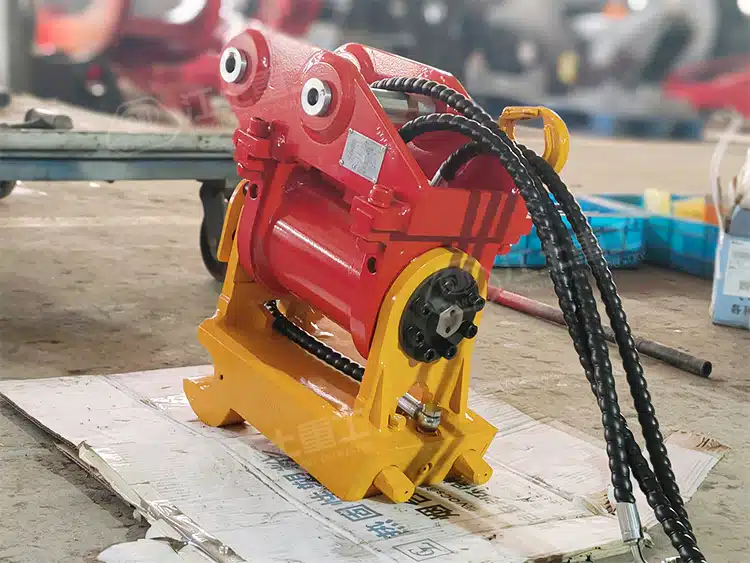

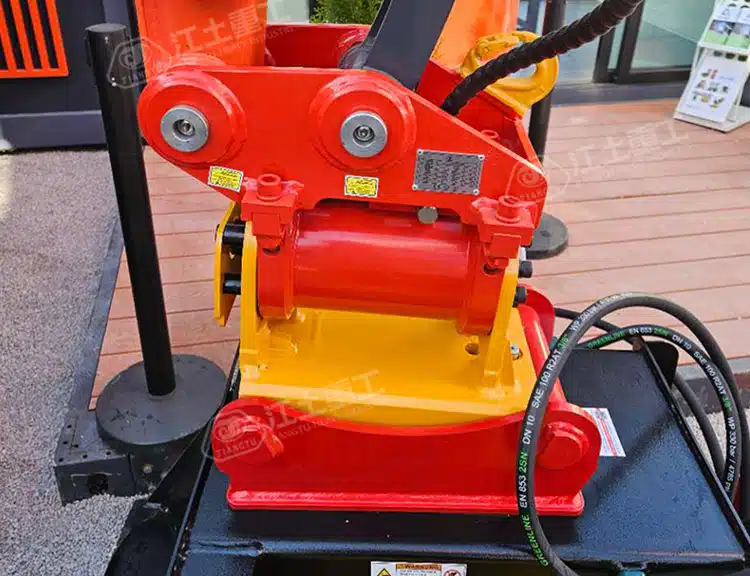

Product Images & Video
