S Tilt Coupler(for Excavators 0.8-36T)

The Tilt coupler for excavators and backhoes is a versatile tool for a variety of attachments. It is suitable for site development, underground utility installation or trench cleaning on the job site. It allows you to tilt the bucket up to 180 degrees without moving the entire excavator, which can increase productivity by more than 50%, allowing you to complete the work faster, smarter and more accurately.

S Type Tilt Coupler is available as Direct mounted with a S30/40 coupler with either manual snap-on or hydraulic locking.

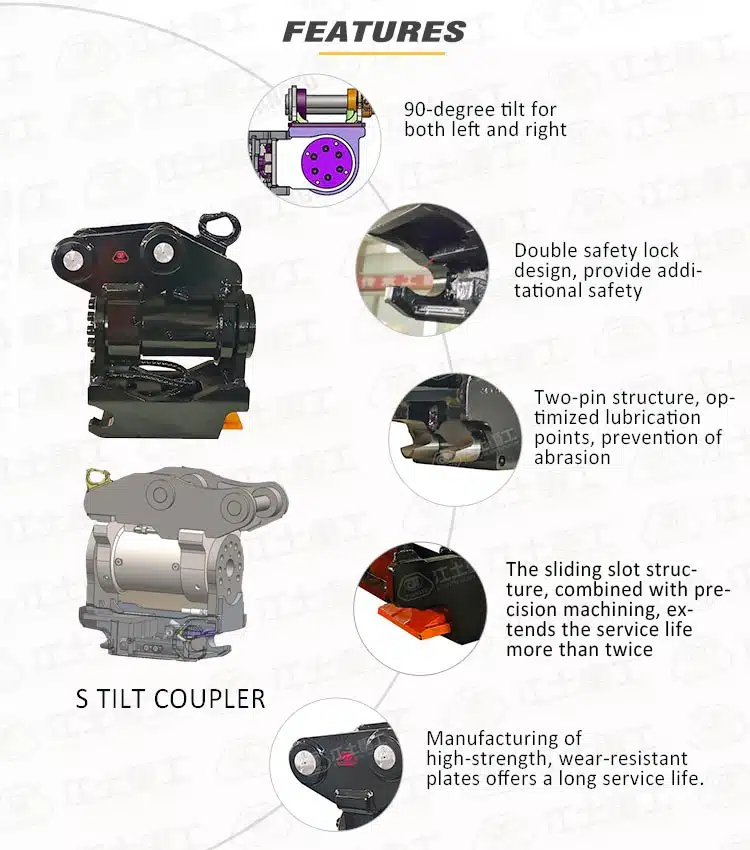

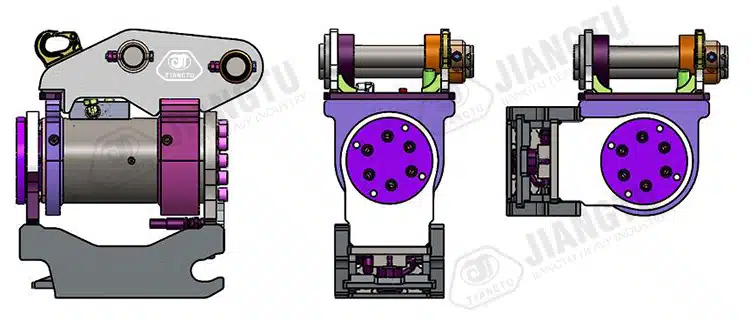

Features of S type tilt Coupler

The S adaptor system has either machancial type or hydraulic type.
90-degree tilt for both left and right
Double safety lock design, provide additational safety
Two-pin structure, optimized lubrication points, prevention of abrasion
The sliding slot structure, combined with precision machining, extends the service life more than twice
No exposed cylinder, more safer.
Manufacturing of high-strength, wear-resistant plates offers a long service life.
14 month long warranty period.
For models S40 and below, adopt a detachable design. Make it convenient for maintenance and inventory preparation.

We can offer the OEM/ODM services of excavators attachments. The product can be customized according to your personalized requirements. Please offer your design documents or tell us your ideas and our R&D team will do the rest.

S Tilt Coupler Specification

Category/Model	Unit	JT-00	JT-01A	JT-01B	JT-02	JT-04	JT-06	JT-08	JT-10
Tilt Degree	°	180°	180°	180°	180°	180°	140°	140°	120°
Tilting Torque	NM	930	1600	2870	4400	7190	10623	18600	43000
Tilt Working Pressure	Bar	210	210	210	210	210	210	210	210
Tilt Necessary Flow	Lpm	1.8-2.4	2.8-4.0	4.3-6.8	7.6-10	14-19	18-24	28-37	60-80
Quick Coupler Working Pressure	Bar	25~300	25~300	25~300	25~300	25~300	25~300	25~300	25~300
Necessary Flow	Lpm	15~25	15~25	15~25	15~25	15~25	15~25	15~25	15~25
Excavator	Ton	0.8~1.8	2~2.5	2.5~3.6	4~6	7~9	11~15	20~25	28-36
Grade		S30	S40	S40	S40	S50/S45	S60	S70	S80
Weight	Kg	56	82	120	180	220	385	620	1500

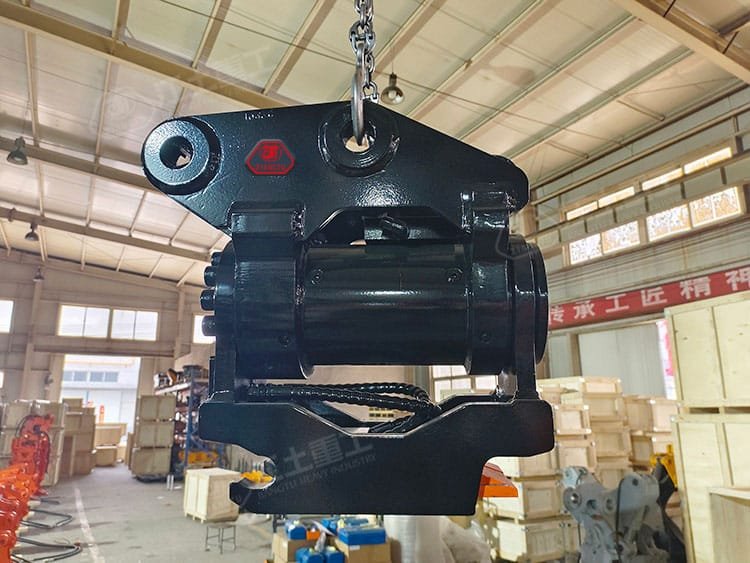

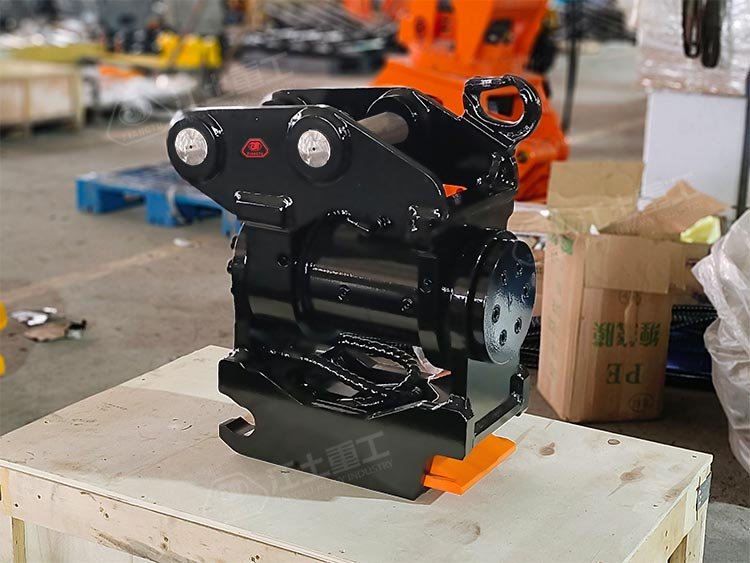

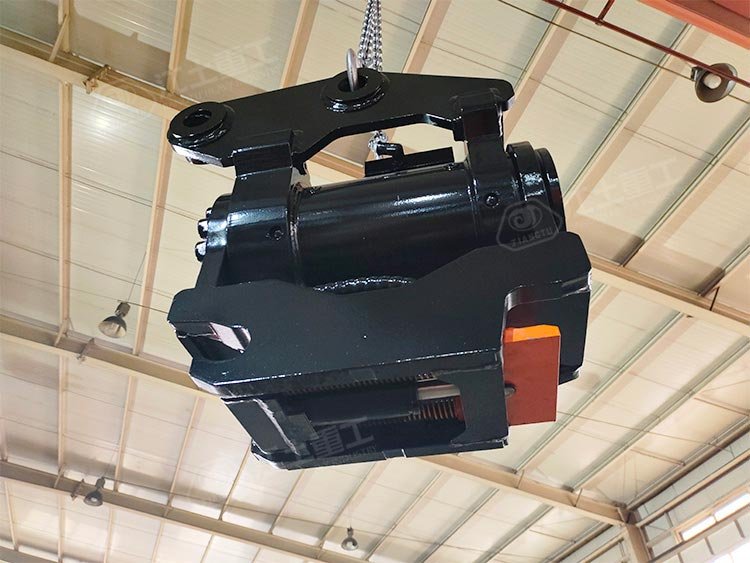

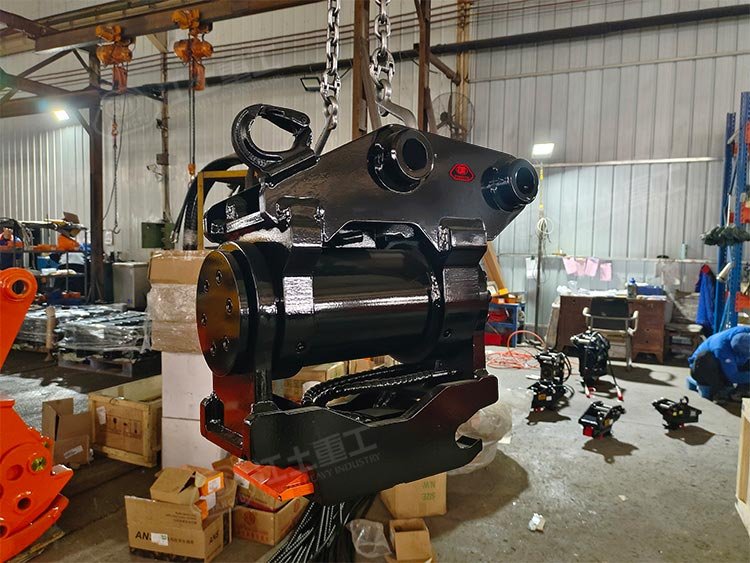

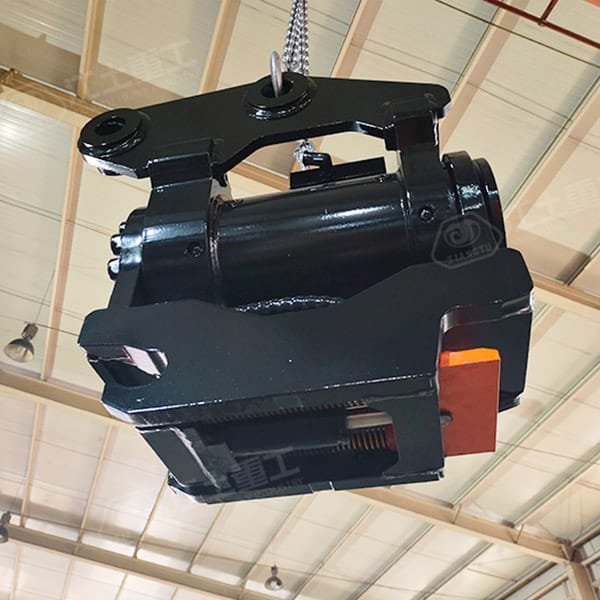

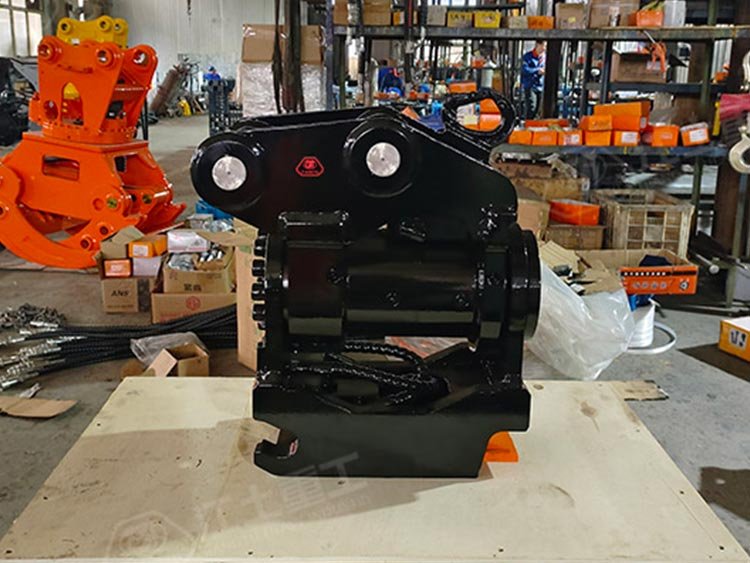

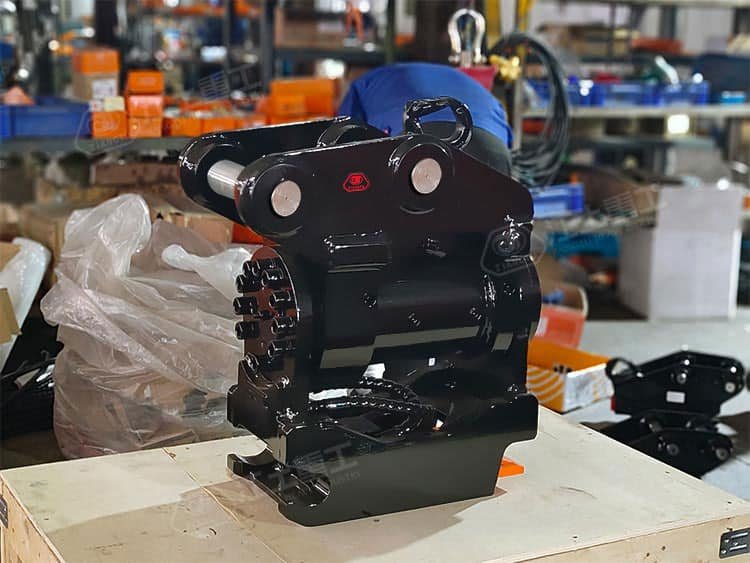

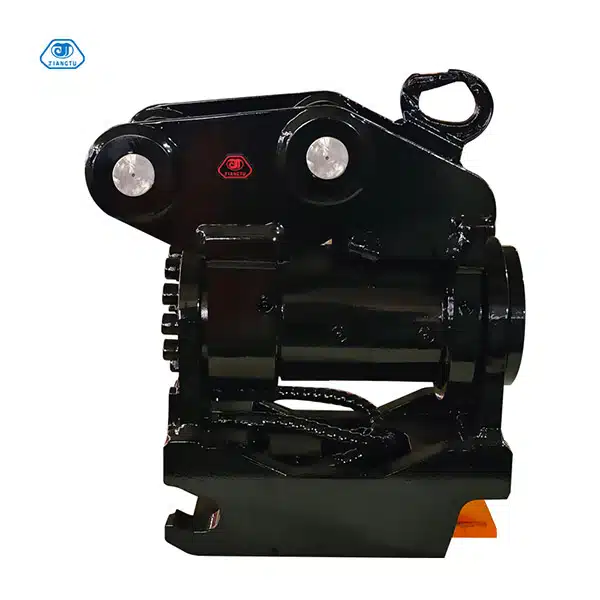

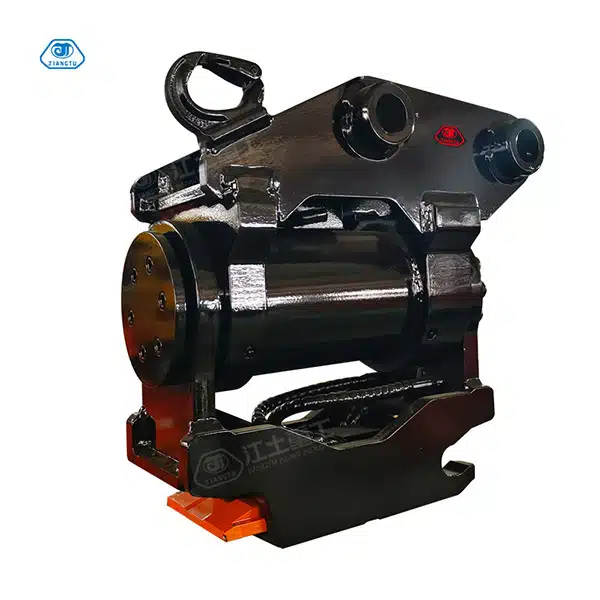

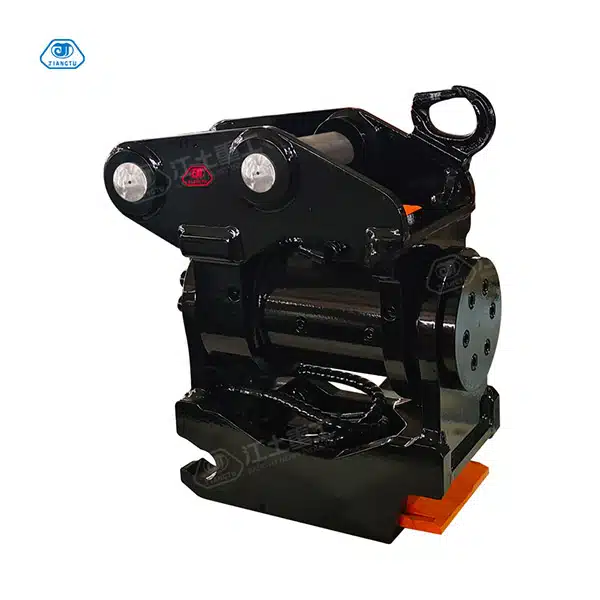

Product Images & Video

Certificate

Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
