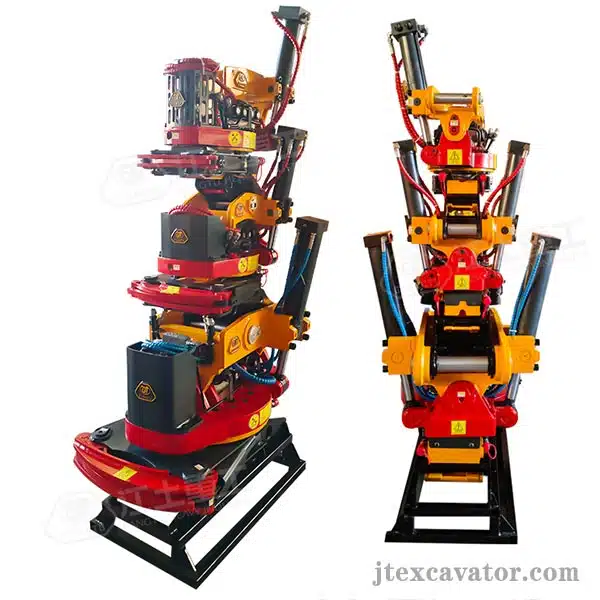

Tilt Rotator(Smaller)
A tilt rotator is mounted between the excavator’s arm and bucket. It can be likened to a wrist, allowing the operator to tilt (up to 45 degrees) and rotate the bucket or other attachment infinitely in both directions.
We can offer the OEM/ODM services of excavators attachments. The product can be customized according to your personalized requirements. Please offer your design documents or tell us your ideas and our R&D team will do the rest.
Main features of JIANGTU Tilt Rotator(2025)
With a tiltrotator, you can dig at any angle, giving your machine greater maneuverability in tighter spaces. The excavator can dig through obstacles at full power while remaining in place. This gives you many benefits:
2025 version Tilt Rotator for excavators 2.5-23 ton
| Category/Modelย | Uint | JT01 | JT02/04 | JT06 | JT08 |
|---|---|---|---|---|---|

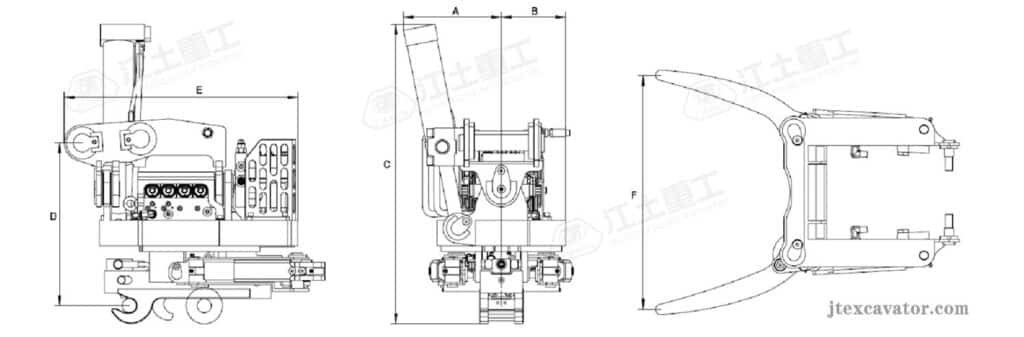

| A/B/C/D/E/F | mm | 245/160/745/400/580/400 | 270/185/820/420/690/550 | 357/293/1130/540/960/750 | 397/328/1240/610/1130/1120 |
| Tilt Degree | ยฐ | ยฑ45ยฐ/ Single Cylinderย | ยฑ45ยฐ/ Double Cylinderย | ยฑ45ยฐ/ Double Cylinderย | ยฑ45ยฐ/ Double Cylinderย |
| Total weight (grab wieight) | kg | 160(19) | 240/220(40)/280(50) | 630(98) | 1035(190) |
| Solenoid valve chanel | 5 | 5 | 5 | 5 | |
| Tilt torque | kn.m | 21 | 42 | 84 | 98 |
| Suitable Excavator | ton | 2.5-4 | 4.5-11 | 12-16 | 18-23 |
| Pin dia./pin distance/bucket width range | mm | 35-40/130-180&180-220/110-160 | 40-45-50/230-320&220-320/145-210 | 55-60-65/350-410/230-320 | 70-80/452-500/290-350 |
Main Advantages of Hydraulic Tilt Rotator

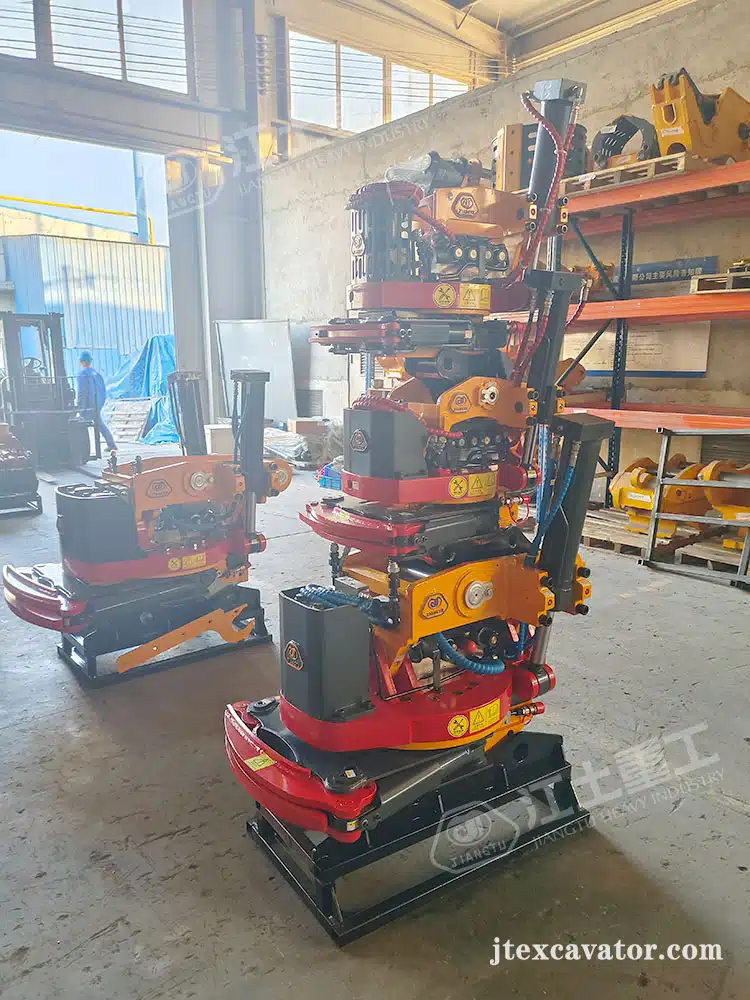

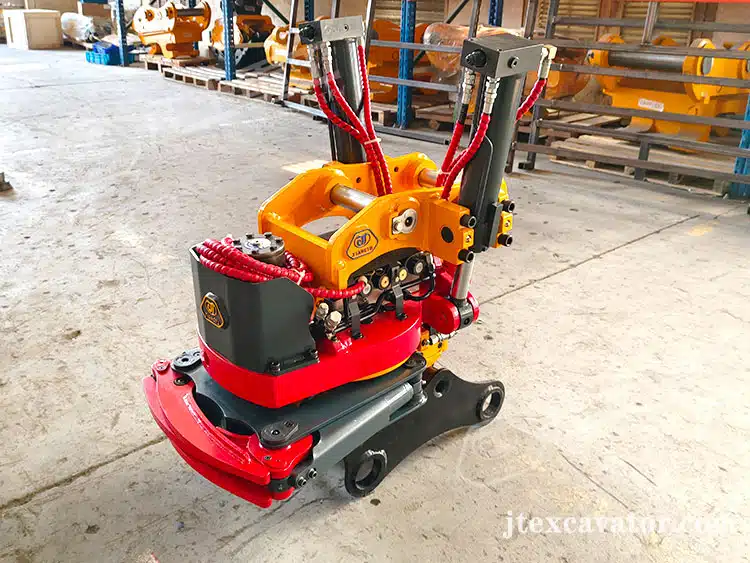

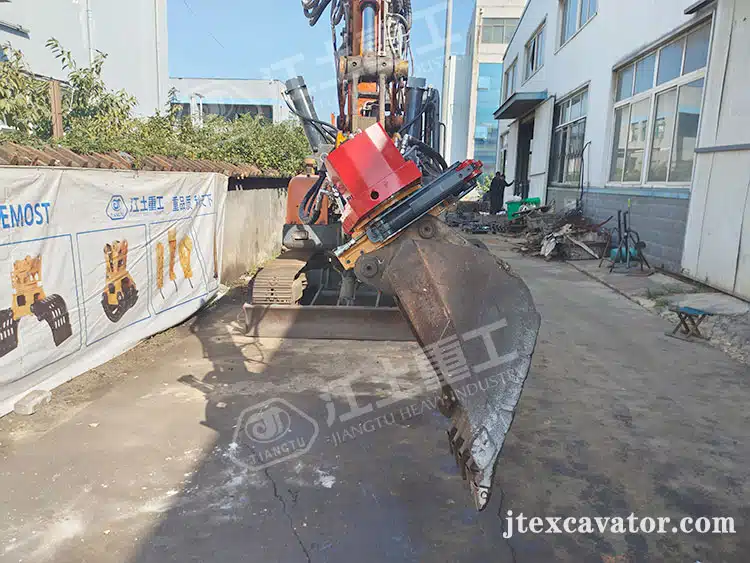

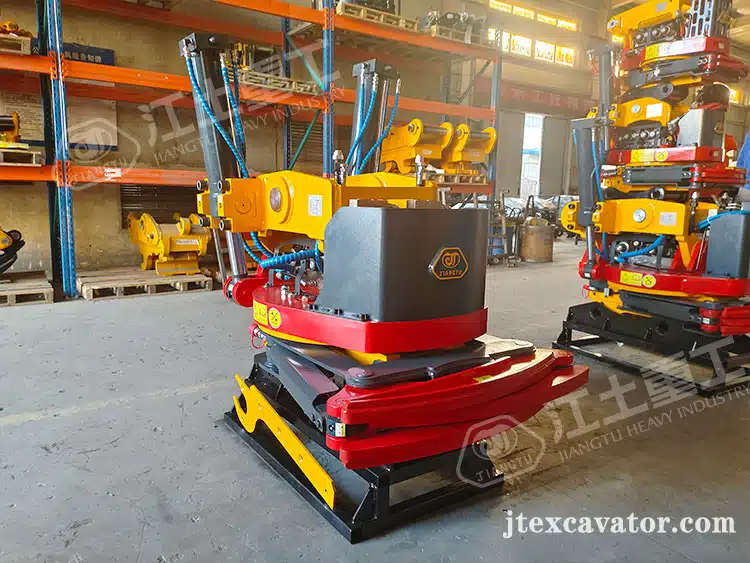

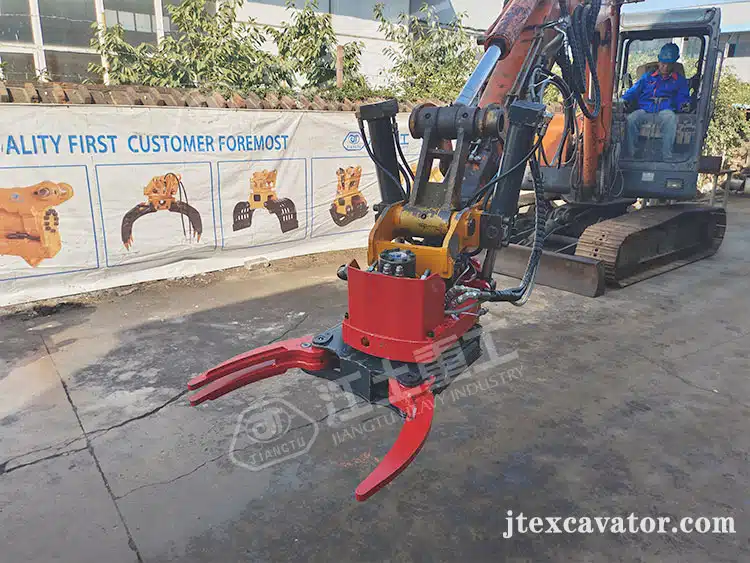

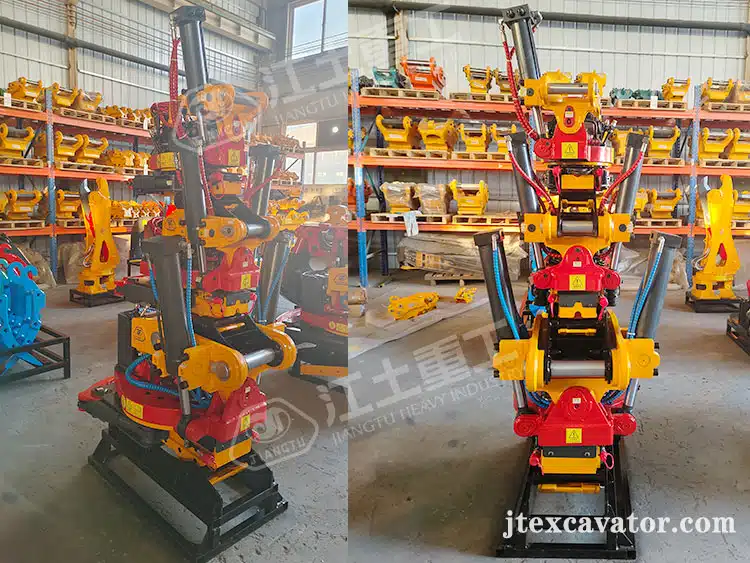

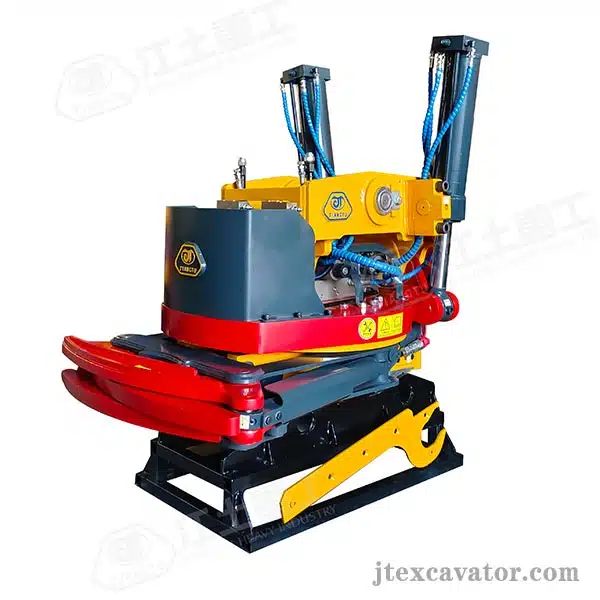

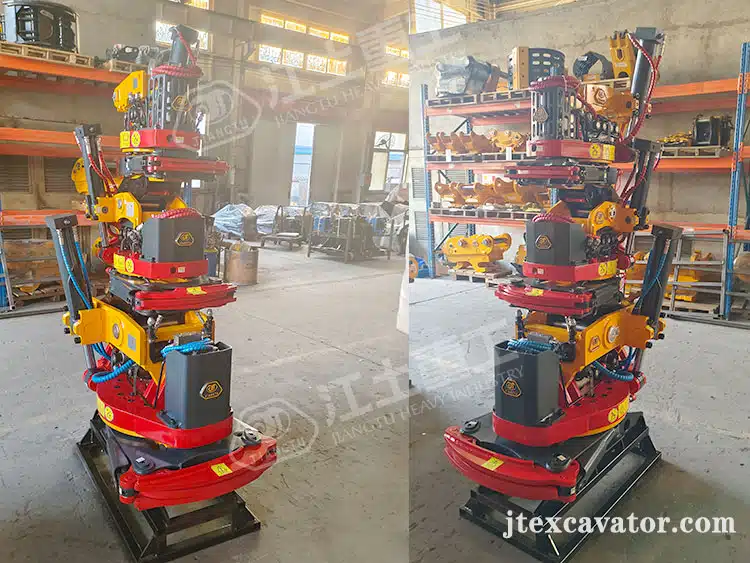

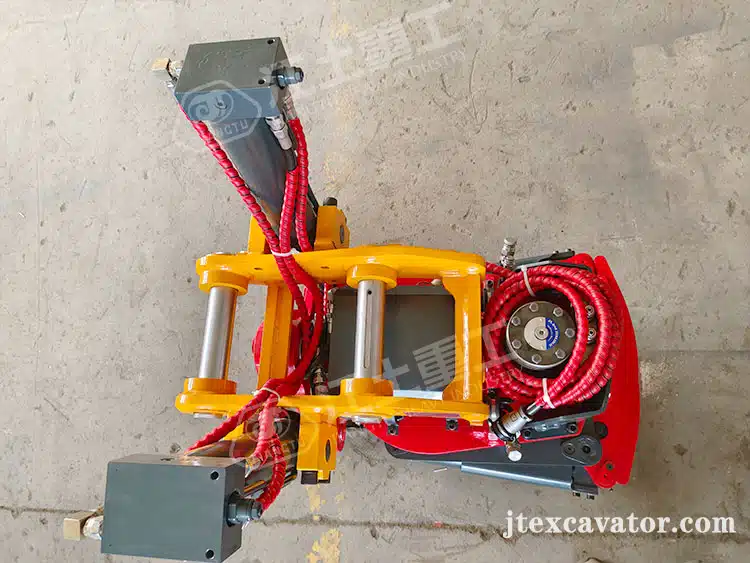

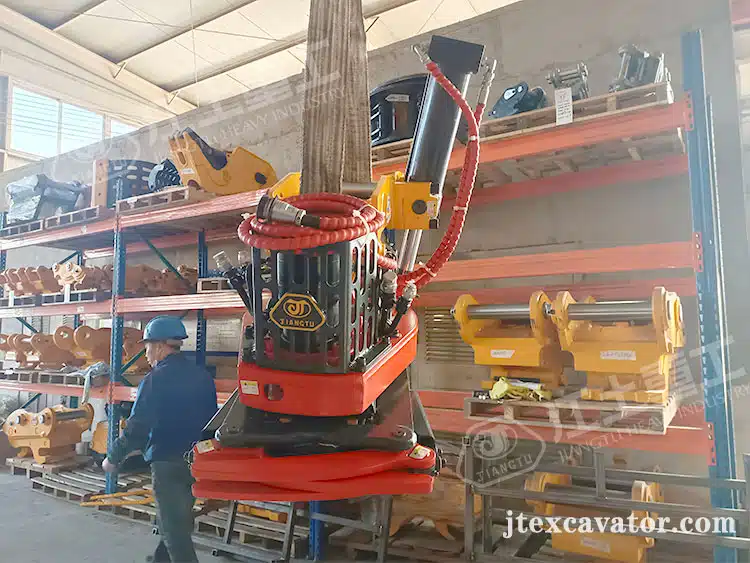

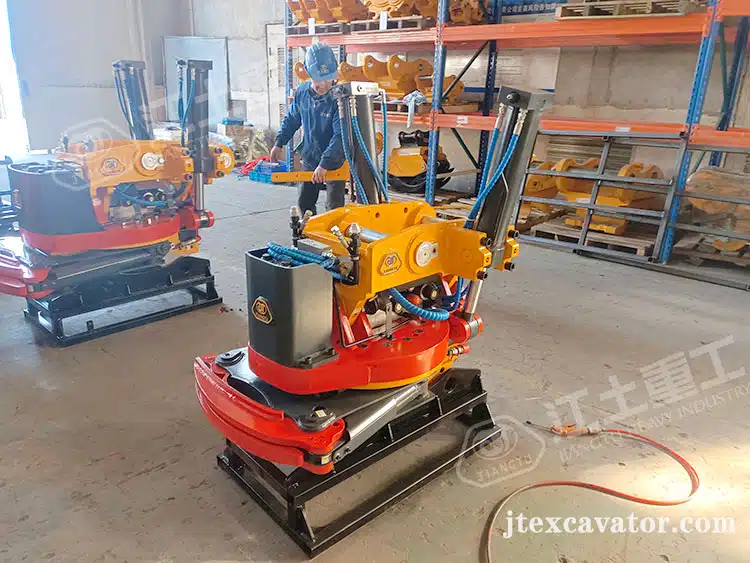

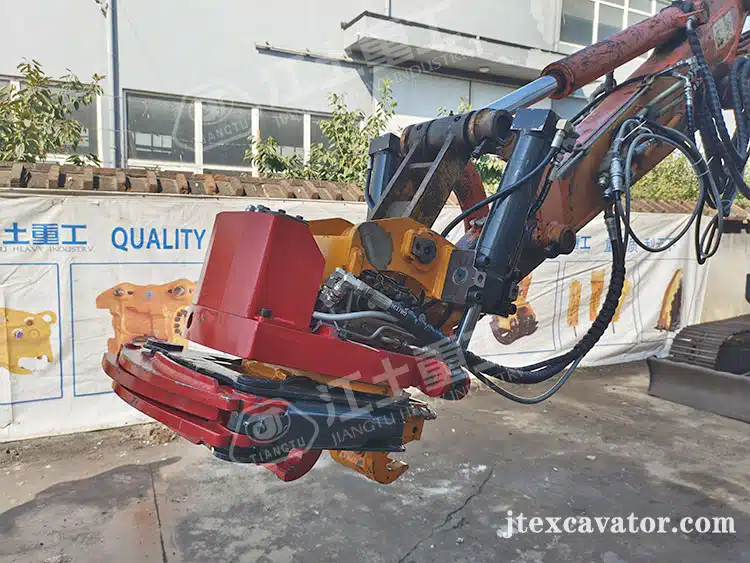

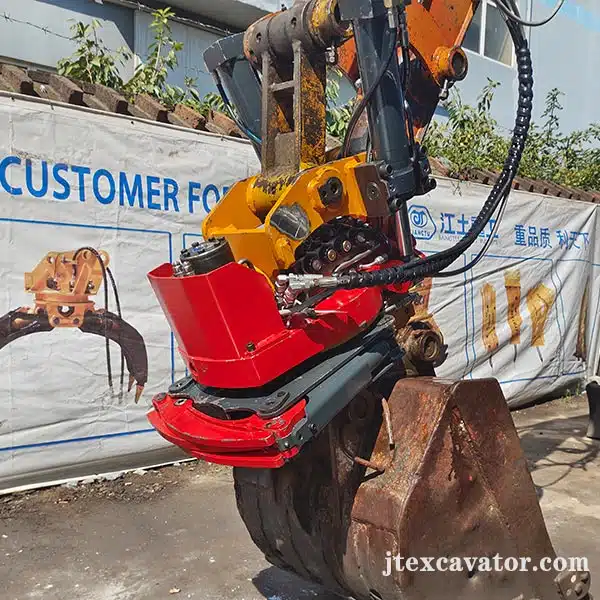

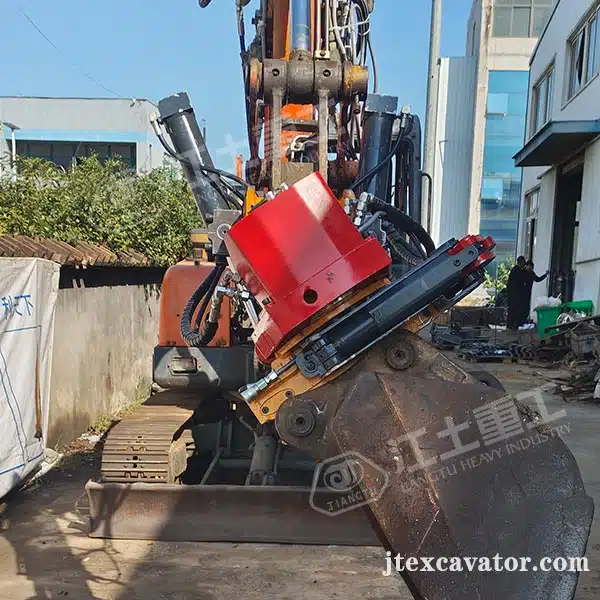

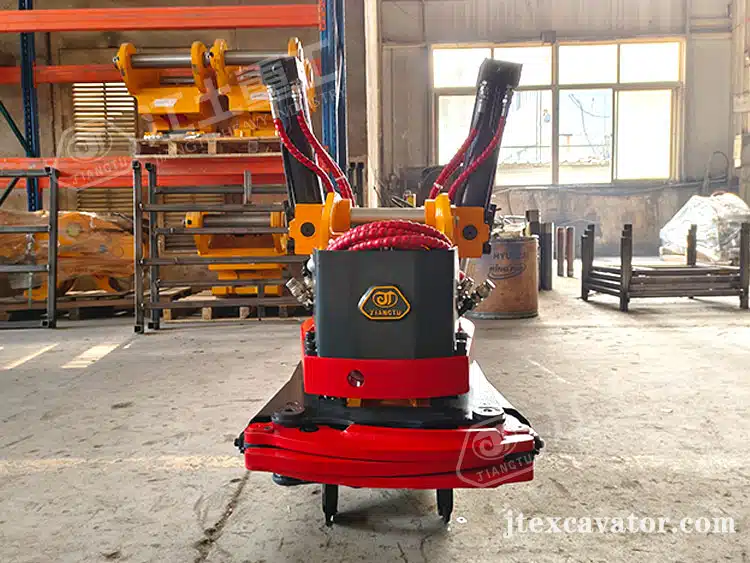

Product Images & Video
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
