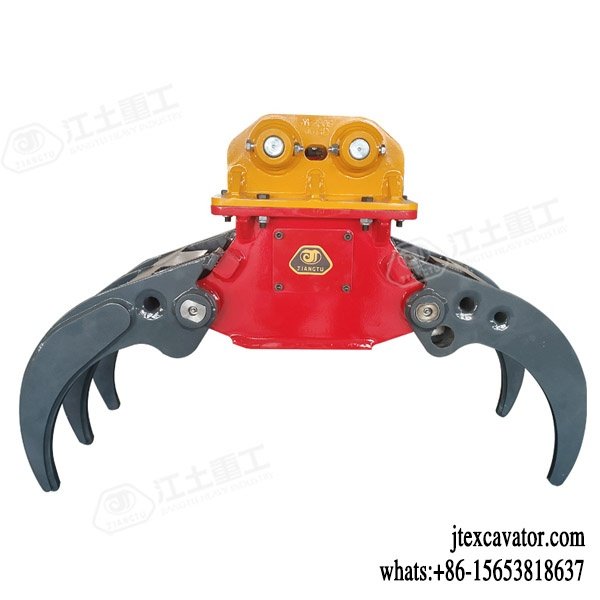

Multi-Function Universal Hydraulic Grapple
When you’re on a demanding job site, the last thing you need is an attachment that can’t handle the stress. The JIANGTU Universal Grapple is built on an integrated modular platform. This isn’t just about assembly; it’s about tighter tolerances and long-term structural integrity.
Weโve moved to a horizontal cylinder design for a specific reason: it balances the clamping force across the frame. This prevents the attachment from twisting under load and significantly reduces uneven wear on your excavator’s bushings. To keep your maintenance simple, we’ve cleaned up the hydraulic routing, making hoses easy to access and less prone to snagging. Whether you need the 360ยฐ continuous rotation for precise picking or a fixed bracket (adjustable to ยฑ90ยฐ) for heavy-duty prying, this grapple is engineered to stay on the machine and off the shop floor.
We can offer the OEM/ODM services of excavators attachments. The product can be customized according to your personalized requirements. Please offer your design documents or tell us your ideas and our R&D team will do the rest.
Multi-Function Universal Hydraulic Grapple

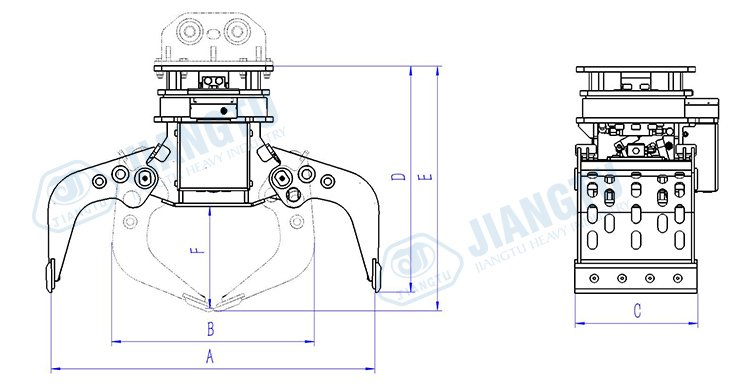

| Item | unit | JT-00 | JT-01 | JT-02 | JT-04 | ||||||||
| standard type | flat type | 3+2 fingers | standard type | flat type | 3+2 fingers | standard type | flat type | 4+3 fingers | standard type | flat type | 4+3 fingers | ||
| Rotation Angle | ยฐ | 360 | 360 | 360 | 360 | ||||||||
| Motor Pressure | bar | 180-200 | 180-200 | 180-200 | 180-200 | ||||||||
| Necessary Flow | LPM | 20-25 | 20-25 | 20-25 | 20-25 | ||||||||
| (25mpa)Tine Clamping Force | T | 0.8 | 1.1 | 1.35 | 1.4 | 1.45 | 1.45 | 1.4 | 1.45 | ||||
| Suitable Excavator | T | 1-2 | 2.5-4 | 4-6 | 6-9 | ||||||||
| Total Weight (without rotation) | kg | 91 | 90 | 88 | 142 | 140 | 138 | 230 | 240 | 245 | 340 | 350 | 355 |
| Total Weight (with rotation) | kg | 131 | 130 | 128 | 195 | 200 | 205 | 305 | 310 | 315 | 425 | 430 | 435 |

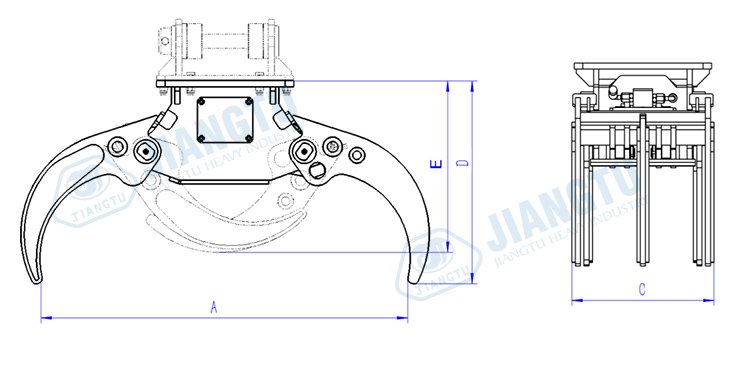

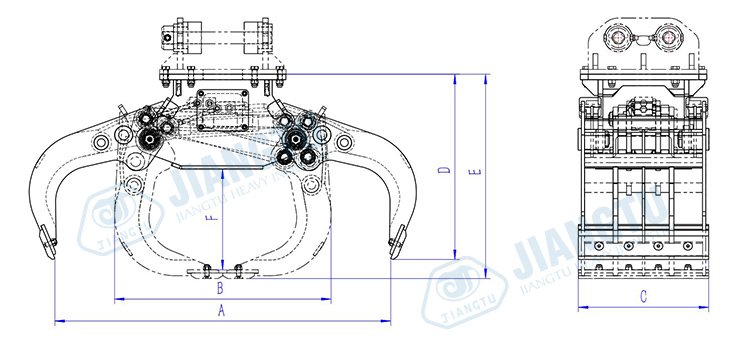

| Opening A | mm | 860 | 850 | 855 | 1180 | 1180 | 1200 | 1420 | 1420 | 1440 | 1540 | 1515 | 1510 |
| Height D | mm | 472 | 470 | 470 | 610 | 615 | 610 | 780 | 810 | 800 | 820 | 865 | 840 |
| Claw Width C | mm | 330 | 330 | 330 | 380/420/470 | 380/420/470 | 340/420 | 420/500/550 | 420/500/550 | 420/500 | 460/570/620 | 460/570/620 | 480/570 |
| Height E | mm | 515 | 515 | 515 | 630 | 630 | 590 | 880 | 880 | 820 | 980 | 980 | 716 |
| Width B | mm | 545 | 550 | / | 600 | 600 | / | 740 | 740 | / | 890 | 904 | / |
| Closing Volume/Minmum Diameter | mยณ/mm | 0.035-0.04 | 0.038-0.041 | 90 | 0.09-0.11 | 0.1-0.12 | 110 | 0.15-0.20 | 0.16-0.23 | 100 | 0.18-0.23 | 0.19-0.26 | 130 |

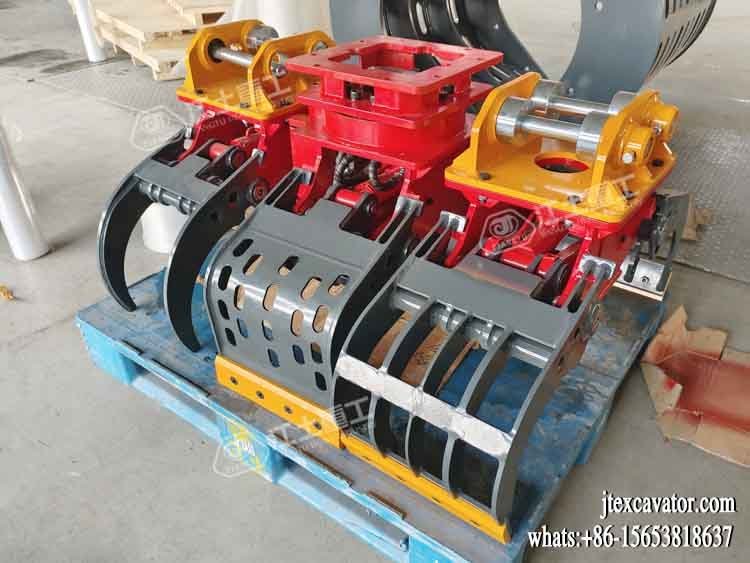

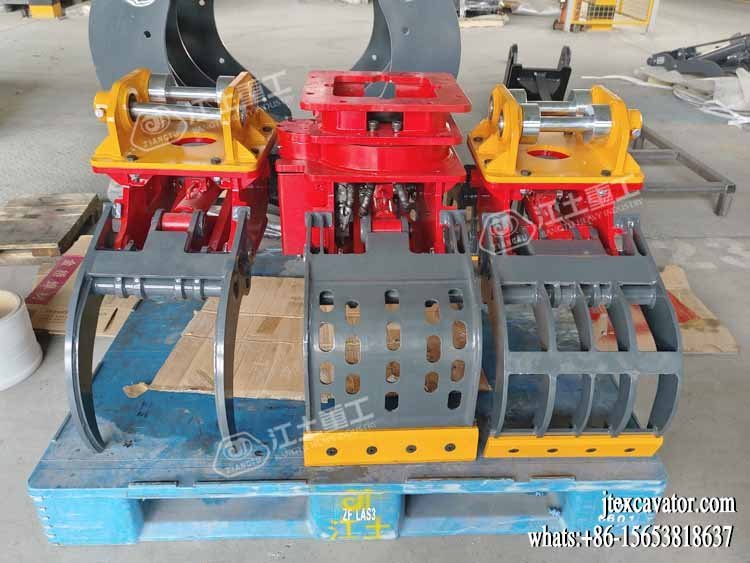

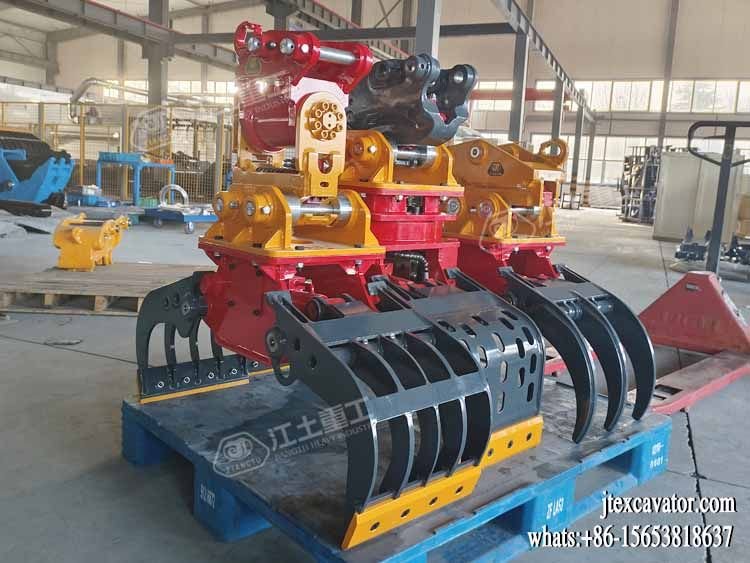

One Attachment, Multiple Roles: Reduce Your Inventory Costs
The real value of the JIANGTU Universal Grapple lies in its quick-change claw system. We designed the core components to be universal across the entire series. Instead of buying and maintaining three different grapples for logs, scrap, and demolition, you simply swap the claw sets on a single frame.
For fleet owners, this means dramatically lower overhead. You stock fewer spare parts and spend less on specialized attachments. The multi-claw design is rugged enough for heavy demolition sorting but precise enough for landscaping and forestry work. Itโs a straightforward, cost-effective solution for contractors who need to transition from concrete recycling to timber handling without the expense of multiple dedicated tools.
Key Advantages of JIANGTU Multi-Function Universal Hydraulic Grapple

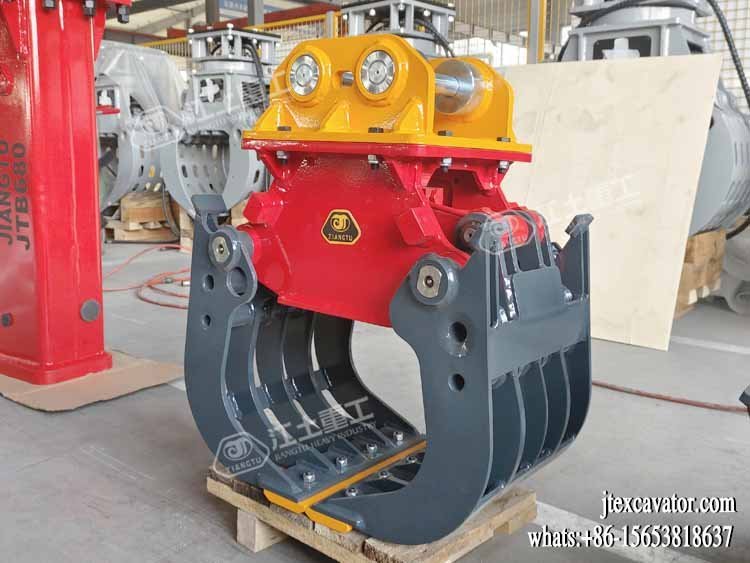

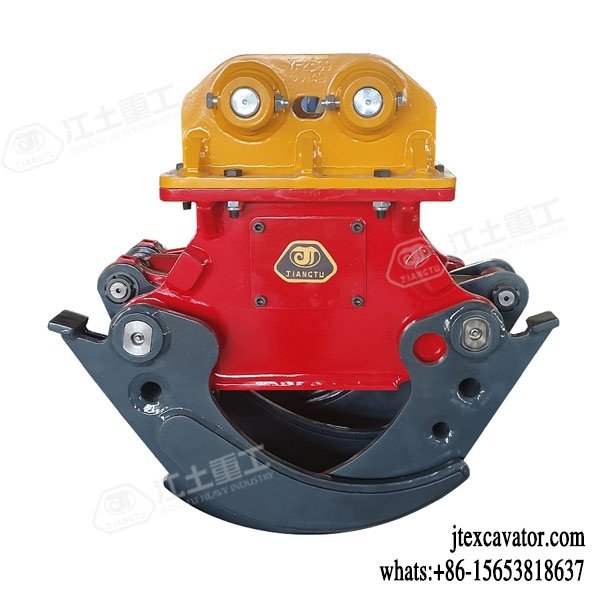

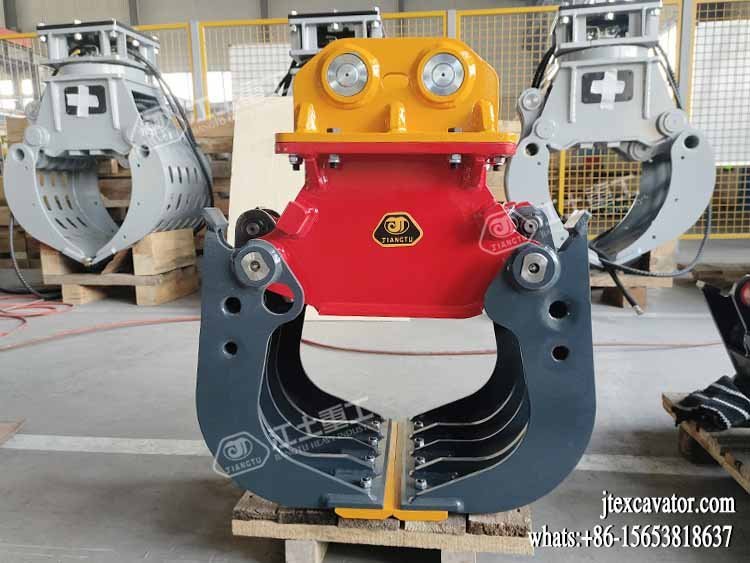

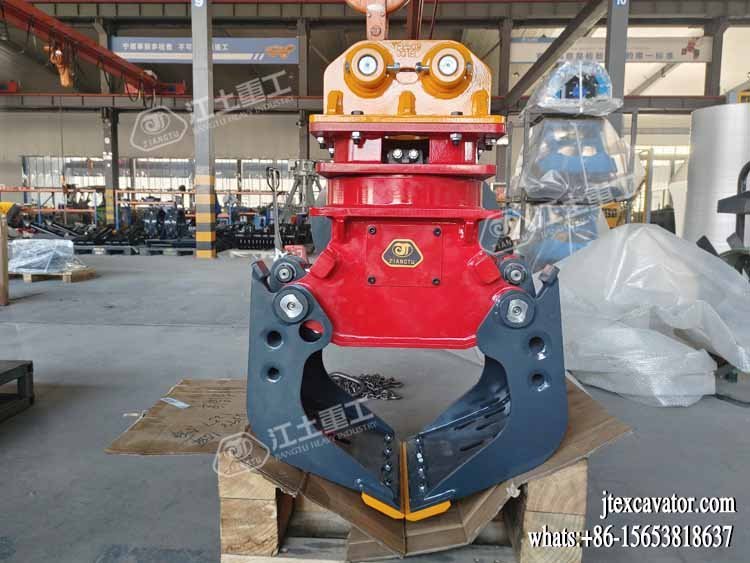

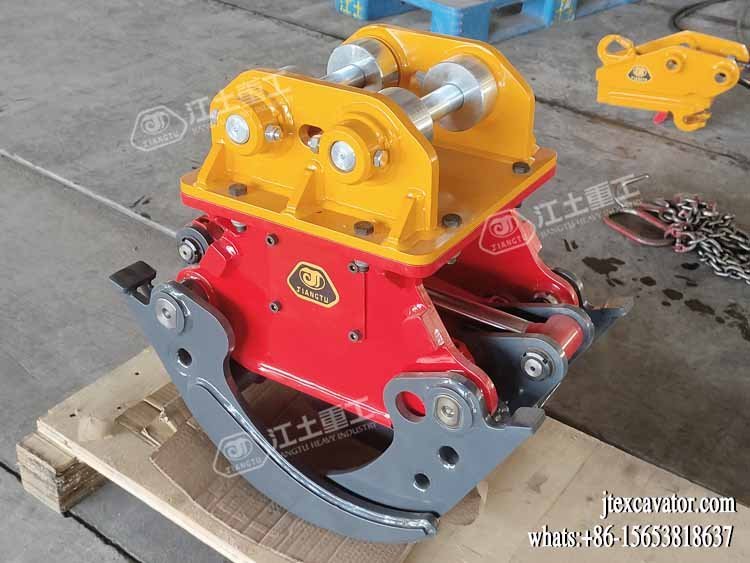

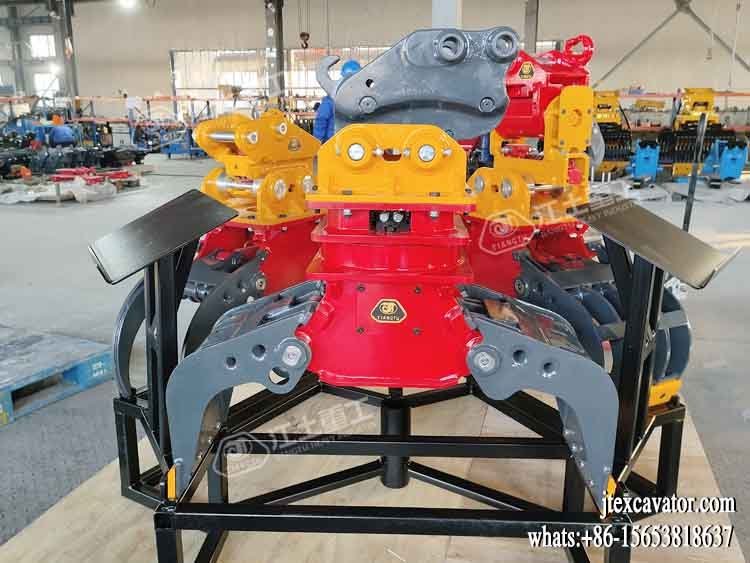

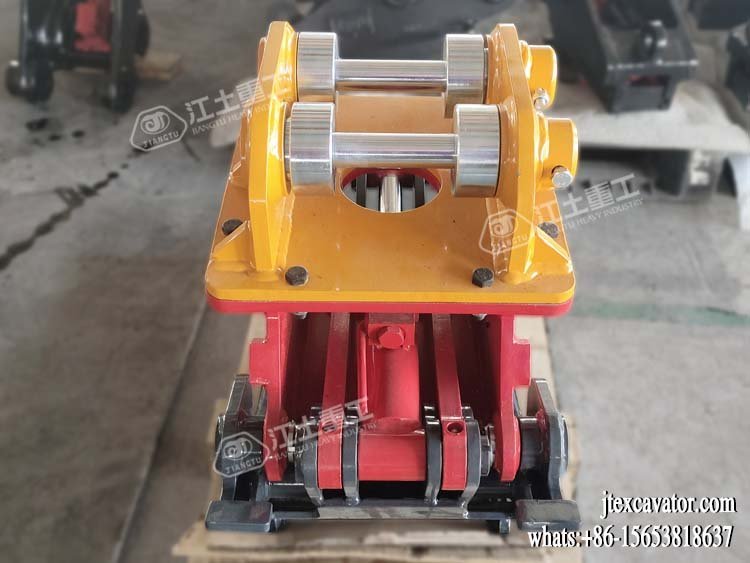

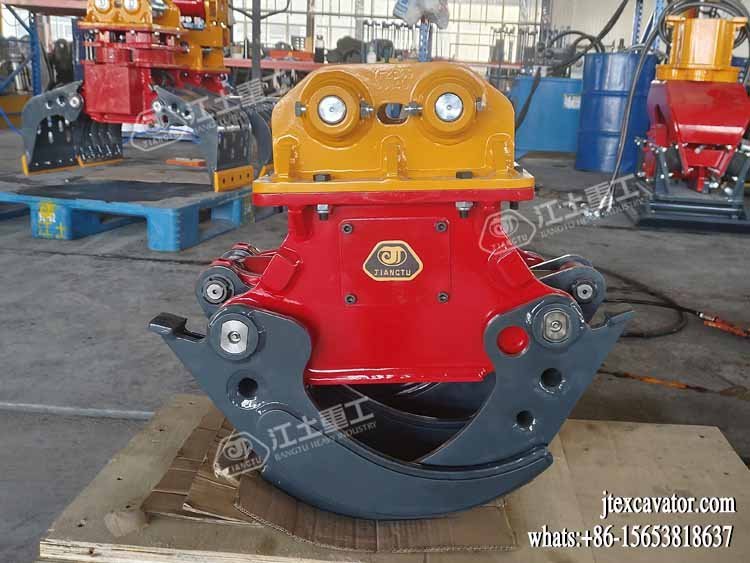

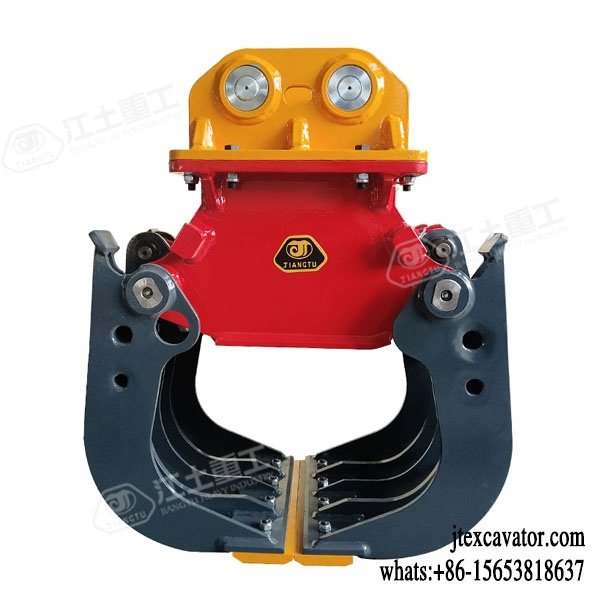

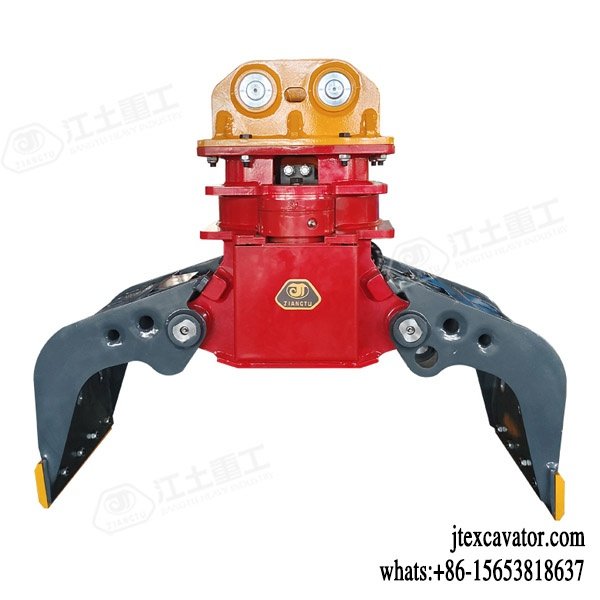

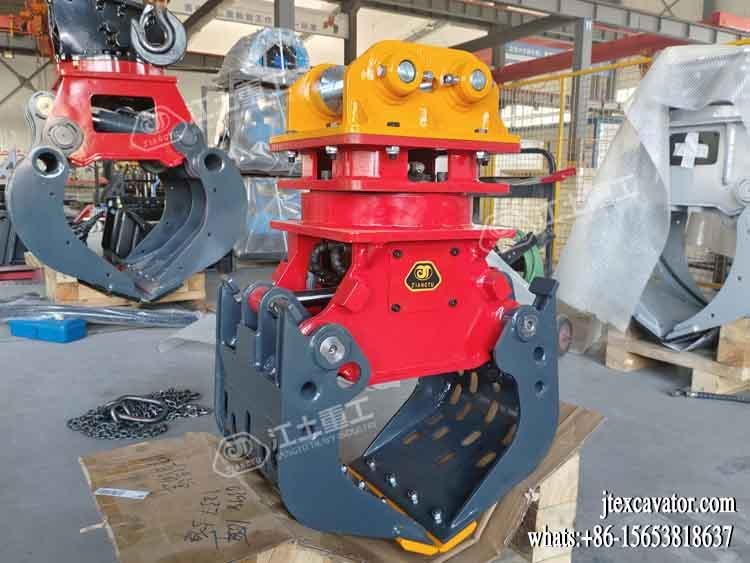

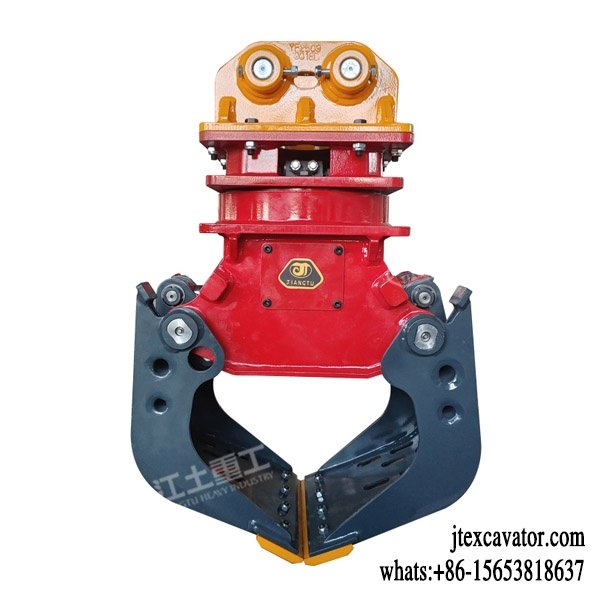

Product Images & Video
Certificate
Through 10 years of digging in research and development, JiangTu Company achieved more than 20 patents such as invent/design patent successively and received CE, ISO, and SGS certificates from 2012 to 2021 and now started a new chapter to explore the global market.
Q1: Why choose a horizontal cylinder design over the traditional vertical one?
A: Itโs about balance. The horizontal design distributes clamping force evenly across the frame, preventing the grapple from twisting under heavy offset loads. This not only extends the attachment’s lifespan but also protects your excavator’s bushings from premature wear caused by uneven pressure.
Q2: Can I actually use one frame for different applications?
A: Absolutely. Thatโs the core of our modular system. Since the main frame and core components are universal, you only need to swap the “claw sets” for log handling, scrap sorting, or demolition. This eliminates the need to buy multiple dedicated grapples, significantly reducing your upfront investment and inventory overhead.
Q3: Is the hydraulic system easy to service in the field? What about hose damage?
A: Weโve optimized the hydraulic routing based on field feedback to ensure all connection points are easily accessible for routine maintenance. By cleaning up the layout, weโve also minimized the risk of hoses snagging or getting damaged by debris, keeping your machine working and out of the repair shop.
Q4: Which rotation and mounting configuration should I choose?
A: It depends on your specific job. If you need precision for tasks like loading or sorting, our 360ยฐ continuous rotation model is the way to go. If you are focused on heavy demolition, prying, or are more cost-conscious, our fixed bracket model is a robust choice; its head can be manually adjusted to ยฑ90ยฐ to suit different angles.
