Big News! JIANGTU Excavator Casting Triple locking Quick Hitch Coupler is Coming

When it comes to the JIANGTU quick hitch coupler, there is strong impression of “good quality, less problem, long durability”. That impression comes from the reputation and technology accumulated JIANGTU for more than ten years quick hitch coupler manufacturing.

JIANGTU tilting rotator, tilting quick hitch coupler, automatic double locking quick hitch coupler, S type quick hitch coupler, manumatic excavator quick coupler , mechanical quick hitch coupler, etc, were exhibited the 2024 Shanghai BAUMA, have attached much attention and consultation from many customers.

Yantai Jiangtu Mechanical Equipment Company is a leading manufacturer of excavator attachments in China. All products’ quality is strictly under control from processing to delivery. By continuous innovation and improvement, the company has got ISO 9001, CE Certifications, and Technical Patents successively. Our products have been sold to widely domestic and overseas customers and long-term partnerships have been developed.

The JIANGTU R&D team is not satisfied with the existing achievements. With the dream and goal that being “the leading Chinese excavator quick hitch coupler manufacturer”, we constantly discovers the needs from customers, continuously optimizes product design according to customer feedback. The new come casting triple locking quick hitch coupler meets the market’s demand for high-efficiency, safe, durable and energy conservation.

Casting Triple Locking Quick Hitch

The first triple locking designs in the current market. This design ensure safe and durable, never drop the bucket.
Lower height, lighter weight, and saving more energy consumption.
The concept design of “compensation volume” solves the problems of “scattering soil” and “decrease in excavation power” for user.
Reasonable design, long service life and high cost performance.
Flexible trigger design makes lower maintenance cost.
The center to center distance range can be reached 220-320mm, which is suitable for more different attachment sizes.

JIANGTU casting triple locking quick hitch coupler has the following characteristics:

1. The first triple locking designs in the current market. This design ensure safe and durable, never drop the bucket

On the basis of the original front and rear safety pin, it improve the moving hook stop block safety, which is added to prevent the potential of cylinder leakage and piston rod breakage. the design meets EU standards and has been patented.

2. Lower height, lighter weight, and saving more energy consumption

Greatly optimization of the external dimensions makes the structure compact, especially the size of the upper and lower pin is greatly reduced, so that the height and weight of the quick hitch coupler reach the lowest record in the industry. And also, it greatly reduce the energy consumption of the excavator.

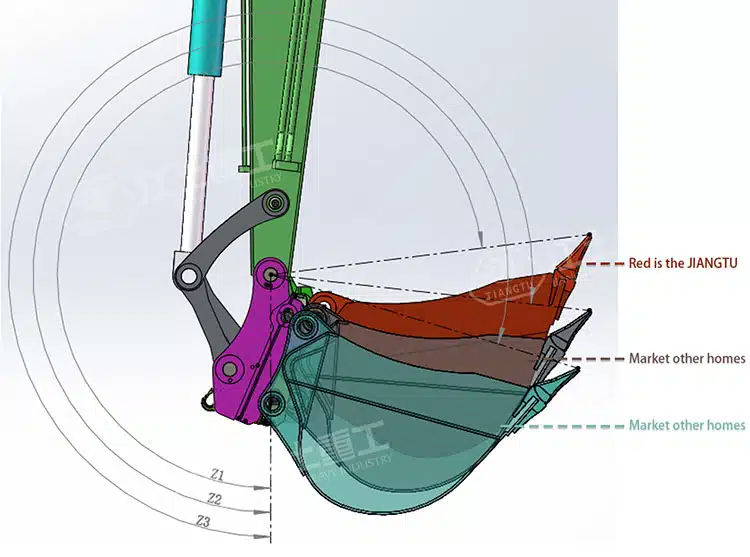

3. The concept design of “compensation volume” solves the problems of “scattering soil” and “decrease in excavation power” for user.

Through the “increasing compensation volume” design, the digging bucket is compensated by the lifting height under the premise that the bucket does not spill soil. And the digging force of the digging bucket decreases very little in the mean time. By comparing with other companies products, the excavation force is increased by 4% and the lifting force is increased by 4-7%.

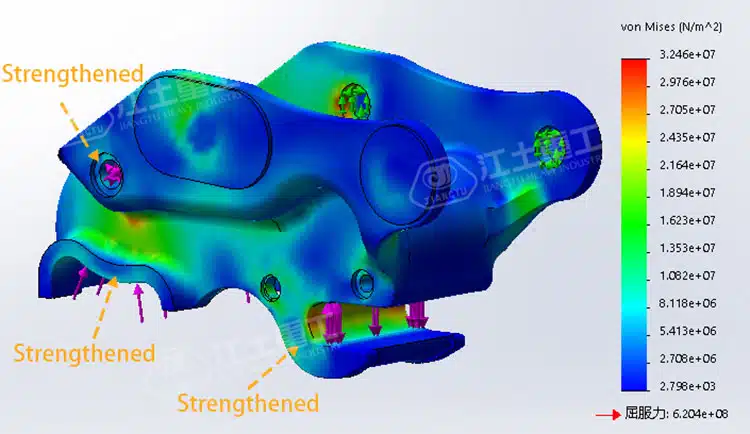

4. Reasonable design, long service life and high cost performance

The product structure has been optimized. It makes the force point can effectively increase the force area on the shell, disperse the local stress, and increase the compensation amount of the moving hook. The longer it is used, the better that fit. The comprehensive service life is 1.5 times than the previous generation, and 3-4 times than other products.

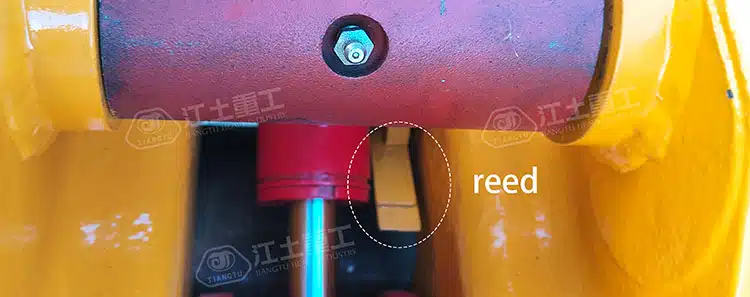

5. Flexible trigger design makes lower maintenance cost

The trigger spring plate made of flexible and elastic material with high bending fatigue resistance, in order to greatly increase the durability, simple the replacement, and promise lower maintenance cost.

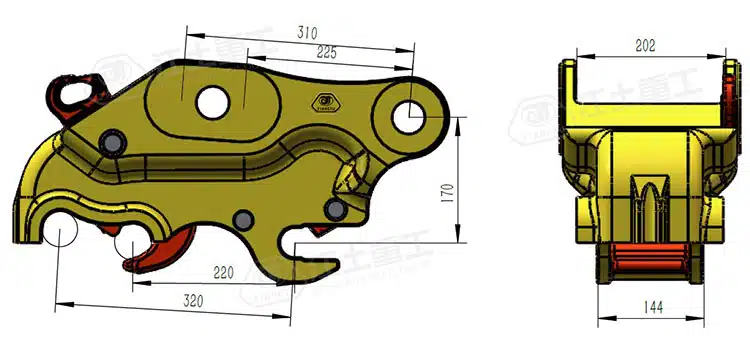

6. The center to center distance range can be reached 220-320mm, which is suitable for more different attachment sizes.

The center to center distance range can be reached 220-320mm, which has 100mm of the application range. It has 40-50mm more than the similar products. The open width range can be reached to 145–200mm. These changing expends the applicability and compatibility.

In the construction machinery field, efficiency and reliability are the core of attachment operation. JIANGTU “Casting triple locking quick hitch coupler” combines the advantages of safety, lightness, high efficiency, durability, energy saving, etc., to help improve the efficiency of excavators in an all-round way!

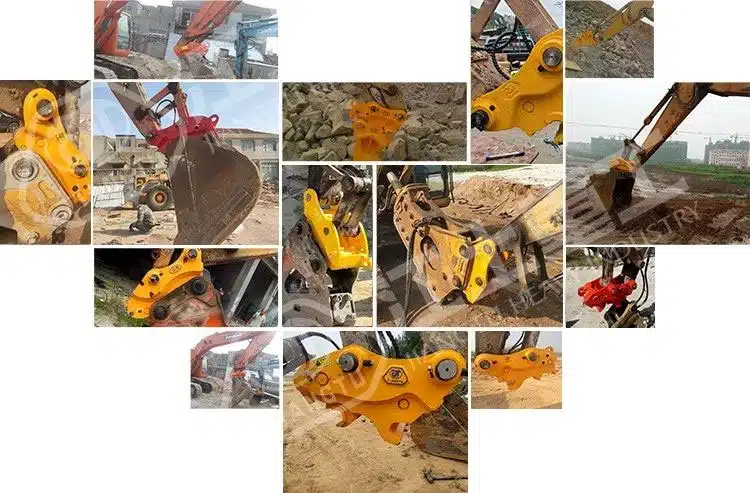

JIANGTU casting triple locking quick hitch coupler application scenario:

Construction: To quickly switch buckets, crushing hammers and other attachments to adapt different construction needs.

Mining operation: high-strength material and triple locking design to ensure the stable operation of attachments in harsh working environments.

Municipal engineering: Quick replacement attachments improve the efficiency and flexibility of municipal construction.

Agricultural development: Quick changing a variety of agricultural tools to meet diversified working needs.

Why selecting the JIANGTU casting triple locking quick hitch coupler?

Protecting the safety: the triple locking designs ensure safety, equipment stability and working efficiency.
Energy saving: Its lightweight design can reduce the working load of the excavator and reducing fuel consumption.
Improve working efficiency: “compensation volume” design solve the problem of decline in excavation power and improve efficiency.
Reduce maintenance costs: flexible trigger design reduce the replacement cost of consumable parts.
High cost performance: the product has a lower failure rate, longer service life and higher cost performance.
Strong applicability and compatibility: 220-320mm large center to center distance range, can connect different sizes of bucket and other varies of attachments.

Comments from users:

“My friend bought JIANGTU quick hitch coupler three years ago and it’s quite good to use. This time I want to buy a casting one” – a driver from construction site

“The quick hitch I installed is all from JIANGTU, and it has never been broken. The too cheap attachment is not reliable, I don’t want to try it, since if it broken that will cost me a lot” – an excavator accessories dealer

New coming, flashing sale!

In order to celebrate the coming of JIANGTU casting triple locking quick hitch coupler, we specially launched flashing sale. If you purchase in recently, you can enjoy a special discount and priority delivery service. Come on! It is a rare opportunity, do not hesitate!
