How to install the pipeline of excavator quick hitch and attention points during the processing are shared as below. It is simple. If you are interested, welcome to check.
Installation
Pipeline installation steps

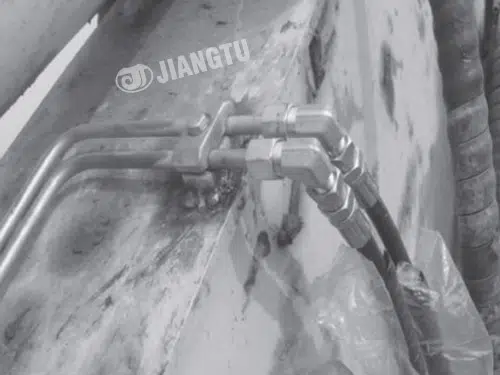

First weld the iron pipe to the forearm with the pedestal.
Weld the 90°butt joint above the iron pipe to connect the pipe②
Weld the 90°butt joint to connect pipe ① and well adjust the angle
| Level | Distance(mm) |
| 02 | 150 |
| 04 | 150 |
| 06 | 200 |
| 08 | 230 |
| 10 | 280 |
| 17 | 280 |
The distance between the bottom of iron pipe and theforearm.
The 90°butt joint must be tightly topped to the iron pipe. Tighten the pedestal to weld it.
Connect pipe ② to pipe③

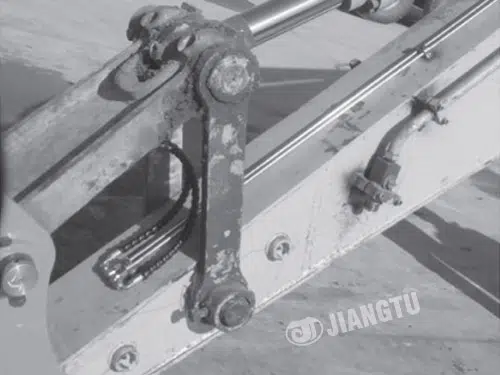

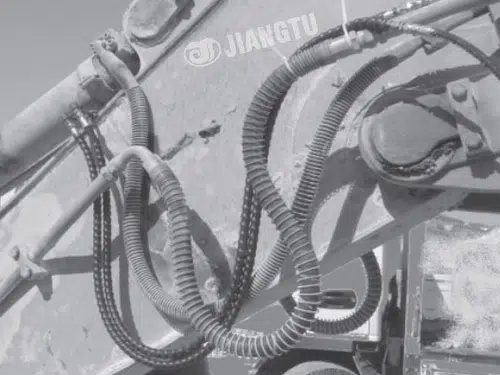

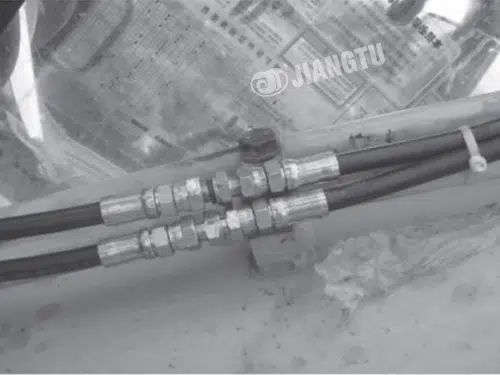

Connect the pipe ③ and pipe ④ with the double nipple and tighten the boom with the cable tie.

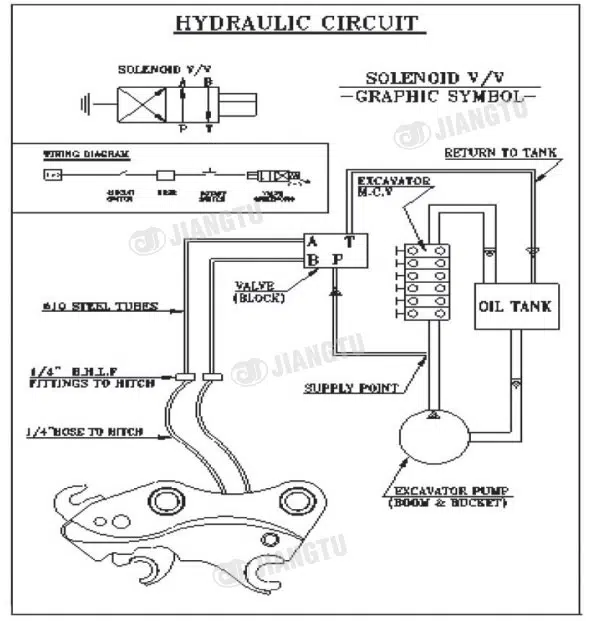

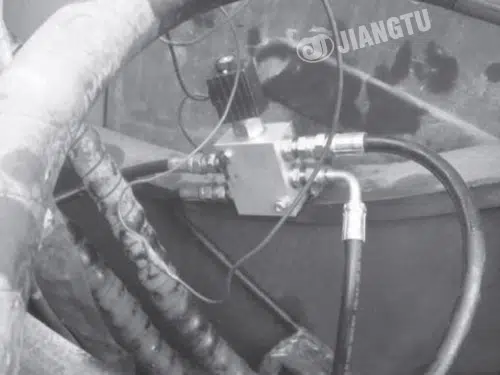

Connect Pipe④ to nexus A and B of the solenoid value. The solenoid value is stabilized or welded to the bottom of the boom.Two wires of the solenoid value (one connects the solenoid value, another connects the standby wire of mains and is pulled to the cab being connected to the switch.)

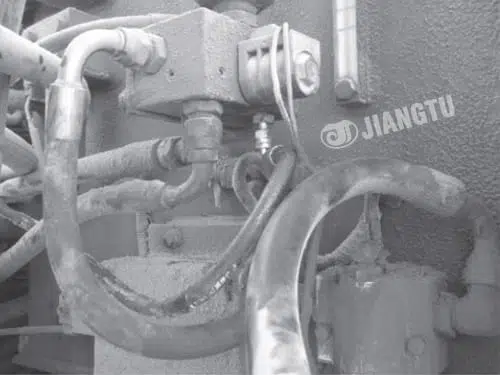

Connect Pipe⑤ to the nexus P, T of the solenoid value P(oil in) will get pilot oil.
Remarks: When the switch is off power and there is oil in the nexus P, nexus A will feeds oil.

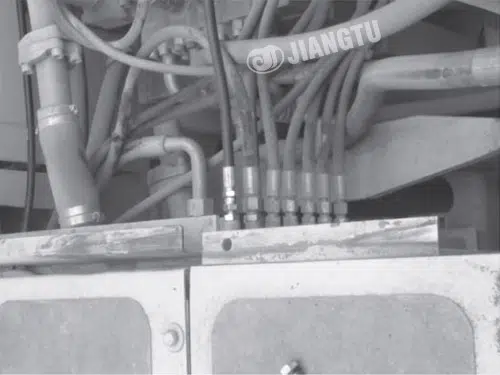

Connect Pipe⑤ to the nexus P,T of the solenoid value, the nexus T (oil return) is connected to the hydraulic tank or the return pipeline.

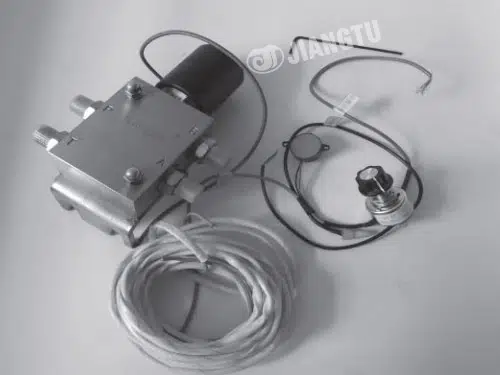

Switch connection: (1) Green wire connects the solenoid valve. (2) Red wire connects the positive pole. (3) Black wire connects the negative pole.
When switch on (turn right), the buzzer alarms and the cylinder retracts; when switch off (turn left), the cylinder extends.
Remarks: When the switch (turn left) is off, the cylinder is in a state of oil feeding, it will always top the pin.

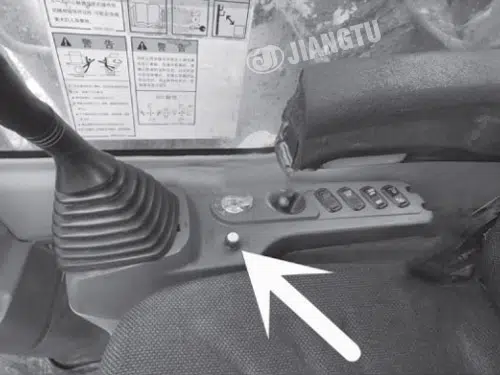

The switch is drilled to be stabilized on the spare switch position.

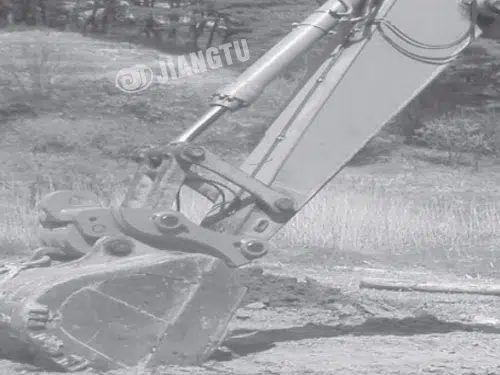

When change the attachments, switch on (turn right), the forearm cylinder will retract and the fixed hook will be stuck.

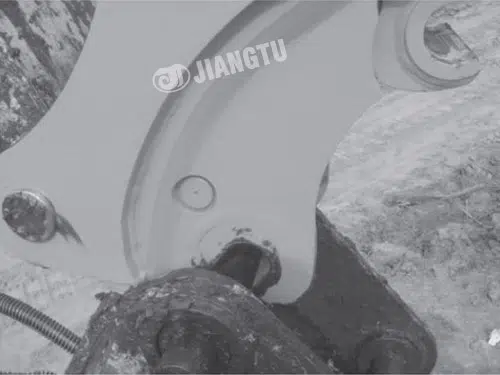

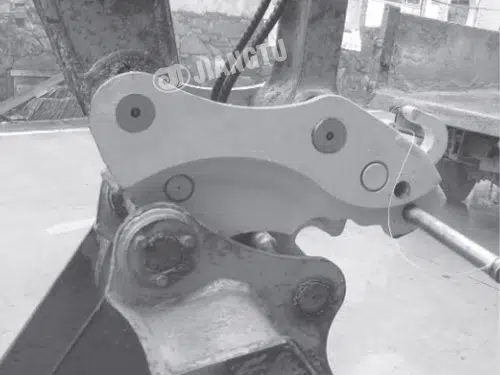

When the fixed hook is stuck, slowly extend the forearm cylinder, and the coupler will be put down. Then switch off (turn left), the safety pin will be plugged into the identifying hole to lock it according to the instruction.
