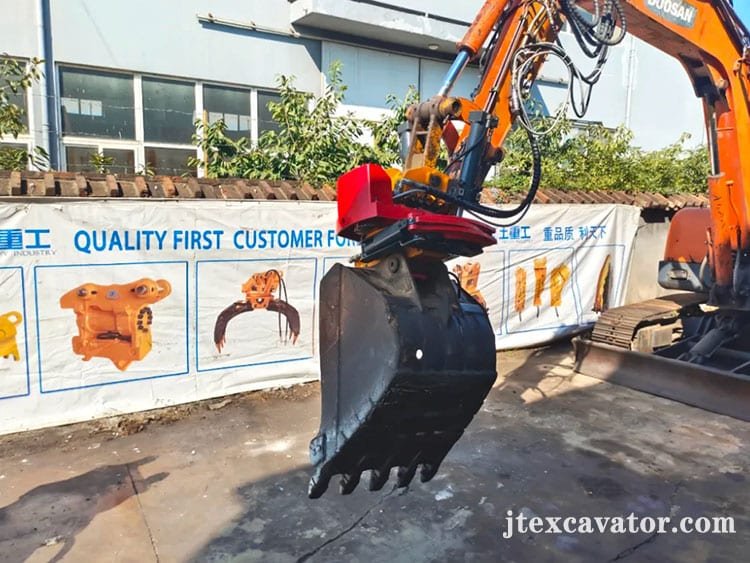

Since the launch at the beginning of 2024, tilt rotator from Yantai Jiangtu has attracted wide attention from the market and received orders from many customers. It has been operating normally in domestic working conditions and has been recognized and praised by customers.

Yantai Jiangtu Mechanical Equipment Company is a leading manufacturer of excavator attachments in China. All products’ quality is strictly under control from processing to delivery. By continuous innovation and improvement, the company has got ISO 9001, CE Certifications, and Technical Patents successively. Our products have been sold to widely domestic and overseas customers and long-term partnerships have been developed.

  • 360 degree rotation, 45 degree tilt left and right.
  • 2025 version tilt rotator is lighter in weight and smaller in size.
  • Added speed control function for rotation and tilt
  • Triple insurance design, with higher safety factor
  • Gripping force at the grab tip is increased and it has better synchronization.
  • Strong universality.Be suitable for matching all routine domestic attachments.
  • High-strength wear-resistant plates are used, it has a long service life.
Learn More

Technical experts from Yantai Jiangtu are not satisfied with their current R&D status. They continuously optimize product design based on customer feedback, making 2025 version tilt rotator smaller, lighter, and more functional. It has following upgrades:

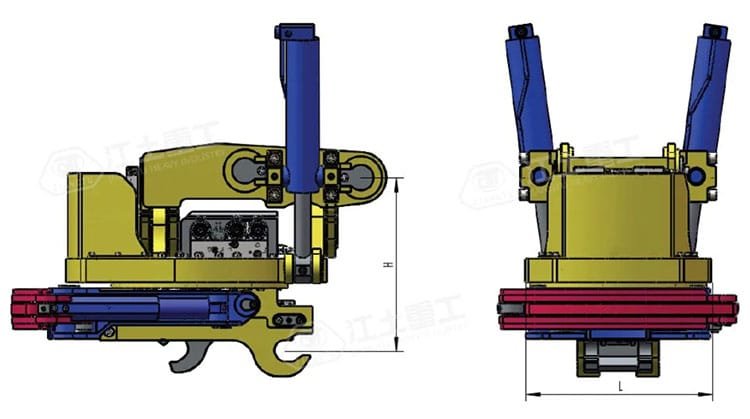

2025 version tilt rotator is lighter in weight and smaller in size

During the product development process, we gradually optimized, especially the improvement of the pipeline. Every detail is carefully considered to make the product height lower, so as to avoid the loss of digging force of the excavator and increase fuel consumption.

The width has become narrower and is within the bucket width, so deep trenches can be dug without touching the motor. We have reduced the weight of JT-02 tilt rotator by more than 80 kilograms.

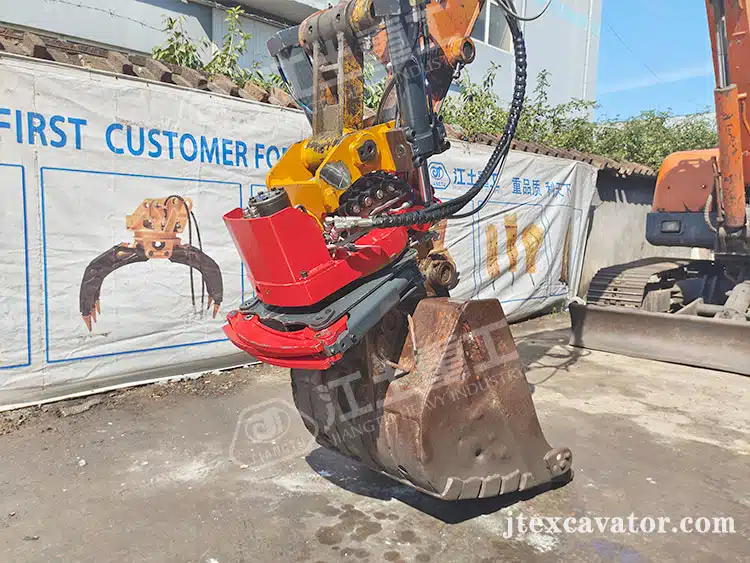

Added speed control function for rotation and tilt

Using the thumbwheel handle and imported proportional solenoid valve, the movement speed can be controlled. The excavator operator can speed up or slow down the speed of 360° rotation or tilt at will.

Triple insurance design, with higher safety factor

Based on the original fully automatic double lock safety, a third visual rear lock safety device has been added. This design with a higher safety factor is leading in the industry, complies with EU standards and has been applied for an invention patent.

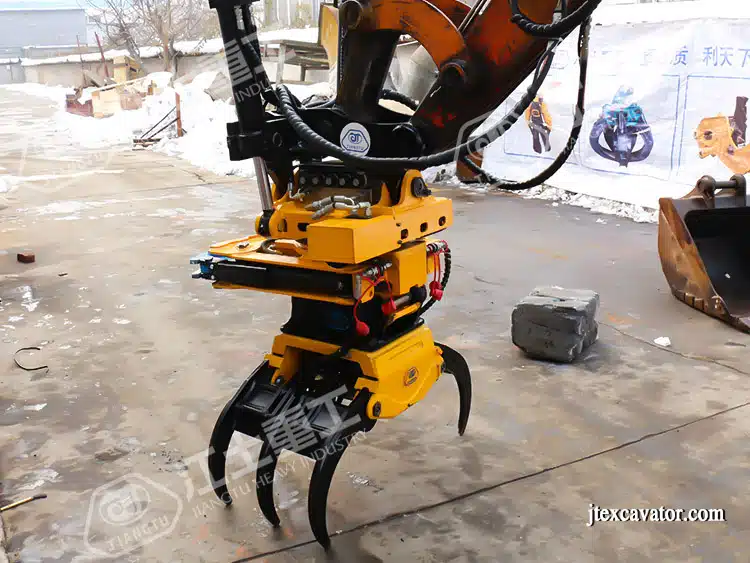

Gripping force at the grab tip is increased and it has better synchronization

The tip of JT-02 tilt rotator gripper has a holding force of up to 300 kg, which increases the effective load-bearing capacity of the excavator. The gripper uses a mechanical connecting rod to control its synchronization, which is more reliable than a hydraulic synchronization valve. It can also easily clamp objects in narrow corners, and has a wide range of applications.

Strong universality

Compared with the first generation of foreign tilt rotator that can only be matched with S type attachments, tilt rotator from Yantai Jiangtu are more versatile. It has a large adjustable pin center distance and is suitable for matching all routine domestic attachments.

High-strength wear-resistant plates are used, it has a long service life. Yantai Jiangtu is confident that we can fulfill after-sales commitment of six-month free replacement and one-year warranty.

Yantai Jiangtu has been focusing on developing and manufacturing quick couplers for more than 12 years. Quick Coupler from Yantai Jiangtu are synonymous with professionalism and durability in the domestic quick coupler industry. Tilt Rotator developed by Yantai Jiangtu is not inferior to foreign famous brands. From November 26th to 29th ,Yantai Jiangtu will also participate in the bauma China Exhibition with 2025 version tilt rotator. Our Booth No.: E4.811. Customers are welcome to see the actual products and communicate face to face.
